Waterproof 5050 LED Display Module
LumaCircuit offers Waterproof 5050 LED Display Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -40°-50° Size: 68mm*19mm*6mm(L*W*H) Color: Red/Yellow/Blue/Green/White/Warm White/RGB The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 5050 LED display wodules use the high-quality and super bright 5050 SMD LEDs as the light source, 3PCS LEDs mounted on the aluminum board for better heat dissipation and in the ABS injection shell, the surface with epoxy sealed, the IP rating reach to IP65, can be used for indoor and outdoor signs, channel letters, metal letters, lightboxes, etc.
- Working Temperature: -40°-50°
- Size: 68mm*19mm*6mm(L*W*H)
- Color: Red/Yellow/Blue/Green/White/Warm White/RGB
- Luminous Flux: Red(18-21lm)/Green(45-50lm)/Blue(13.5-15lm)/Yellow(18-21lm)/Warm White(58.2-63lm)/Cool White(58.2-63lm)/Neutral White(58.2-63lm)
- Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
- Luminous Intensity: 800- 1500 mcd
- Length Of Wire Between 2PCS Modules: 5cm
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-GO3HKE
- Working Temperature: -40°-50°
- Size: 68mm*19mm*6mm(L*W*H)
- Color: Red/Yellow/Blue/Green/White/Warm White/RGB
- LED: 5050 SMD LEDs
- LED Quantity: 3PCS
- Voltage: DC12V
- Power: 0.72W/PC
- IP Rating: IP65
- Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 5050 LED display wodules use the high-quality and super bright 5050 SMD LEDs as the light source, 3PCS LEDs mounted on the aluminum board for better heat dissipation and in the ABS injection shell, the surface with epoxy sealed, the IP rating reach to IP65, can be used for indoor and outdoor signs, channel letters, metal letters, lightboxes, etc. The LED 5050 modules with screw holes and the back with double side adhesive tape, the installer can stick them on the place you want to install or use the screws to fix. The waterproof LED modules have 20 pieces per string, are cuttable, and are connectable. The installer can cut any quantity and reconnect them for your project. Working in DC12V, it is easy to connect to the waterproof LED power supply or the mini LED dimmer to adjust the brightness. Various emitting colors LED modules are available, and the installer can choose single colors or RGB.
Specifications
Manufacturer: TYoung
Working Temperature: -40°-50°
Size: 68mm*19mm*6mm(L*W*H)
Color: Red/Yellow/Blue/Green/White/Warm White/RGB
LED: 5050 SMD LEDs
LED Quantity: 3PCS
Voltage: DC12V
Power: 0.72W/PC
IP Rating: IP65
Luminous Flux: Red(18-21lm)/Green(45-50lm)/Blue(13.5-15lm)/Yellow(18-21lm)/Warm White(58.2-63lm)/Cool White(58.2-63lm)/Neutral White(58.2-63lm)
Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
Luminous Intensity: 800- 1500 mcd
Beam Angle: 120°
Length Of Wire Between 2PCS Modules: 5cm
Weight: 200g

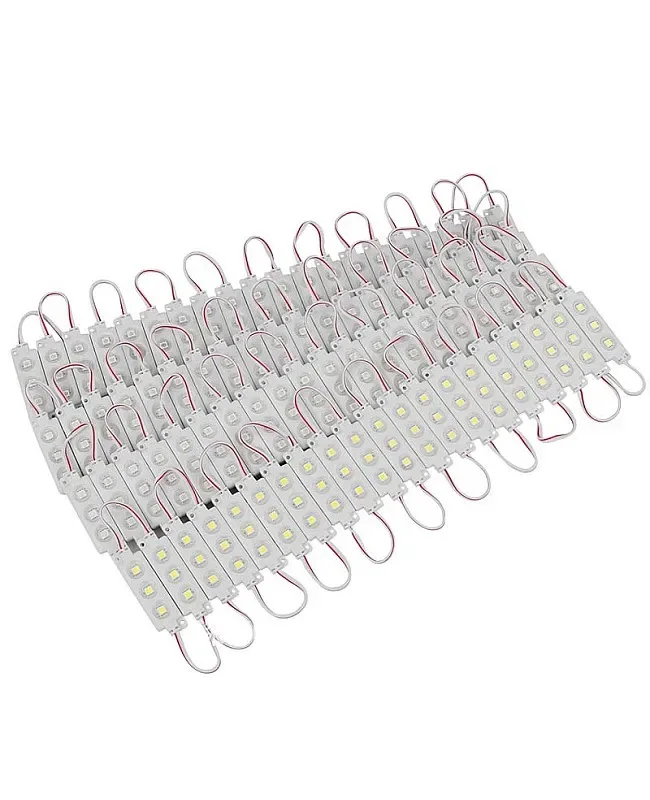

1 * Waterproof 5050 LED Display Module(20PCS/Set)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
