Product details

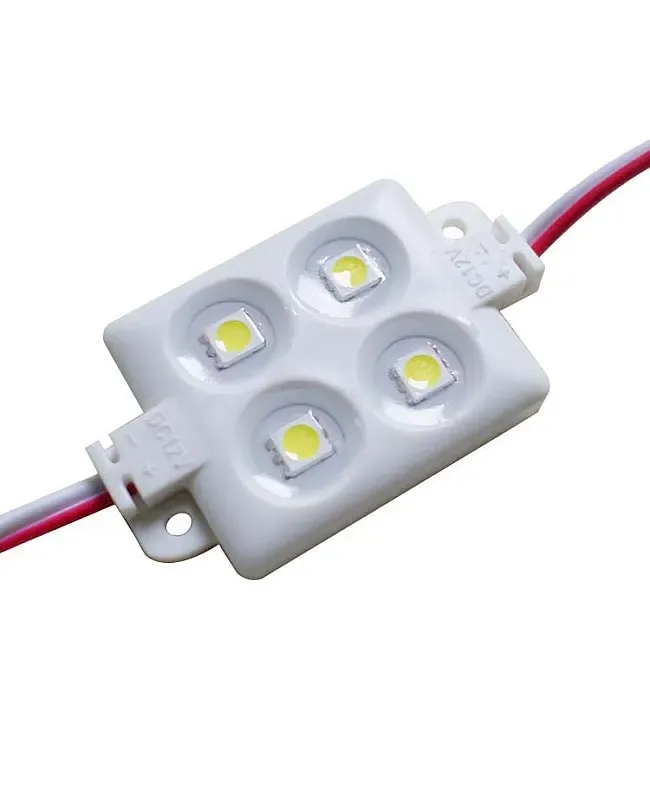

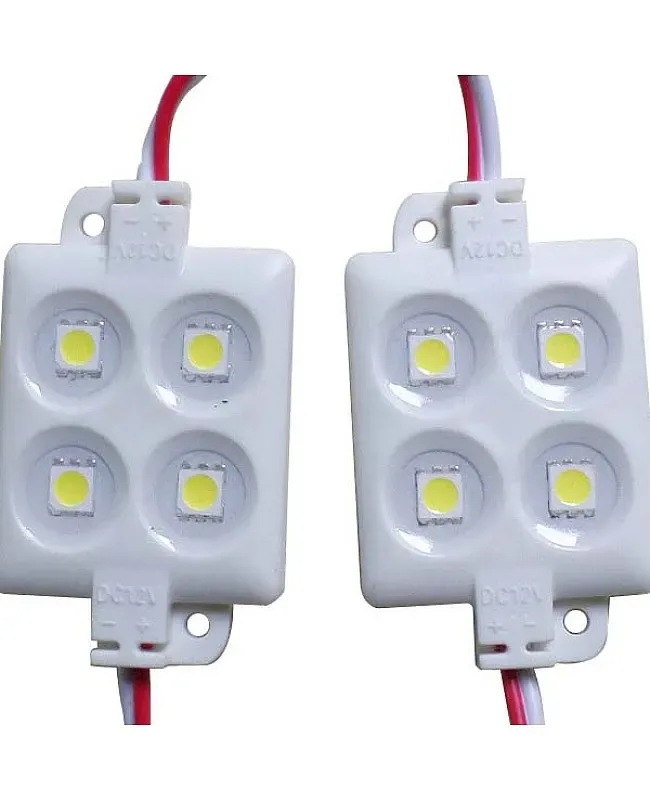

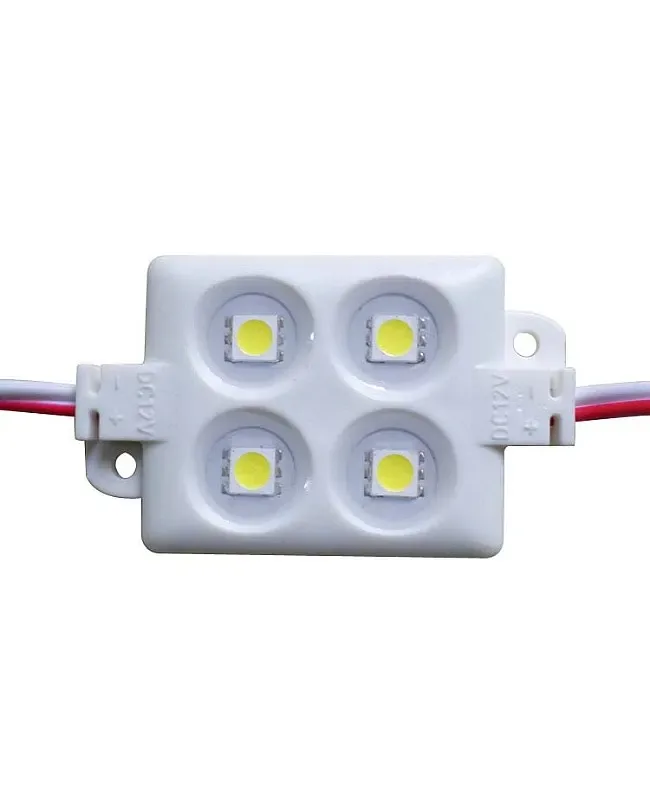

12V Waterproof LED Module 5050
LumaCircuit offers 12V Waterproof LED Module 5050 as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Driving Method: Constant Voltage Size: 55*33*5.7mm(L*W*H) Working Temperature: -25-60℃ The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Material: ABS + Epoxy Resin
- Driving Method: Constant Voltage
- Size: 55*33*5.7mm(L*W*H)
- Working Temperature: -25-60℃
- Power Consumption: 0.96W/PC

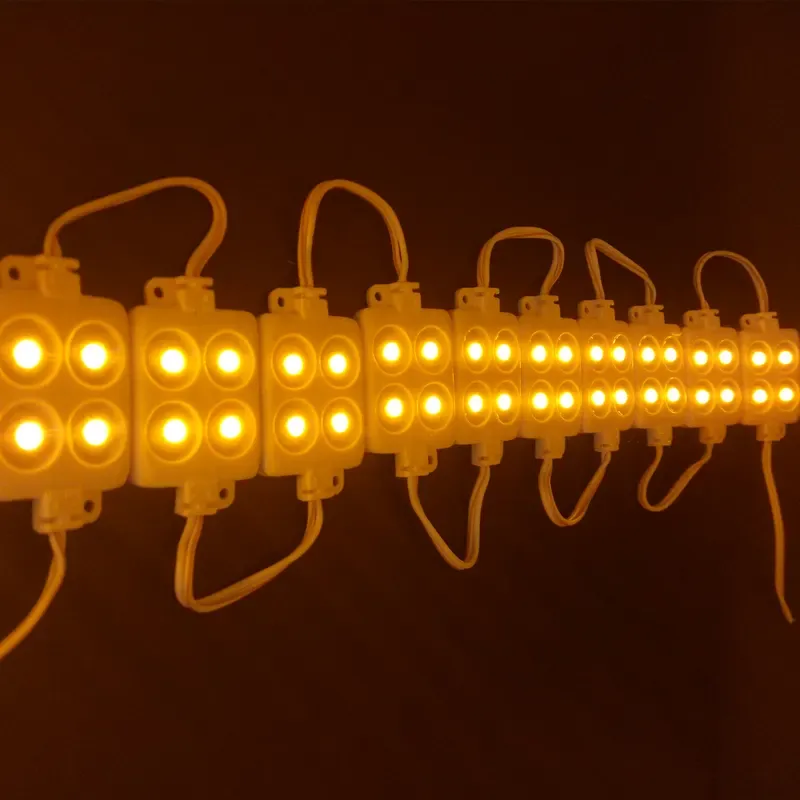

- Emitting Colors: Warm White, Cool White, Red, Green, Blue, Yellow
- Color Temperature: Warm White(2700K-3200K), Cool White(9000-12000K), Red(620-625nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
- Luminous Flux/PC: White(80-88lm), Red(26lm), Green(50lm), Blue(16lm), Yellow(20lm)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- Material: ABS + Epoxy Resin
- Size: 55*33*5.7mm(L*W*H)
- Working Voltage: DC12V
- Working Temperature: -25-60℃
- LED Type: 5050 SMD LEDs
- LED Quantity: 4PCS
- Input Current: 0.12A
- Lumen: 56-64lm
- Power Consumption: 0.96W/PC
- Power Factor: ＞0.9
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Material: ABS + Epoxy Resin
Driving Method: Constant Voltage
Size: 55*33*5.7mm(L*W*H)
Working Voltage: DC12V
Working Temperature: -25-60℃
LED Type: 5050 SMD LEDs
LED Quantity: 4PCS
Input Current: 0.12A
Lumen: 56-64lm
Power Consumption: 0.96W/PC
Power Factor: ＞0.9
Emitting Colors: Warm White, Cool White, Red, Green, Blue, Yellow
Color Temperature: Warm White(2700K-3200K), Cool White(9000-12000K), Red(620-625nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Luminous Flux/PC: White(80-88lm), Red(26lm), Green(50lm), Blue(16lm), Yellow(20lm)
View Angle: 120°
Waterproof Level: IP65
Optical Attenuation: >2%
Color Rendering Index

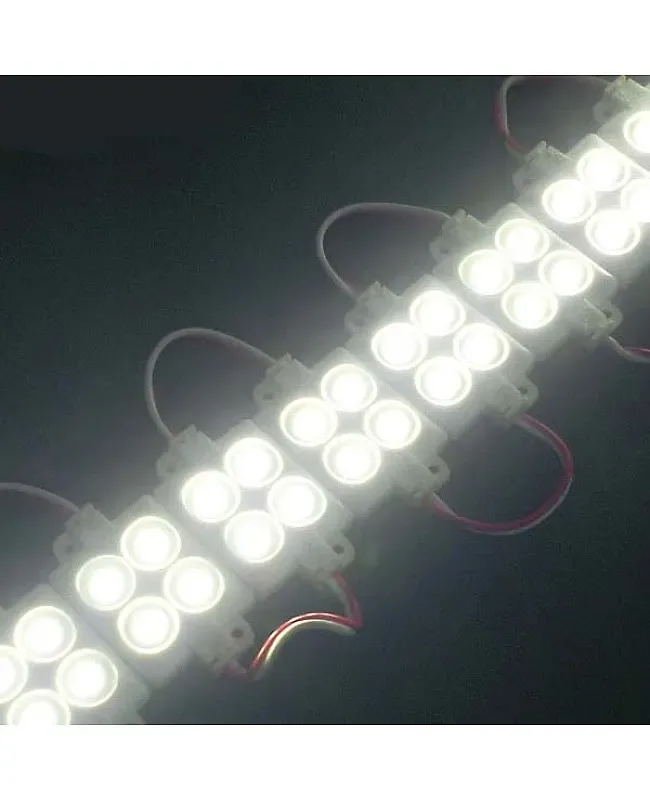

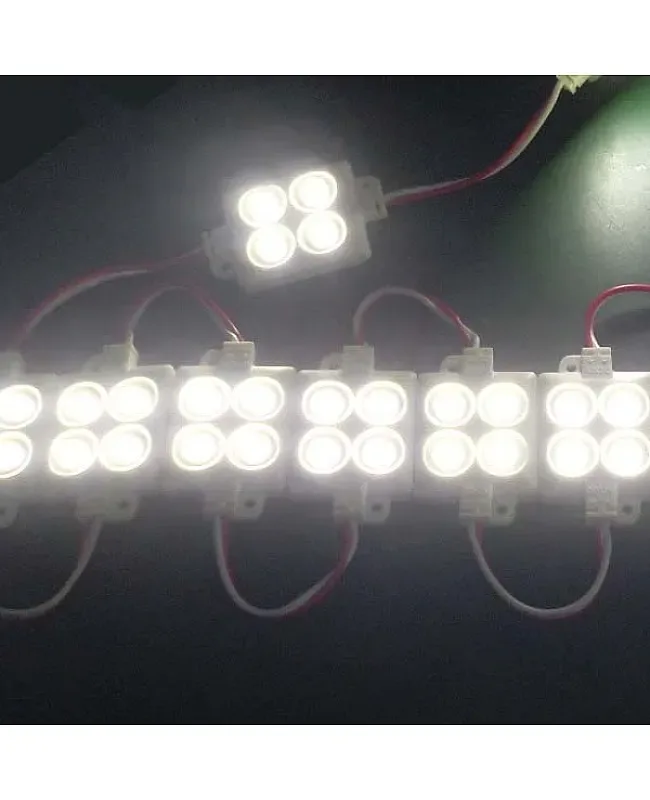

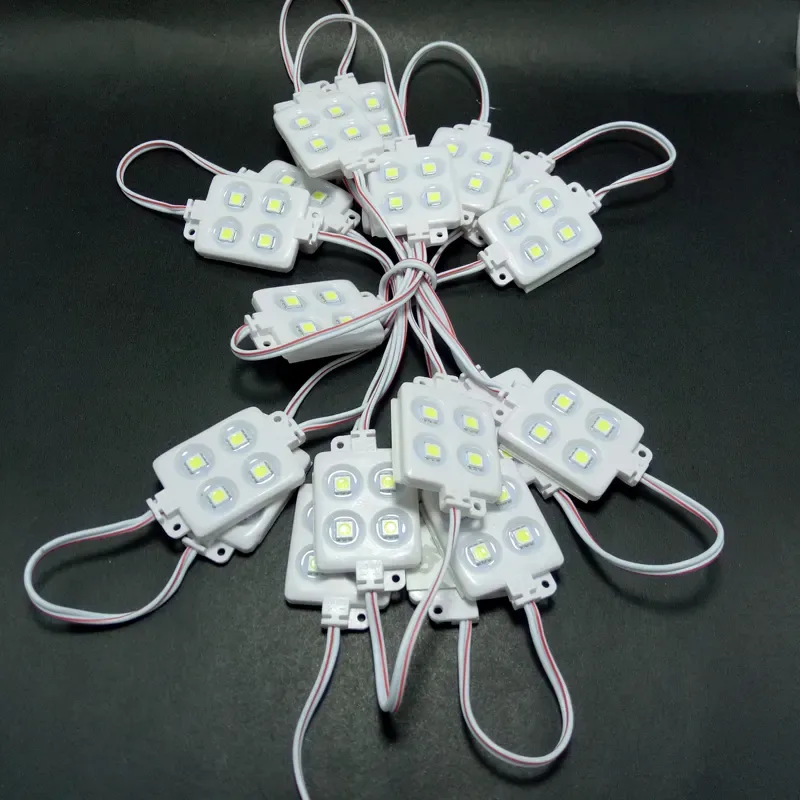

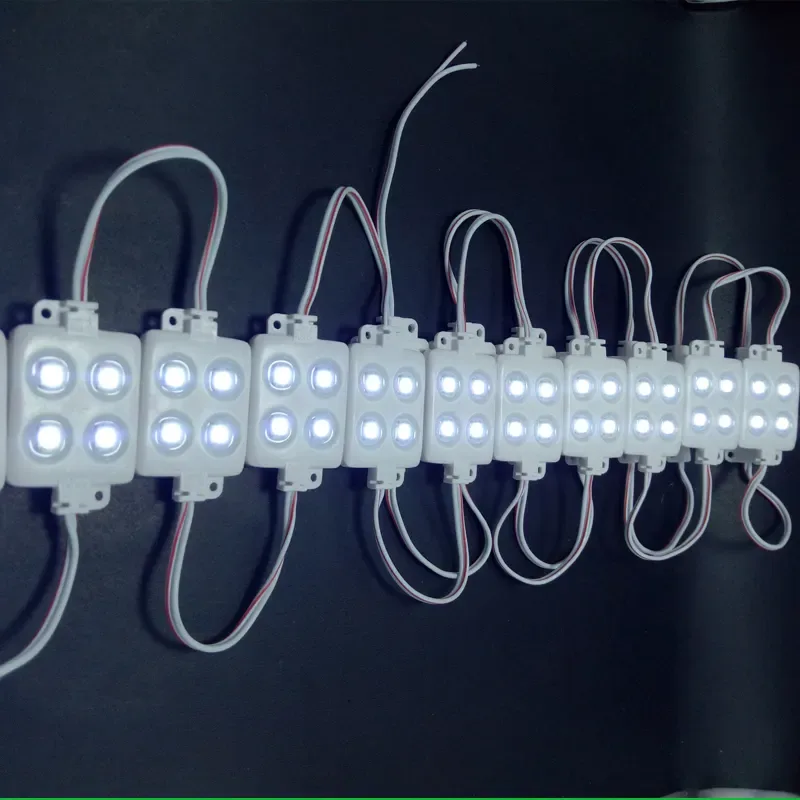

20PCS Per String
1 * LED Module 5050(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
