Product details

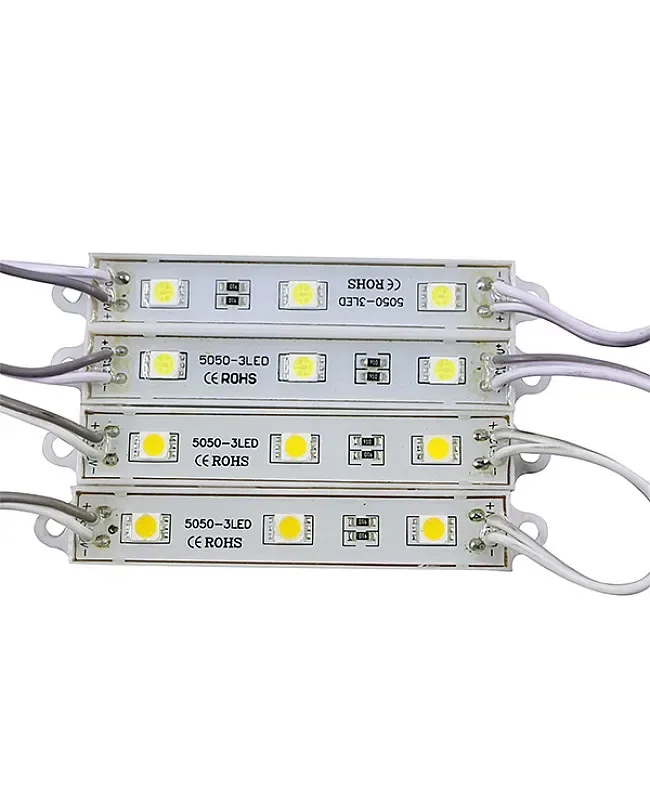

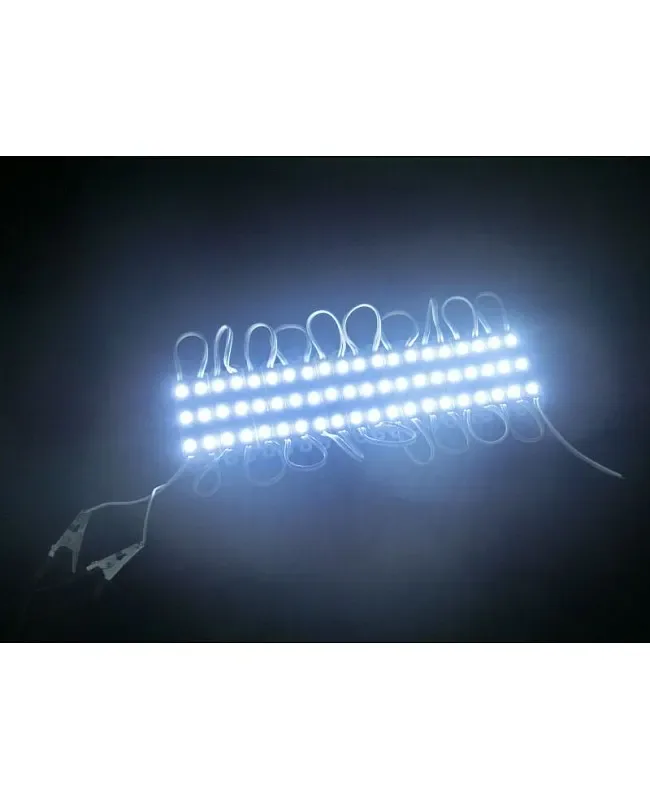

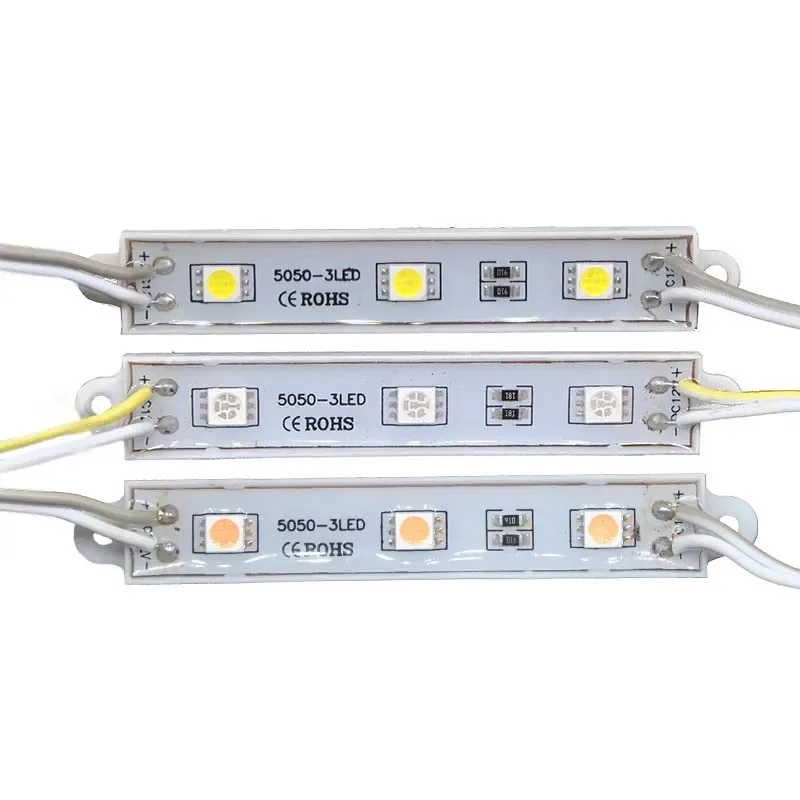

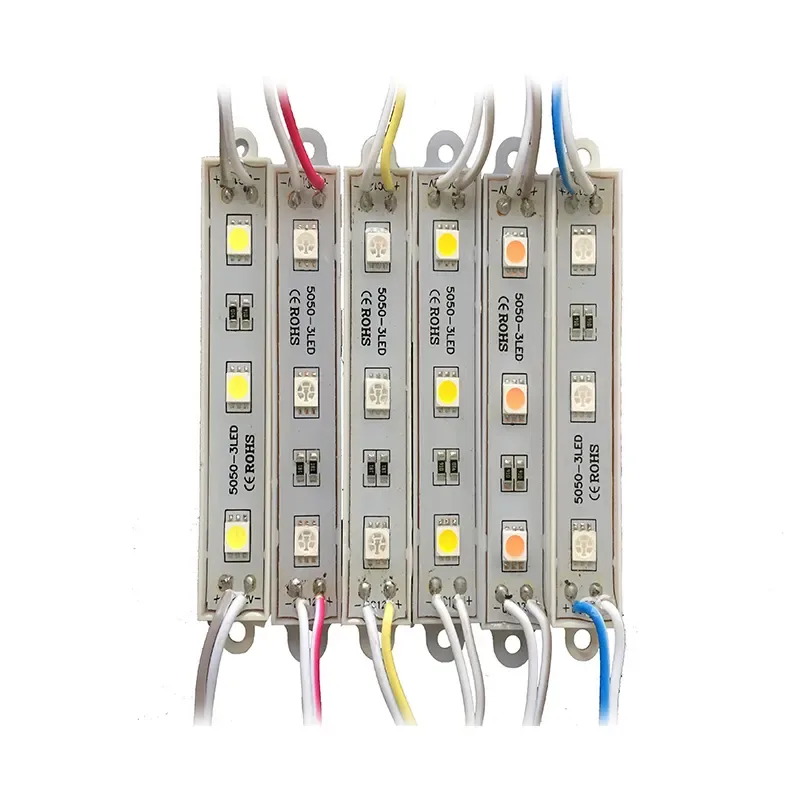

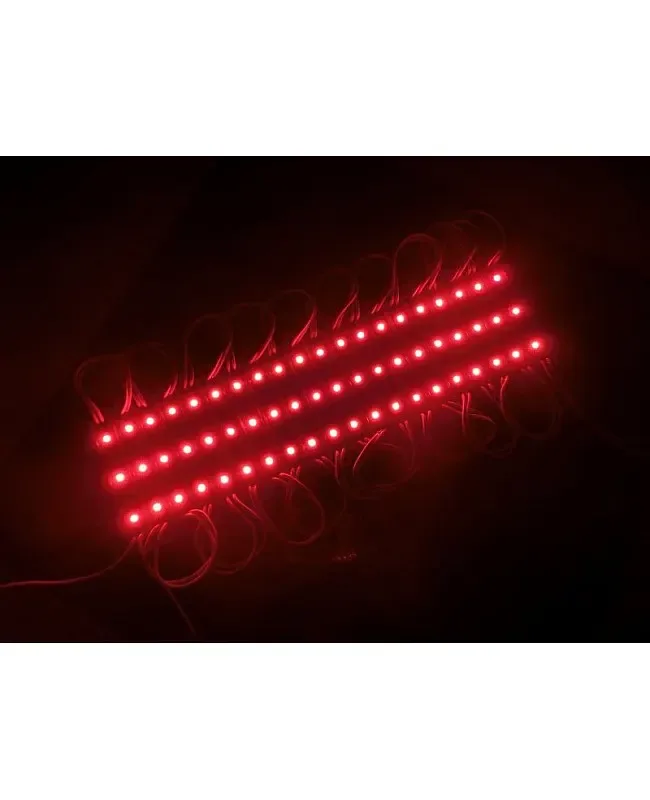

DC12V 3PCS 5050 LED Module
LumaCircuit offers DC12V 3PCS 5050 LED Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Emitting Color: RGB/Red/White/Yellow/Blue/Green/Warm White Color Temperature: Cool White(6500K-12000K)/Warm White(2700-3200K)/Red(620nm)/Green(520nm)/Blue(45nm)/Yellow(590nm) IP Rating: IP65 waterproof The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Working Temperature: -40-+60℃

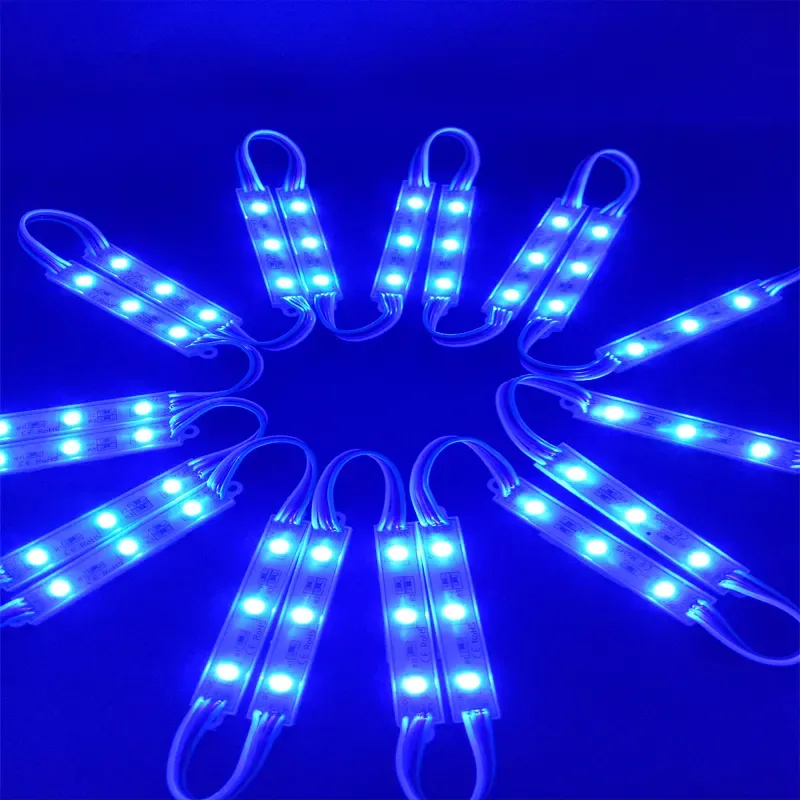

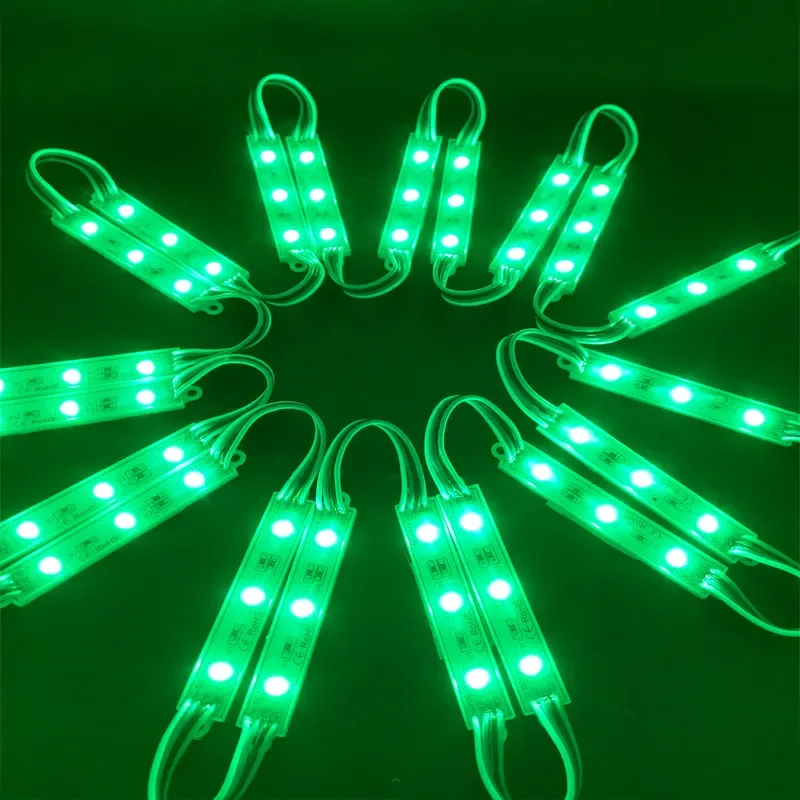

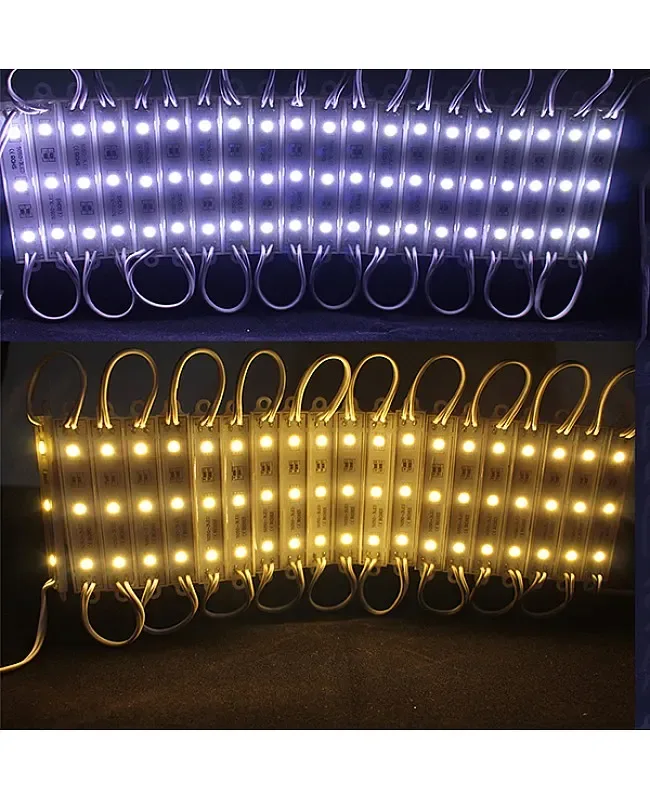

- Emitting Color: RGB/Red/White/Yellow/Blue/Green/Warm White
- Color Temperature: Cool White(6500K-12000K)/Warm White(2700-3200K)/Red(620nm)/Green(520nm)/Blue(45nm)/Yellow(590nm)
- IP Rating: IP65 waterproof
- Luminous Flux: 42-48LM/PC
- Luminous Intensity: 14300 MCD
- Color Rendering Index: >
- Wire Length Between Modules: 10cm
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-LNX8X1
- Working Temperature: -40-+60℃
- Size: 75 mm*12 mm
- Emitting Color: RGB/Red/White/Yellow/Blue/Green/Warm White
- Color Temperature: Cool White(6500K-12000K)/Warm White(2700-3200K)/Red(620nm)/Green(520nm)/Blue(45nm)/Yellow(590nm)
- Chip Material: AlGaInP
- LED: 5050 SMD LEDs
- LED Quantity: 3PCS
- Working Voltage: DC12V
- Power: 0.72W/PC
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Manufacturer: TYoung
Working Temperature: -40-+60℃
Size: 75 mm*12 mm
Emitting Color: RGB/Red/White/Yellow/Blue/Green/Warm White
Color Temperature: Cool White(6500K-12000K)/Warm White(2700-3200K)/Red(620nm)/Green(520nm)/Blue(45nm)/Yellow(590nm)
Chip Material: AlGaInP
LED: 5050 SMD LEDs
LED Quantity: 3PCS
Working Voltage: DC12V
Power: 0.72W/PC
IP Rating: IP65 waterproof
Luminous Flux: 42-48LM/PC
Luminous Intensity: 14300 MCD
Color Rendering Index: >
View Angle: 120°
Wire Length Between Modules: 10cm

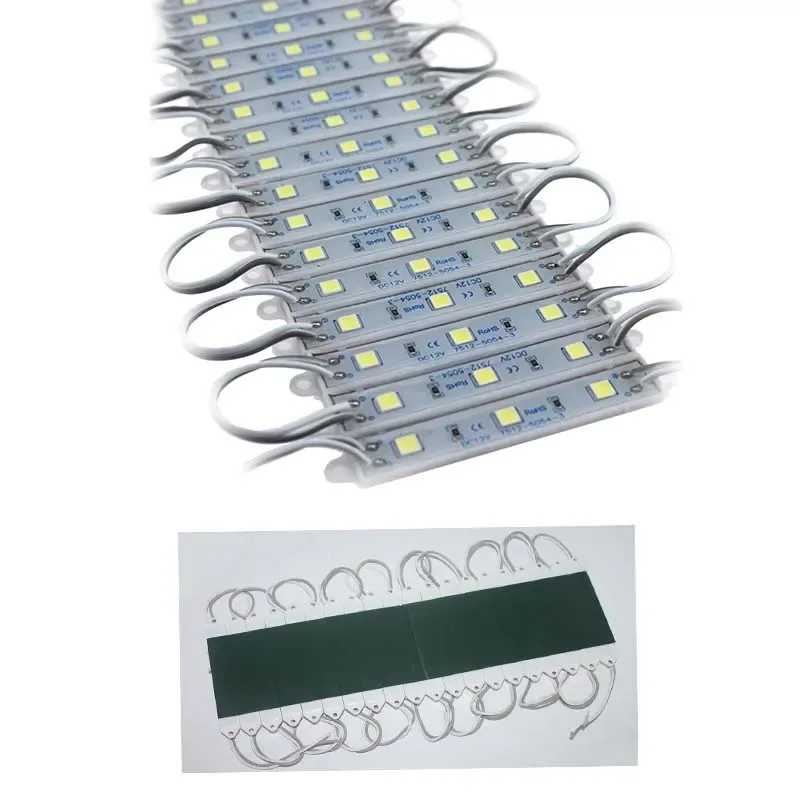

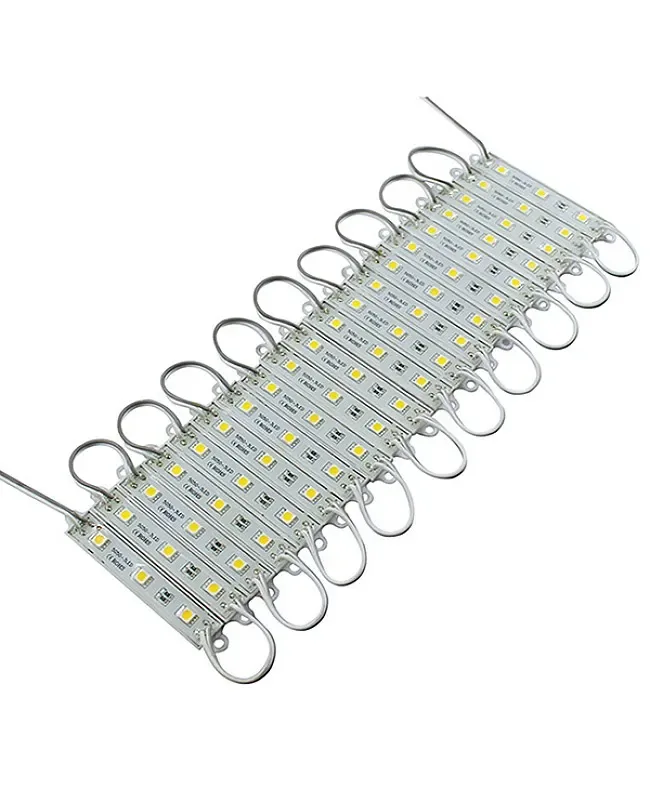

20PCS Per String

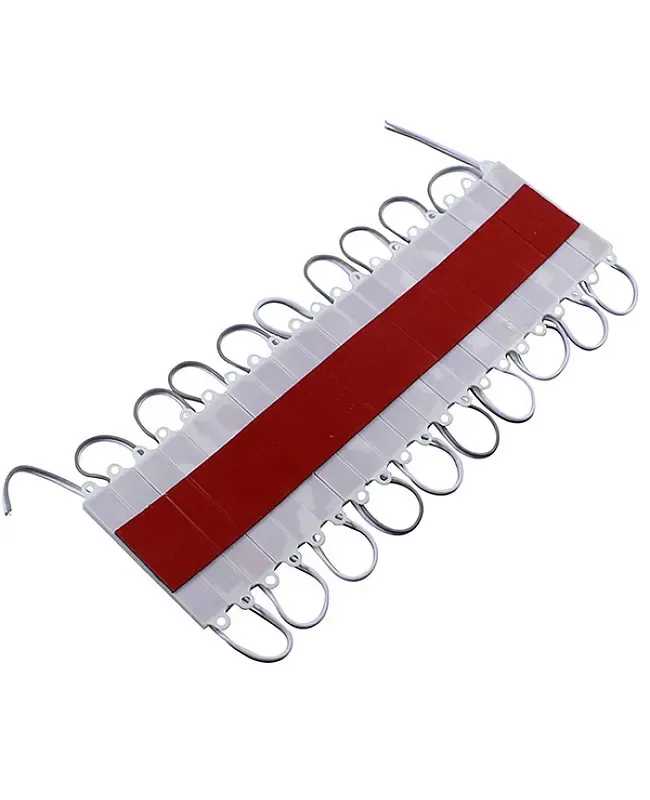

Back With Double-sided Adhesive Tape
Cuttable And Reconnectable
Weight: 6.7g
Applications: Backlight for Sign, Letters, etc
1*5050 LED Module(20PCS Per String)
Applications
Outdoor/Indoor Use, Cove Lighting
Path and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archway
DIY Lights for home use
Marine light, Task lighting
Replacement of Fluorescent light
Decorative lights for holiday, event, show, exhibition
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
