Zigbee 3.0 NO Neutral Smart Switch
LumaCircuit offers Zigbee 3.0 NO Neutral Smart Switch as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Type: Zigbee Switch Module Material: High-Temperature Resistance And Fireproof Input Voltage: -240V/50Hz/60Hz The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Zigbee 3.0 has no neutral smart switch with a single live wire design, simple connection, and ease of use. Use high-quality Panasonic relays, which are suitable for high-power appliance loading. It is fit for dimmable LEDs, halogens, incandescents, and LEDs, and the max loading power is up to 1000W when working in AC220V.
- Type: Zigbee Switch Module
- Material: High-Temperature Resistance And Fireproof
- Input Voltage: -240V/50Hz/60Hz
- Output Voltage: -240V/50Hz/60Hz
- Compatible With Zigbee 3.0 Gateways: Philips HUE, Amazon Echo Studio, SmartThings, Tuya, Terncy, Conbee
- Fit For Dimmable LEDs, Halogens, Incandescents, LEDs

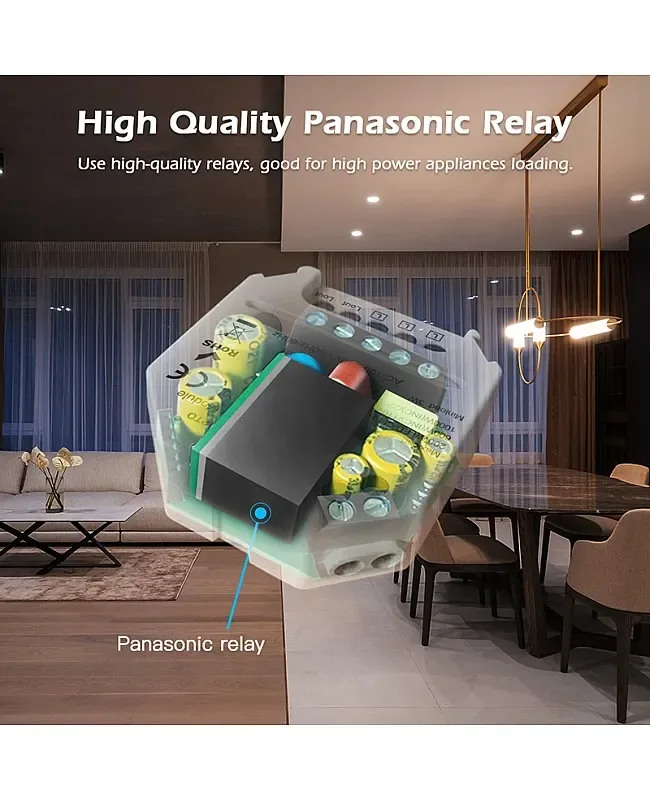

- High-Quality Panasonic Relay
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- LumaCircuit model: LC-MOD-VQUWZI
- Size: 48*45*21mm
- Material: High-Temperature Resistance And Fireproof
- Input Voltage: -240V/50Hz/60Hz
- Output Voltage: -240V/50Hz/60Hz
- LED Load: ≤200W
- Dimensions found: 48x45x21mm / 21mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

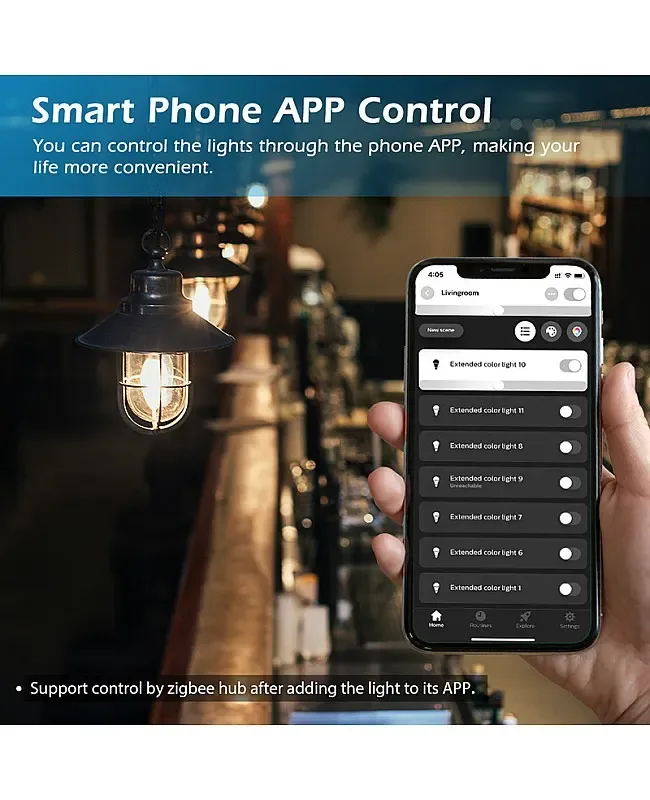

The Zigbee 3.0 has no neutral smart switch with a single live wire design, simple connection, and ease of use. Use high-quality Panasonic relays, which are suitable for high-power appliance loading. It is fit for dimmable LEDs, halogens, incandescents, and LEDs, and the max loading power is up to 1000W when working in AC220V. The switch modules are compatible with Zigbee 3.0 gateways, can be controlled by a smartphone APP and voice control, can work with Amazon Echo Studio, and the installer can adjust ON/OFF through voice commands. The installer can also control the lights directly with a touch panel without a gateway. There are two buttons on the switch light switch: press the "ON/OFF" button to turn on/off the device, short-press the button " RESET" to find and bind mode, and long-press to reset the device.
Specifications
Type: Zigbee Switch Module
Model
Size: 48*45*21mm
Material: High-Temperature Resistance And Fireproof
Input Voltage: -240V/50Hz/60Hz
Output Voltage: -240V/50Hz/60Hz
Minimum Load: ≥3W
Linear Load: ≤1000W
LED Load: ≤200W
Compatible With Zigbee 3.0 Gateways: Philips HUE, Amazon Echo Studio, SmartThings, Tuya, Terncy, Conbee
Smartphone APP Control
Voice Control
Push Switch Control
Fit For Dimmable LEDs, Halogens, Incandescents, LEDs

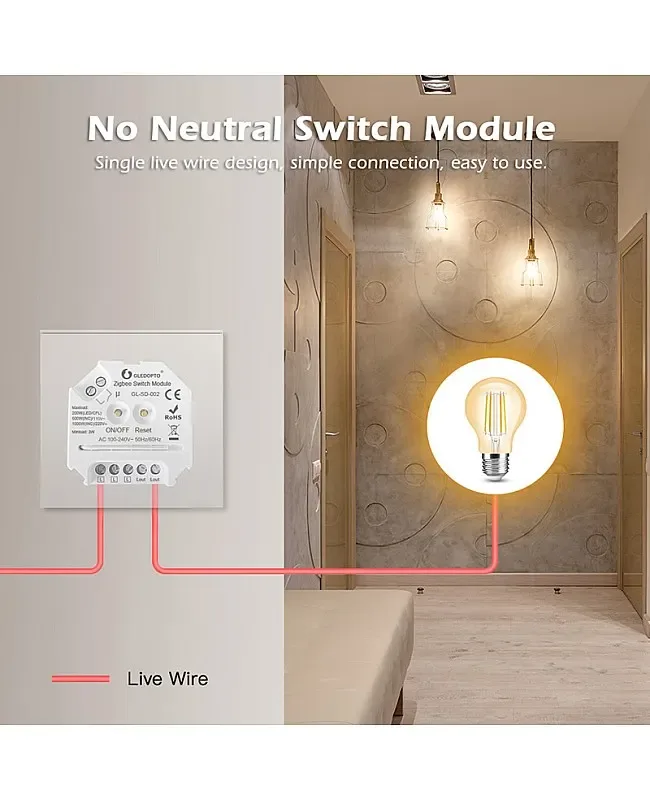

Single Live Wire Design
High-Quality Panasonic Relay
Includes
1 * Zigbee NO Neutral Switch
1 * User Manual
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
