Product details

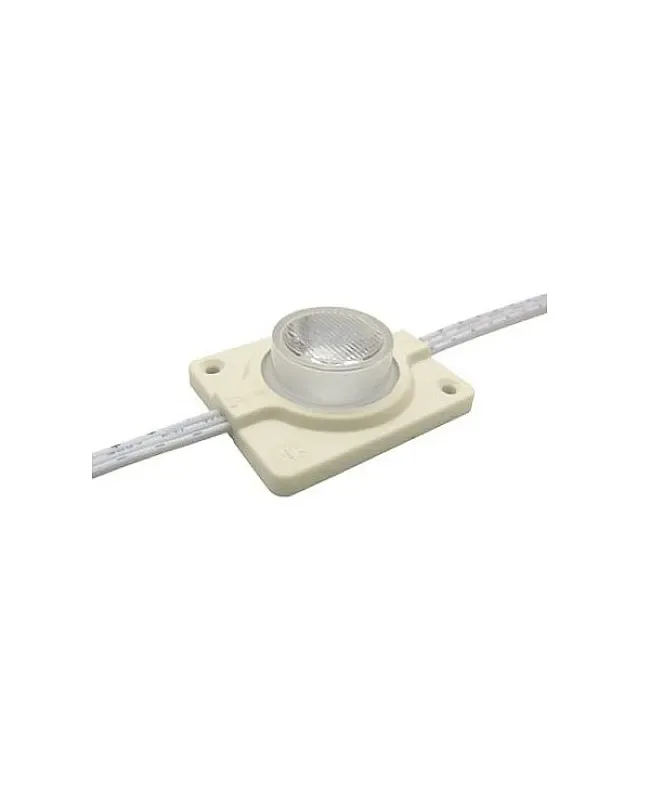

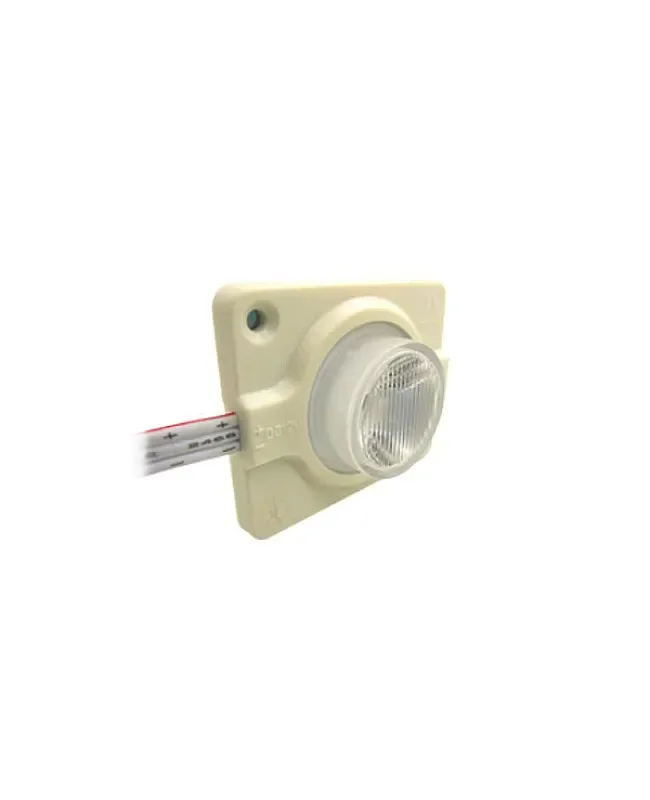

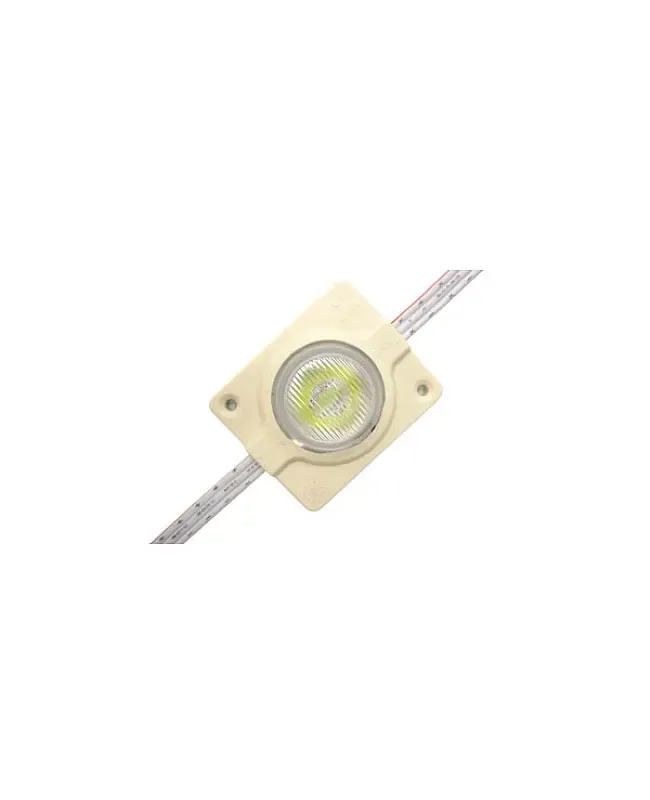

High Power Samsung LED Module
LumaCircuit offers High Power Samsung LED Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Light source: 3535 Samsung SMD LED Color Temperature: 5700-6300K 1 * High Power Samsung LED Module The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Colors: White, Red, Yellow, Blue, Green
- Light source: 3535 Samsung SMD LED
- Color Temperature: 5700-6300K
- 1 * High Power Samsung LED Module
- high power Samsung LED module, working in DC12V, use high power Samsung 353 SMD LED as light source, waterproof level IP65.
- A serviceable module component for a complete lighting BOM.
- The configured light engine is System component.
- The recorded electrical input is 12 V.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Size: 43.6*36.6*3.7mm
- Working Voltage: DC12V
- Wattage: 2.88w
- Colors: White, Red, Yellow, Blue, Green
- LED Quantity: 1pc
- Color Temperature: 5700-6300K
- Lumen: 200-240lm
- LumaCircuit model: LC-MOD-9MUXBS
- Dimensions found: 43.6x36.6x3.7mm / 3.7mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Size: 43.6*36.6*3.7mm
Working Voltage: DC12V
Wattage: 2.88w
Colors: White, Red, Yellow, Blue, Green
Waterproof level: IP65
Light source: 3535 Samsung SMD LED
LED Quantity: 1pc
View Angle:10-60°
Color Temperature: 5700-6300K
Lumen: 200-240lm
1 * High Power Samsung LED Module
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
