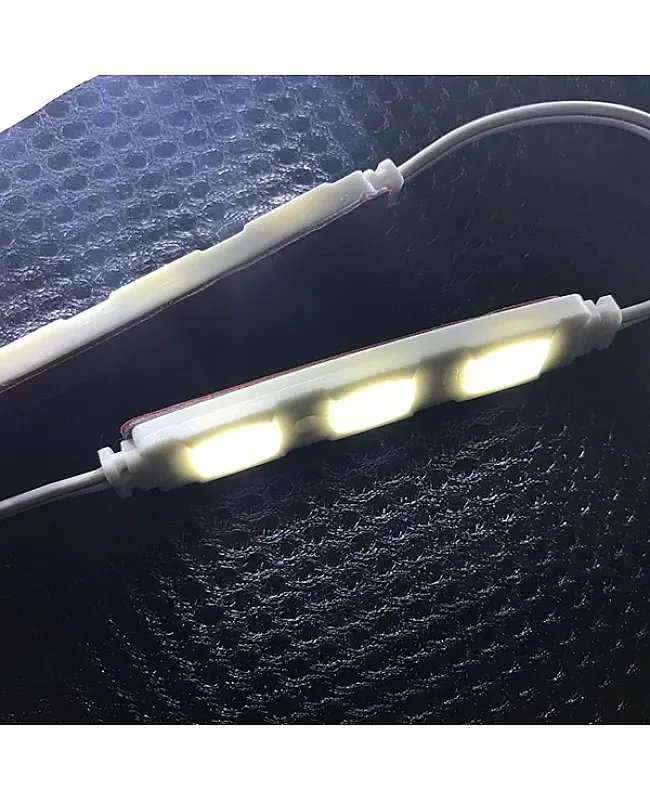

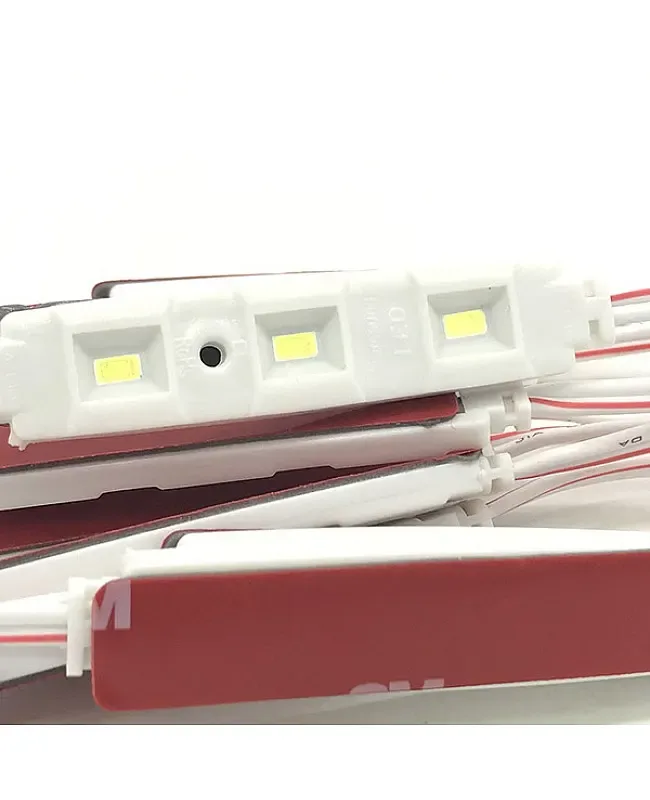

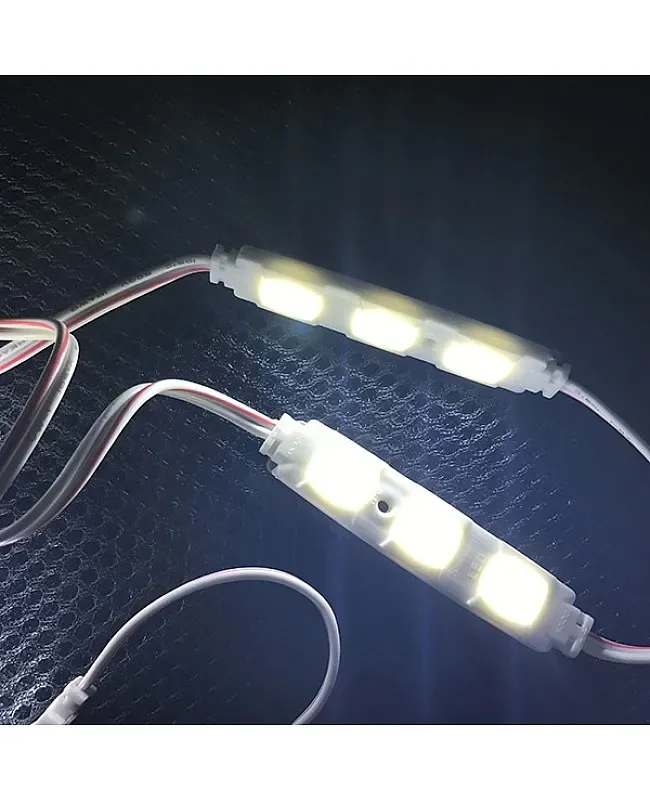

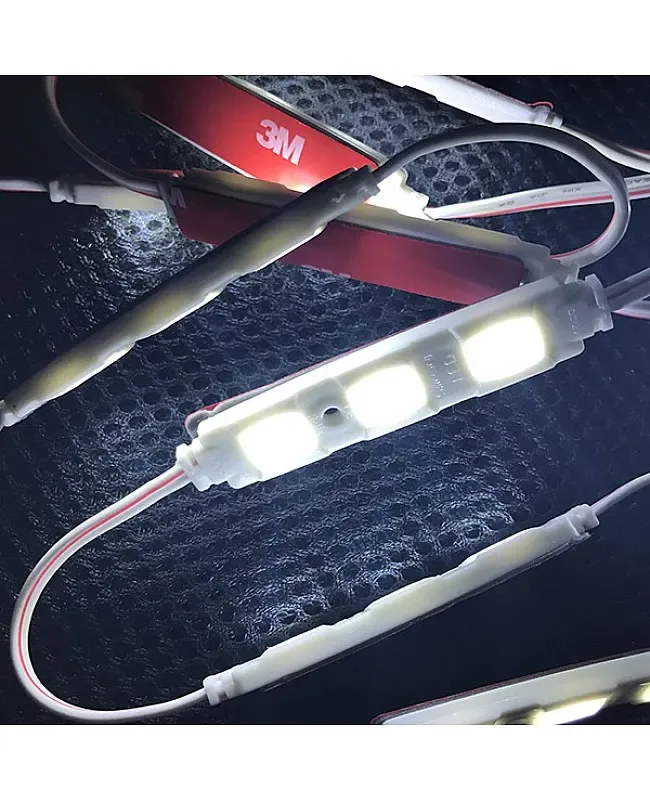

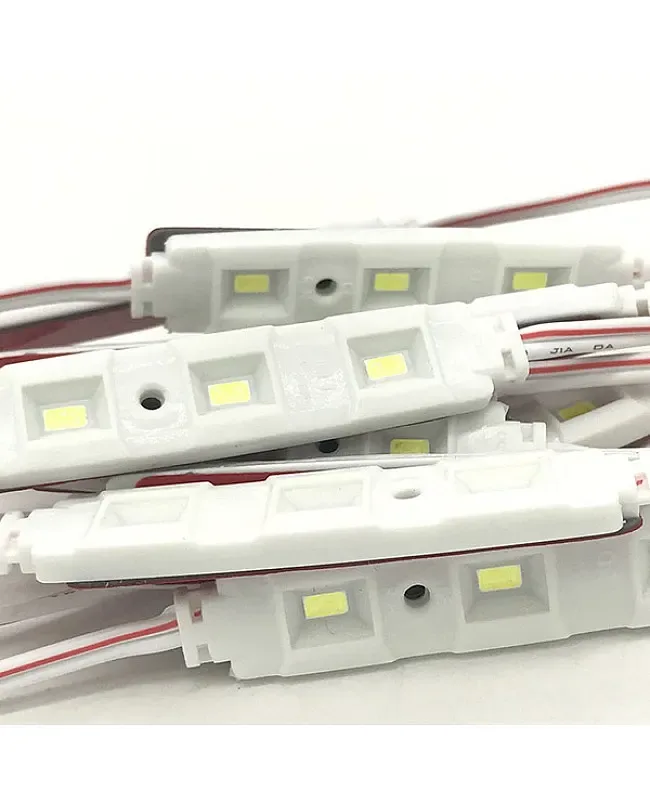

5630 LED Sign Module With Samsung LEDs
LumaCircuit offers 5630 LED Sign Module With Samsung LEDs as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. LED source: Samsung 5630 LEDs Color temperature: 8000-14000K Wire length between modules is 10-11cm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Material: ABS casing + aluminum PCB
- LED source: Samsung 5630 LEDs
- Color temperature: 8000-14000K
- Wire length between modules is 10-11cm
- 3LEDs in one module and 10pcs modules per string
- Stable brightness with unstable power
- Applications: sign light, interior car frames, and roof lighting
- 1 * LED Sign Module( 10PCS String )
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-AU6N7Z
- Material: ABS casing + aluminum PCB
- Working voltage: DC12V
- Power: 1.32W/PC
- LED source: Samsung 5630 LEDs
- LED quantity: 3PCS
- Colors: cool white
- Color temperature: 8000-14000K
- Lumens: 120-150lm
- Size: 64*15*5mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Material: ABS casing + aluminum PCB
Working voltage: DC12V
Power: 1.32W/PC
LED source: Samsung 5630 LEDs
LED quantity: 3PCS
Colors: cool white
Color temperature: 8000-14000K
Lumens: 120-150lm
Size: 64*15*5mm
Waterproof level: IP65
Wire length between modules is 10-11cm
3LEDs in one module and 10pcs modules per string
Stable brightness with unstable power
Applications: sign light, interior car frames, and roof lighting

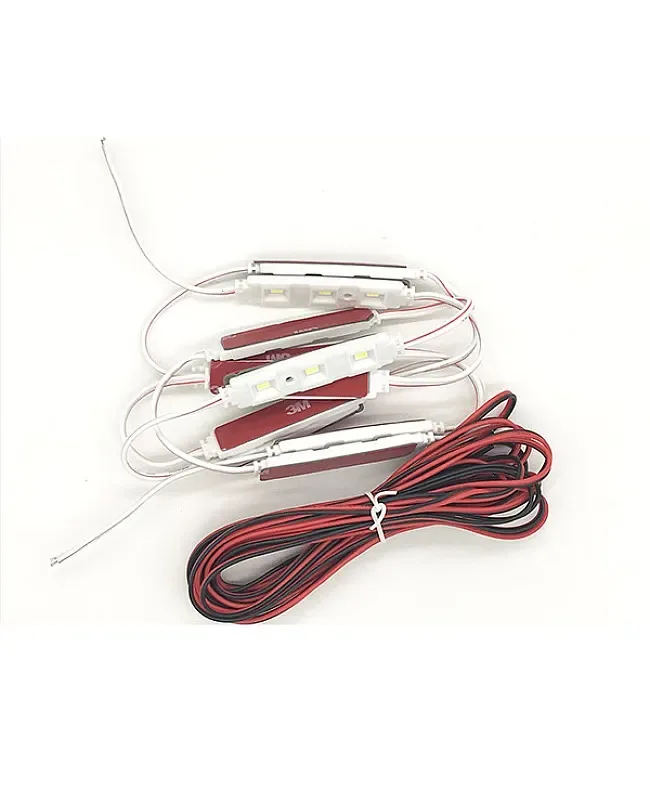

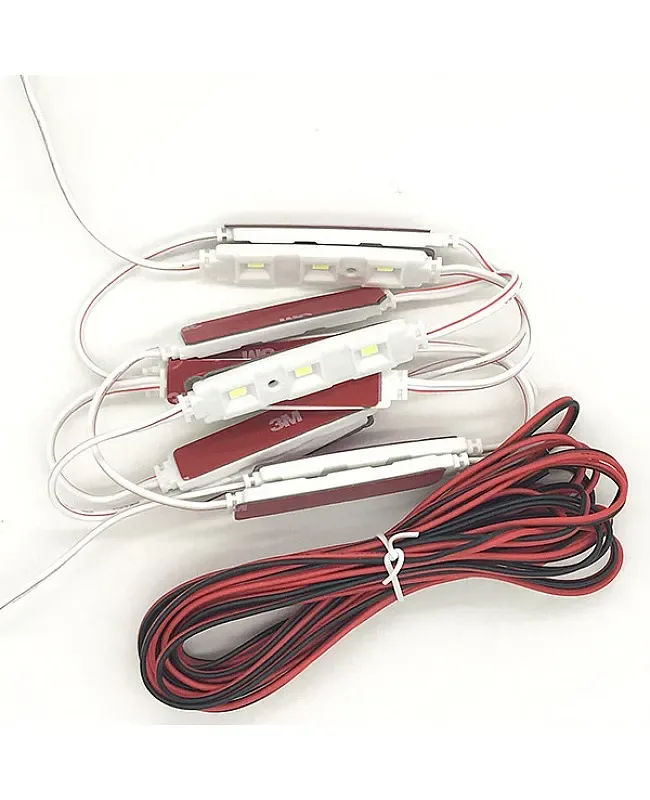

1 * LED Sign Module( 10PCS String )
1*5 Meter Wire
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
