Waterproof 12V Dimmable LED Modules For Channel Letters
LumaCircuit offers Waterproof 12V Dimmable LED Modules For Channel Letters as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Material: ABS Shell + Aluminum Base Working Voltage: DC12V DC24V Luminous Flux: 150-165lm/PC The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The dimmable LED modules are designed to fit perfectly into channel letters and provide outstanding illumination and efficiency. They use 3PCS high-bright SMD LEDs as the light source, a surface with striped PMMA lens for high light transmittance, and large lighting areas. The LEDs are mounted on the aluminum plate for better heat dissipation, and the outer is made of an ABS shell to allow the waterproof level up to IP67, and the installer can use them for outdoor applications too.
- Material: ABS Shell + Aluminum Base
- Working Voltage: DC12V DC24V
- Luminous Flux: 150-165lm/PC
- Colors: White, Warm White, Yellow, Blue, Green, Pink, Red
- Length Of Wires Between Modules: 6.5cm
- Waterproof Level: IP67 Waterproof
- Back Side With Double-Sided Adhesive Tape
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-K212I8
- Material: ABS Shell + Aluminum Base

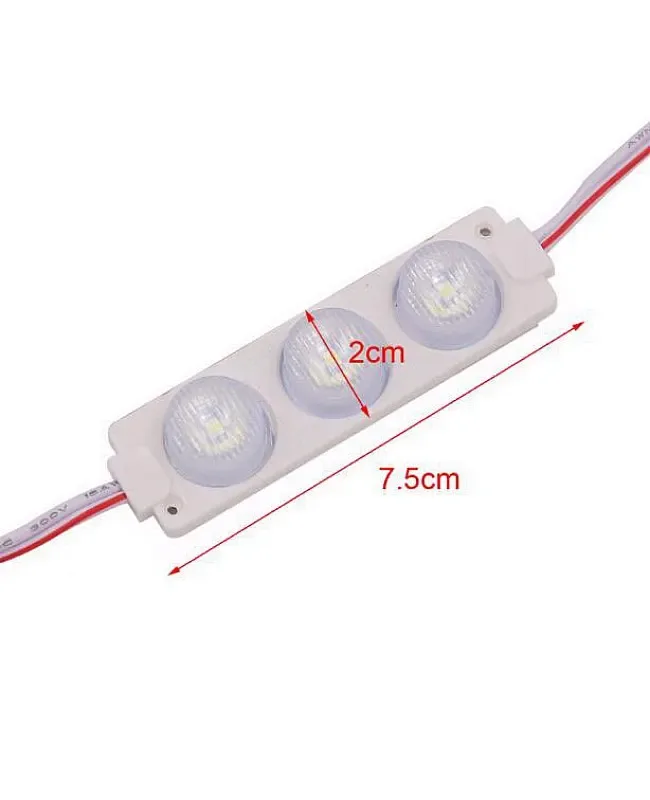

- Size: 75*20mm(L*W)
- Working Voltage: DC12V DC24V
- Power: 3W/PC
- Colors: White, Warm White, Yellow, Blue, Green, Pink, Red
- Length Of Wires Between Modules: 6.5cm
- Dimensions found: 75x20mm / 20mm
- Model: 7520
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The dimmable LED modules are designed to fit perfectly into channel letters and provide outstanding illumination and efficiency. They use 3PCS high-bright SMD LEDs as the light source, a surface with striped PMMA lens for high light transmittance, and large lighting areas. The LEDs are mounted on the aluminum plate for better heat dissipation, and the outer is made of an ABS shell to allow the waterproof level up to IP67, and the installer can use them for outdoor applications too. The channel Letter modules work on DC12V or DC24V and are safe for kids and pets. It comes with 20 pieces per string, so it can freely cut off the wires between the modules and use them for your lighting projects. The back side of high bright waterproof modules with double-sided adhesive tape, and both ends with screw holes, the installer can stick them on the place that you want to install or use screws to mount them in a wet or rainy location. The module's light is widely used in channel letters, advertisement signs, signage, etc. The installer can also use them on cars, trucks, vans, and many more.
Specifications
Model: 7520
Material: ABS Shell + Aluminum Base
Size: 75*20mm(L*W)
Working Voltage: DC12V DC24V
Power: 3W/PC
Luminous Flux: 150-165lm/PC
Colors: White, Warm White, Yellow, Blue, Green, Pink, Red
Length Of Wires Between Modules: 6.5cm
Waterproof Level: IP67 Waterproof
Back Side With Double-Sided Adhesive Tape
Surface With Striped Acrylic Lens For Higher Light Transmittance
Includes

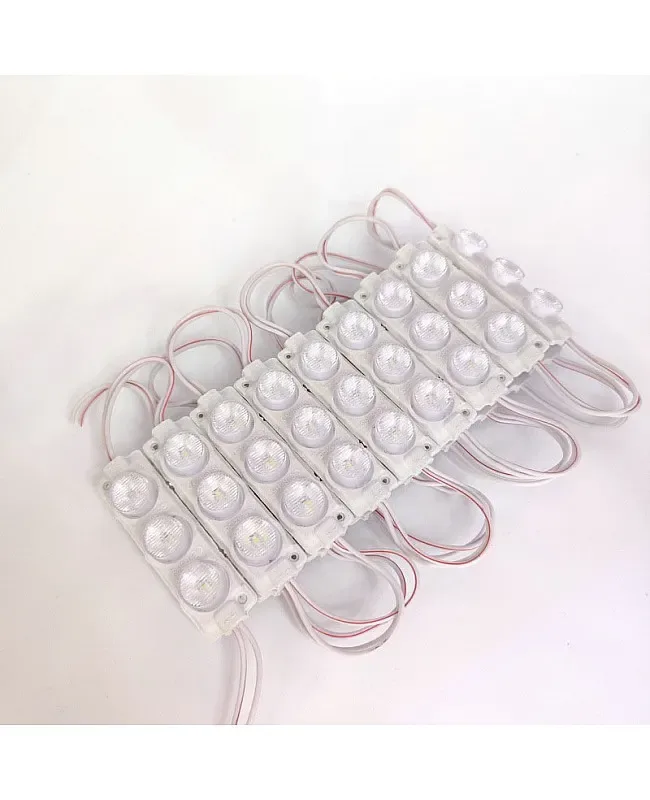

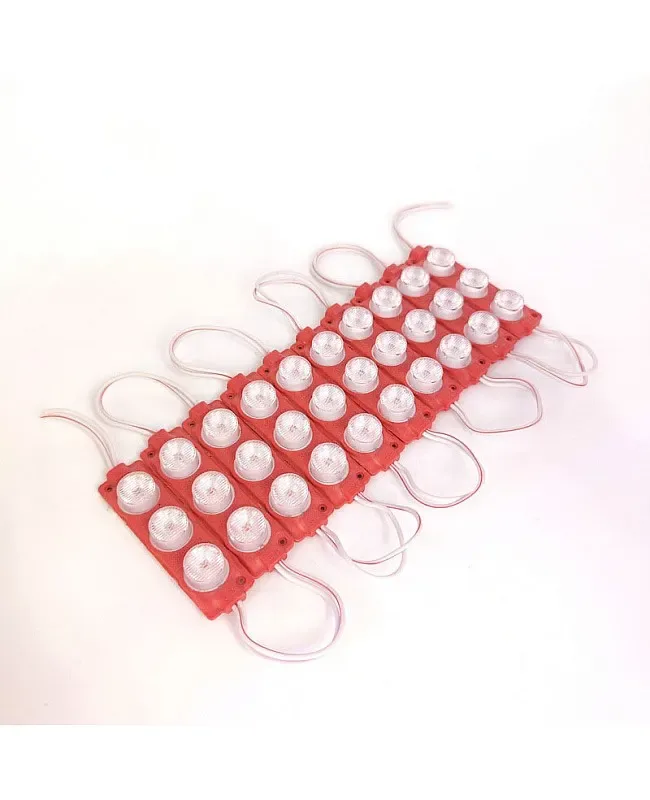

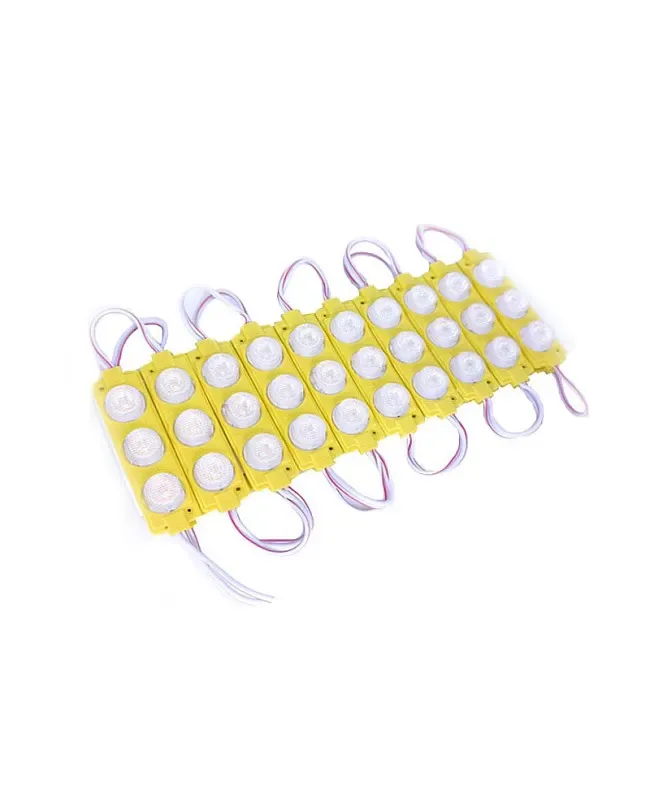

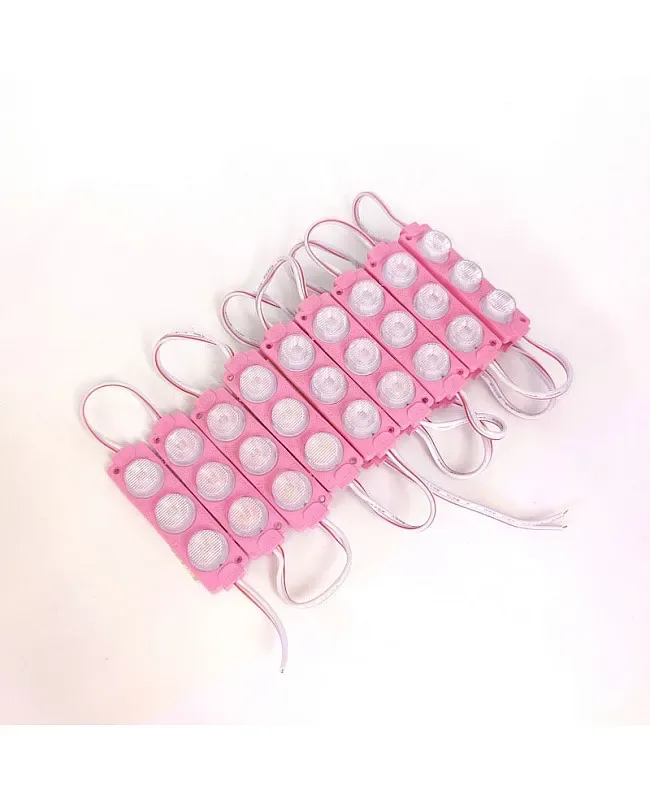

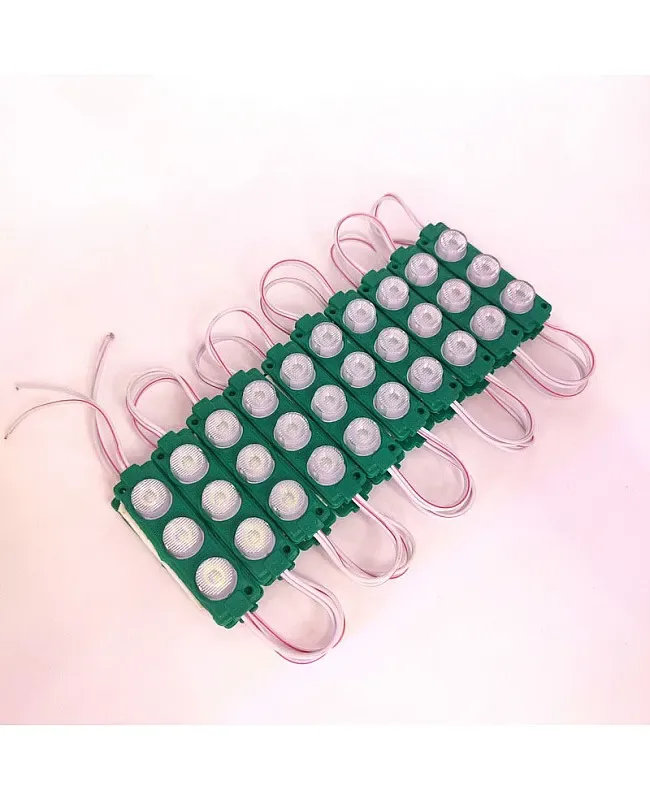

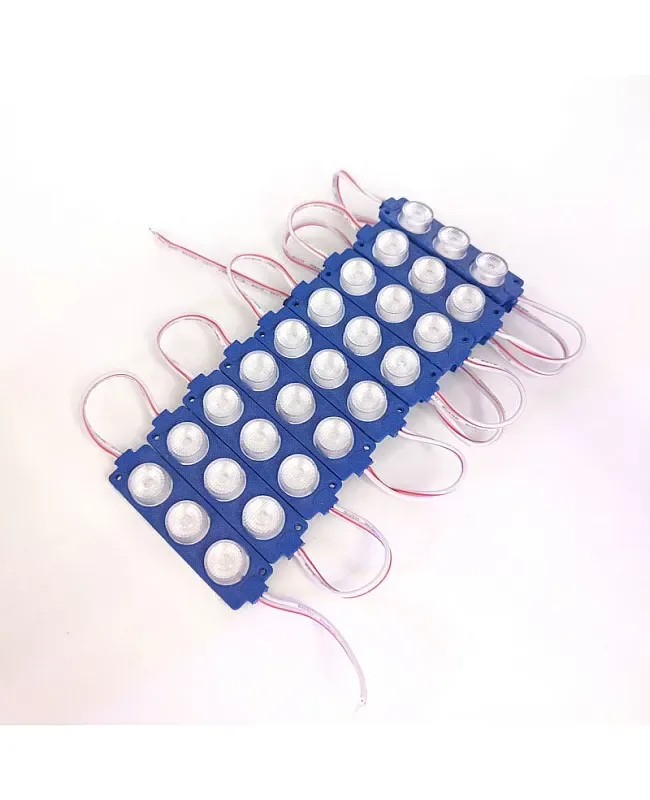

1 * Dimmable LED Modules(20PCS/String)
