Product details

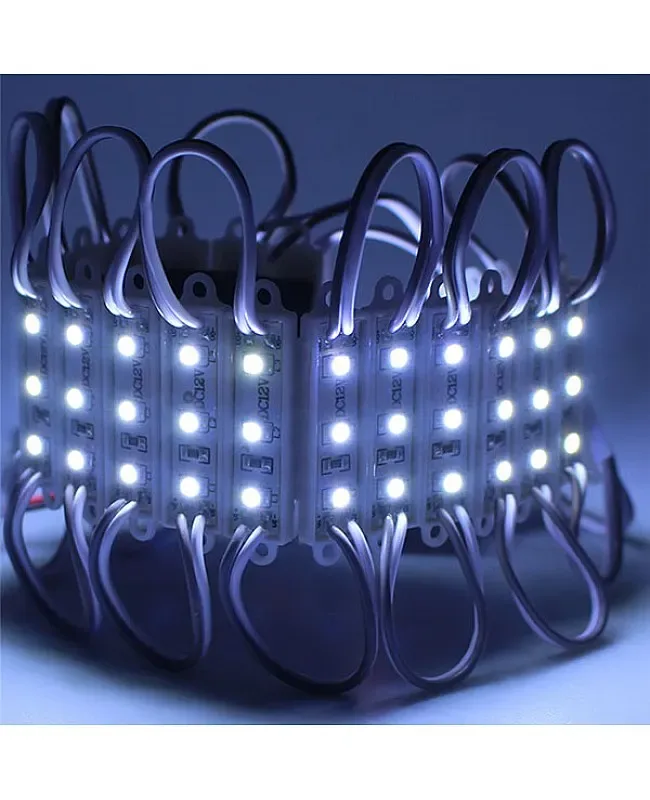

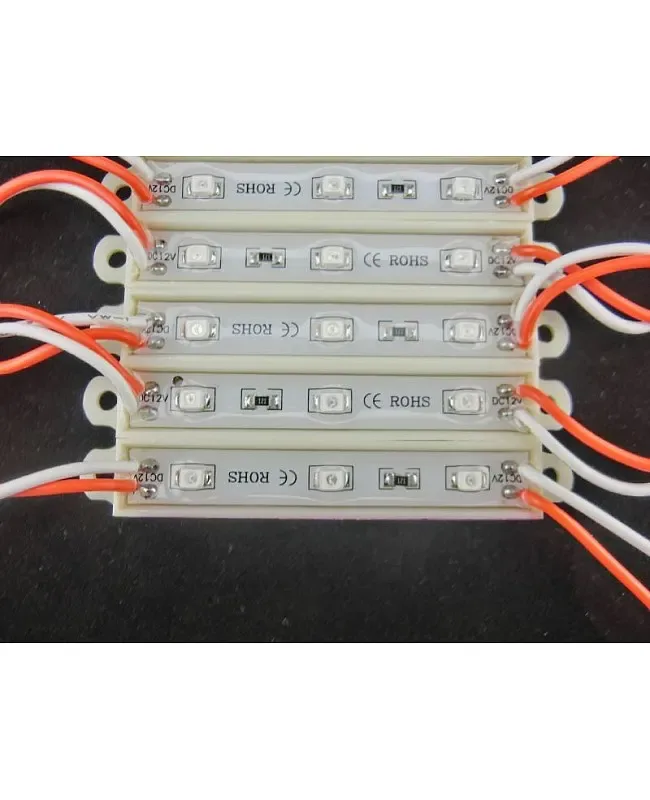

3PCS 3528 LEDs Waterproof LED Module
LumaCircuit offers 3PCS 3528 LEDs Waterproof LED Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Outdoor/Indoor Use, Cove Lighting, Path and contour lighting Backlight for signage/ letters Architectural lights for Canopy, Corridor, Window, Archway The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Color: Warm White/White/Red/Yellow/Blue/Green
- Outdoor/Indoor Use, Cove Lighting, Path and contour lighting
- Backlight for signage/ letters
- Architectural lights for Canopy, Corridor, Window, Archway
- Marine light, Task lighting
- Replacement of Fluorescent light
- Decorative lights for holiday, event, show, exhibition
- 1 * 3528 Waterproof LED Module(20PCS)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-AJIISY

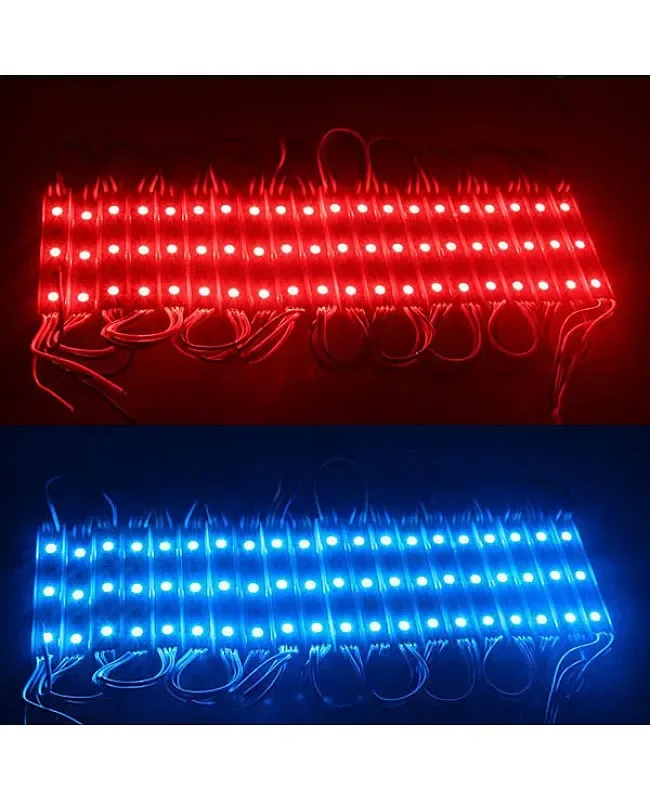

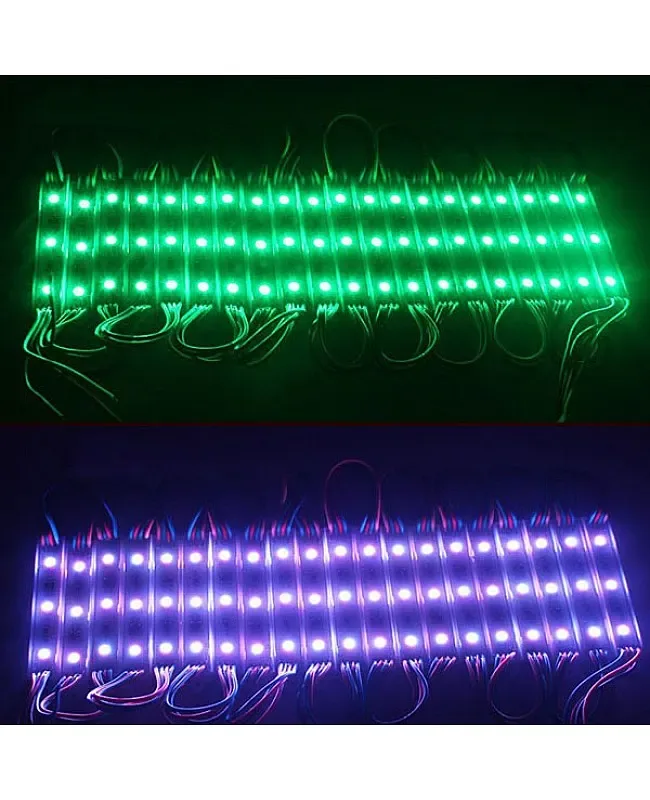

- Color: Warm White/White/Red/Yellow/Blue/Green
- LED: 3528 SMD LEDs
- LED Quantity: 3pcs
- Voltage: DC12V
- Power: 0.24w
- IP Rating: IP65
- Lumen: 5-6lm/LED
- MCD/LED: 400-500
- Size: 75 mm*12 mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Manufacturer: TYoung
Color: Warm White/White/Red/Yellow/Blue/Green
LED: 3528 SMD LEDs
LED Quantity: 3pcs
Voltage: DC12V
Power: 0.24w
IP Rating: IP65
Lumen: 5-6lm/LED
MCD/LED: 400-500
Size: 75 mm*12 mm
Weight: 4.7g
Applications
Outdoor/Indoor Use, Cove Lighting, Path and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archway
DIY Lights for home use
Marine light, Task lighting
Replacement of Fluorescent light
Decorative lights for holiday, event, show, exhibition

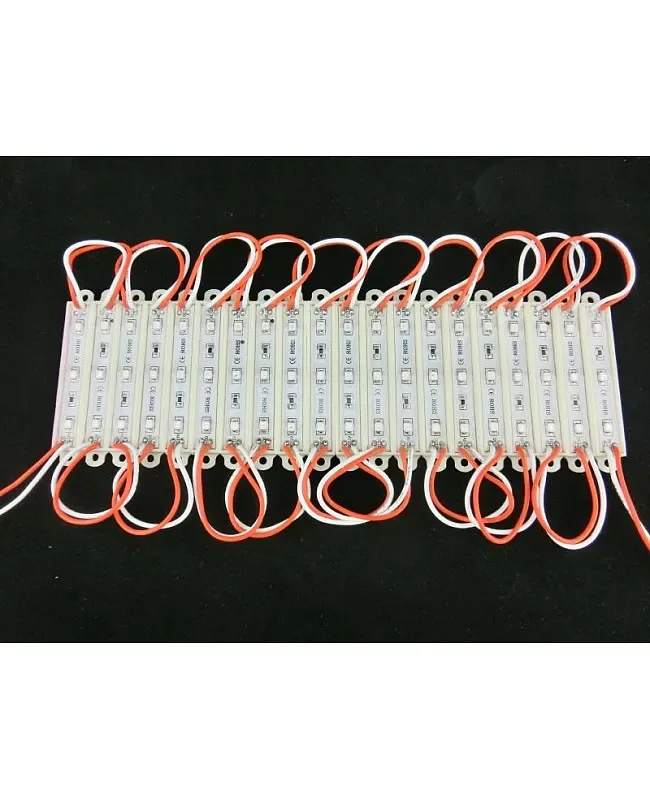

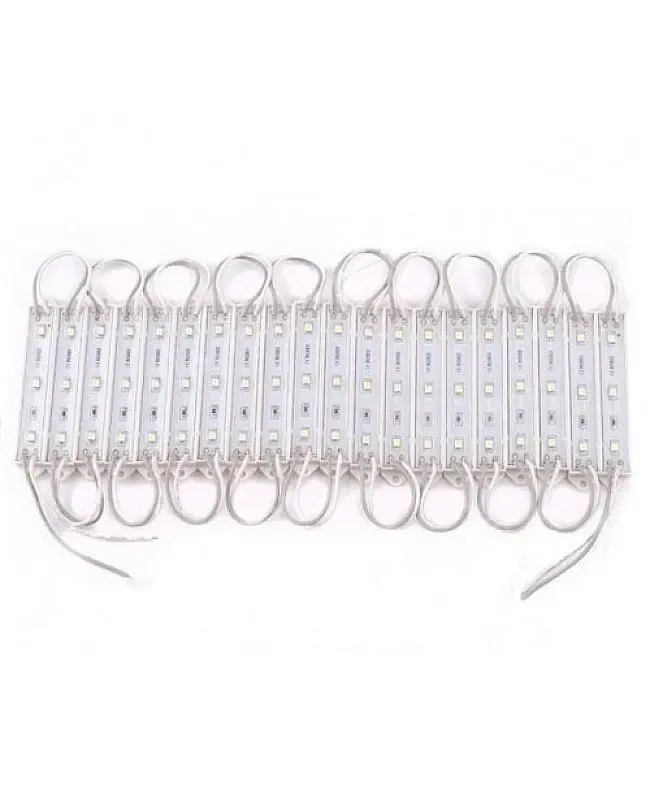

1 * 3528 Waterproof LED Module(20PCS)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
