Product details

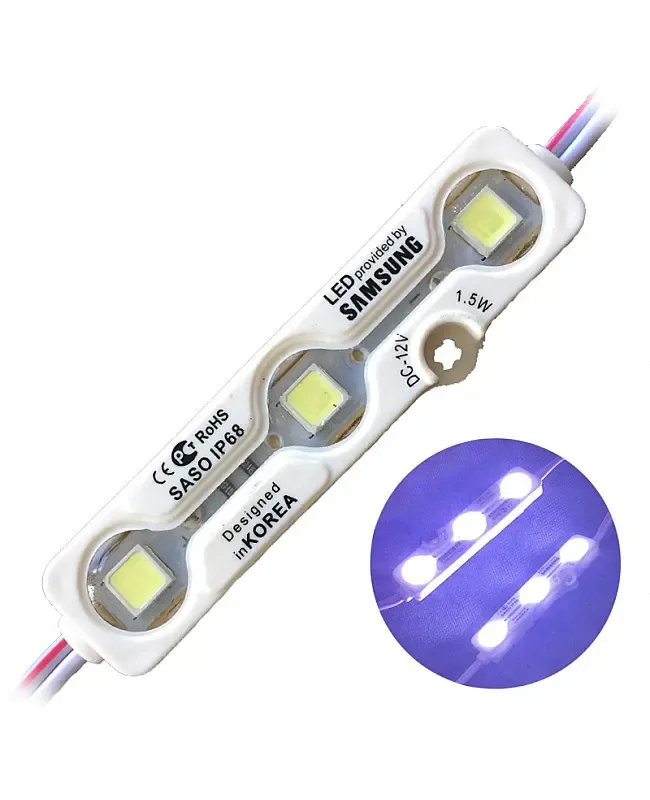

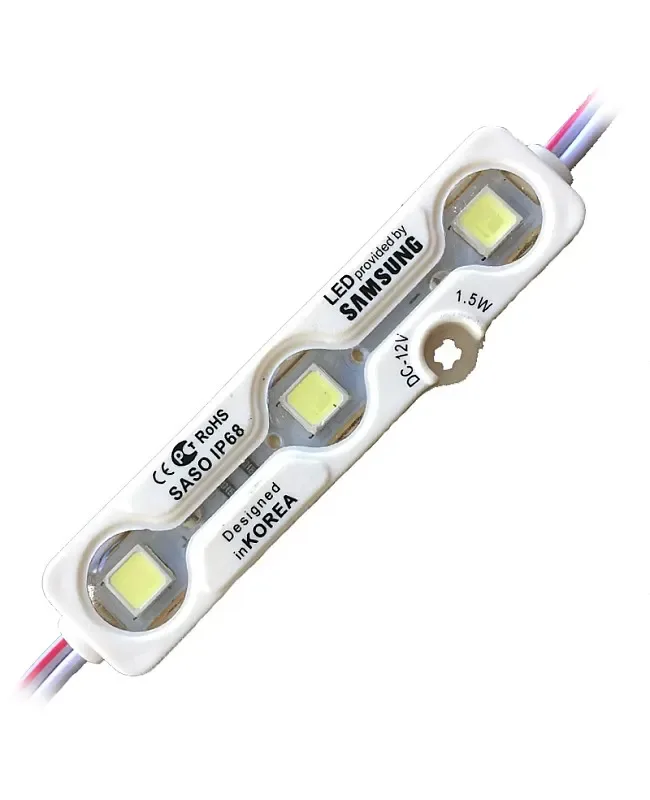

5054 LED Sign Lighting Modules IP68 Waterproof
LumaCircuit offers 5054 LED Sign Lighting Modules IP68 Waterproof as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Back Wit 3M Double-Sided Tape Optical Attenuation: ≥1% Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, Pink The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

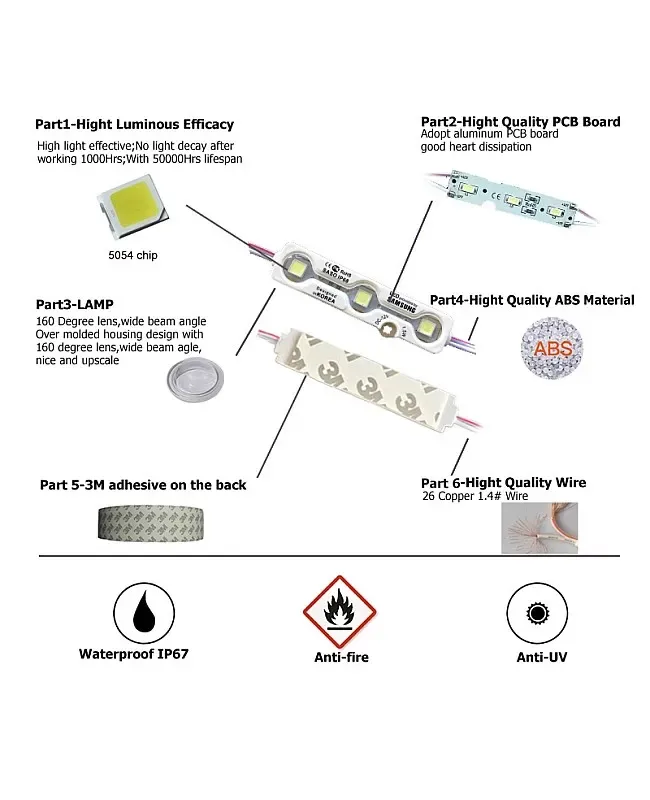

- LED Chip: Epistar LED Chip

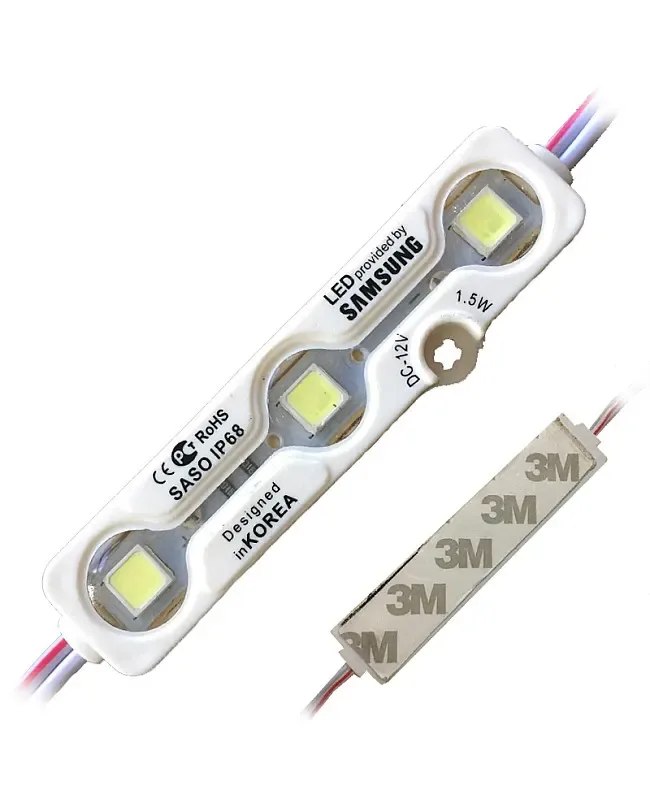

- Back Wit 3M Double-Sided Tape
- Optical Attenuation: ≥1%
- Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, Pink
- 1 * LED Sign Lighting Modules(20PCS/String)

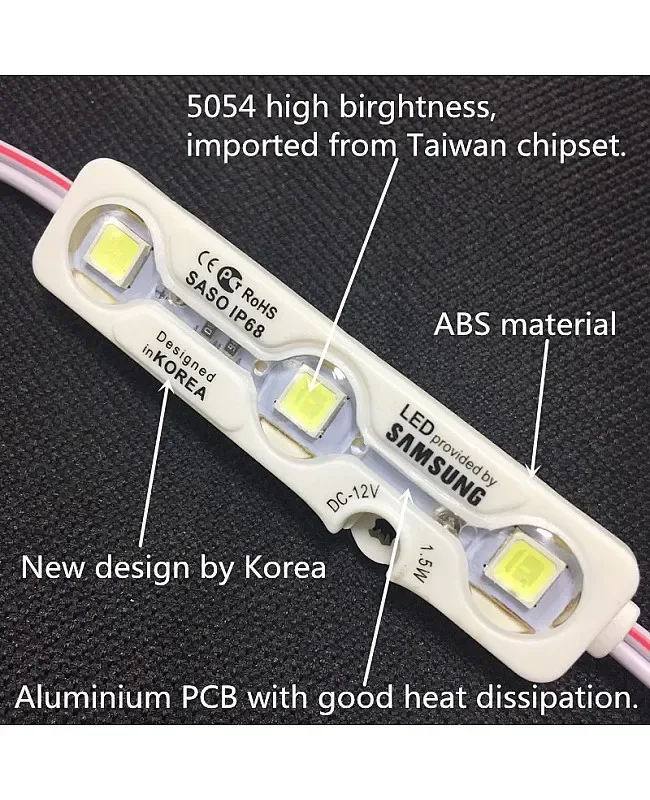

- The 5054 LED Sign Lighting Modules designed in Korea and use the high-quality 5054 SMD LEDs as light source, with the best IP68 waterproof level, can use them for outdoor projects.
- A serviceable module component for a complete lighting BOM.
- The configured light engine is CCT.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-E1LPBB
- LED: 5054 SMD LEDs
- LED Chip: Epistar LED Chip
- Chip Material: AlGaInP
- LED Quantity: 3PCS
- Size: 66*19mm
- Working Voltage: DC12V
- Output Power: 1.5W
- Lumen: 210-225lm
- Optical Attenuation: ≥1%

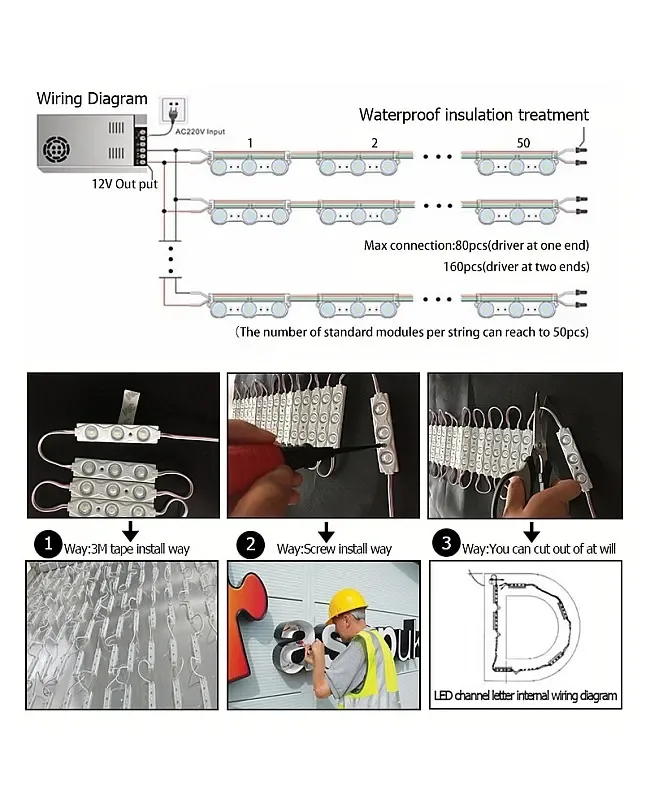

Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
LED: 5054 SMD LEDs
LED Chip: Epistar LED Chip
Chip Material: AlGaInP
LED Quantity: 3PCS
Size: 66*19mm
Waterproof Level: IP68
Back Wit 3M Double-Sided Tape
Working Voltage: DC12V
Output Power: 1.5W
Color Rendering Index
Viewing Angle: 120°
Lumen: 210-225lm
Optical Attenuation: ≥1%
Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, Pink
Includes
1 * LED Sign Lighting Modules(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
