Injection Mini 3 LED Module For Wheel Eyebrow Lights

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

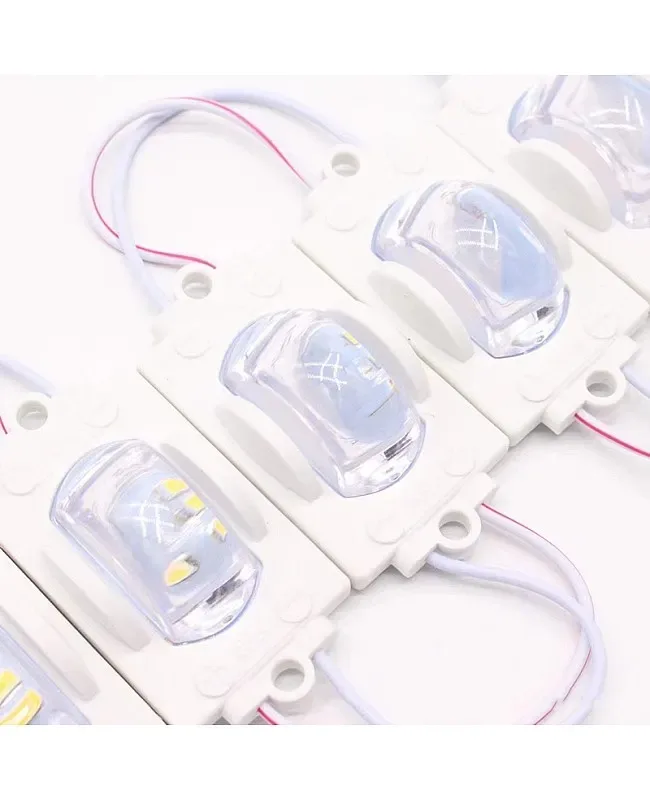

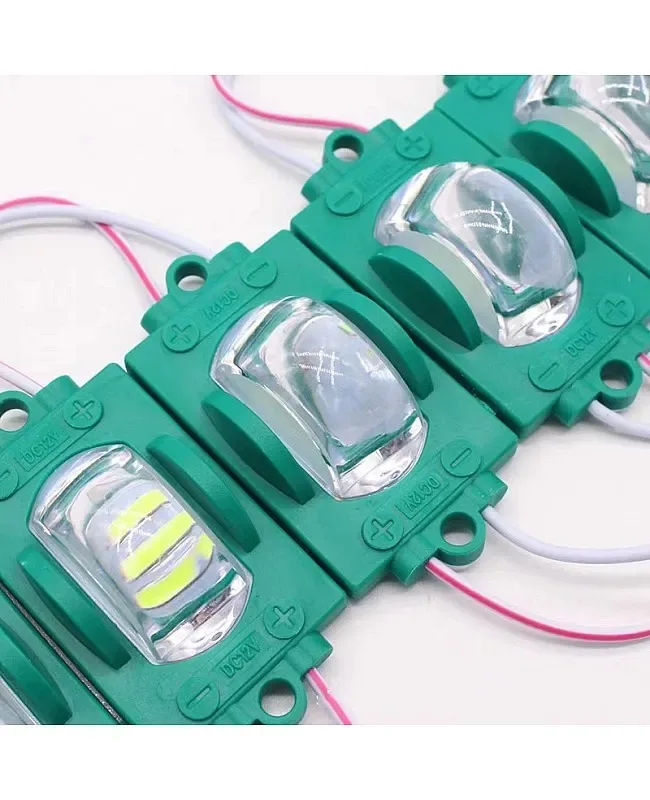

• The mini 3 LED modules for wheel eyebrow lights use 3PCS high-bright 0.5W 2835 SMD LEDs as light sources. They are mounted on the aluminum board and sealed in the ABS shell with a PC lens on the surface. This is for better heat dissipation and a wide beam angle.
• Material: ABS + PC + Aluminum
• Working Voltage: DC12V/DC24V
• Luminous Flux: 150-165lm

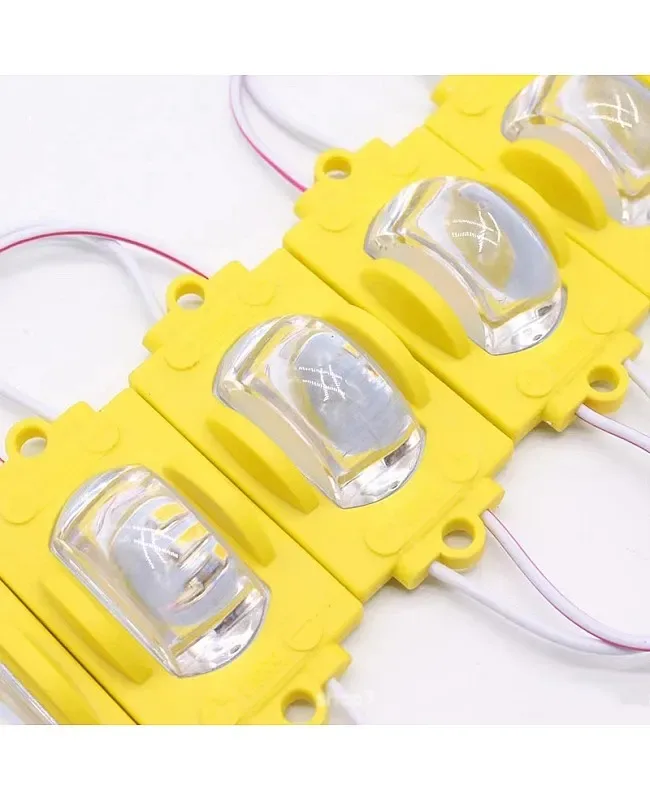

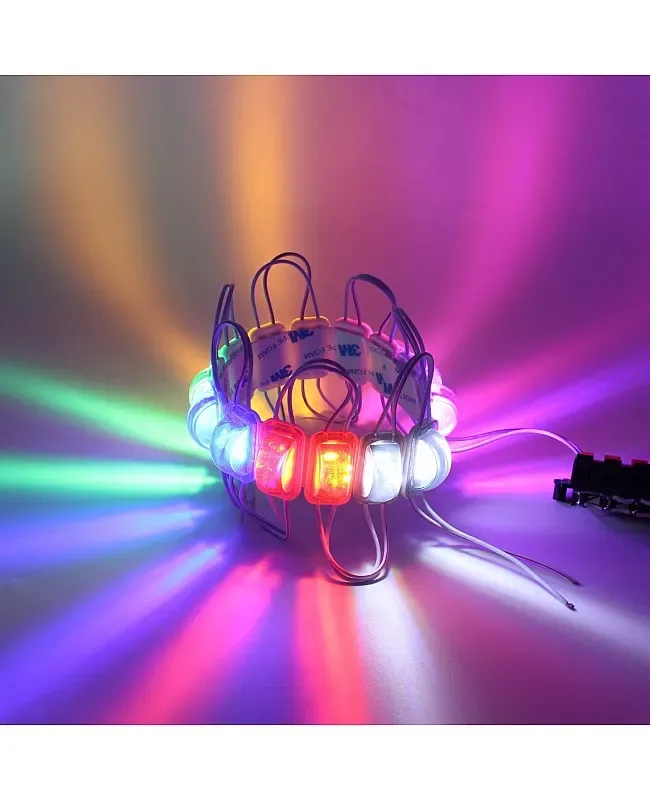

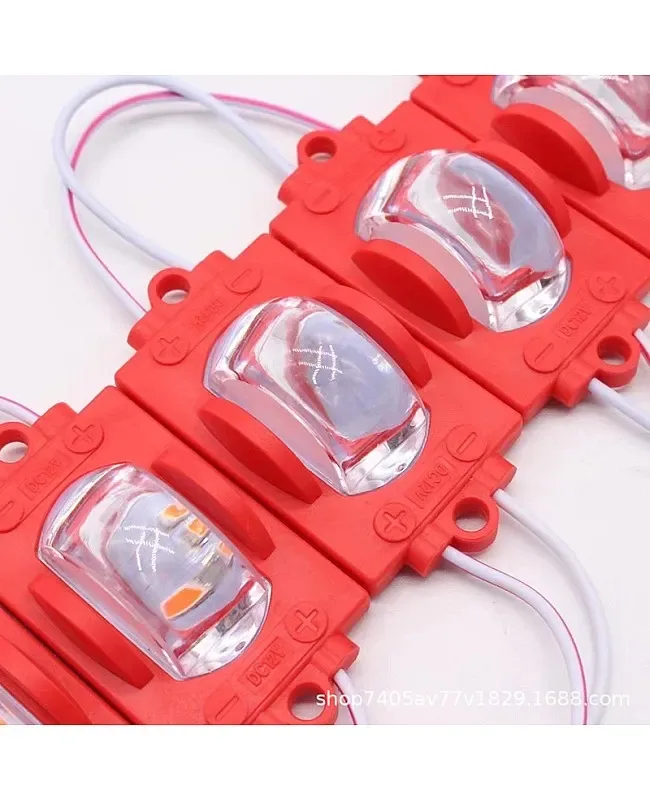

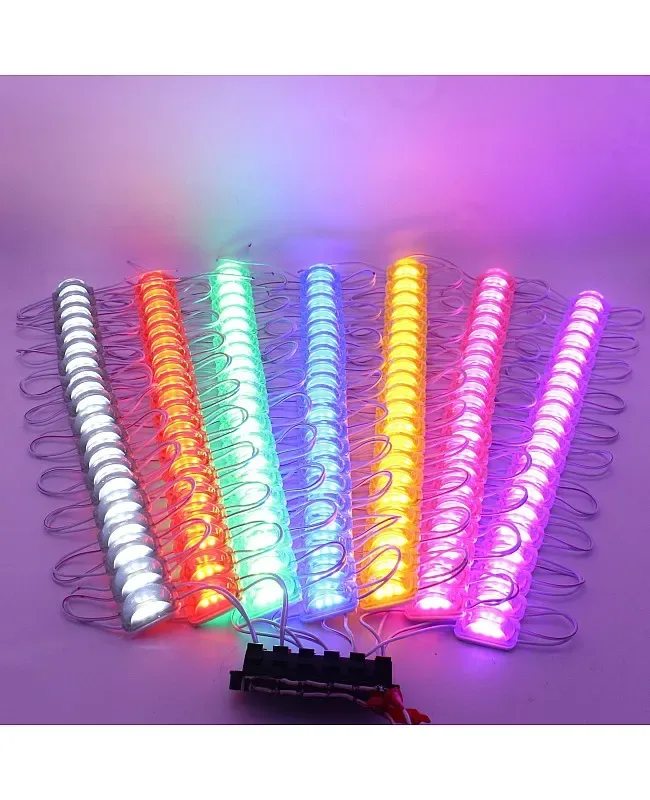

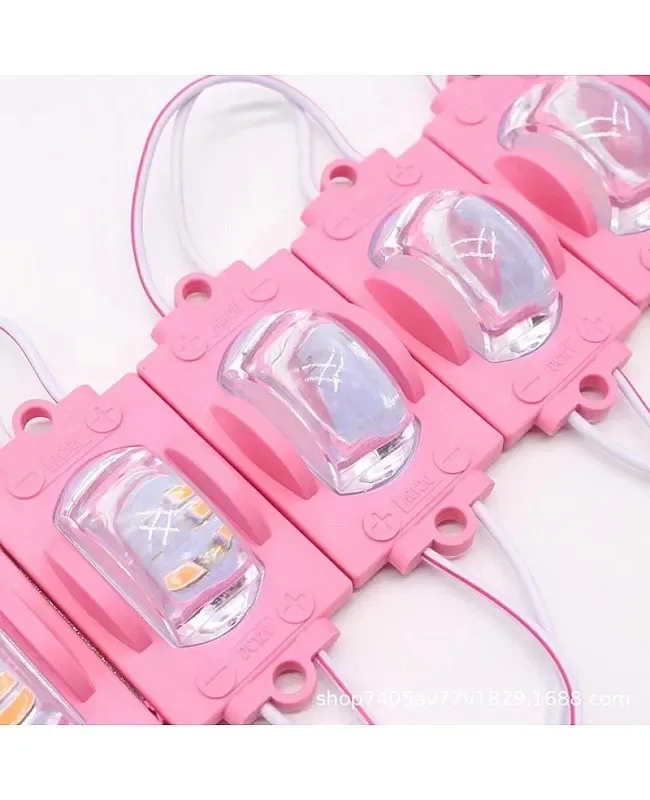

• Emitting Colors: Red, Yellow, Blue, Green, Warm White, Cool White, Pink
• Wire Length Between Modules: 8cm
• Cuttable And Reconnectable
• Back With 3M Double-Sided Adhesive Tape

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V / 24 V
• Light engine: CCT
• LumaCircuit model: LC-MOD-0SLLZ6
• Material: ABS + PC + Aluminum
• Size: 46*22mm
• Chip Material: AlGalnP
• LED Type: 2835 SMD LEDs
• LED QTY: 3PCS
• Working Voltage: DC12V/DC24V
• Power: 1.5W
• Emitting Colors: Red, Yellow, Blue, Green, Warm White, Cool White, Pink
• Beam Angle: 160°

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The mini 3 LED modules for wheel eyebrow lights use 3PCS high-bright 0.5W 2835 SMD LEDs as light sources. They are mounted on the aluminum board and sealed in the ABS shell with a PC lens on the surface. This is for better heat dissipation and a wide beam angle. The IP rating is IP65 waterproof and dustproof, the installer can use them for indoor and outdoor lighting projects, the back with double-sided adhesive tape, both sides with the screw holes, the installer can stick on the place you want to install or use the screws to fix them. The mini LED modules work in DC12V or DC24V, the installer can connect them to the 12/ battery in your car to light them up directly. The mini LED modules are 10PCS per string and 20PCS per set, cuttable and reconnectable, the installer can cut to any quantity and reconnect them on the wheels on your cars as warning lights, contour lamps, wheel trim lights on the motorcycle, cars, trucks, vans, pickup cars, etc you also can be used as backlighting in displays, stage&theaters, signs, windows, coves, channel letters, under-cabinets, etc. The installer can connect to a lighting dimmer to adjust the brightness freely.

Specifications

Model

Material: ABS + PC + Aluminum

Size: 46*22mm

Chip Material: AlGalnP

LED Type: 2835 SMD LEDs

LED QTY: 3PCS

Working Voltage: DC12V/DC24V

Power: 1.5W

Luminous Flux: 150-165lm

Emitting Colors: Red, Yellow, Blue, Green, Warm White, Cool White, Pink

Color Rendering Index

Beam Angle: 160°

Dimmable: YES

IP Rating: IP67

Wire Length Between Modules: 8cm

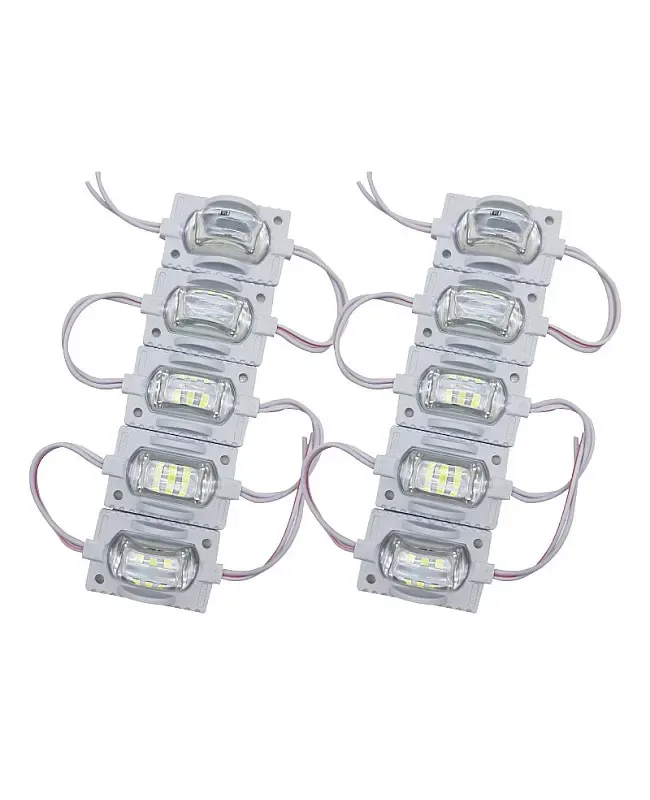

20PCS Per String

Cuttable And Reconnectable

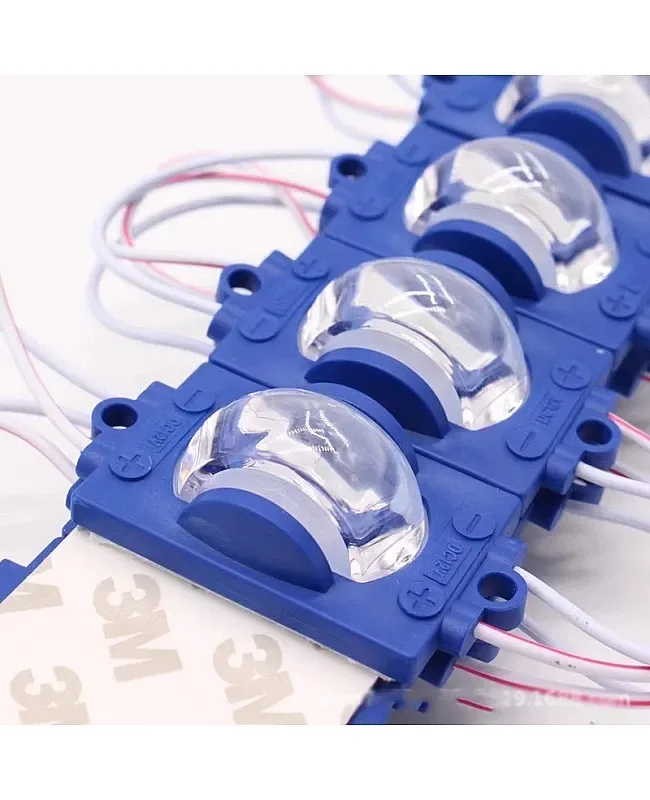

Back With 3M Double-Sided Adhesive Tape

Both Sides With Screw Holes

Working Temperature: -40°-+60°

Storage Temperature: -20°-+50°

Includes

1 * 3 LED Module(20PCS/String)
