3030 LED Sign Lighting Modules With Lens
LumaCircuit offers 3030 LED Sign Lighting Modules With Lens as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Luminous Intensity: 4800 MCD Emitting Colors: Warm White, Cool White, Blue, Green, Red, Yellow, Pink Back With Double-Sided Adhesive Tape The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Working Temperature: -25°-+55°
- Luminous Intensity: 4800 MCD
- Emitting Colors: Warm White, Cool White, Blue, Green, Red, Yellow, Pink
- Back With Double-Sided Adhesive Tape
- Wire Length Between Modules: 10-14cm
- Cuttable And Reconnectable
- LightBox And Signage: 8-20cm Double-Sided Light Box,
- Round Corner Advertising Signs, Exhibition Show, Ceiling Roof Light,
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-H152T0
- Working Temperature: -25°-+55°
- Material: ABS+PC
- Size: 49*31mm(L*W)
- LED Type: 2835 SMD LEDs
- LED Quantity: 1PC
- Working Voltage: DC12V
- Output Power: 1.5W/PC
- Lumen: 110-140lm
- IP Rating: IP65
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Working Temperature: -25°-+55°
Material: ABS+PC
Size: 49*31mm(L*W)
LED Type: 2835 SMD LEDs
LED Quantity: 1PC
Luminous Intensity: 4800 MCD
Working Voltage: DC12V
Output Power: 1.5W/PC
Lumen: 110-140lm
IP Rating: IP65

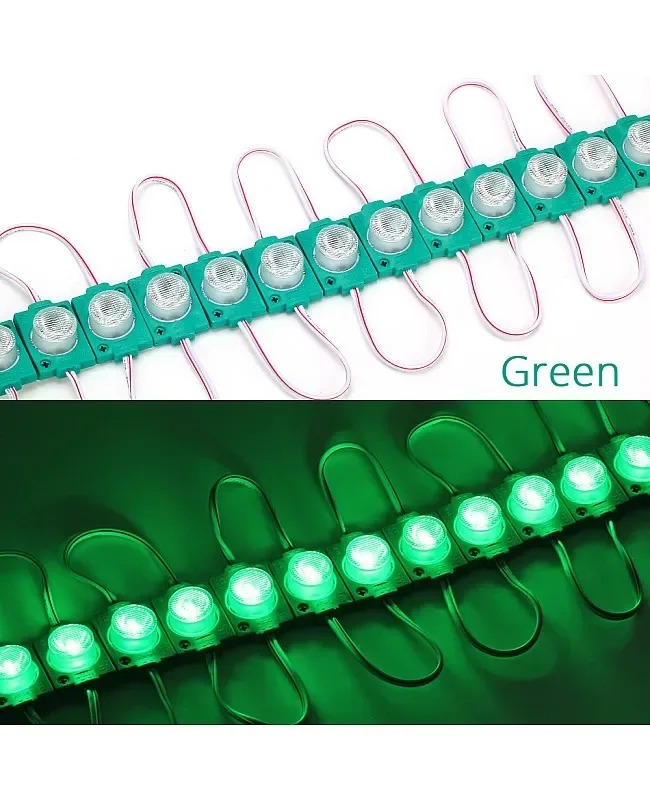

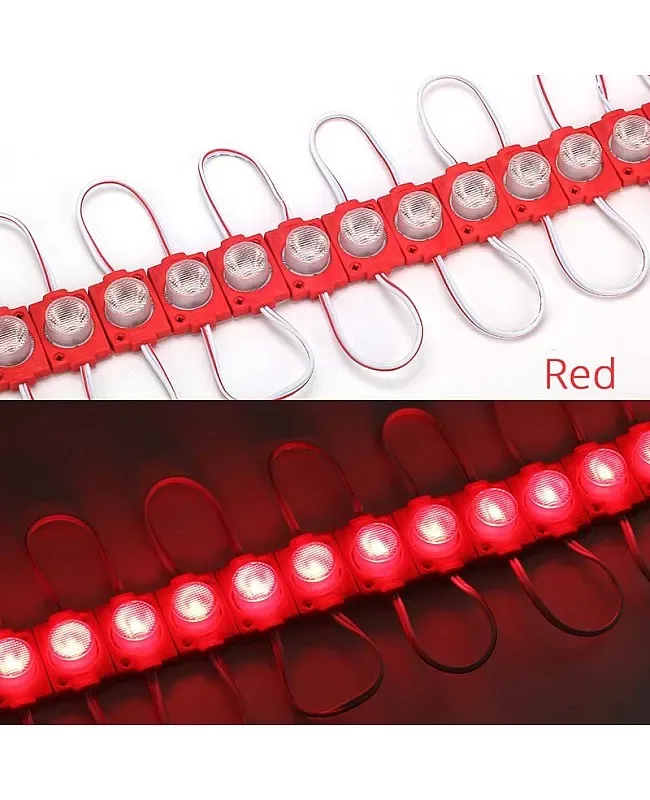

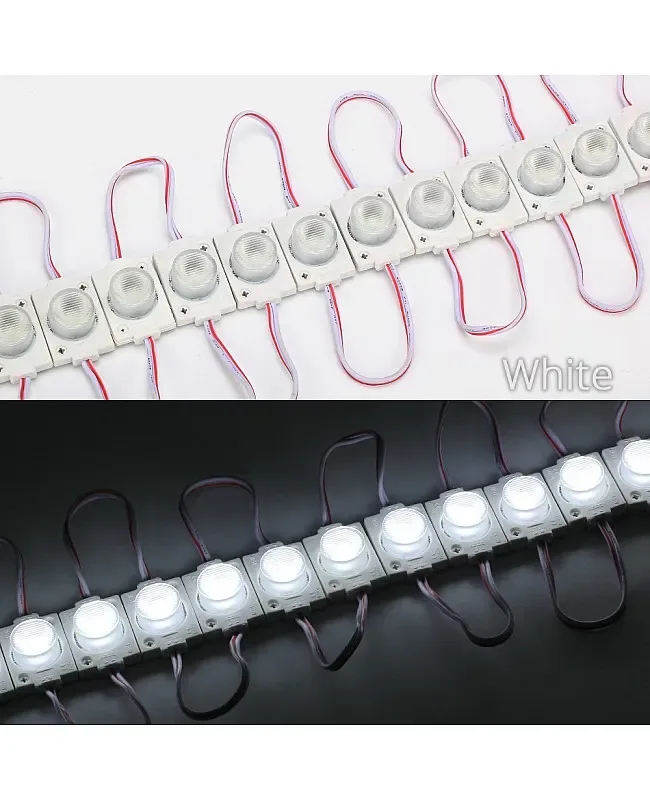

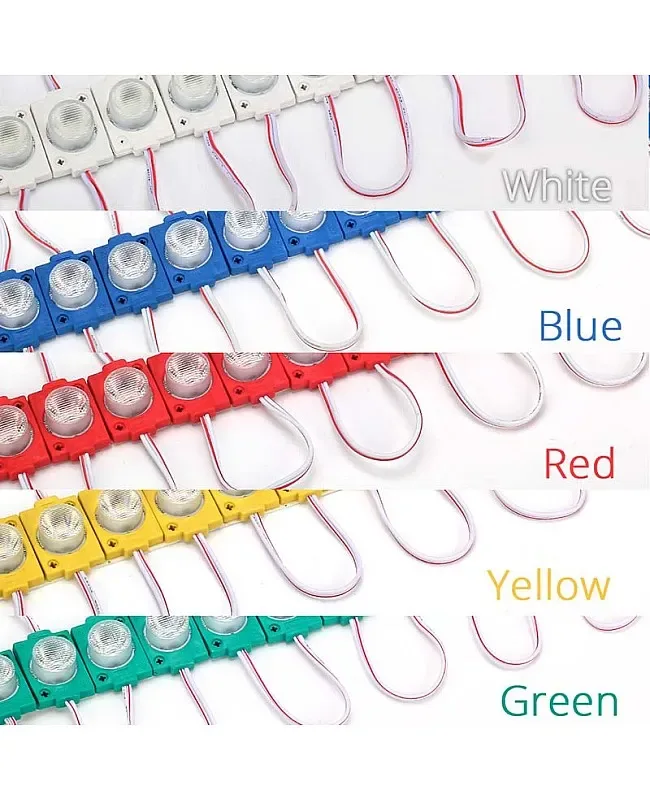

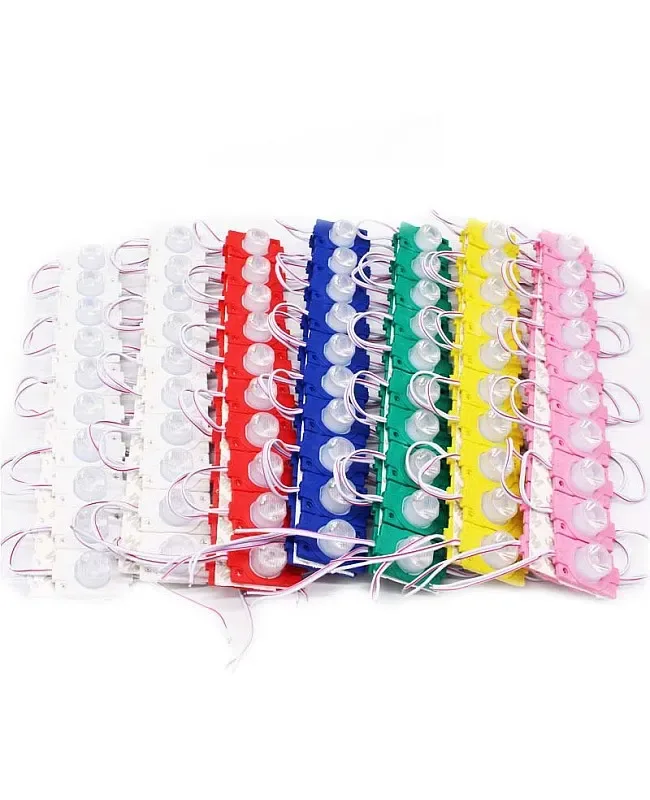

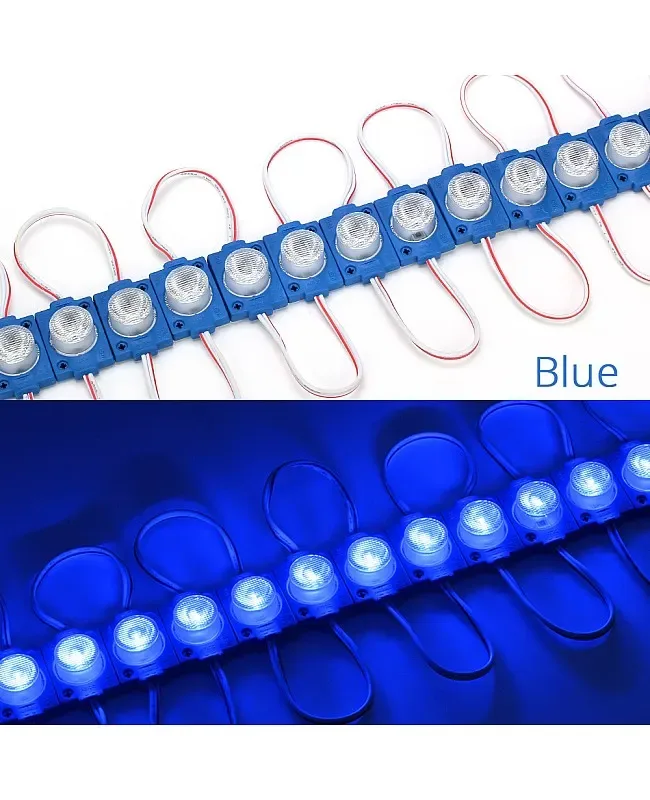

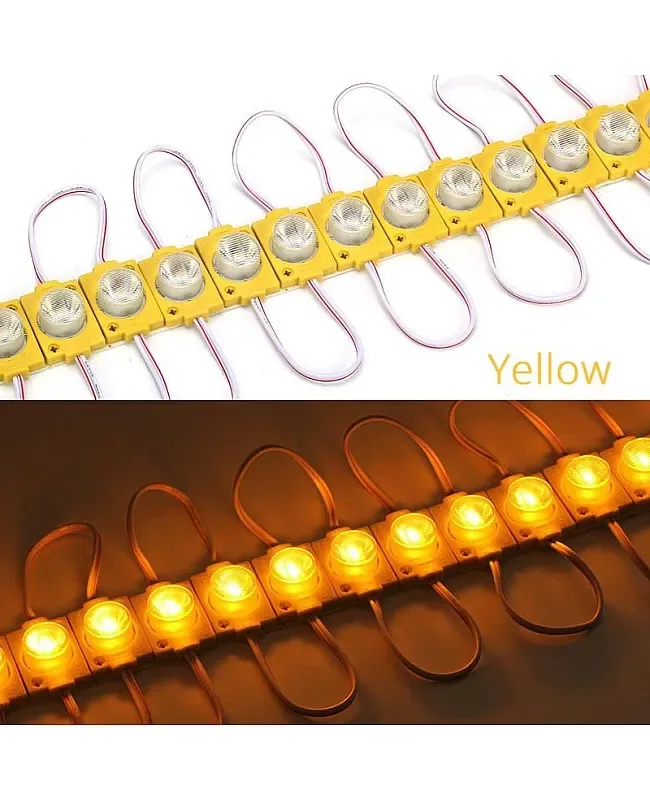

Emitting Colors: Warm White, Cool White, Blue, Green, Red, Yellow, Pink
View Angle: 45 °*15°
Color Rendering
20PCS Per String
Back With Double-Sided Adhesive Tape
Wire Length Between Modules: 10-14cm
Cuttable And Reconnectable
Applications
LightBox And Signage: 8-20cm Double-Sided Light Box,
Round Corner Advertising Signs, Exhibition Show, Ceiling Roof Light,
Institution building, commercial lighting, backlights for channel letters, and billboards.
Includes
1 * 3030 LED Sign Lighting Modules(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
