DC12V RGB 5050 LED Modules With Metal Shell 20PCS/String
LumaCircuit offers DC12V RGB 5050 LED Modules With Metal Shell 20PCS/String as a configurable LED module for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Luminous Flux: 60-75lm/PC Wave Length: Red(619-635nm), Green(512-528nm), Blue(463-475nm) Back With Double-sided Adhesive Tape The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

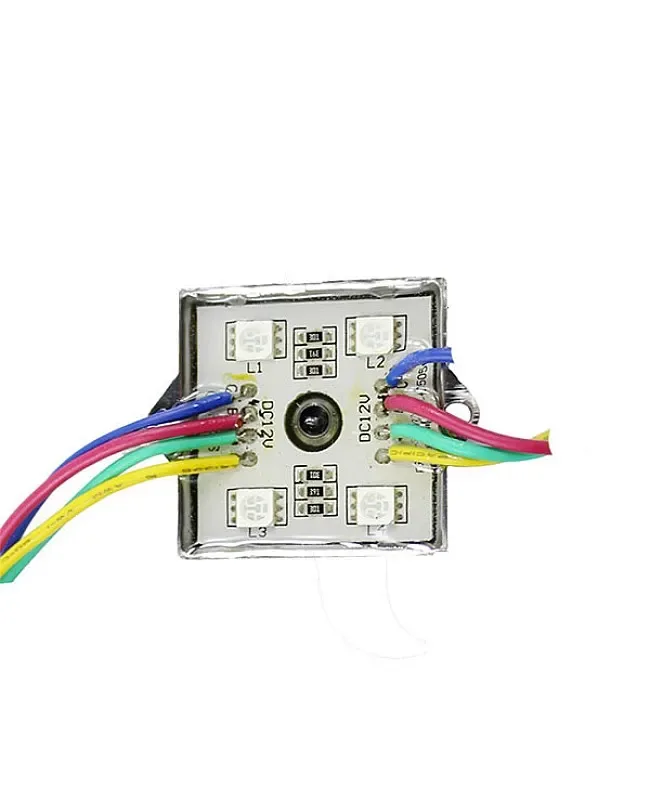

- The RGB 5050 LED modules with metal shell, which uses the 4PCS 5050 SMD LEDs as the light source, the LEDs mounted on the aluminum board and in the metal shell for the better heat dissipation, the surface with epoxy sealed, the IP rating is IP65, can be used for indoor and outdoor applications. The RGB 5050 LED modules are 20 pieces per string, cuttable and reconnectable, and the installer can cut to any quantity for your project and reconnect them.
- Luminous Flux: 60-75lm/PC
- Wave Length: Red(619-635nm), Green(512-528nm), Blue(463-475nm)
- Back With Double-sided Adhesive Tape
- The Center Of The Metal Shell With Screw Hole
- LED Driver And LED Controller Sold Separately
- Cuttable And Reconnectable
- The 5050 RGB LED Modules with metal shell, which uses 4PCS 5050 SMD LEDs as the light source, the surface with epoxy sealed, can be used for indoor and outdoor applications. 20PCS per string, cuttable and reconnectable.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: RGB
- LumaCircuit model: LC-MOD-FXB4L2

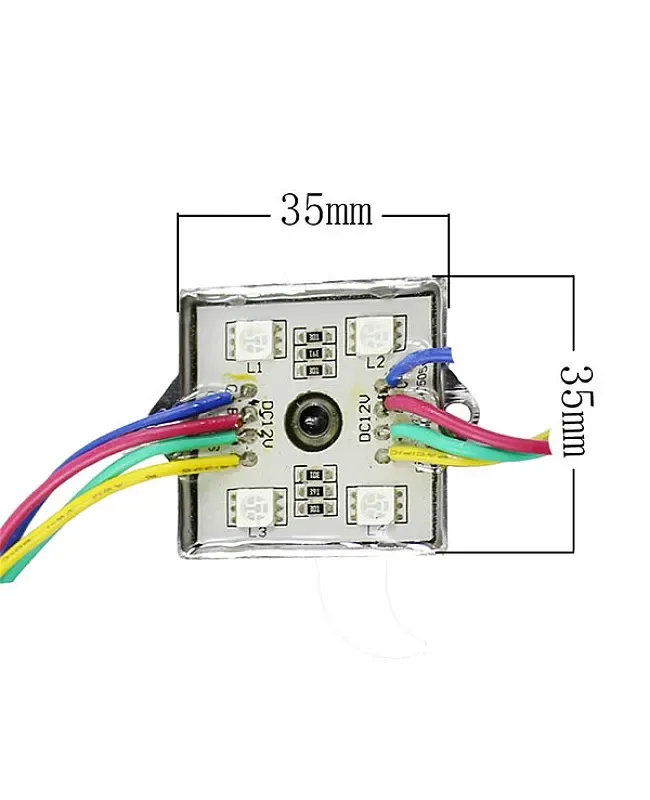

- Size: 35*35mm(L*W)
- Color: RGB
- LED: 5050 SMD LEDs
- LED Quantity: 4PCS/PC
- Voltage: DC12V
- Power: 0.96W/PC
- IP Rating: IP65
- Wave Length: Red(619-635nm), Green(512-528nm), Blue(463-475nm)
- Beam Angle: 120°
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The RGB 5050 LED modules with metal shell, which uses the 4PCS 5050 SMD LEDs as the light source, the LEDs mounted on the aluminum board and in the metal shell for the better heat dissipation, the surface with epoxy sealed, the IP rating is IP65, can be used for indoor and outdoor applications. The RGB 5050 LED modules are 20 pieces per string, cuttable and reconnectable, and the installer can cut to any quantity for your project and reconnect them. The RGB LED modules work in DC12V and are easy to connect to the LED Driver and RGB Controller to light up or adjust the static colors or the dynamic modes. The back has double-sided adhesive tape, so take off the protector on the tape and stick it to the place you want to install it. The center of the metal shell with the screw hole, you also can use the crews to fix them on the surface of your lighting projects. The RGB LED light modules are widely used for holiday decorations, backlights for channel letters, signs, billboards, etc.
Specifications
Manufacturer: TYoung
Size: 35*35mm(L*W)
Color: RGB
LED: 5050 SMD LEDs
LED Quantity: 4PCS/PC
Voltage: DC12V
Power: 0.96W/PC
IP Rating: IP65
Luminous Flux: 60-75lm/PC
Wave Length: Red(619-635nm), Green(512-528nm), Blue(463-475nm)
Beam Angle: 120°
Back With Double-sided Adhesive Tape
The Center Of The Metal Shell With Screw Hole
Dimmable: YES
Color-Changing: YES
LED Driver And LED Controller Sold Separately
Cuttable And Reconnectable
Weight: 15g
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
