Injection Square 5730 LED Light Module With Lens
LumaCircuit offers Injection Square 5730 LED Light Module With Lens as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -40°-+50° Colors: Warm White, Cool White, Red, Yellow, Blue, Green Color Temperature:13000-15000K(White) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The injection square 5730 LED light modules, which are made with the injection molding process technology, use 4PCS high-quality and super bright 5730 SMD LEDs as the light source. The LEDs mounted on the aluminum board and in the ABS shell look fashionable, fireproof, work on DC12V, and are safe for your children and pets. They have a PC lens for a wide beam angle. The IP rating is IP65, which can be used for indoor and outdoor projects.
- Working Temperature: -40°-+50°

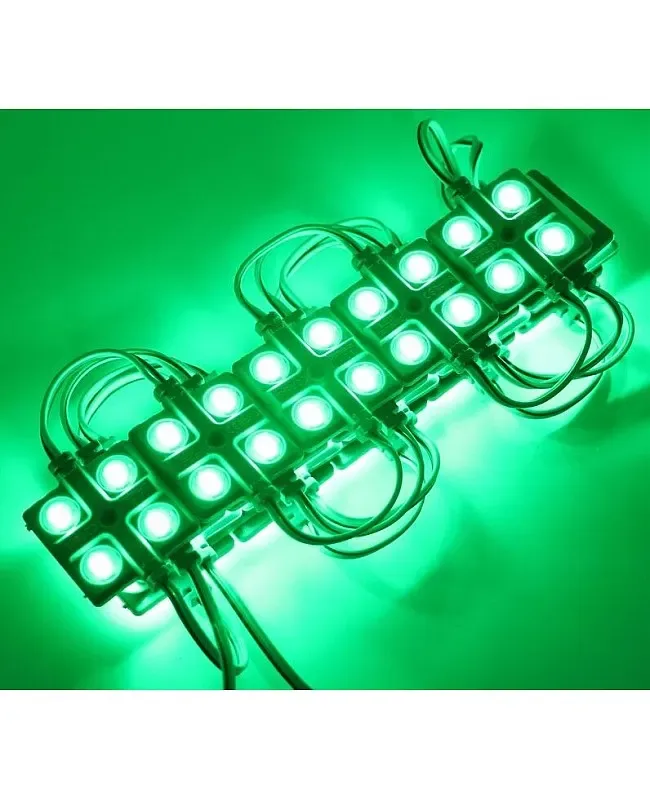

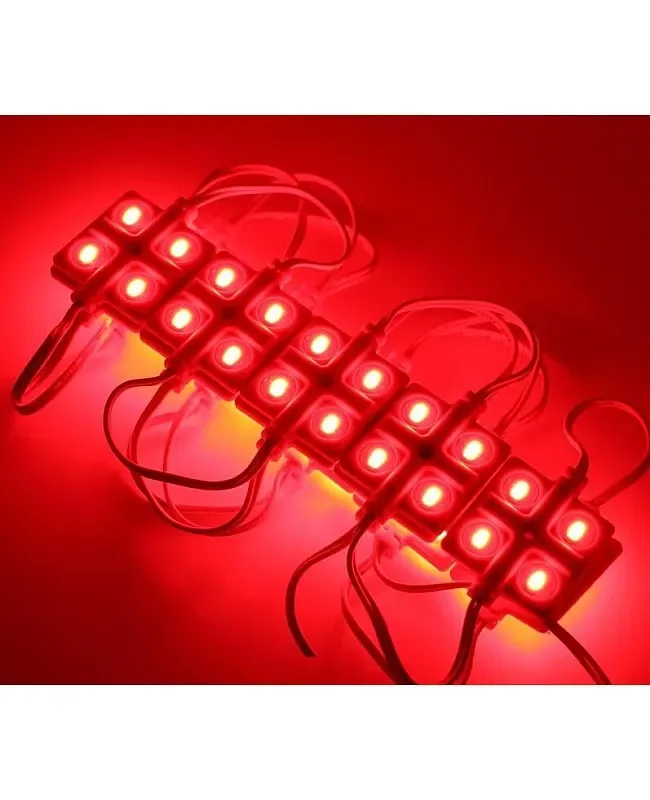

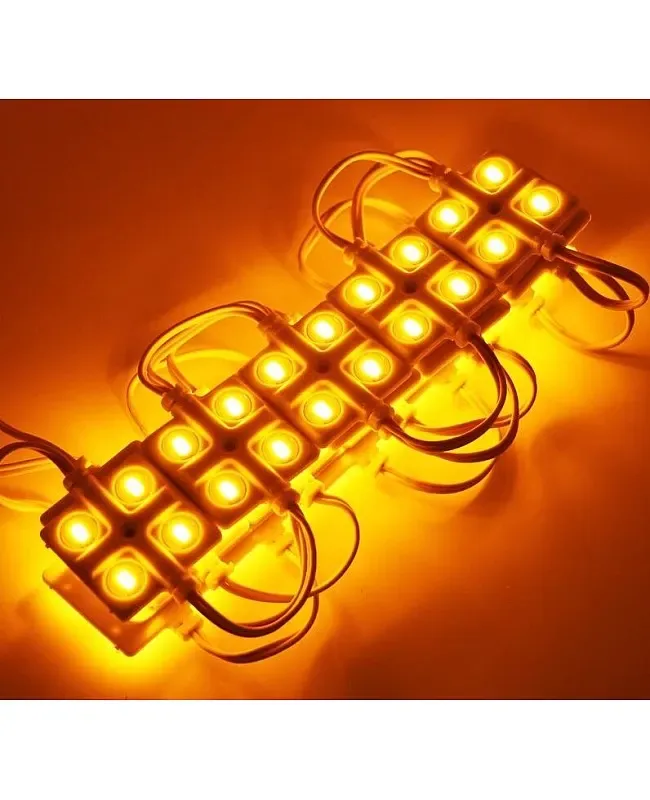

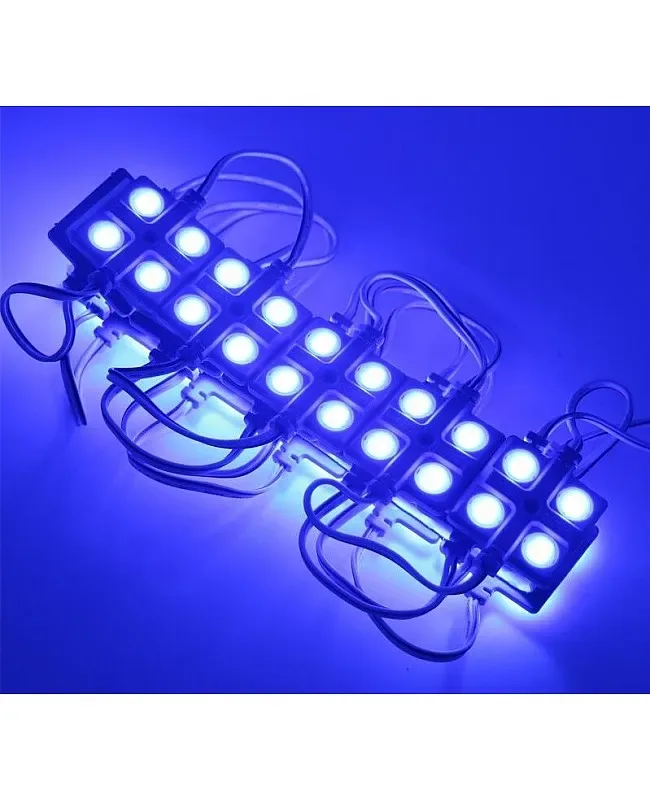

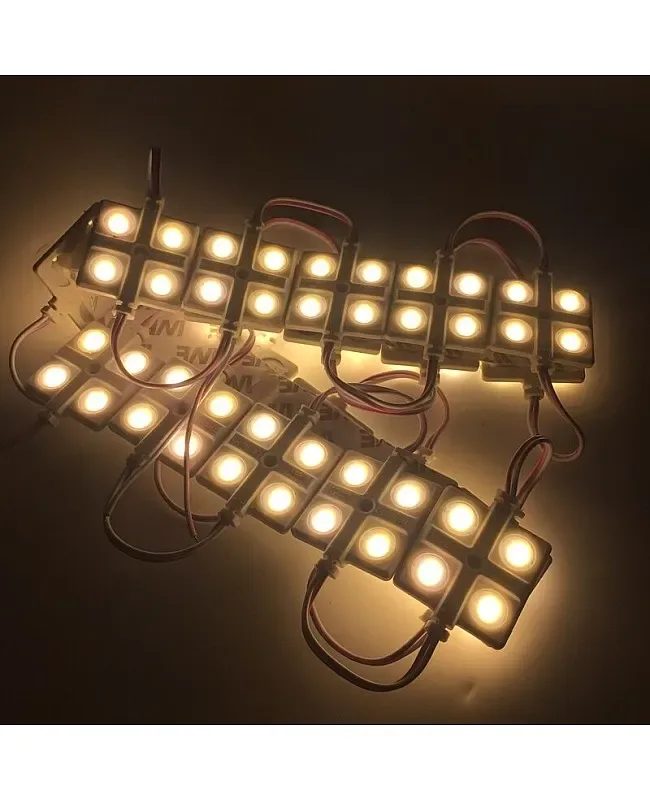

- Colors: Warm White, Cool White, Red, Yellow, Blue, Green
- Color Temperature:13000-15000K(White)
- Cuttable And Reconnectable
- Back With Double-sided Adhesive Tape
- Outdoor/Indoor Use, Cove Lighting
- Path and contour lighting
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- Working Temperature: -40°-+50°
- Size: 50*37*9mm(L*W*H)
- Material: ABS+PC
- Working Voltage: DC12V
- LED Type: 5730 SMD LEDs
- LED QTY: 4PCS/PC
- Wattage: 2.4W/PC
- Colors: Warm White, Cool White, Red, Yellow, Blue, Green
- IP Rating: IP65
- Color Temperature: 13000-15000K(White)
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

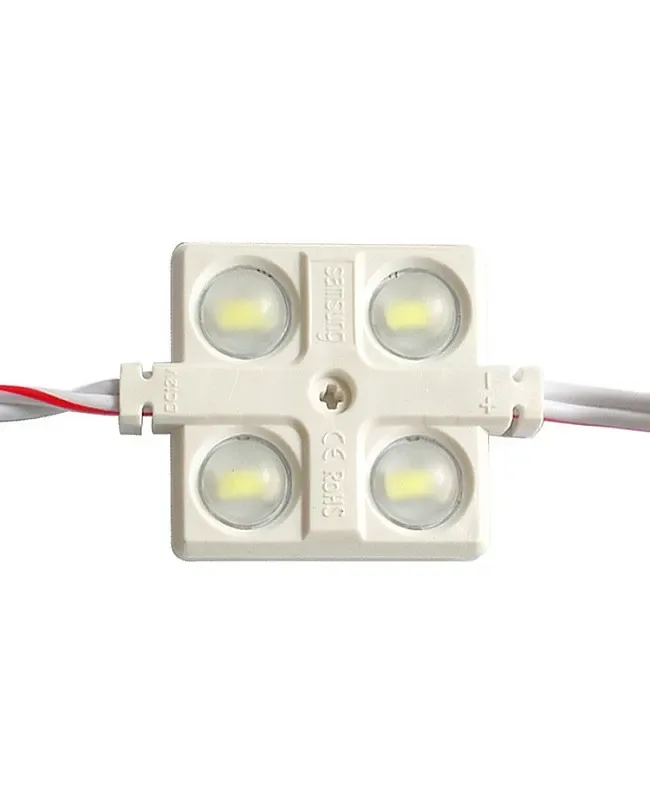

The injection square 5730 LED light modules, which are made with the injection molding process technology, use 4PCS high-quality and super bright 5730 SMD LEDs as the light source. The LEDs mounted on the aluminum board and in the ABS shell look fashionable, fireproof, work on DC12V, and are safe for your children and pets. They have a PC lens for a wide beam angle. The IP rating is IP65, which can be used for indoor and outdoor projects. 20PCS per string, cuttable and reconnectable, can be cut to any quantity and reconnected. The back has double-sided adhesive tape and the center with a screw hole, easy to fix them on the place you want to install by taking off the protector on the tape to stick on the project or using the screws. The SMD LED light modules work in DC12V, making it easy to connect to the LED light power supply to light up or connect to the LED light dimmer to adjust the brightness. The installer can use the LED light modules as the backlight for the signs, channel letters, billboards, advertisement boards, etc., and they can also be used for the reading light, ambient light for your cars, trucks, vans, and pickup trucks.
Specifications
Working Temperature: -40°-+50°
Size: 50*37*9mm(L*W*H)
Material: ABS+PC
Working Voltage: DC12V
LED Type: 5730 SMD LEDs
LED QTY: 4PCS/PC
Working Current
Wattage:2.4W/PC
Colors: Warm White, Cool White, Red, Yellow, Blue, Green
IP Rating: IP65
Color Temperature:13000-15000K(White)
View Angle: 140°
Lumen: 160-200lm

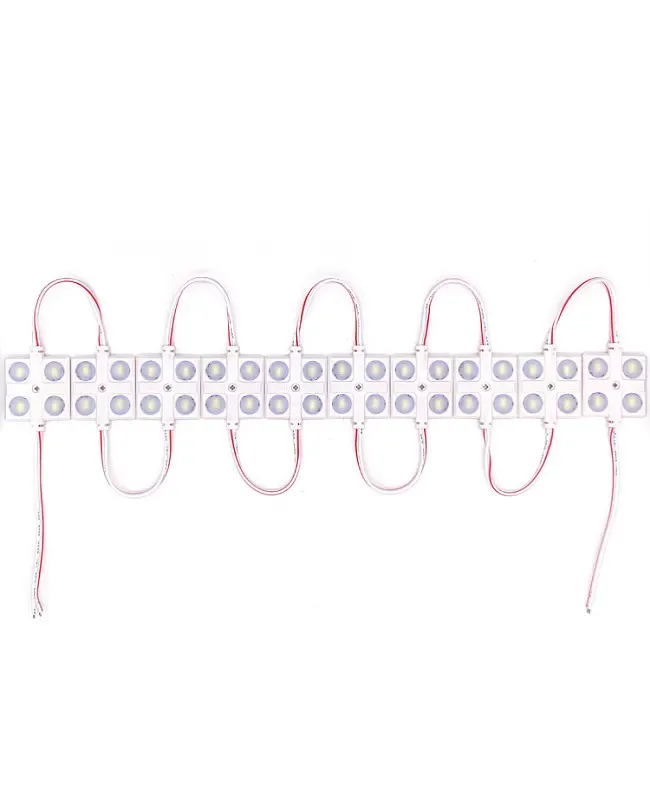

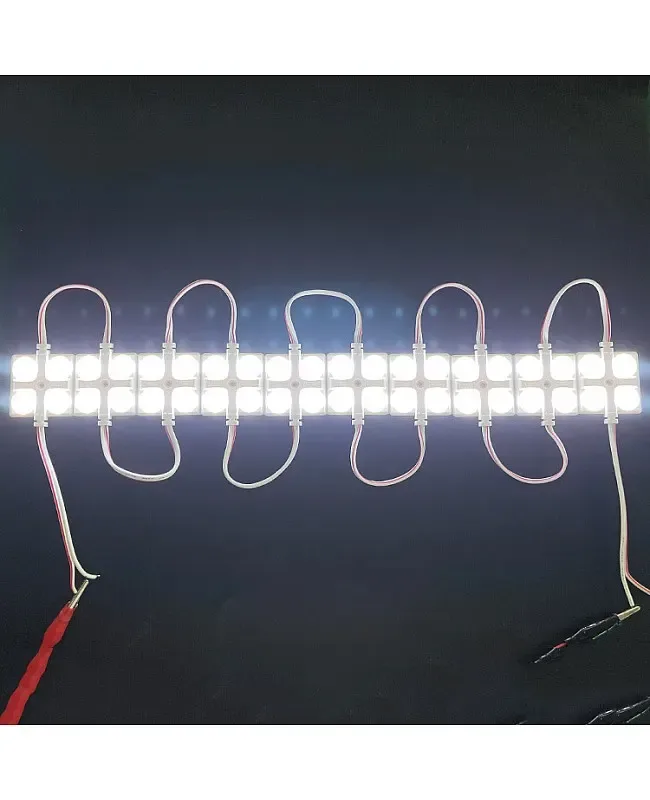

20PCS Per String
Cuttable And Reconnectable
Back With Double-sided Adhesive Tape
Center With Screw Hole
Applications
Outdoor/Indoor Use, Cove Lighting
Path and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archway
DIY Lights for home use
Marine light, Task lighting
Replacement of Fluorescent light
Decorative lights for holiday, event, show, exhibition
1 * Square 5730 LED Light Module(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
