Product details
LED Lighting Module For Series Light Channels
LumaCircuit offers LED Lighting Module For Series Light Channels as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Color Temperature: 3000K Warm White/4000K Natural White Suit For Series Light Channels T, TS 1*LED Module For TS Light Channels The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

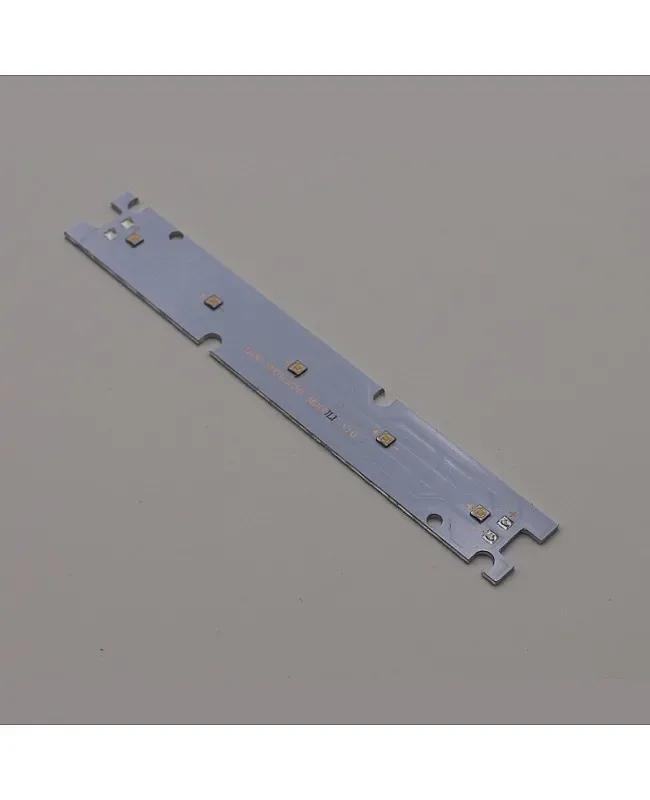

- The Rigid LED Lighting Modules are specifically designed for use with Light Channels, compatible with T, and TS models. The length is 132.5mm per piece. Each uses five pieces of 3030 SMD LEDs as the light source. It works on DC 15V. The installer can choose the 3000K warm white and 4000K natural white Light Modules for various scenes.
- Color Temperature: 3000K Warm White/4000K Natural White
- Suit For Series Light Channels T, TS
- 1*LED Module For TS Light Channels
- How To Connect The Light Modules To the LED Driver
- The LED Lighting Modules are specially designed for Light Channels, 3000K warm white and 4000K natural white modules available for various scenes.
- A serviceable module component for a complete lighting BOM.
- The configured light engine is CCT.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-IF0RB0
- Size: 132.5*20*6mm
- Working Voltage: DC 15V
- Input Current: 0.4A
- Power: 6W
- Color Temperature: 3000K Warm White/4000K Natural White
- CRI: >
- LED: 3030 SMD LEDs
- Suit For Series Light Channels: T, TS
- Dimensions found: 132.5x20x6mm / 6mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The Rigid LED Lighting Modules are specifically designed for use with Light Channels, compatible with T, and TS models. The length is 132.5mm per piece. Each uses five pieces of 3030 SMD LEDs as the light source. It works on DC 15V. The installer can choose the 3000K warm white and 4000K natural white Light Modules for various scenes.
Specifications
Model
Size: 132.5*20*6mm
Working Voltage: DC 15V
Input Current: 0.4A
Power: 6W
Color Temperature: 3000K Warm White/4000K Natural White
CRI: >
LED: 3030 SMD LEDs
LED Brand
Suit For Series Light Channels T, TS
Includes
1*LED Module For TS Light Channels

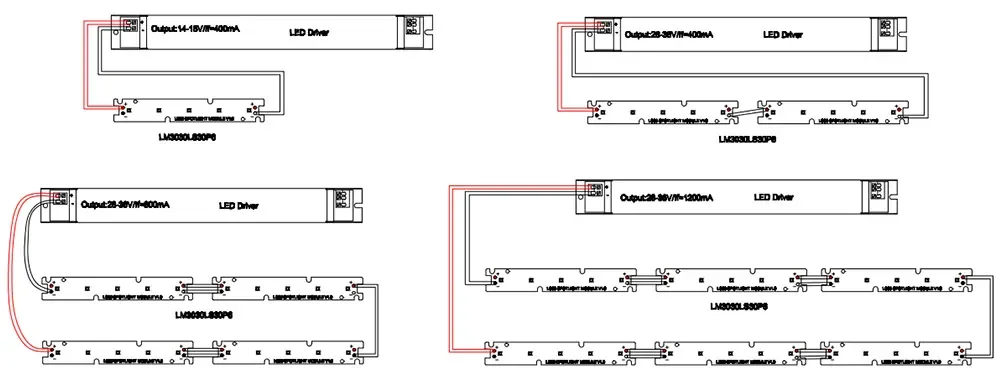

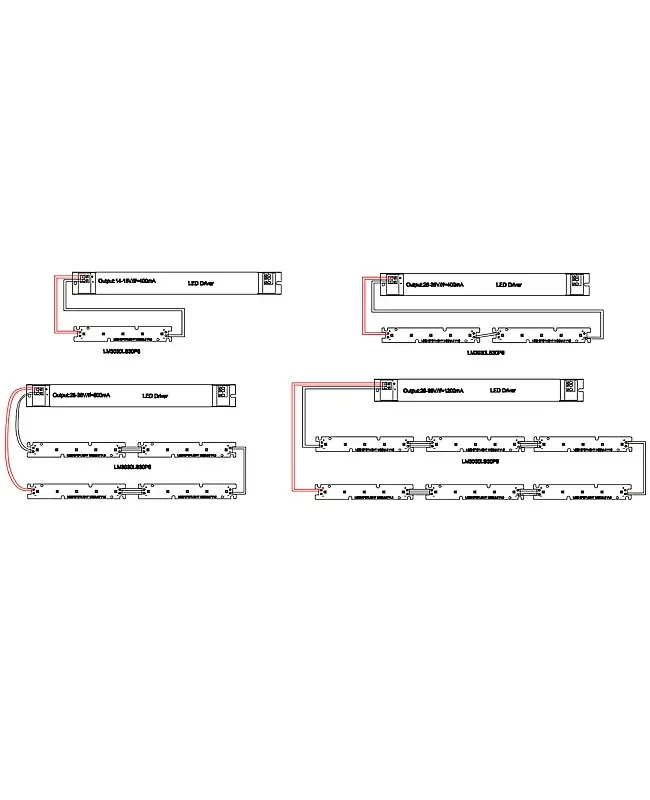

How To Connect The Light Modules To the LED Driver
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
