Product details
6LEDs 12V LED Module Replacement For Trucks
LumaCircuit offers 6LEDs 12V LED Module Replacement For Trucks as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Material: Fire-Proof ABS +PC Size: 100*25*10mm(L*W*H) Colors: Cool White, Warm White, Red, Blue, Green, Yellow, Pink The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 6 LEDs LED module replacement for Trucks, the installer can use them as the warning light, indicator light, or sidelights for pick-up cars, trucks, vans, etc.
- Material: Fire-Proof ABS +PC
- Size: 100*25*10mm(L*W*H)

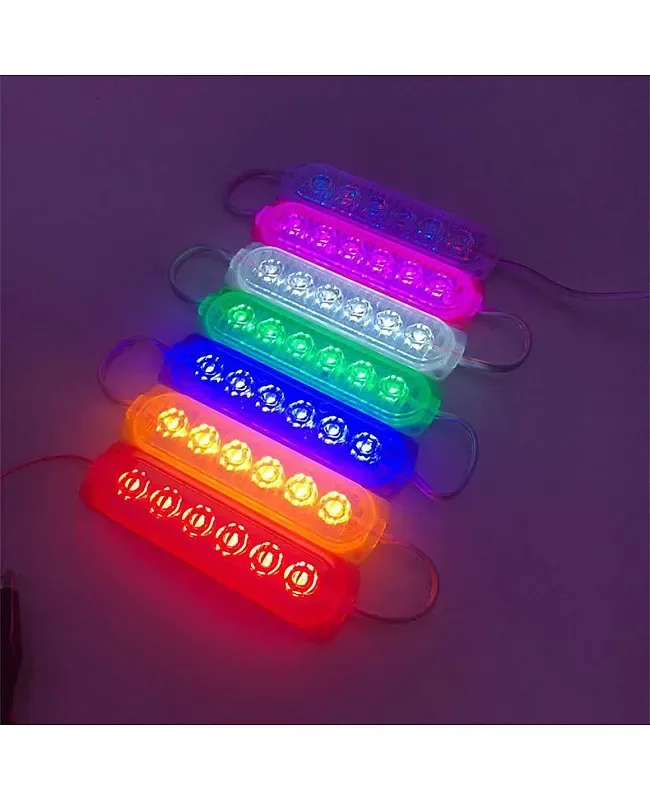

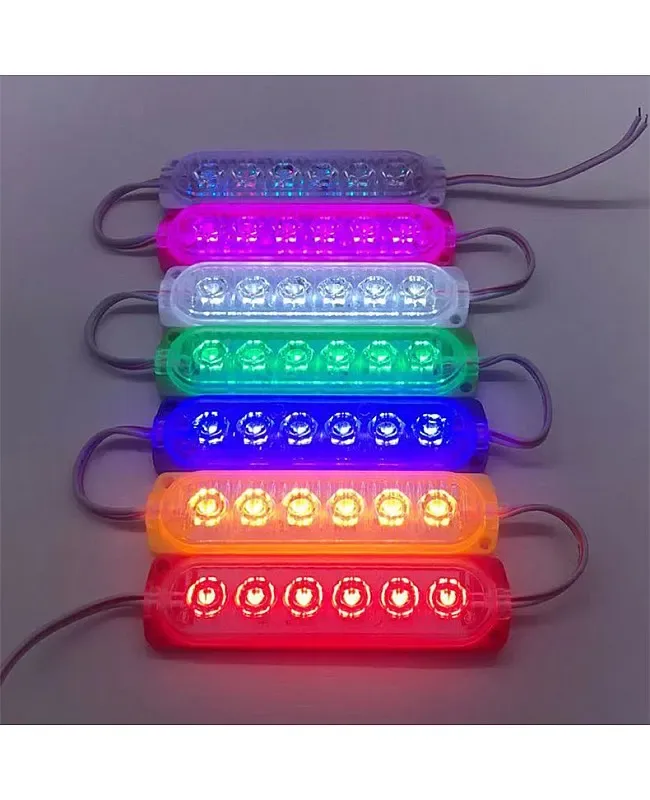

- Colors: Cool White, Warm White, Red, Blue, Green, Yellow, Pink
- Luminous Flux: 40-72lm/PC
- IP Rating: IP65 Waterproof
- Dim Control: Pulse Width Modulation
- Cuttable And Reconnectable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-3DO7UA
- Material: Fire-Proof ABS +PC
- Size: 100*25*10mm(L*W*H)
- LED Type: 2835 SMD LEDs
- LED QTY: 6PCS/PC
- Working Voltage: DC12V
- Power: 0.6W/PC
- Colors: Cool White, Warm White, Red, Blue, Green, Yellow, Pink
- Beam Angle: 160°
- IP Rating: IP65 Waterproof
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

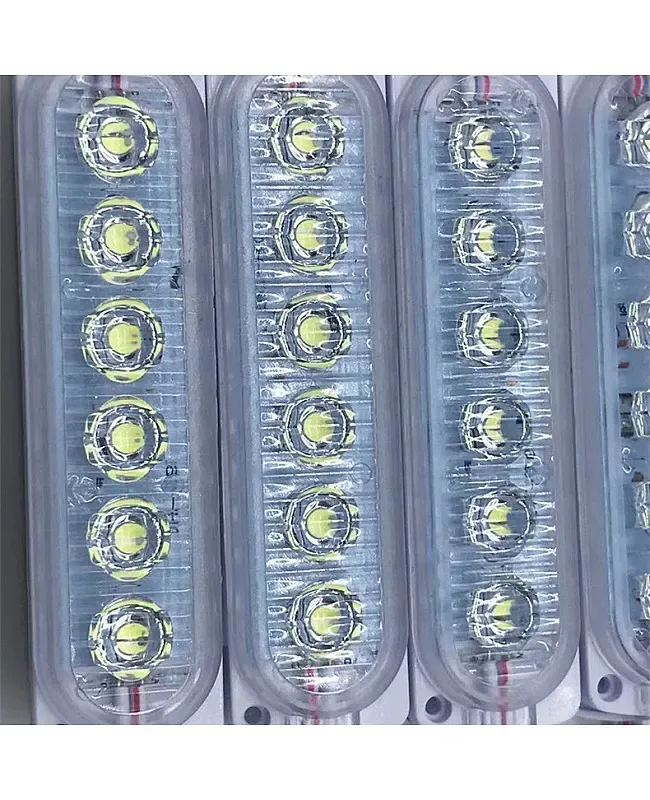

The 6 LEDs LED module replacement for Trucks, the installer can use them as the warning light, indicator light, or sidelights for pick-up cars, trucks, vans, etc. 20PCS per string, cuttable and reconnectable, the installer can cut to any quantity and reconnect them for your project, the back with double side adhesive tape and the surface with dual screw holes, the installer can take off the protective paper on the stick and stick them on the place you want to install, or use the screws to fix them the 12V LED module replacement uses 6PCS high-quality and super-bright SMD LEDs as the light source, the LEDs mounted on the aluminum board and the surface with PC optical lens, for better heat dissipation and wide beam angle. The 6 LED modules working in DC12V can be connected to the battery in your car to light up easily, or connect to the power supply with a output. The IP rate is IP65 waterproof so that the installer can install them in a damp location. The installer can also use them for displays, stage and theaters, signs, machines, windows, under-cabinets, channel letters, etc.
Specifications
Model
Material: Fire-Proof ABS +PC
Size: 100*25*10mm(L*W*H)
LED Type: 2835 SMD LEDs
LED QTY: 6PCS/PC
Aluminum PCB Board
Working Voltage: DC12V
Power: 0.6W/PC
Colors: Cool White, Warm White, Red, Blue, Green, Yellow, Pink
Luminous Flux: 40-72lm/PC
Beam Angle: 160°
IP Rating: IP65 Waterproof
Dim Control: Pulse Width Modulation
Dimmable: YES

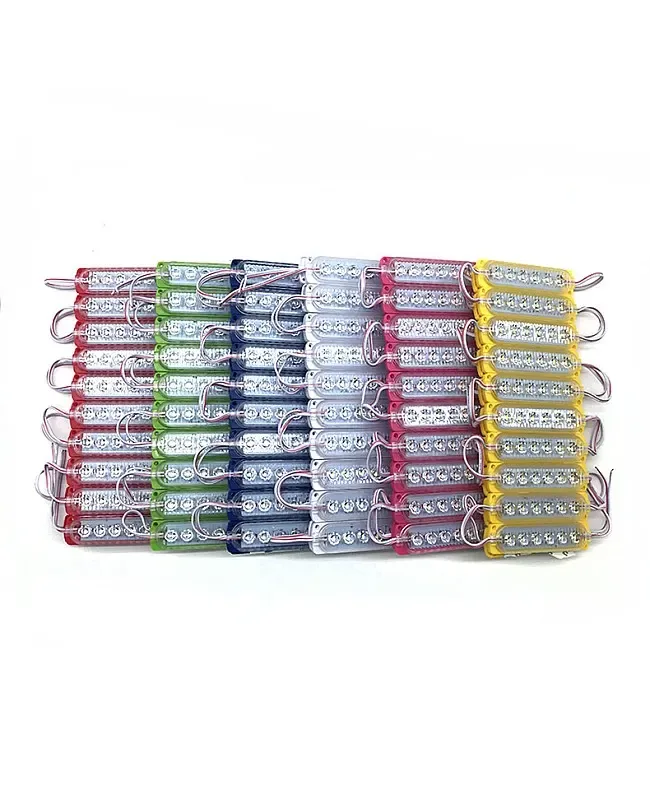

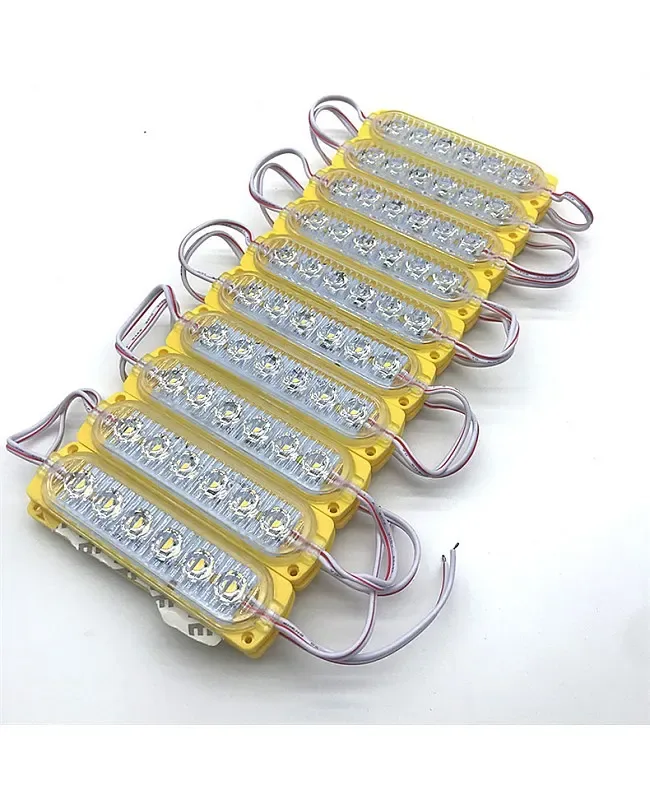

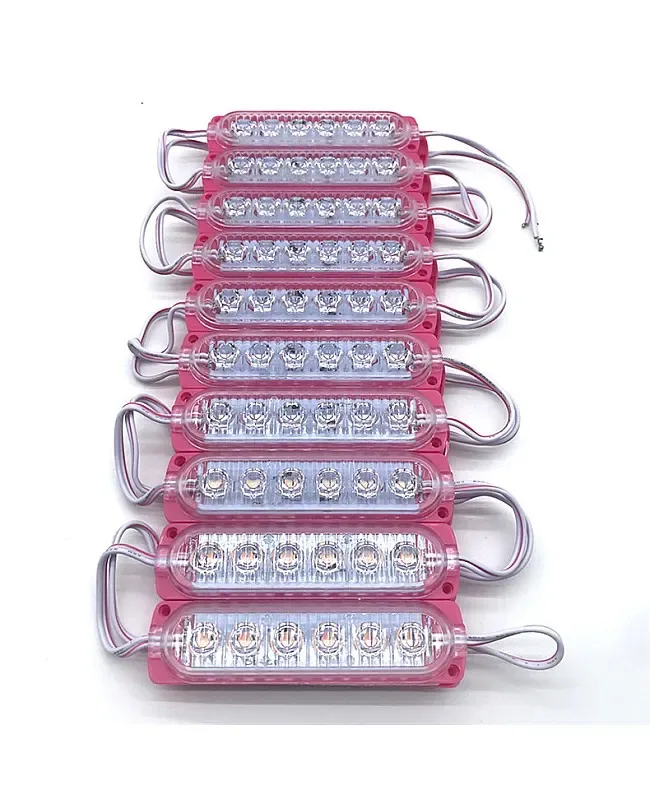

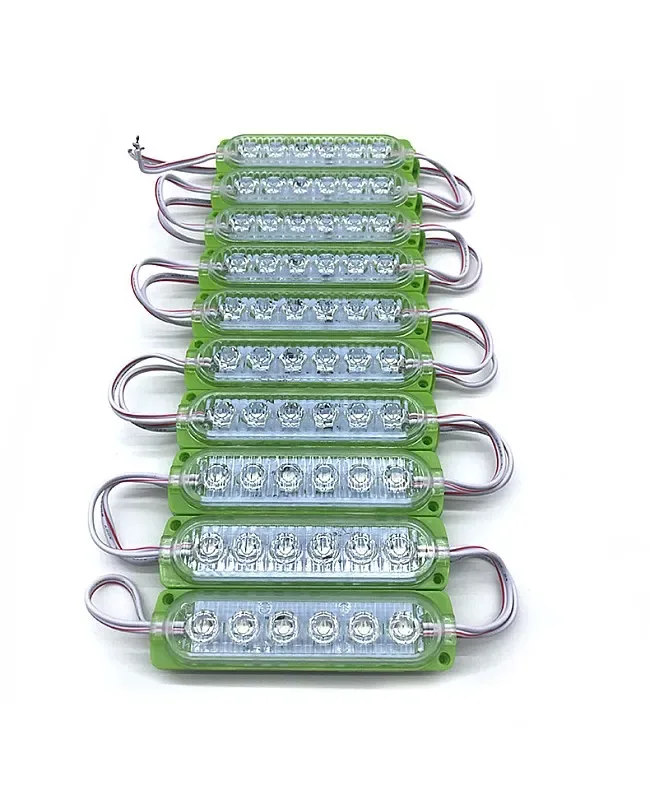

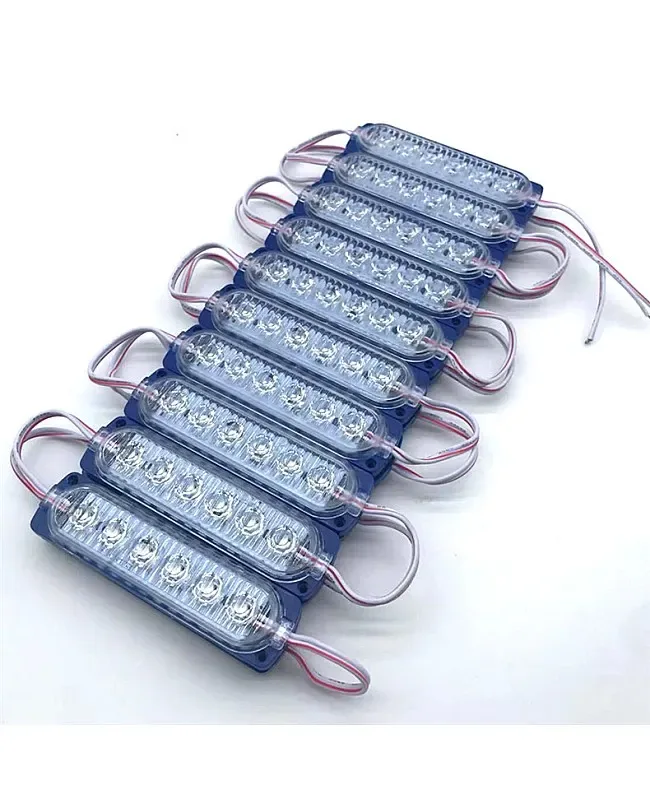

20PCS Per String
Cuttable And Reconnectable
Back With Double-sided Adhesive Tape
The Surface With Dual Screw Holes
Applications: Backlights For Signs, Warning Light/Indicator Light/Side Lights For Pickup Cars, Trucks, Vans, etc
Includes
1 * LED Module Replacement( 20PCS String )
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
