3W To 30W White COB High Power LED Chips
LumaCircuit offers 3W To 30W White COB High Power LED Chips as a configurable LED module for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Power: 3W, 5W, 6W, 7W, 10W, 12W, 15W, 18W, 24W, 30W Luminous Flux: 600-2160lm Color Temperature: 3000K(Warm White), 4000K(Natural White), Cool White(6000K) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Zigbee 3.0 driver/controller -> gateway or coordinator. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Light Emitting Surface Size: ￠11(mm)
- Power: 3W, 5W, 6W, 7W, 10W, 12W, 15W, 18W, 24W, 30W
- Luminous Flux: 600-2160lm
- Color Temperature: 3000K(Warm White), 4000K(Natural White), Cool White(6000K)
- Rated current: 0.15-0.45 (A)
- Luminous Intensity: 130-140LM/W
- Reverse voltage: 0-5 (V)
- Electrostatic Breakdown Voltage (ESD): 2000(V)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 9-36 V
- Light engine: CCT

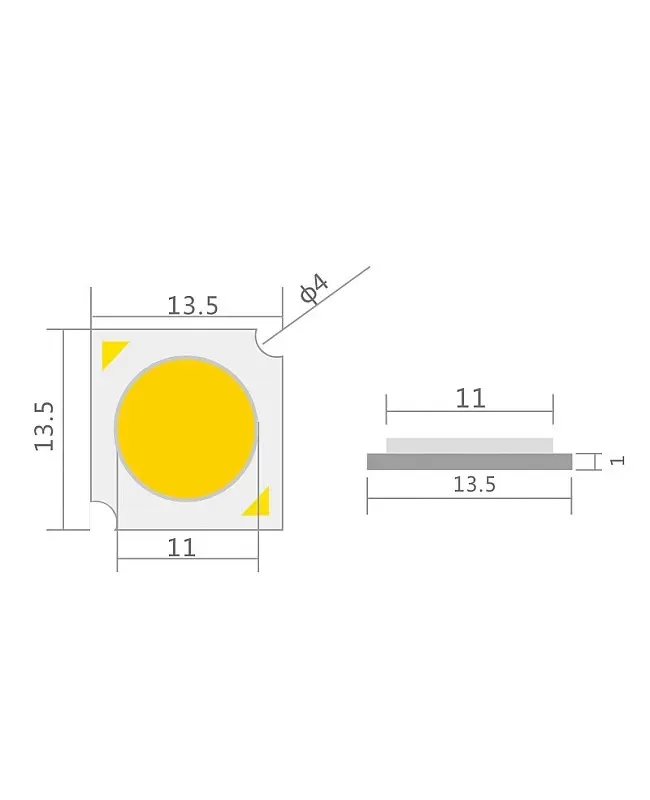

- Size: 13.5*13.5mm(L*W)
- Light Emitting Surface Size: ￠11(mm)
- Power: 3W, 5W, 6W, 7W, 10W, 12W, 15W, 18W, 24W, 30W
- Chip Material: InGaN
- Chip Brand: Bridgelux
- Chip Size: 26*30 mil
- Emitting Color: White
- Color Temperature: 3000K(Warm White), 4000K(Natural White), Cool White(6000K)
- Forward Voltage: 9- 36V
- Rated current: 0.15-0.45 (A)
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Zigbee 3.0 driver/controller -> gateway or coordinator.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Size: 13.5*13.5mm(L*W)
Light Emitting Surface Size: ￠11(mm)
Power: 3W, 5W, 6W, 7W, 10W, 12W, 15W, 18W, 24W, 30W
Luminous Flux: 600-2160lm
Chip Material: InGaN
Chip Brand: Bridgelux
Chip Size: 26*30 mil
Emitting Color: White
Color Temperature: 3000K(Warm White), 4000K(Natural White), Cool White(6000K)
Forward Voltage: 9- 36V
Rated current: 0.15-0.45 (A)
Luminous Intensity: 130-140LM/W
Reverse voltage: 0-5 (V)
Electrostatic Breakdown Voltage (ESD): 2000(V)
Optical Attenuation(%): 1
View Angle: 120°
Dimmable: NO
CRI: >
Color Tolerance: ＜5（SDCN）
Thermal resistance: ＜2.5 (°/W)
Maximum Allowable Junction Temperature: 90~120 (°)
Voltage Temperature Coefficient: -2 (mV/°C)
Pass The LM-80 Test: Y
Storage Temperature: -40℃-+80℃
Working Temperature: -40℃-+80℃
Includes
1 * COB High Power LED Chips(10PCS/Pack)
