12*12MM Dot Free Top Bend DC24V Waterproof Silicone LED Neon Tapes 16.4FT
LumaCircuit offers 12*12MM Dot Free Top Bend DC24V Waterproof Silicone LED Neon Tapes 16.4FT as a configurable neon flex for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Length: 5M/16.4FT Per Roll LEDs: 5050/2835/3528 SMD LEDs LED Quantity: 120-240LEDs/M The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12 mm square silicone LED neon tapes are made of high-quality silicone material and a top bend design, offering excellent performance for indoor and outdoor linear lighting projects it's 16.4FT per roll and the minimum cutting length is 50mm, the installer can cut to any length for your project from the cutting points and reconnect them. The waterproof level is IP67, UV, solvent, and saltwater resistant. The installer can install them in wet or rainy locations.
- Length: 5M/16.4FT Per Roll
- LEDs: 5050/2835/3528 SMD LEDs
- LED Quantity: 120-240LEDs/M

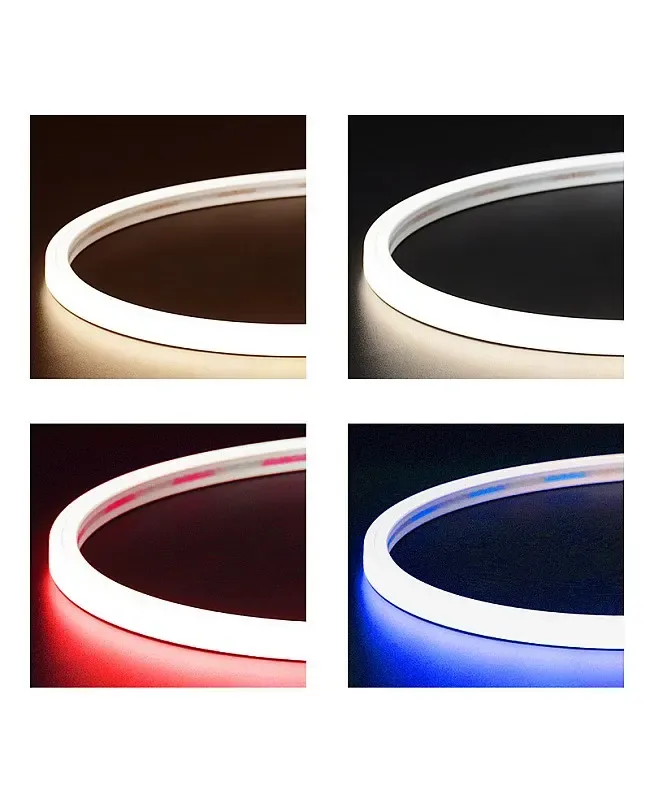

- Colors: 3000K(Warm White), 4000K(Natural White), 6000K(Cool White), Red, Green, Blue, Yellow, Pink, Orange, CCT, RGB, Dream Color
- Luminous Flux: 639LM/M(3000K), 677LM/M(4000K), 677LM/M(6000K), 277LM/M(Red), 703LM/M(Green), 129LM/M(Blue), 51LM/M(Orange), 278LM/M(Pink)
- Luminous Efficiency(@4000K): 67.7LM/W

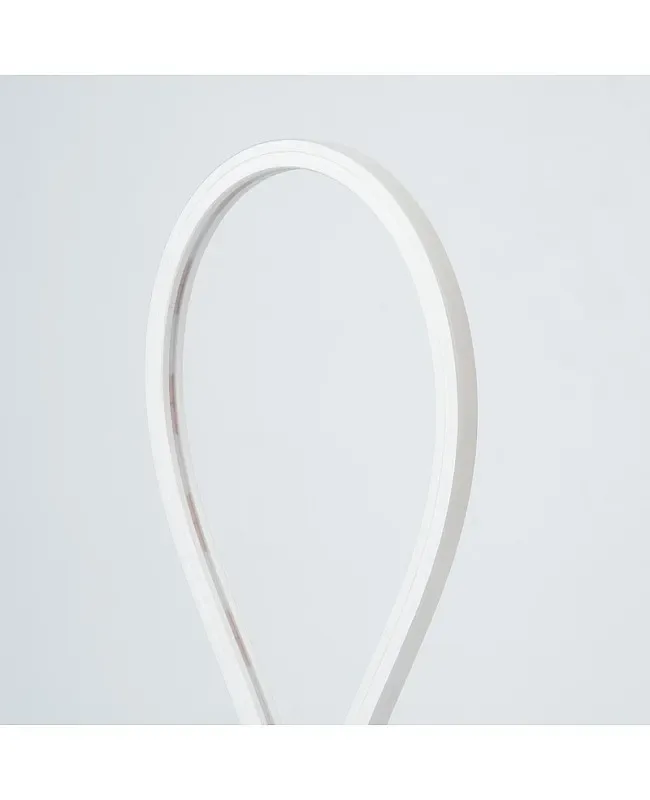

- Minimum Bending Diameter: 150mm
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-NEO-EHPZMS
- Material: Silicone
- Size: 12*12mm(W*H)
- Length: 5M/16.4FT Per Roll
- LEDs: 5050/2835/3528 SMD LEDs
- LED Quantity: 120-240LEDs/M
- Working Voltage: DC24V
- Power: 10W/M
- Colors: 3000K(Warm White), 4000K(Natural White), 6000K(Cool White), Red, Green, Blue, Yellow, Pink, Orange, CCT, RGB, Dream Color
- CRI: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

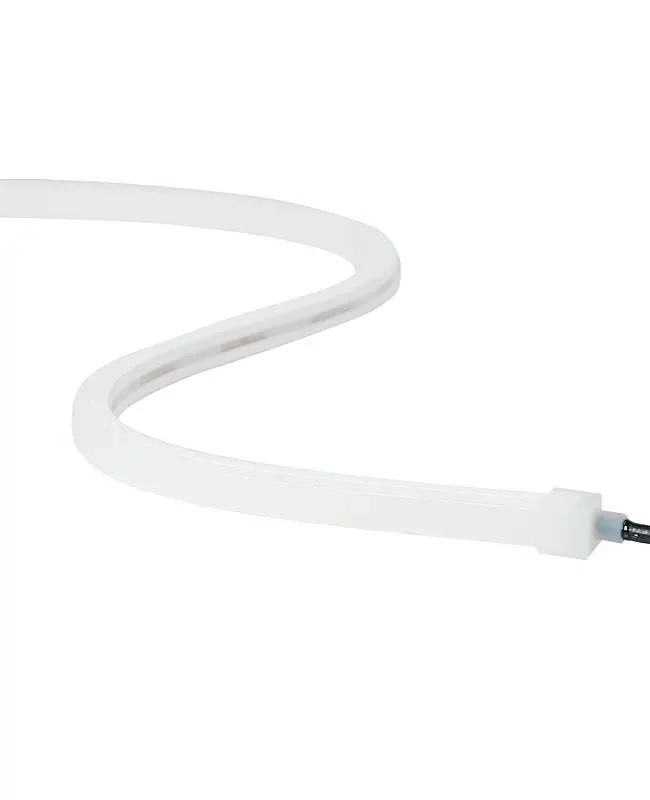

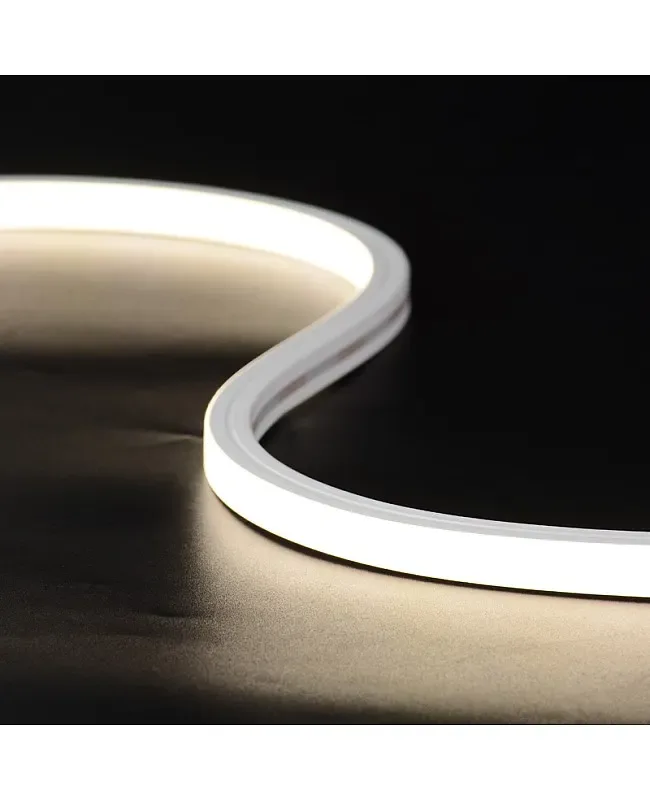

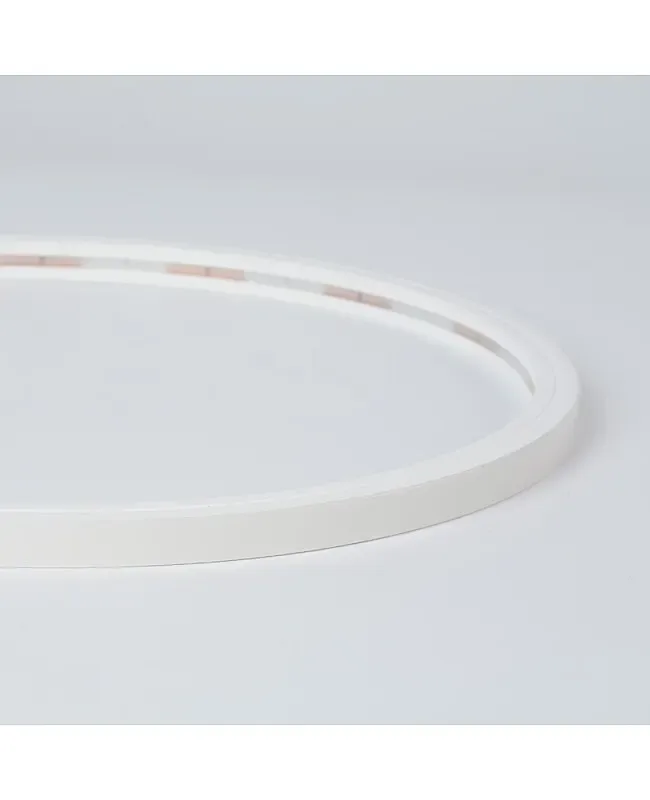

The 12 mm square silicone LED neon tapes are made of high-quality silicone material and a top bend design, offering excellent performance for indoor and outdoor linear lighting projects it's 16.4FT per roll and the minimum cutting length is 50mm, the installer can cut to any length for your project from the cutting points and reconnect them. The waterproof level is IP67, UV, solvent, and saltwater resistant. The installer can install them in wet or rainy locations. The neon LED tapes work on DC24V and use high-quality SMD LEDs as the light source, with uniform and soft luminance, no light spots, and dark areas. Various emitting colors are available. The installer can choose warm white, natural white, cool white, and other single colors, RGB, dream color, and CCT suited to adding a modern and stylish look to any space in homes, offices, hotels, parks, yards, etc., the neon LED tape lights are flexible and bendable; the installer can use them to make different shapes like arc lines, curves, rounded rectangles, round and oval, etc.
Specifications
Model
Material: Silicone
Size: 12*12mm(W*H)
Length: 5M/16.4FT Per Roll
LEDs: 5050/2835/3528 SMD LEDs
LED Quantity: 120-240LEDs/M
Working Voltage: DC24V
Power: 10W/M
Colors: 3000K(Warm White), 4000K(Natural White), 6000K(Cool White), Red, Green, Blue, Yellow, Pink, Orange, CCT, RGB, Dream Color
Luminous Flux: 639LM/M(3000K), 677LM/M(4000K), 677LM/M(6000K), 277LM/M(Red), 703LM/M(Green), 129LM/M(Blue), 51LM/M(Orange), 278LM/M(Pink)
Luminous Efficiency(@4000K): 67.7LM/W
CRI: >
Minimum Bending Diameter: 150mm
Minimum Cutting Length: 50mm
Beam Angle: 120°
Waterproof Level: IP67 Waterproof
UV Resistant, Solvent Resistant, And Saltwater Resistant
Working Temperature: -25℃-+60℃
Includes
1 * Waterproof Neon LED Tapes(16.4FT/Roll)
Mounting Clips
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
