25MM Round 360° View DC24V Flex Neon LED Strips 16.4FT
LumaCircuit offers 25MM Round 360° View DC24V Flex Neon LED Strips 16.4FT as a configurable neon flex for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Colors Of Silicone Outer: Black/White Length: 5M/16.4FT Per Reel Minimum Bending Diameter: Φ>200mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- These round neon LED strips are suited to indoor and outdoor lighting projects. They are highly flexible and have a uniform and soft luminance, making them suited to curved and contoured surfaces. The waterproof level is IP65, and they resist UV, solvents, and saltwater. The strips have a unique optical light distribution structure, emitting 360° light without shadows.

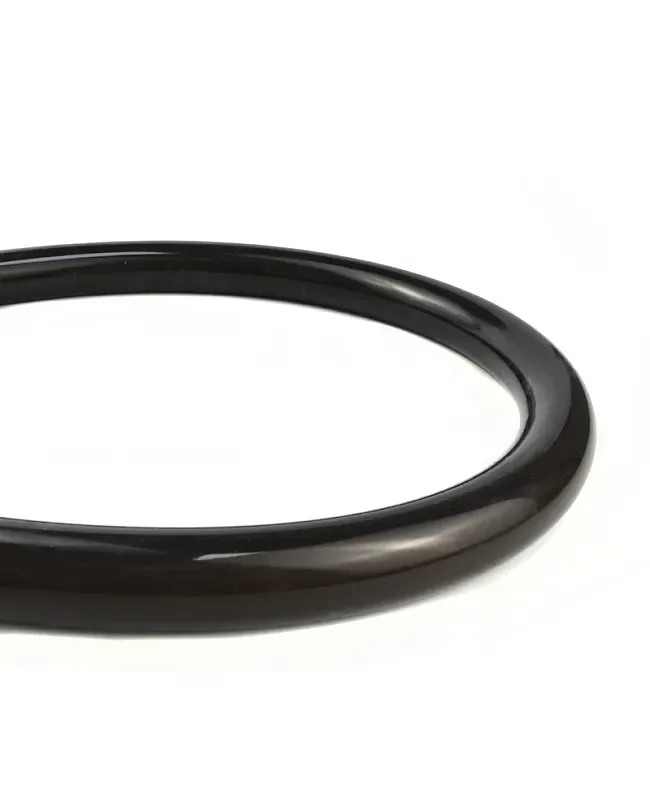

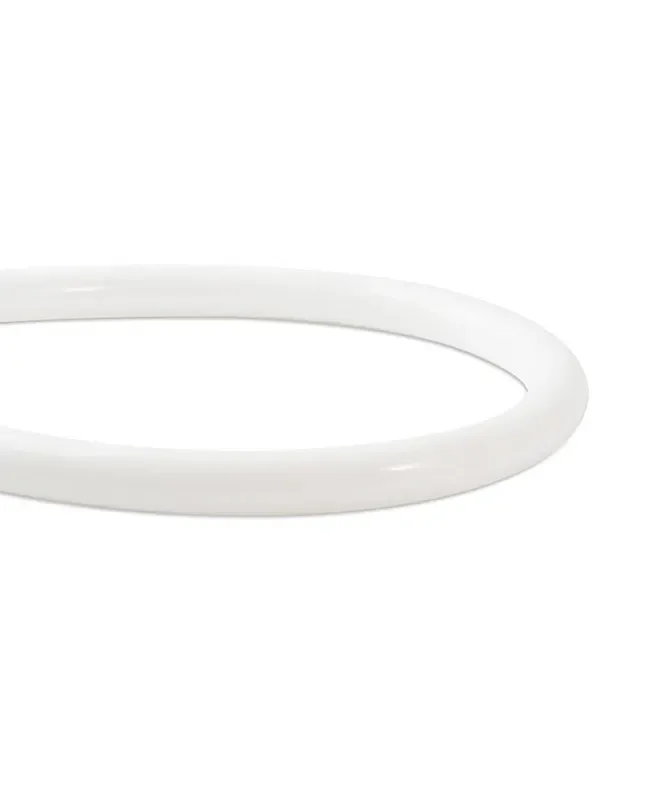

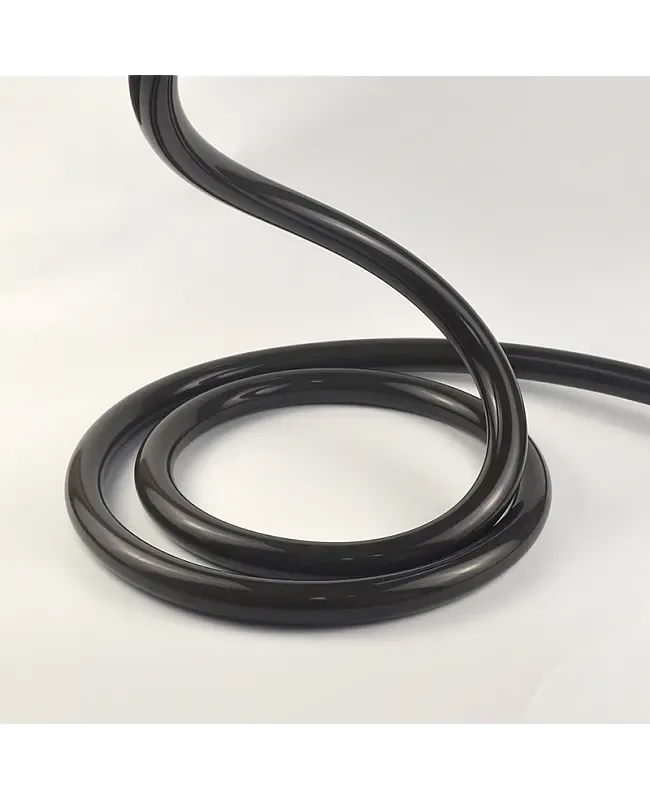

- Colors Of Silicone Outer: Black/White
- Length: 5M/16.4FT Per Reel

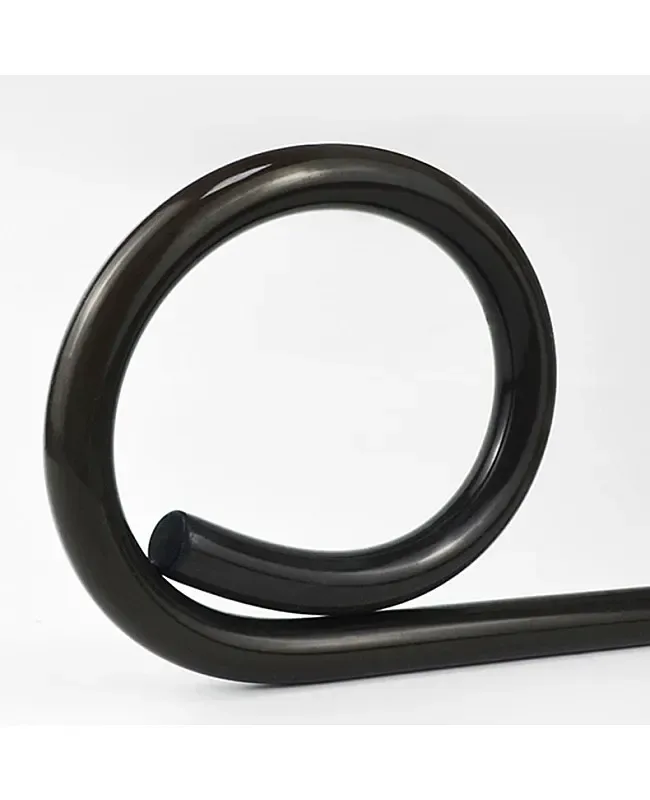

- Minimum Bending Diameter: Φ>200mm
- Light Source: 2835 SMD LEDs

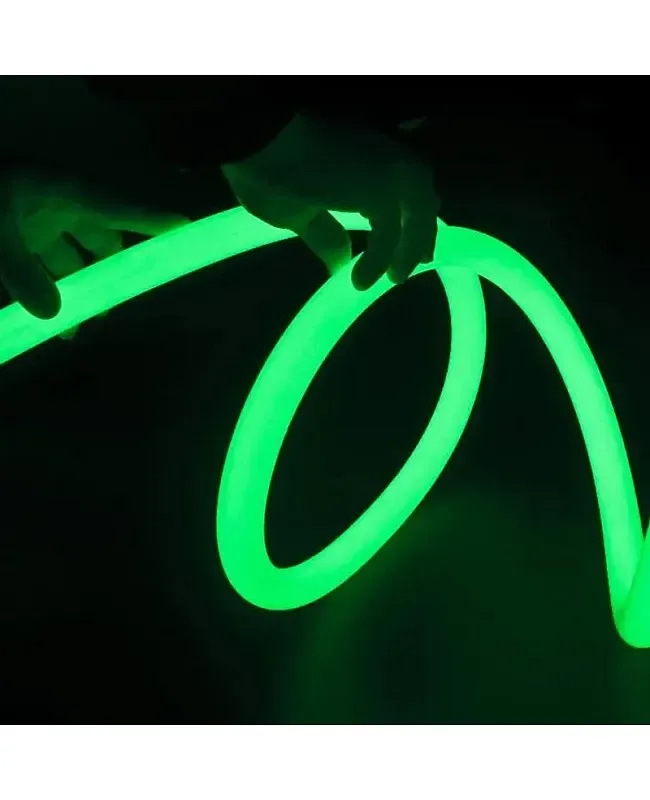

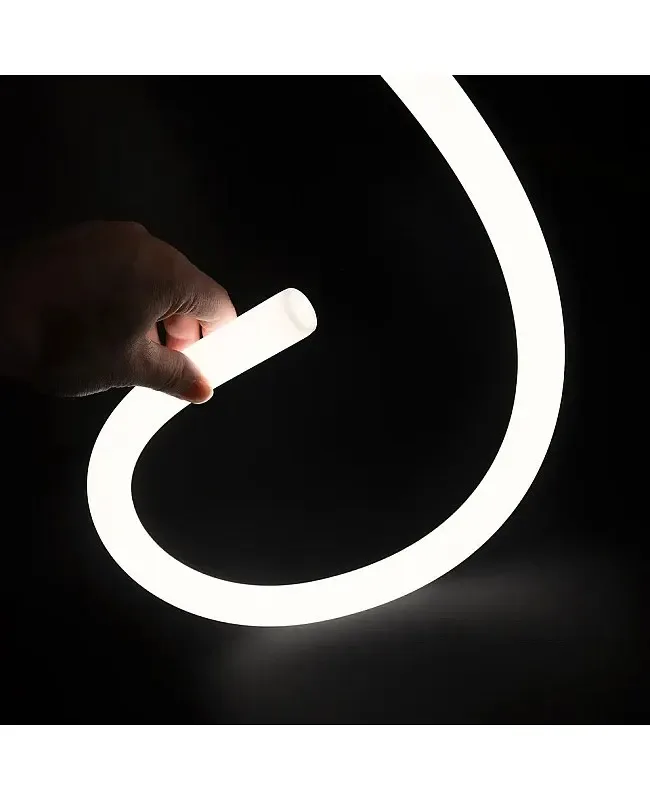

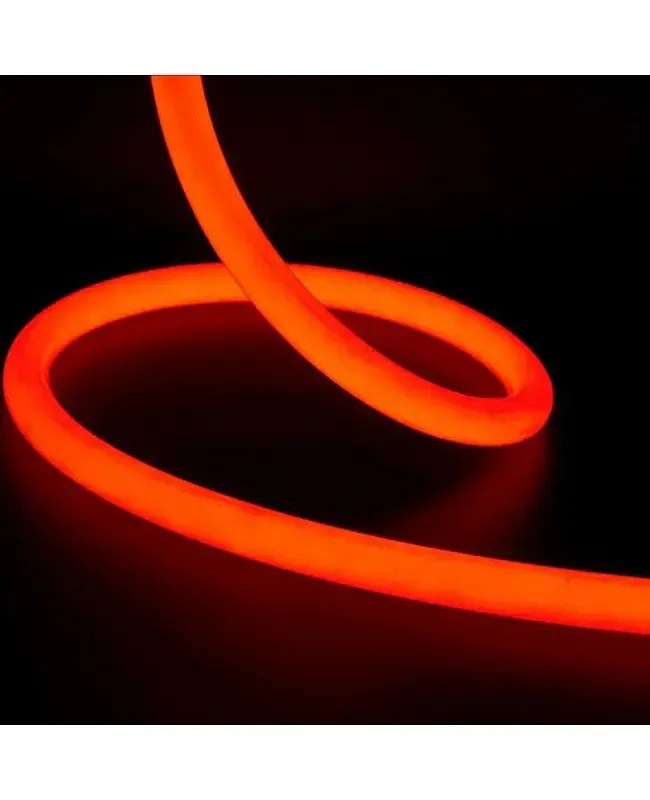

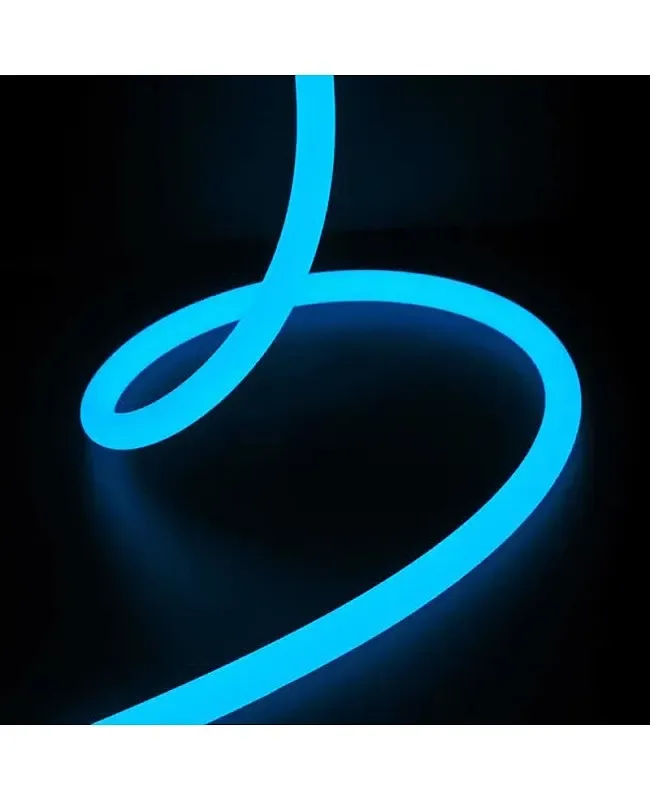

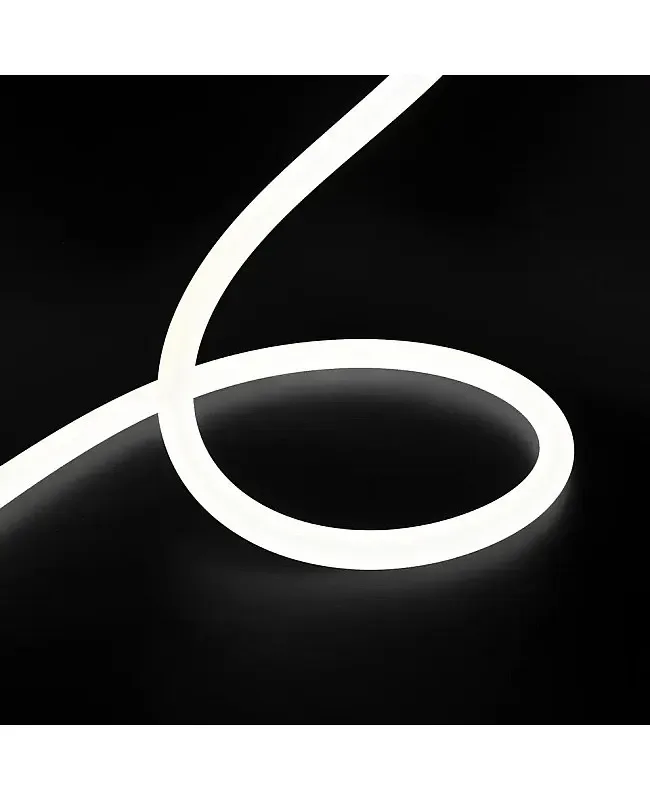

- Emitting Colors: 3000K(Warm White), 4000K(Neutral White), 6000K(Cool White), Red(620-630nm), Green(520-530nm), Blue(465-475nm), Yellow(585-595nm), Pink, Orange, CCT(2700K-5000K), RGB, RGB+White
- Luminous Flux: 529LM/M(Warm White), 556LM/M(Natural White), 586LM/M(Cool White), 246LM/M(Red), 502LM/M(Green), 114LM/M(Blue), 209LM/M(Yellow), 409LM/M(Pink), 517LM/M(Tunable White)
- Brightness Adjustable: YES
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-NEO-2TYY6I
- Material: Silicone
- Colors Of Silicone Outer: Black/White
- Diameter: Φ25mm
- Length: 5M/16.4FT Per Reel
- Minimum Bending Diameter: Φ>200mm
- Working Voltage: DC24V
- Power: 10W/M
- Emitting Colors: 3000K(Warm White), 4000K(Neutral White), 6000K(Cool White), Red(620-630nm), Green(520-530nm), Blue(465-475nm), Yellow(585-595nm), Pink, Orange, CCT(2700K-5000K), RGB, RGB+White
- Wire Length: 30 CM / 20 AWG
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

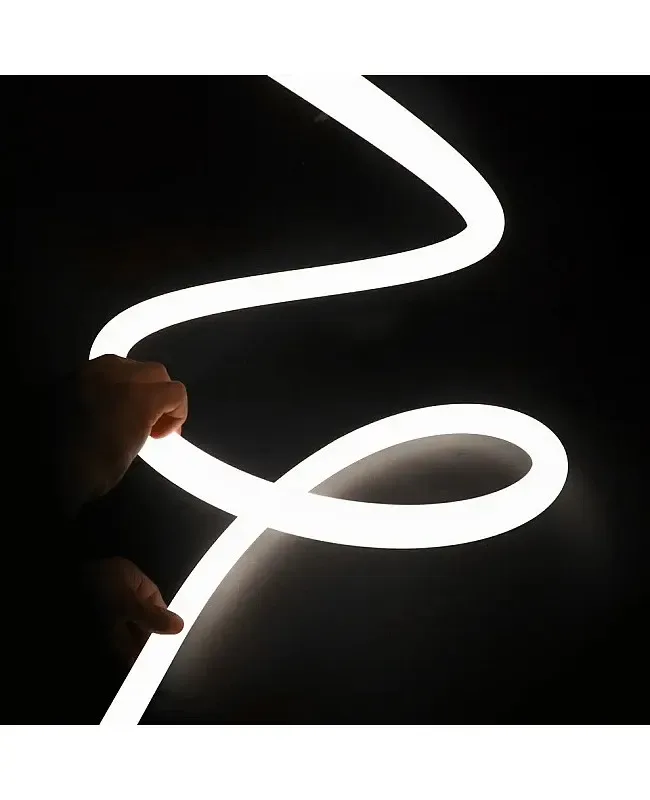

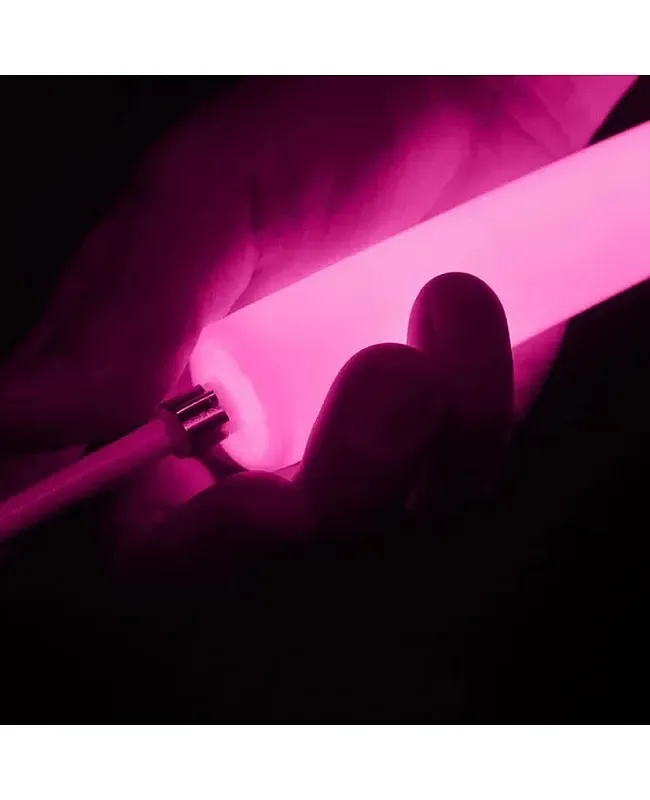

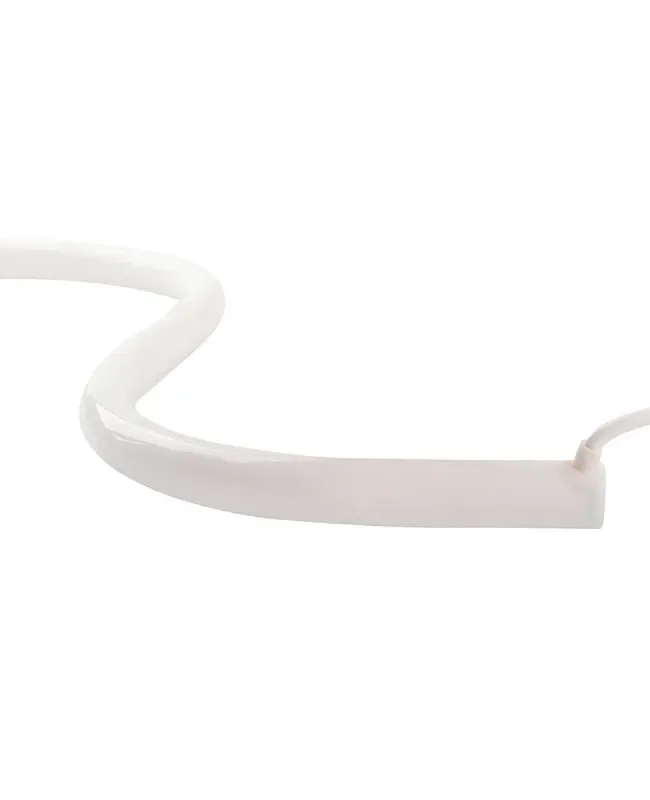

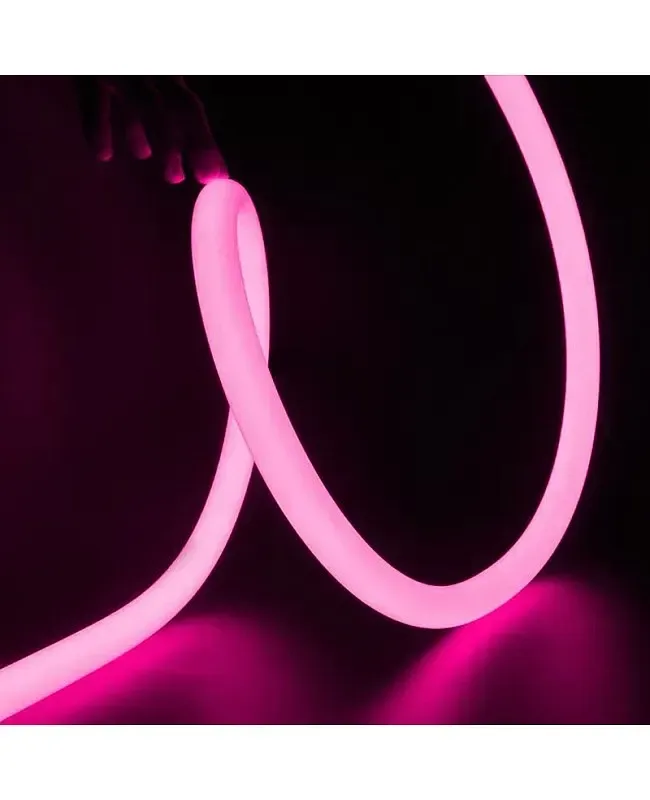

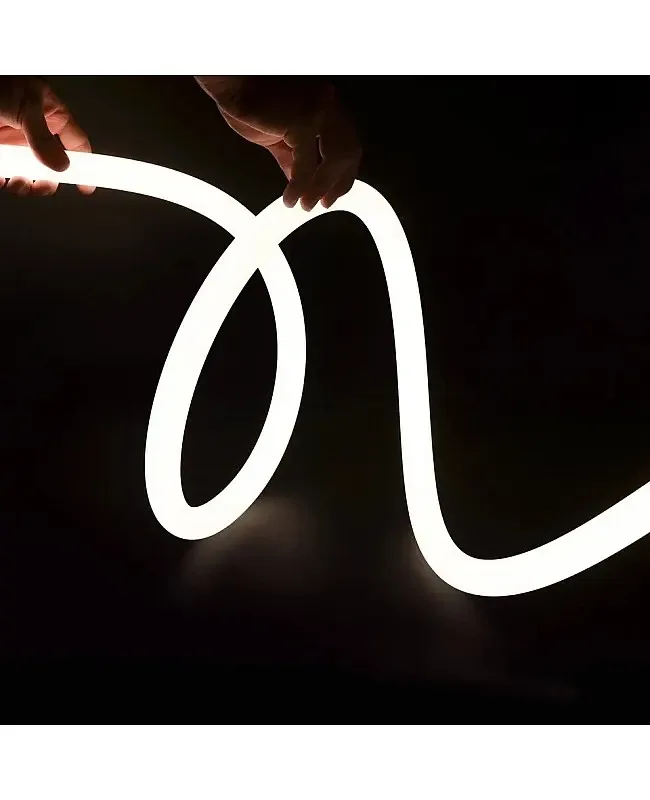

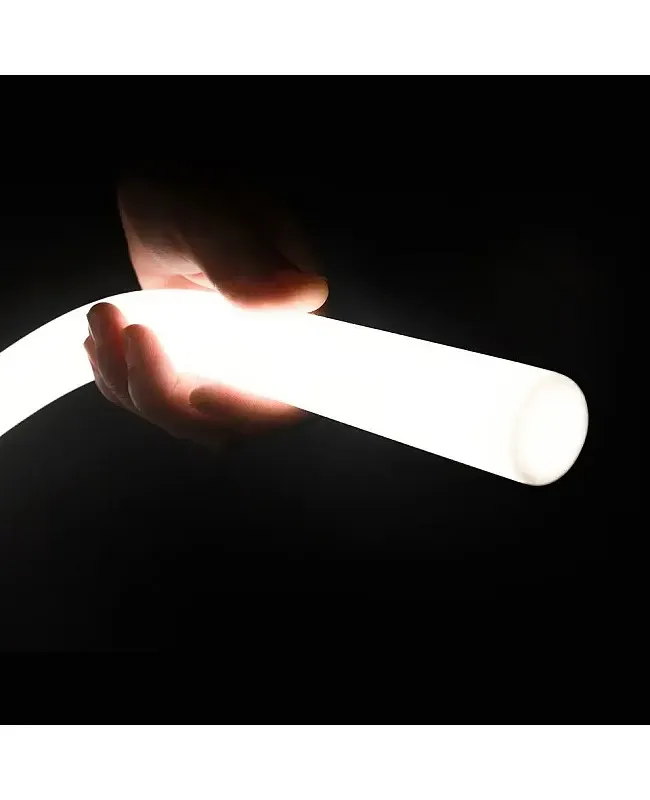

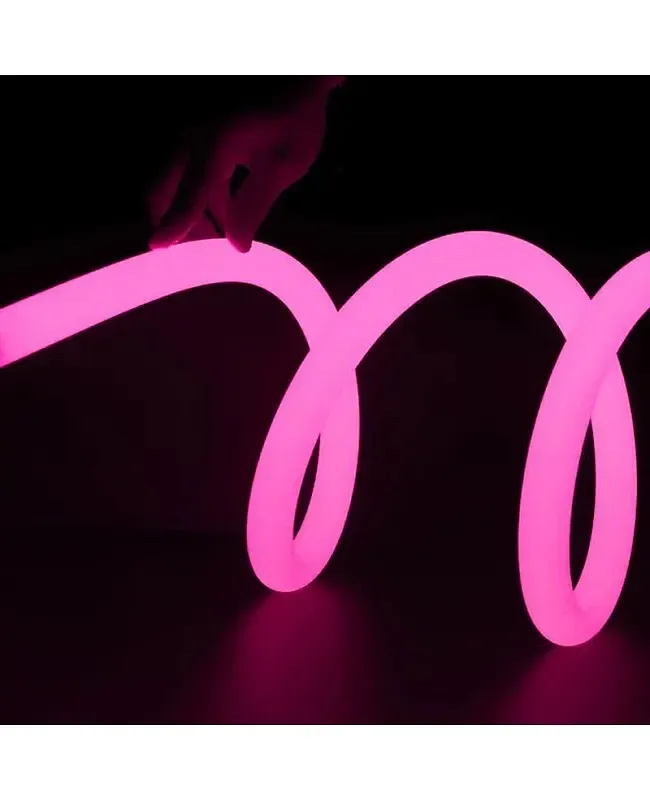

These round neon LED strips are suited to indoor and outdoor lighting projects. They are highly flexible and have a uniform and soft luminance, making them suited to curved and contoured surfaces. The waterproof level is IP65, and they resist UV, solvents, and saltwater. The strips have a unique optical light distribution structure, emitting 360° light without shadows. The LED neon light strips use high-quality 2835 SMD LEDs as the light source, with various emitting colors available, including warm white, neutral white, cool white, CCT, RGB, and RGBW. The diameter of the round neon strip lights is 25mm, and the minimum vertical bending diameter is 200mm. The minimum cutting length is 50mm. The two outer case colors available are black and white. They can also be used in restaurants, bars, and other entertainment venues to create a unique ambiance. They can be used indoors or outdoors to create an interesting and unique atmosphere in any space.
Specifications
Model
Material: Silicone
Colors Of Silicone Outer: Black/White
Diameter: Φ25mm
Length: 5M/16.4FT Per Reel
Minimum Bending Diameter: Φ>200mm
Light Source: 2835 SMD LEDs
Working Voltage: DC24V
Power: 10W/M
Emitting Colors: 3000K(Warm White), 4000K(Neutral White), 6000K(Cool White), Red(620-630nm), Green(520-530nm), Blue(465-475nm), Yellow(585-595nm), Pink, Orange, CCT(2700K-5000K), RGB, RGB+White
Luminous Flux: 529LM/M(Warm White), 556LM/M(Natural White), 586LM/M(Cool White), 246LM/M(Red), 502LM/M(Green), 114LM/M(Blue), 209LM/M(Yellow), 409LM/M(Pink), 517LM/M(Tunable White)
View Angle: 360°
Waterproof Level: IP65
Brightness Adjustable: YES
Wire Length: 30 CM / 20 AWG

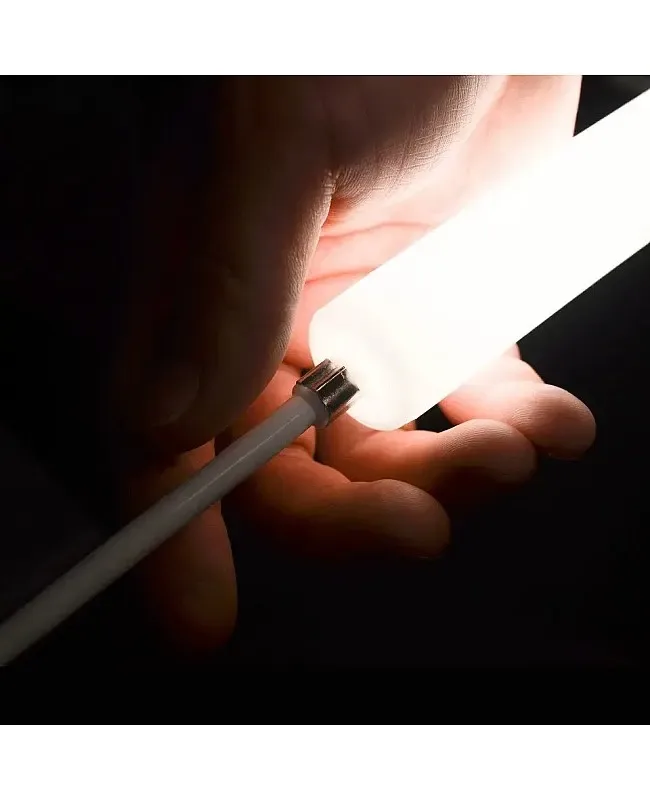

Cable Entry: Front
Mounting Clips Included
Minimum Cutting Length: 50mm
Includes
1 * Round Neon LED Strips(16.4FT/Reel)
Mounting Clips
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
