Product details
10m Long 24V LED Backlight Sheets
LumaCircuit offers 10m Long 24V LED Backlight Sheets as a configurable panel light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. The white light sheets are bendable, cuttable, and connectable. They can be bent and conformed to curves, corners, and uneven surfaces. A strong self-adhesive tape backing and screw holes for quick, easy installation. The minimum cutting unit is per LED. They are clearly marked with cut lines, allowing you to trim to the exact length you need safely. They use high-quality 2835 SMD LEDs as the light source, with 528 LEDs per meter. The high-density LED sheets deliver vibrant, evenly distributed light. Unlike the 12V products, the 24V design minimizes voltage drop over long distances. This means you get brighter, more consistent light at the end of a 10-meter run, with less power loss and better overall performance. To provide full power to the whole 10-meter-long flexible light sheet, the installer should connecting to a LRS-600-24 power supply. If you want to dim, please add a wireless controller high-current lighting dimmer. Size ( Length x Width ): 10000 mm x 240 mm ( 32.81' x 0.79") The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 10-meter-long rectangle LED backlight sheets are an excellent option for large backlighting projects. They are engineered for seamless architectural and commercial lighting. The installer can use them to illuminate large surfaces with clean, uniform brightness. The long, ultra-thin LED backlighting sheets are designed for projects that require long, continuous illumination, making them suited to countertops, signage, lightboxes, and home decorative backlit panels.
- The white light sheets are bendable, cuttable, and connectable. They can be bent and conformed to curves, corners, and uneven surfaces. A strong self-adhesive tape backing and screw holes for quick, easy installation. The minimum cutting unit is per LED. They are clearly marked with cut lines, allowing you to trim to the exact length you need safely. They use high-quality 2835 SMD LEDs as the light source, with 528 LEDs per meter. The high-density LED sheets deliver vibrant, evenly distributed light.
- Unlike the 12V products, the 24V design minimizes voltage drop over long distances. This means you get brighter, more consistent light at the end of a 10-meter run, with less power loss and better overall performance. To provide full power to the whole 10-meter-long flexible light sheet, the installer should connecting to a LRS-600-24 power supply. If you want to dim, please add a wireless controller high-current lighting dimmer.
- Size ( Length x Width ): 10000 mm x 240 mm ( 32.81' x 0.79")
- PCB material: Double-layer FPC
- Colors: 3000K warm white, 4000K natural white, 6000K cool white
- IP grade: IP20 non-waterproof
- Cutting length: 20.8 mm x 21.8 mm (0.82" x 0.86")
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- Size ( Length x Width ): 10000 mm x 240 mm ( 32.81' x 0.79")
- PCB material: Double-layer FPC
- LED type: 2835 SMD LEDs
- LED QTY: 528LEDs/meter
- Current: 2A/meter
- Power: 48W/meter
- Colors: 3000K warm white, 4000K natural white, 6000K cool white
- CRI: >
- Beam angle: 120°
- IP grade: IP20 non-waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

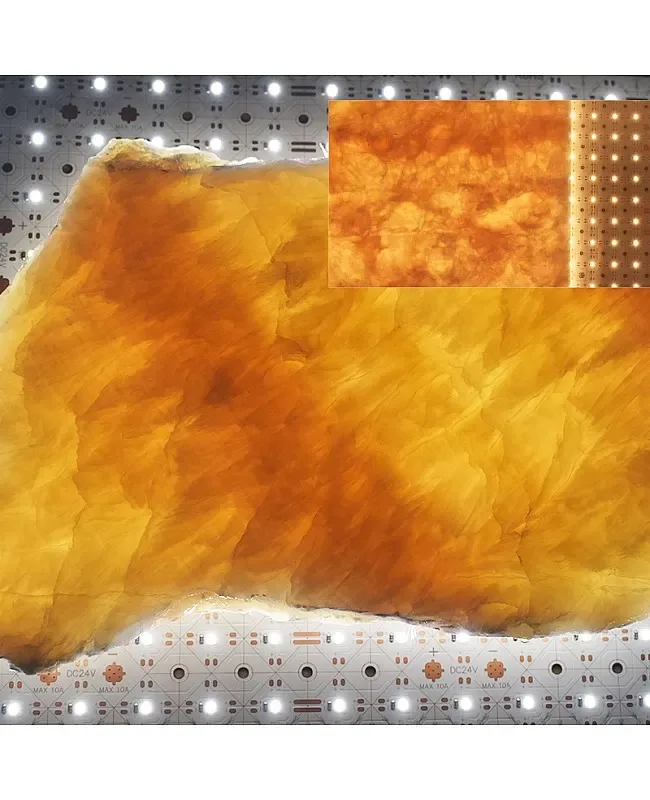

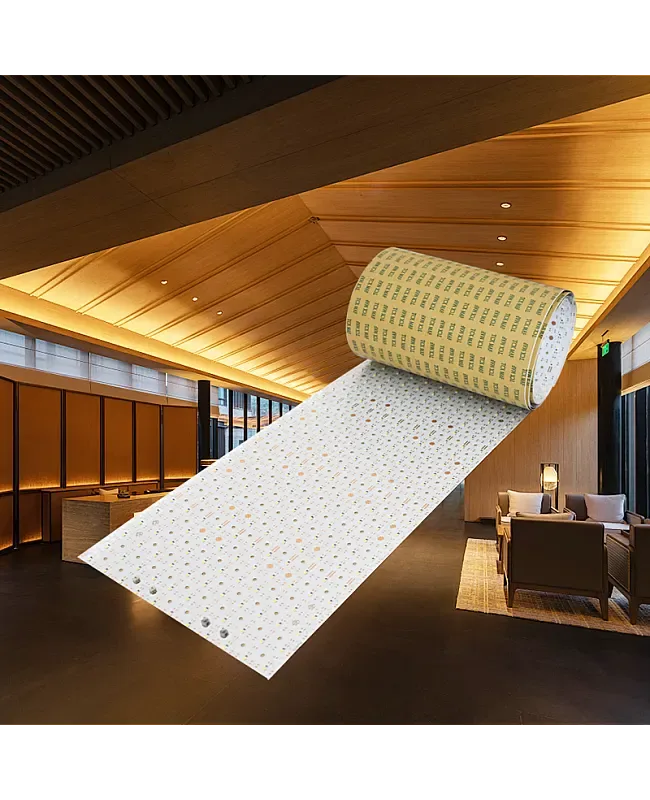

The 10-meter-long rectangle LED backlight sheets are an excellent option for large backlighting projects. They are engineered for seamless architectural and commercial lighting. The installer can use them to illuminate large surfaces with clean, uniform brightness. The long, ultra-thin LED backlighting sheets are designed for projects that require long, continuous illumination, making them suited to countertops, signage, lightboxes, and home decorative backlit panels.

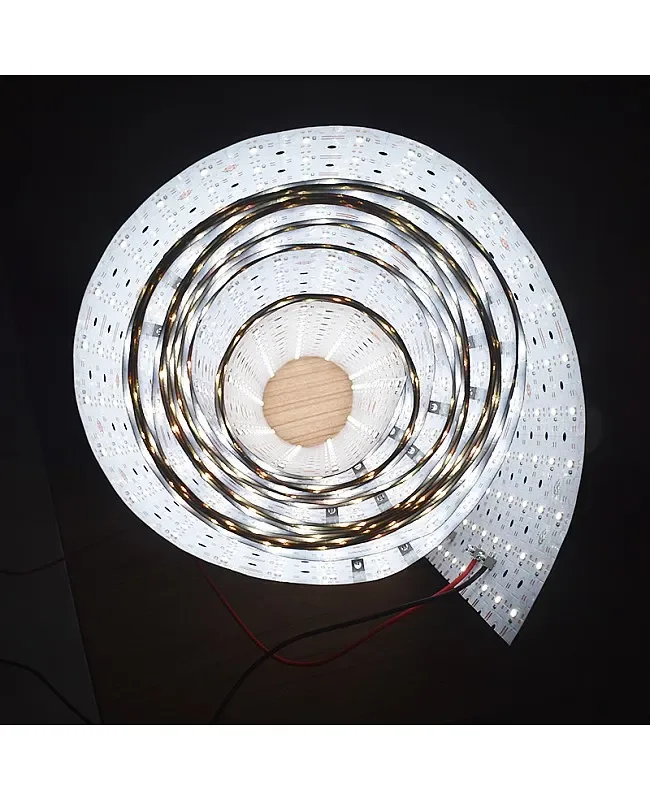

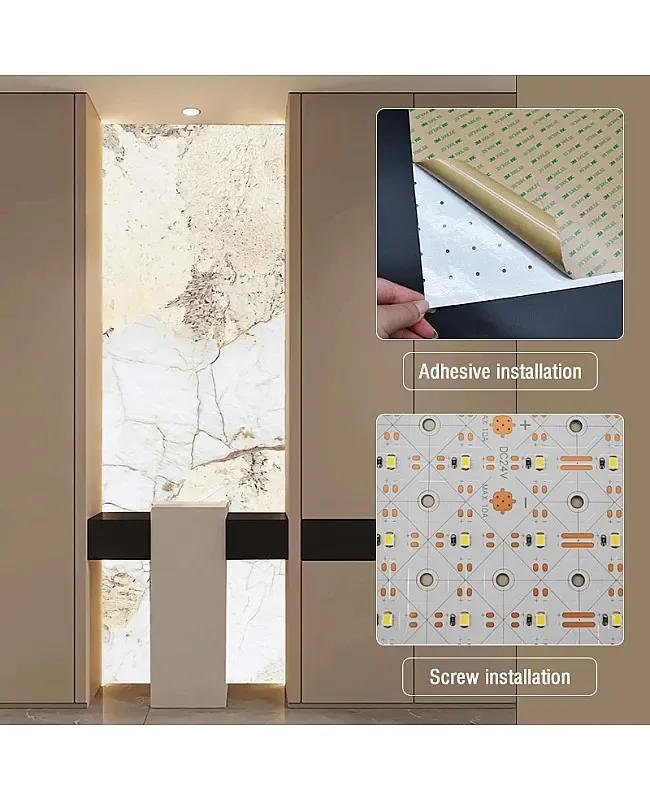

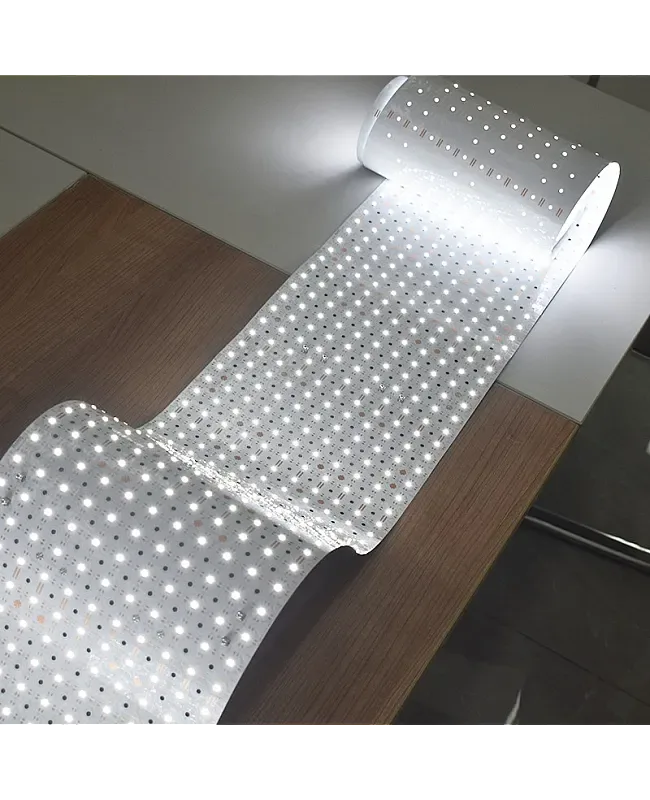

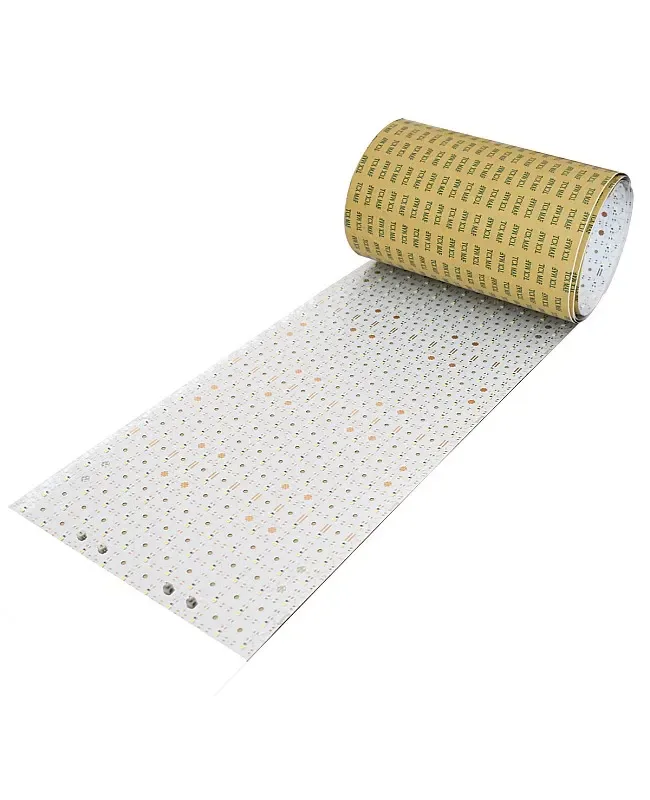

The white light sheets are bendable, cuttable, and connectable. They can be bent and conformed to curves, corners, and uneven surfaces. A strong self-adhesive tape backing and screw holes for quick, easy installation. The minimum cutting unit is per LED. They are clearly marked with cut lines, allowing you to trim to the exact length you need safely. They use high-quality 2835 SMD LEDs as the light source, with 528 LEDs per meter. The high-density LED sheets deliver vibrant, evenly distributed light.
Unlike the 12V products, the 24V design minimizes voltage drop over long distances. This means you get brighter, more consistent light at the end of a 10-meter run, with less power loss and better overall performance. To provide full power to the whole 10-meter-long flexible light sheet, the installer should connecting to a LRS-600-24 power supply. If you want to dim, please add a wireless controller high-current lighting dimmer.
Specifications
Size ( Length x Width ): 10000 mm x 240 mm ( 32.81' x 0.79")
PCB material: Double-layer FPC
LED type: 2835 SMD LEDs
LED QTY: 528LEDs/meter
Input voltage
Current: 2A/meter
Power: 48W/meter
Colors: 3000K warm white, 4000K natural white, 6000K cool white
CRI: >
Beam angle: 120°
Dimmable: YES
IP grade: IP20 non-waterproof
Cutting length: 20.8 mm x 21.8 mm (0.82" x 0.86")
Storage temperature: -40℃-+80℃
Working temperature: -25℃-+60℃
Includes
1 x LED sheet roll
4 x Wires
80 x Anti-collision silicone particles
160 x screws
160 x screw shim
1 x screwdriver
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
