DC5V Individually Addressable WS2812B Pixel LED Ring Panel

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The individually addressable WS2812B pixel LED ring panel uses 16PCS RGB SMD LEDs as the light source, each LED built-in the WS2812B IC, the IC separately controls each LED for individually addressable function, every LED in the Lighting can be controlled, every RGB LED is digitally addressable. It can work with a programmable LED controller to achieve many amazing lighting effects: curtain-up/flow water/raindrop/jump flash, and so on, with hundreds of lighting effects.

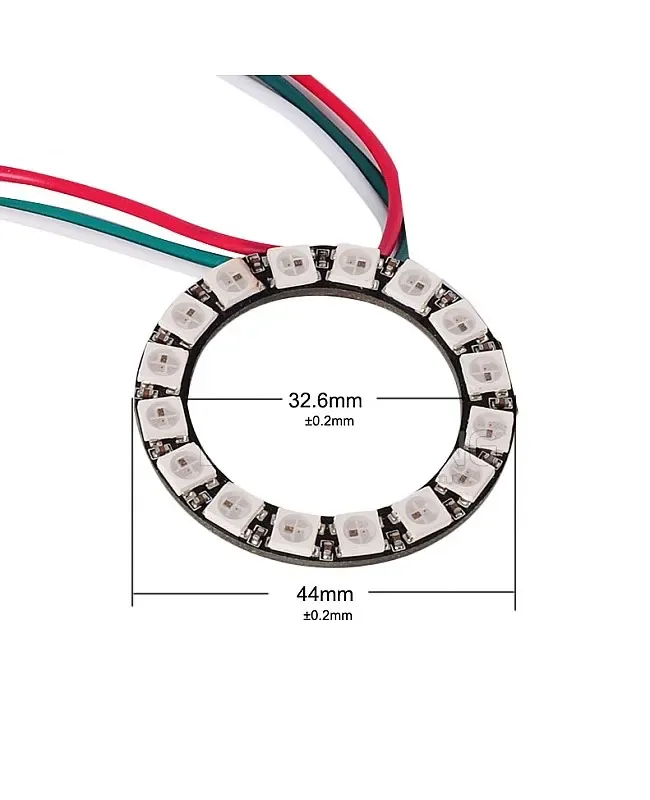

• Outer Diameter: 44mm±0.2mm
• Inner Diameter: 32.6mm±0.2mm
• IC Type: WS2812B(Improved Version Of WS2811)
• Connection: VCC: Red; GND: Black/White; DAT: Blue
• Bits/Color: 8-Bits/Color
• IP Rating: IP30 Non-Waterproof
• Working Temperature: -20℃-+50℃

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V
• Light engine: Addressable
• Outer Diameter: 44mm±0.2mm
• Inner Diameter: 32.6mm±0.2mm
• Working Voltage: DC5V
• Power: 5W/PC
• Colors: Full Color
• LED Type: 5050 SMD LED
• LED Quantity: 16PCS
• Bits/Color: 8-Bits/Color
• FPC Color: Black
• IP Rating: IP30 Non-Waterproof

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The individually addressable WS2812B pixel LED ring panel uses 16PCS RGB SMD LEDs as the light source, each LED built-in the WS2812B IC, the IC separately controls each LED for individually addressable function, every LED in the Lighting can be controlled, every RGB LED is digitally addressable. It can work with a programmable LED controller to achieve many amazing lighting effects: curtain-up/flow water/raindrop/jump flash, and so on, with hundreds of lighting effects. The installer can also edit animation effects using CorelDRAW/Flash/LED Editor software. The installer can use them in the lighting applications in parks, squares, hotels, airports, offices, shopping malls, coffee bars, etc.

Specifications

Outer Diameter: 44mm±0.2mm

Inner Diameter: 32.6mm±0.2mm

Working Voltage: DC5V

Power: 5W/PC

Colors: Full Color

LED Type: 5050 SMD LED

LED Quantity: 16PCS

IC Type: WS2812B(Improved Version Of WS2811)

IC Quantity: 16PCS

Connection: VCC: Red; GND: Black/White; DAT: Blue

Grey Scale: 256

Bits/Color: 8-Bits/Color

FPC Color: Black

IP Rating: IP30 Non-Waterproof

Dimmable: YES

Working Temperature: -20℃-+50℃

Includes

1 * LED Ring Panel
