Color Changing RGB 24V LED Panel Sheets Cuttable

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

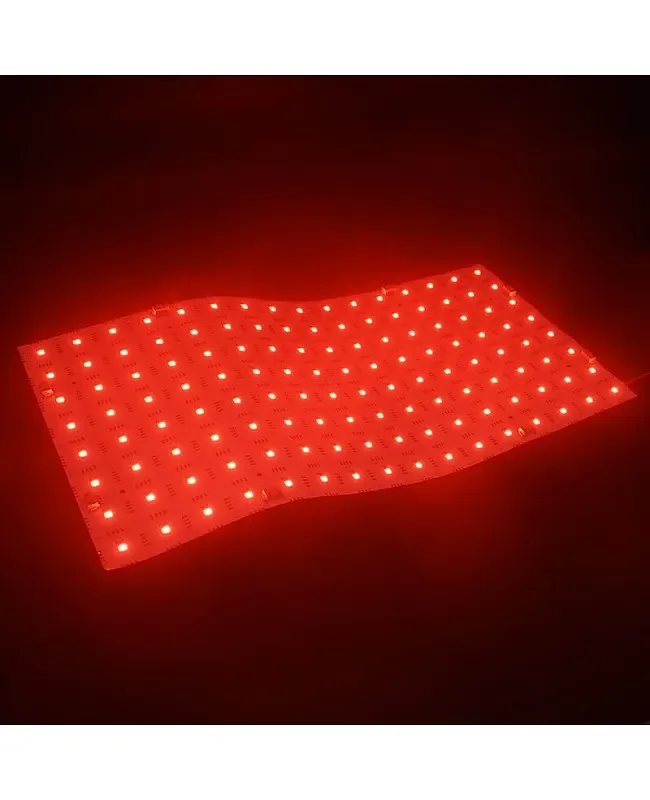

• The color-changing RGB LED panel sheets feature an ultra-thin design and utilize high-quality 5050 RGB SMD LEDs as their light source. The LEDs are uniformly laid out on a dual-layer flexible PCB, enabling uniform brightness and allowing for setting various colors or dynamic modes.
• The sheet lights are cuttable and feature multiple LED connectors, making it easy to trim along designated cut lines for a perfect fit. The installer can connect multiple pieces for large lighting projects, especially for backlighting countertops, signage, advertisement displays, and display boxes. The RGB panel sheet can be used with the RGB LED controller to create dynamic lighting patterns and static colors for different scenes.
• The backlight panel sheets are bendable and cuttable, which allows you to use them for DIY lighting projects. The back has double-sided adhesive tape for easy installation. There are IP20 non-waterproof and IP54 waterproof products available, suitable for both indoor and outdoor use.
• Link: RGB LED panel sheet data sheet
• Type: Color-changing LED sheet panels
• Size( L x W ): 490 mm x 245 mm ( 19.29" x 9.64" )
• LED type: 5050 3 In 1 RGB SMD LEDs
• LED quantity: 128 pieces

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24 V
• Light engine: RGB
• LumaCircuit model: LC-PNL-F2OQ02
• Size( L x W ): 490 mm x 245 mm ( 19.29" x 9.64" )
• LED type: 5050 3 In 1 RGB SMD LEDs
• LED quantity: 128 pieces
• Working voltage: DC 24V
• Power: 45W
• Color: RGB

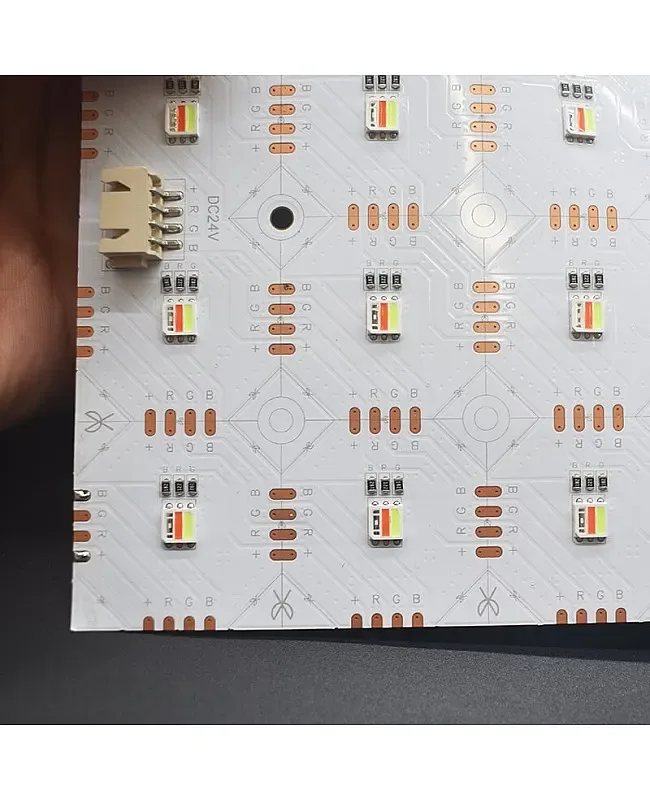

• Cut length: 39.6 mm
• Beam angle: 120°
• Working temperature: - 20 ℃ + 45 ℃ ( -4 °F - 149 °F )

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The color-changing RGB LED panel sheets feature an ultra-thin design and utilize high-quality 5050 RGB SMD LEDs as their light source. The LEDs are uniformly laid out on a dual-layer flexible PCB, enabling uniform brightness and allowing for setting various colors or dynamic modes.

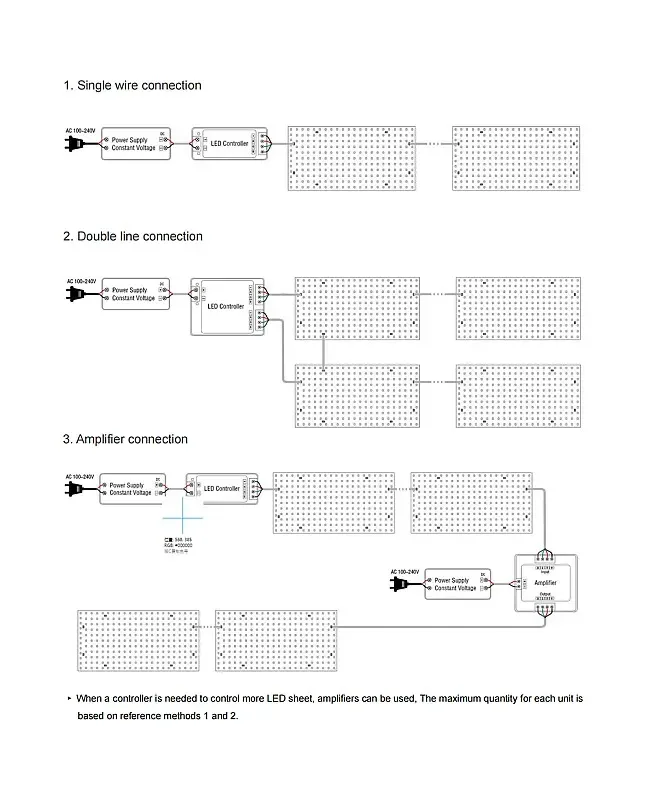

The sheet lights are cuttable and feature multiple LED connectors, making it easy to trim along designated cut lines for a perfect fit. The installer can connect multiple pieces for large lighting projects, especially for backlighting countertops, signage, advertisement displays, and display boxes. The RGB panel sheet can be used with the RGB LED controller to create dynamic lighting patterns and static colors for different scenes. The installer can also adjust the speed of dynamic mode or the brightness of a single color.

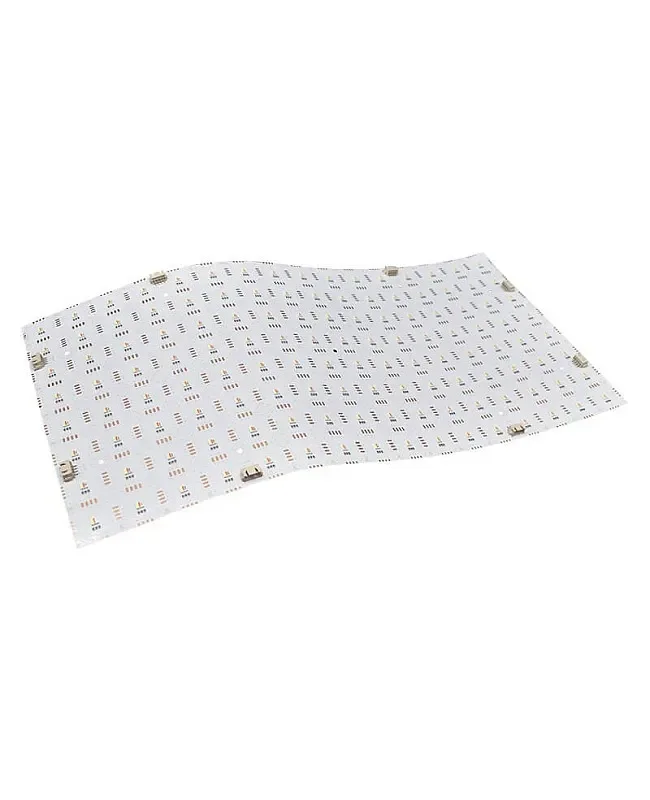

The backlight panel sheets are bendable and cuttable, which allows you to use them for DIY lighting projects. The back has double-sided adhesive tape for easy installation. There are IP20 non-waterproof and IP54 waterproof products available, suitable for both indoor and outdoor use.

Link: RGB LED panel sheet data sheet

Specifications

Type: Color-changing LED sheet panels

Model

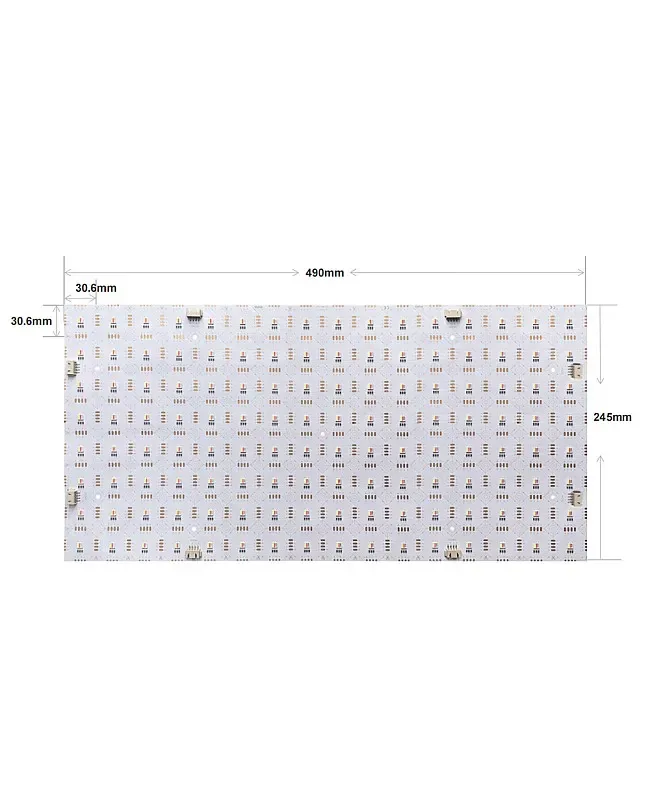

Size( L x W ): 490 mm x 245 mm ( 19.29" x 9.64" )

LED type: 5050 3 In 1 RGB SMD LEDs

LED quantity: 128 pieces

Working voltage: DC 24V

Power: 45W

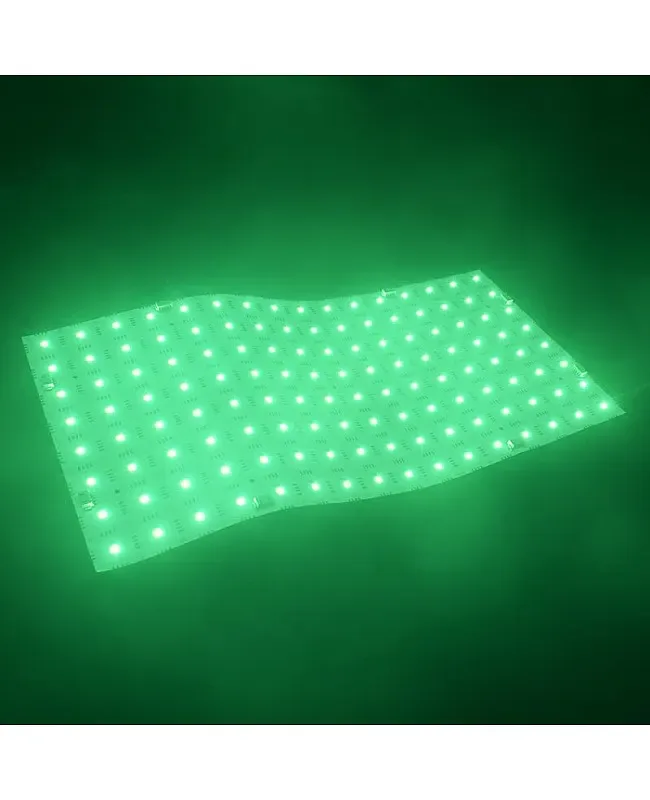

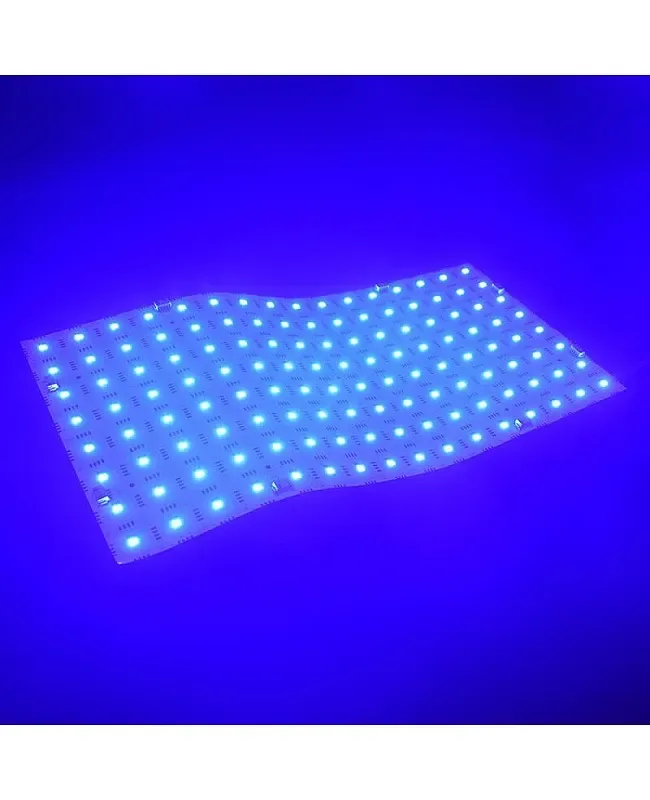

Color: RGB

Dimmable: YES

Cut length: 39.6 mm

Beam angle: 120°

Waterproof level: IP20 non-waterproof, IP54 waterproof

Storage temperature; - 20 ℃ + 65 ℃ ( -4 °F - 113 °F )

Working temperature: - 20 ℃ + 45 ℃ ( -4 °F - 149 °F )

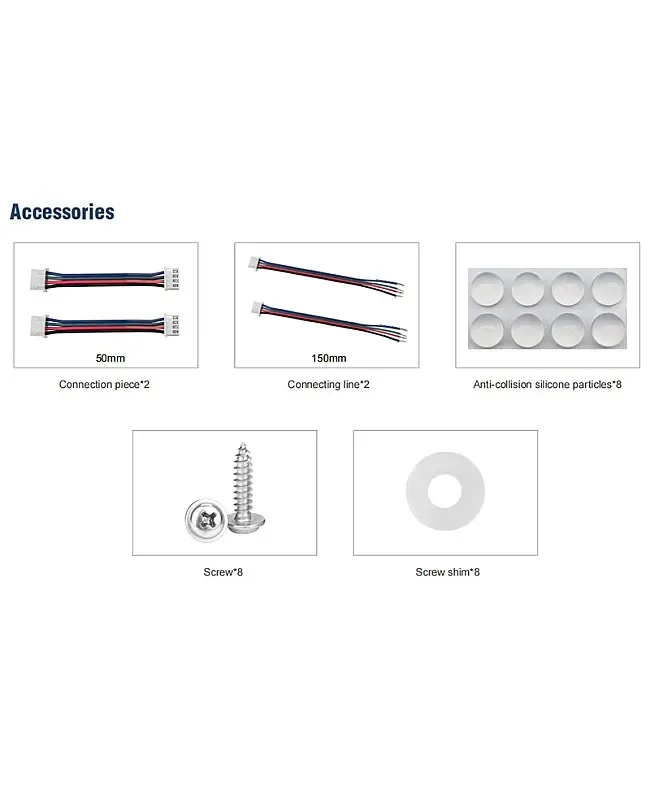

Includes

1 x RGB LED sheet

2 x connection cables

2 x input cables

8 x Anti-collision silicone particles
