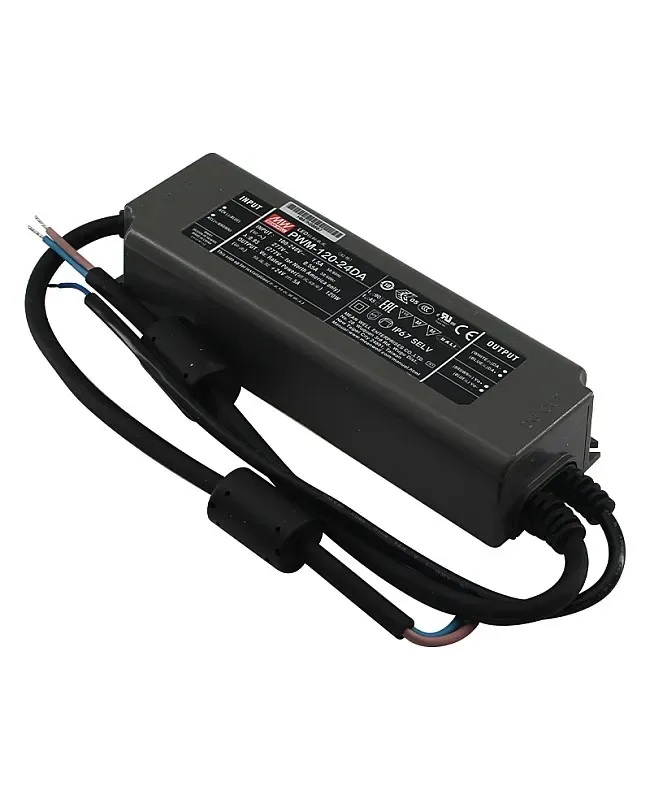

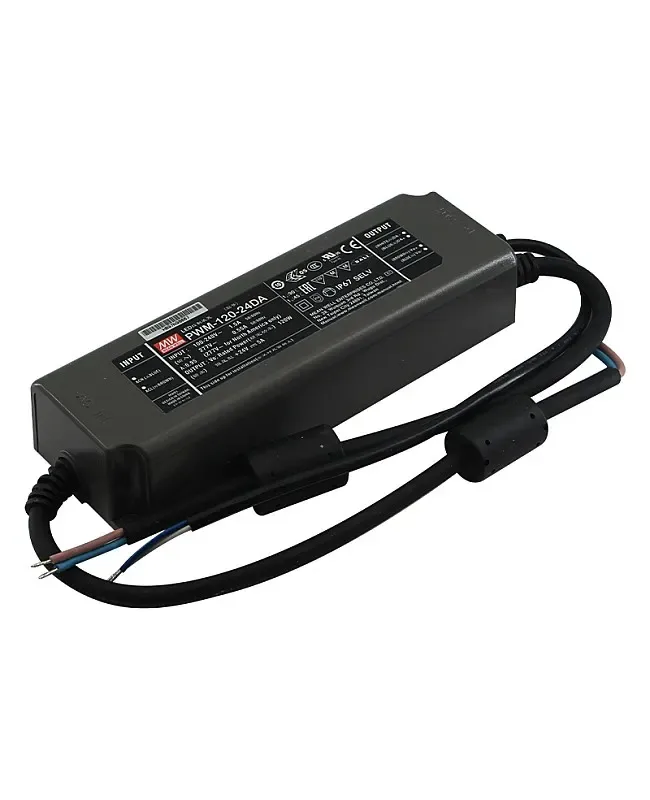

PWM 120 48V Power Supply
LumaCircuit offers PWM 120 48V Power Supply as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Constant Voltage PWM Style Output Emergency Lighting Application Is Available According To -2-13 Built-in Active PFC Function And Class II Design The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The series power supplies are designed for single-color LED strips, Indoor, decorative, and architectural lighting. With a constant voltage PWM style output design, the installer can choose the various output products from DC12V, DC24V, DC36V, DC48V, or with a max loading power of up to 120W. The PWM style output can maintain the color temperature and brightness homogeneity when driving all kinds of LED lights. The operates from AC90V to AC305V, and can connect to the public power system without an extra adapter.
- Constant Voltage PWM Style Output
- Emergency Lighting Application Is Available According To -2-13
- Built-in Active PFC Function And Class II Design
- No Load Power Consumption <0.5W Standby Power Consumption <0.5W(DA/-Type)
- Fully Encapsulated With IP67 Level

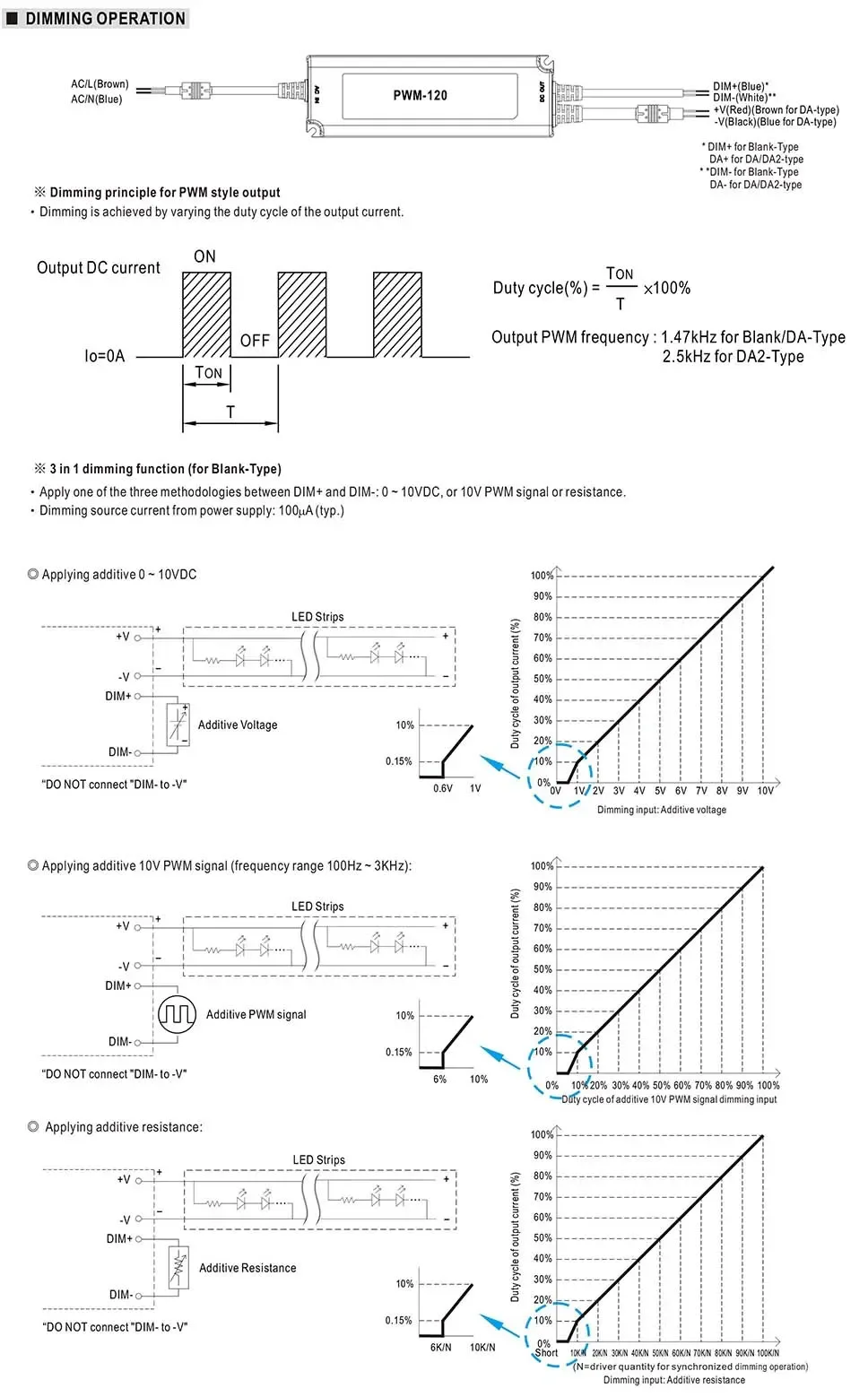

- Function Options: 3 In 1 Dimming(Dim-To-Off); DALI/DALI-2
- Minimum Dimming Level 0.2% for DALI Type
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V / 12 V / 5 V / 24 V / 36 V
- LumaCircuit model: LC-PWR-7RJTG1

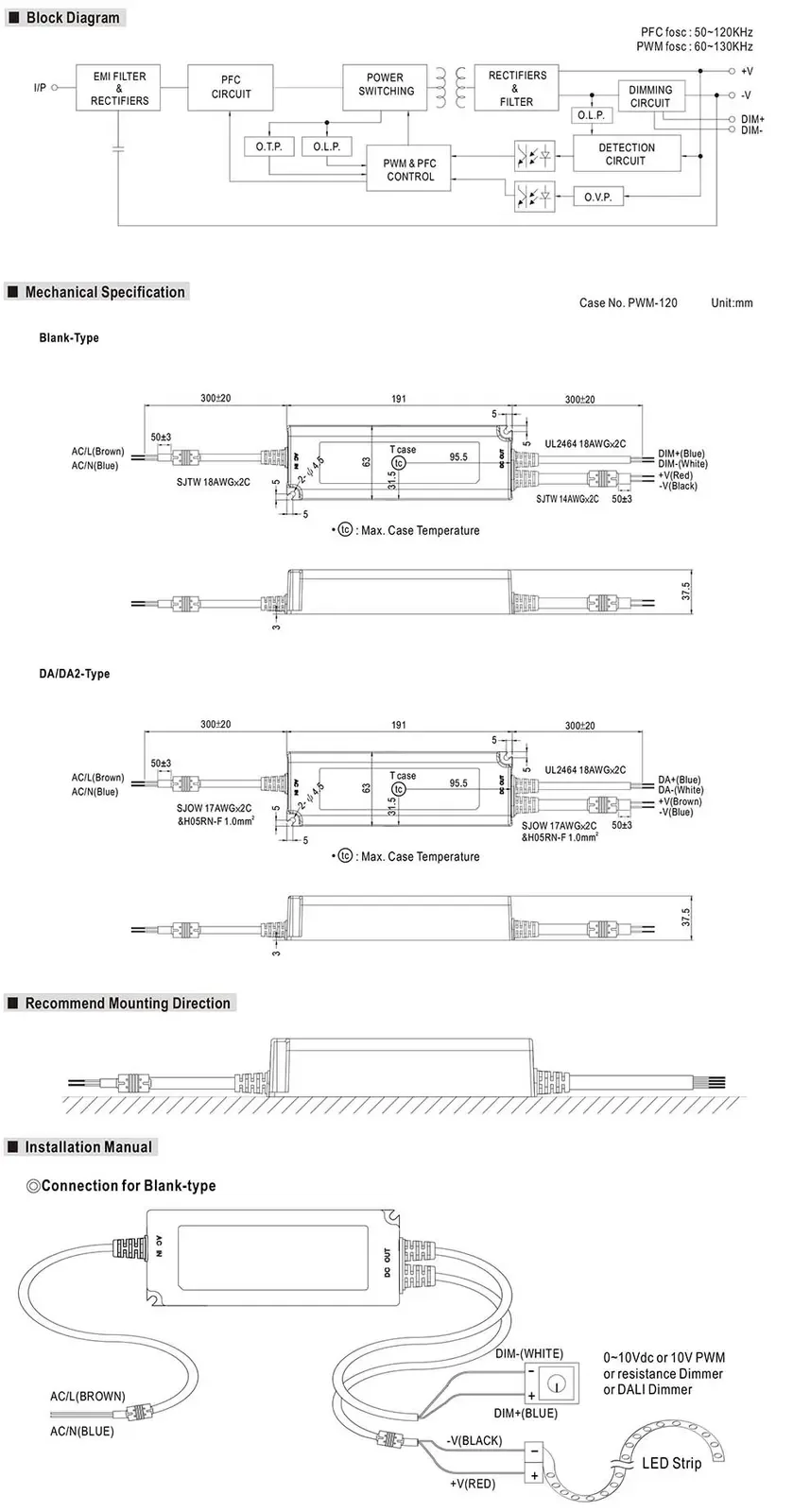

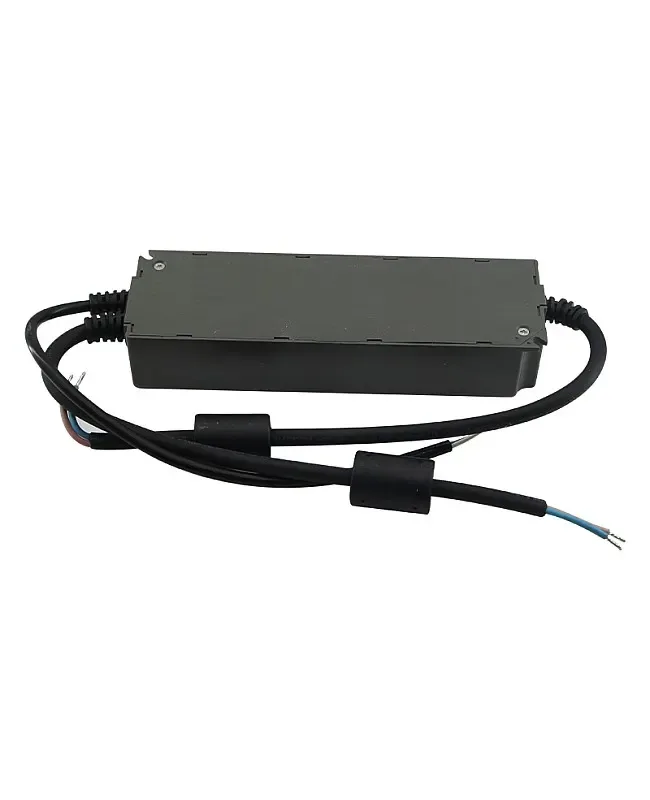

- Size: 191*63*37.5mm(L*W*H)

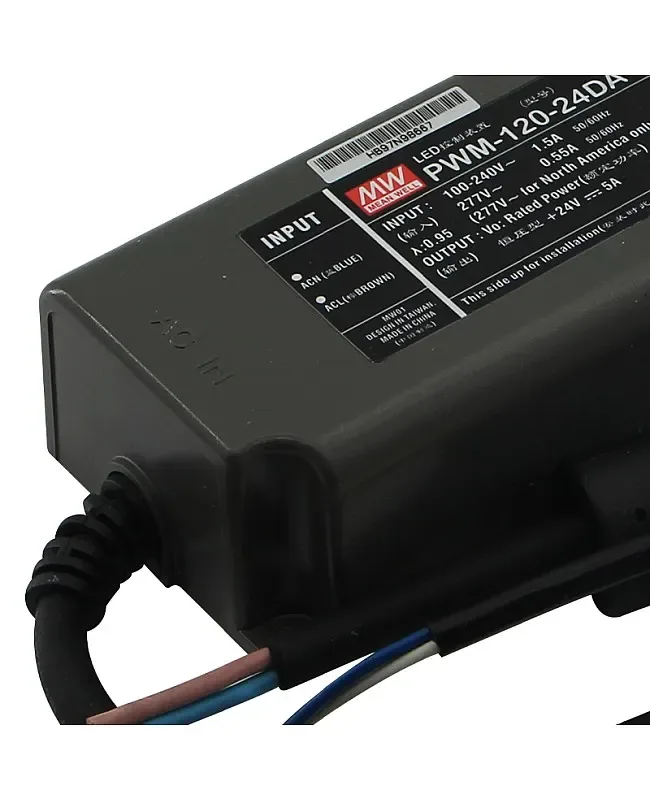

- Input Voltage Range: AC90V-AC305V
- Frequency Range: 47- 63Hz
- Power Factor: PF>0.97, PF>0.96, PF>0.93
- AC Current: 1.3A 0.65A 0.55A

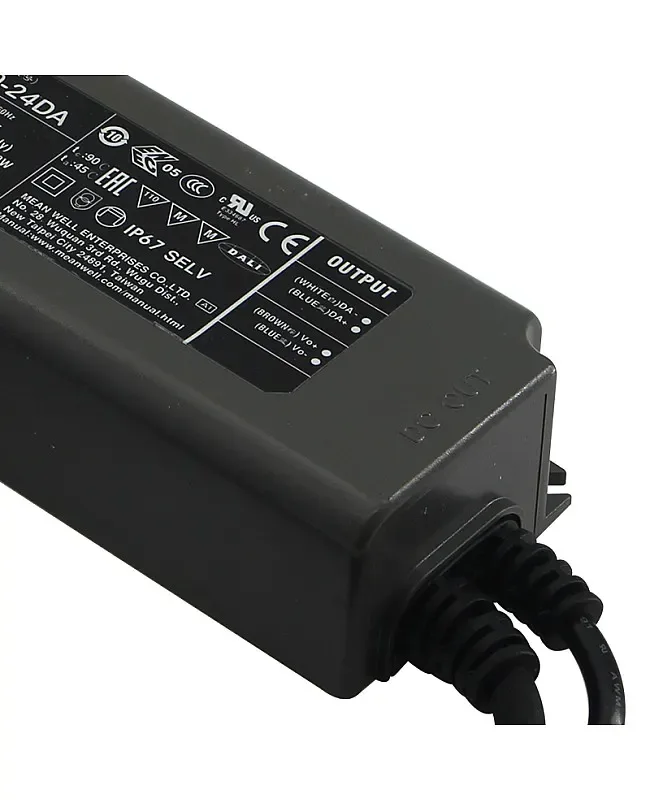

- Output Voltage: DC12V, DC24V, DC36V, DC48V
- Rated Current: 10A(DC12V), 5A(DC24V), 3.4A(DC36V), 2.5A(DC48V)
- Rated Power: 120W(DC12V), 120W(DC24V), 122.4W(DC36V), 120W(DC48V)
- PWM Frequency: 1. For Blank/DA-Type, 2. For Type
- Working Temperature: -40℃-+90℃
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The series power supplies are designed for single-color LED strips, Indoor, decorative, and architectural lighting. With a constant voltage PWM style output design, the installer can choose the various output products from DC12V, DC24V, DC36V, DC48V, or with a max loading power of up to 120W. The PWM style output can maintain the color temperature and brightness homogeneity when driving all kinds of LED lights. The operates from AC90V to AC305V, and can connect to the public power system without an extra adapter. The high efficiency is up to 90.5%, with an IP67 ingress protection level suitable for working in dry, damp, or wet locations.
Constant Voltage PWM Style Output
Emergency Lighting Application Is Available According To -2-13
Built-in Active PFC Function And Class II Design
No Load Power Consumption <0.5W Standby Power Consumption <0.5W(DA/-Type)
Fully Encapsulated With IP67 Level
Function Options: 3 In 1 Dimming(Dim-To-Off); DALI/DALI-2
Minimum Dimming Level 0.2% for DALI Type
Quick Links
Specifications
Model
Size: 191*63*37.5mm(L*W*H)
Input Voltage Range: AC90V-AC305V
Frequency Range: 47- 63Hz
Power Factor: PF>0.97, PF>0.96, PF>0.93
Efficiency: 88%(DC12V), 90%(DC24V), 90%(DC36V), 90.5%(DC48V)
AC Current: 1.3A 0.65A 0.55A
Output Voltage: DC12V, DC24V, DC36V, DC48V
Rated Current: 10A(DC12V), 5A(DC24V), 3.4A(DC36V), 2.5A(DC48V)
Rated Power: 120W(DC12V), 120W(DC24V), 122.4W(DC36V), 120W(DC48V)
Dimming Range: 0-100%
PWM Frequency: 1. For Blank/DA-Type, 2. For Type
Type: Blank(3 In 1 Dimming Function, 0 PWM Signal And Resistance), DA(DALI Control Technology. For 12V/24V With DA Type Only), (DALI-2 Control Technology. For 12V/24V With Type Only)
Working Temperature: -40℃-+90℃
Vibration: 10-500Hz, 5G The Period for each along X, Y, Z axes
Overload Protection
Short Circuit Protection
Over-Voltage Protection
Over Temperature Protection
Suitable For LED Strip Lighting, LED Decorative Lighting, LED Architecture Lighting, etc
Includes
1 * 48V Power Supply
