APV 35 35W Power Supply DC
LumaCircuit offers APV 35 35W Power Supply DC as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Constant Voltage Mode Power Supply Universal AC Input/Full Range Withstand Surge Input For 5 Seconds The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The DC power supply, the 35W constant voltage single-output switching power supply in a fully isolated plastic case, is suitable for LED-related fixtures, LED decoration, or advertisement devices. With a universal AC input design, the voltage range ranges from AC90V to AC264V. The installer can choose from various constant voltage products, from DC5V to DC36V, with a max loading power of 36W.
- Constant Voltage Mode Power Supply
- Universal AC Input/Full Range
- Withstand Surge Input For 5 Seconds
- Protections: Short Circuit Overload Over Voltage
- Fully Isolated Plastic Case
- Cooling By Free Air Convection
- 100% Full Load Burn-In Test
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 12 V / 24 V / 36 V
- LumaCircuit model: LC-PWR-EPJEJJ
- Size: 84*57*29.5mm(L*W*H)
- Input Voltage: AC90V-AC264V
- Frequency Range: 47- 63Hz
- Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V
- Rated Current: 5A(DC5V), 3A(DC12V), 2.4A(DC15V), 1.5A(DC24V), 1A(DC36V)
- Rated Power: 25W(DC5V), 36W(DC12V), 36W(DC15V), 36W(DC24V), 36W(DC36V)
- Working Temperature: -30℃-+70℃
- Protections: Short Circuit Overload Over Voltage
- Dimensions found: 84x57x29.5mm / 29.5mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

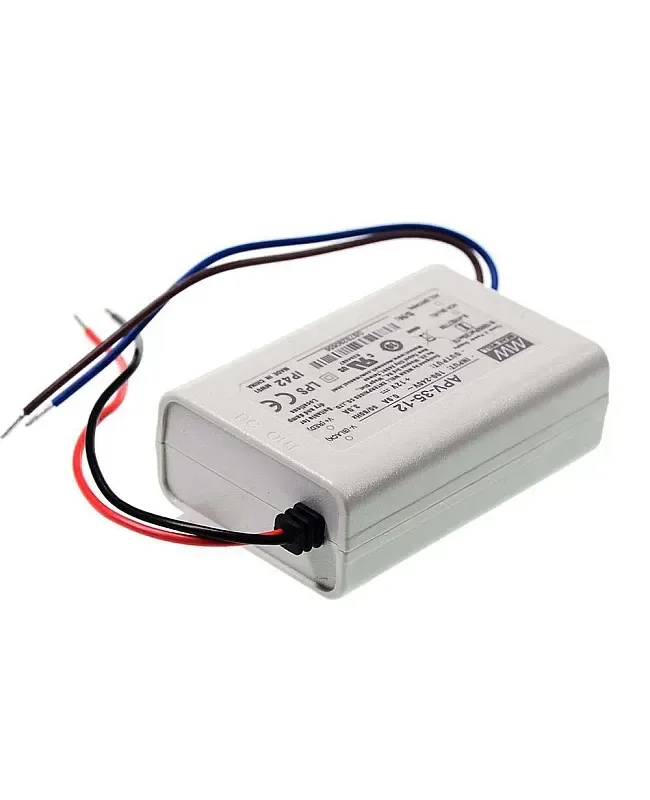

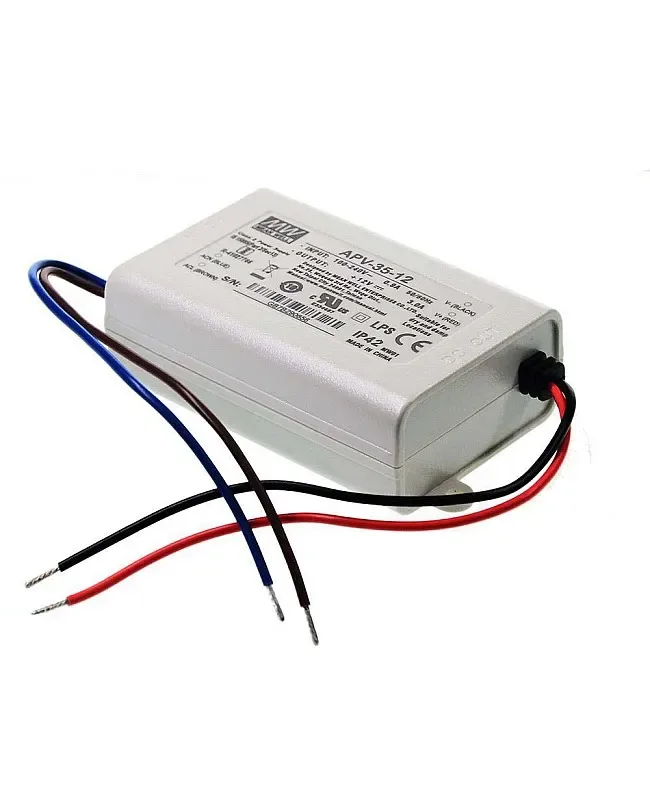

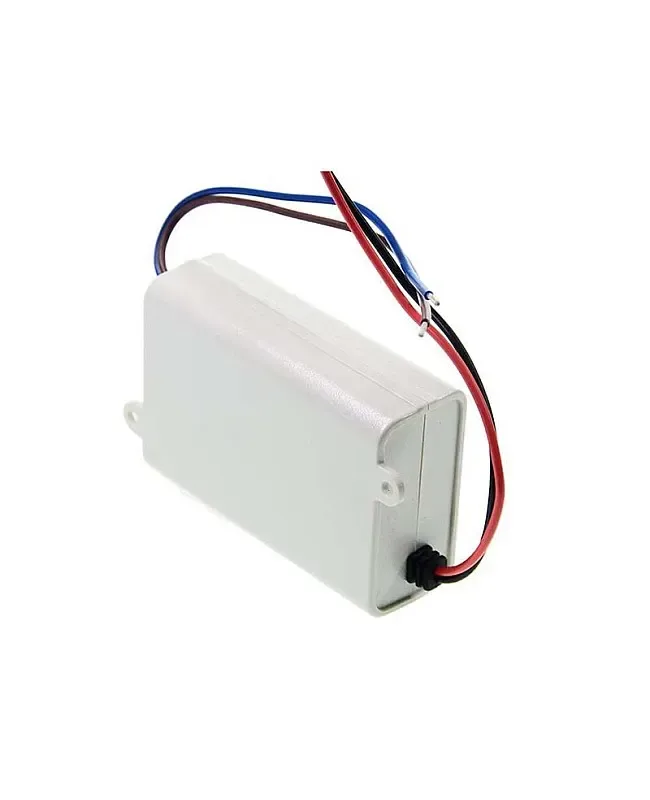

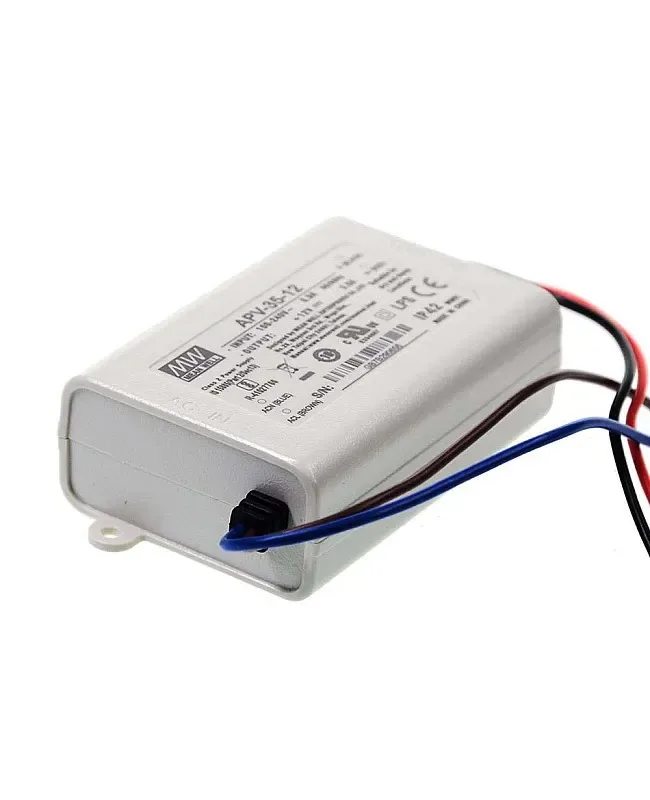

The DC power supply, the 35W constant voltage single-output switching power supply in a fully isolated plastic case, is suitable for LED-related fixtures, LED decoration, or advertisement devices. With a universal AC input design, the voltage range ranges from AC90V to AC264V. The installer can choose from various constant voltage products, from DC5V to DC36V, with a max loading power of 36W. This will turn AC input voltage into a single-output DC voltage, with a small and compact size, the installer can use them in a narrow place, and they are suitable for dry and damp locations.
Constant Voltage Mode Power Supply
Universal AC Input/Full Range
Withstand Surge Input For 5 Seconds
Protections: Short Circuit Overload Over Voltage
Fully Isolated Plastic Case
Cooling By Free Air Convection
Small And Compact Size
IP42 Design
100% Full Load Burn-In Test
Low Cost And High Reliability
Suitable for LED-related fixtures, LED decoration, or advertisement devices
Quick Links
Specification Document

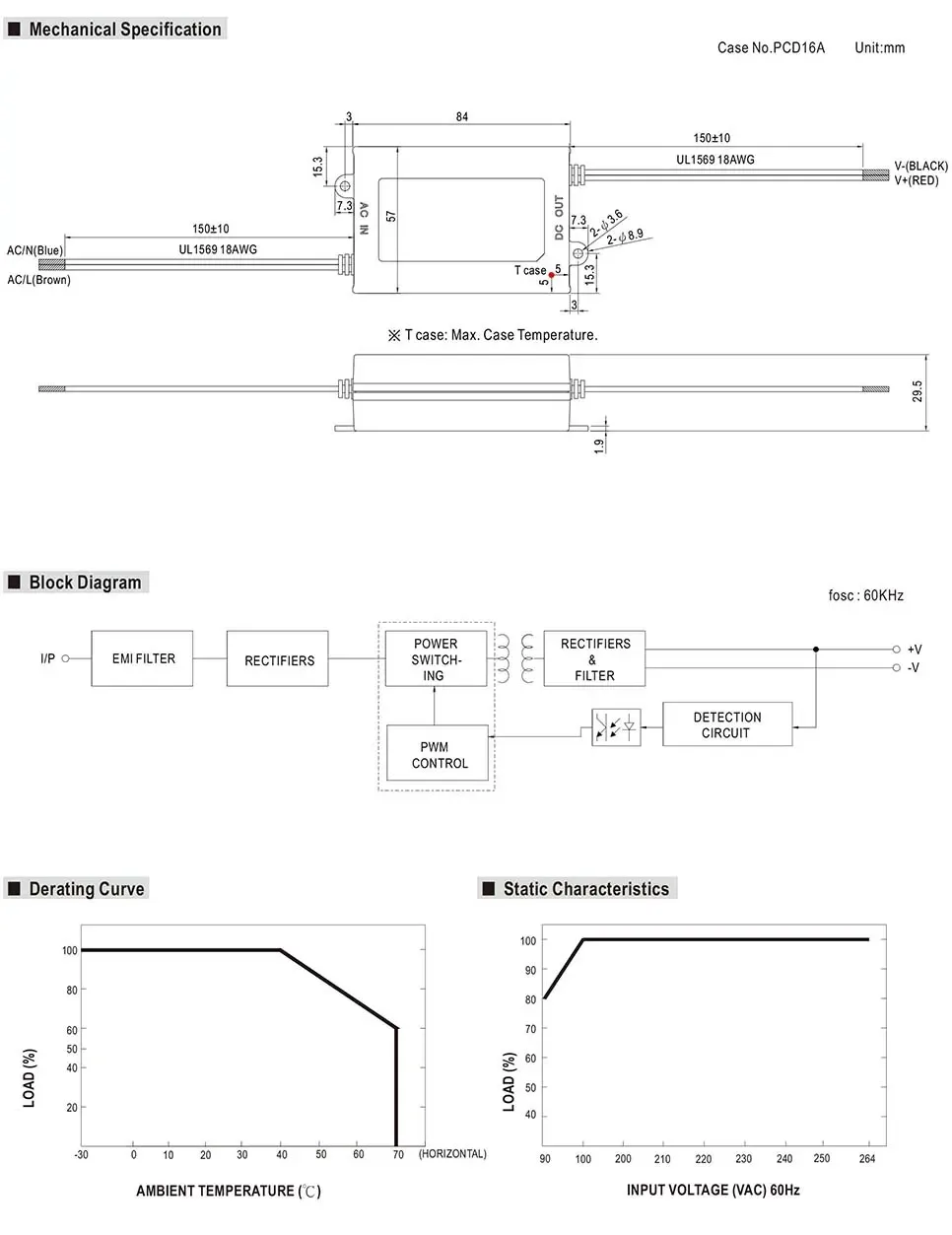

Specifications
Model
Size: 84*57*29.5mm(L*W*H)
Input Voltage: AC90V-AC264V
Frequency Range: 47- 63Hz
Efficiency: 76.5%(DC5V), 83%(DC12V), 84%(DC15V), 84%(DC24V), 85%(DC36V)
Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V
Rated Current: 5A(DC5V), 3A(DC12V), 2.4A(DC15V), 1.5A(DC24V), 1A(DC36V)
Rated Power: 25W(DC5V), 36W(DC12V), 36W(DC15V), 36W(DC24V), 36W(DC36V)
Working Temperature: -30℃-+70℃
Vibration: 10-500Hz, 2G period for each along X, Y, Z axes
Safety Standards CSA.2 No.250.0-13, BIS (Except For 15V, 36V), EAC TP TC 004, IP42 Approved, Design Refer To EN 62368-1
Overload Protection
Over-Voltage Protection
Over Temperature Protection
Includes
1 * DC Power Supply
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
