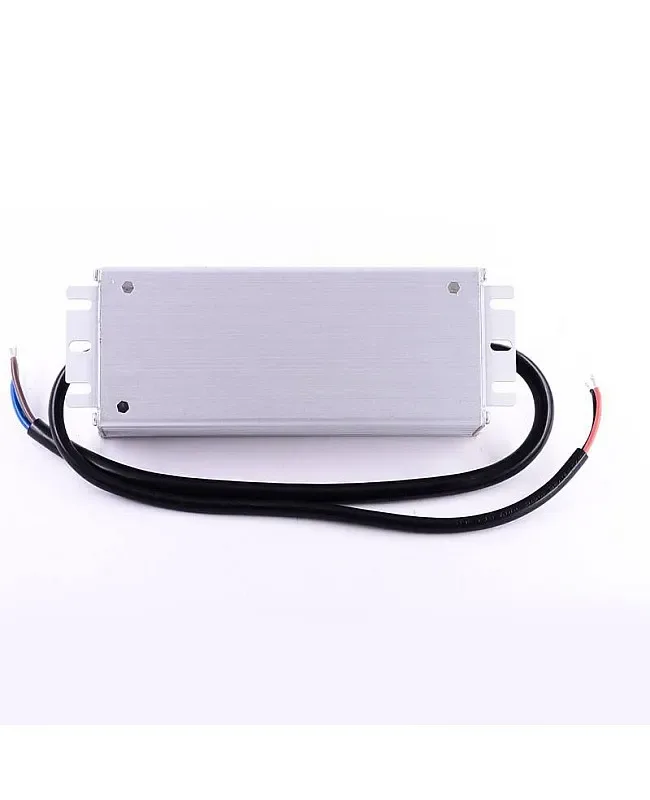

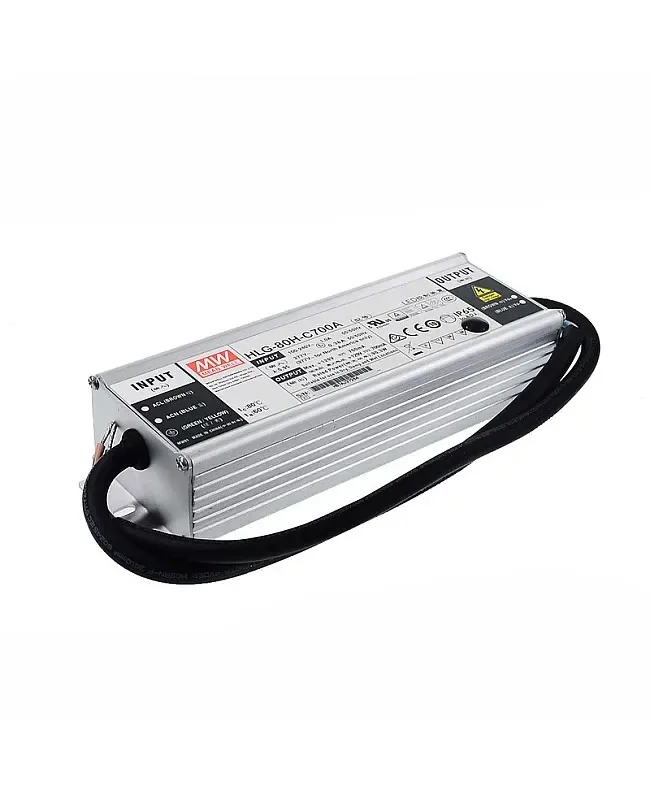

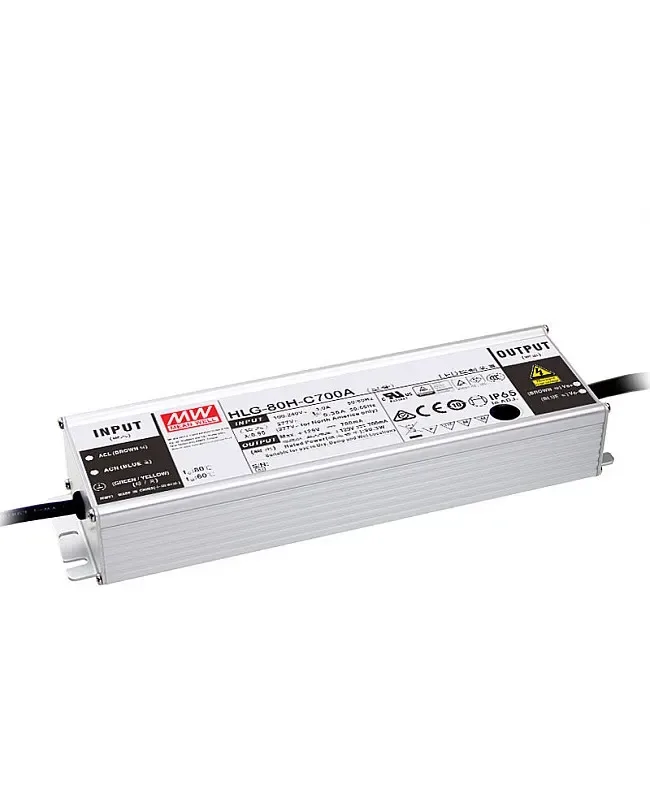

LED Driver Constant Current
LumaCircuit offers LED Driver Constant Current as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Constant Current Output Mode Design Metal Housing With Class I Design Built-in Active PFC Function The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The series constant current LED driver includes the and models. Featuring the constant current mode and high voltage output, four types of products available, A, B, AB and D the A type the output current adjustable through the built-in potentiometer, B type with 3 in 1 dimming function, the AB type with IO adjustable through a built-in potentiometer and 3 in 1 dimming function, the D type with timer dimming function.
- Constant Current Output Mode Design
- Metal Housing With Class I Design
- Built-in Active PFC Function
- IP67/IP65 Design For Indoor Or Outdoor Installations
- Function options: Output Adjustable Via Potentiometer; 3 In 1 Dimming, Timer Dimming
- LED Street Lighting, Fishing Lamp, Harbor Lights, Architectural Lighting, Greenhouse Lights, Bay Lighting
- Size: 195.6*61.5*38.8mm(L*W*H)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 9 V
- Size: 195.6*61.5*38.8mm(L*W*H)
- LumaCircuit model: LC-PWR-N8YL55
- Rated Power: 89.95W/90.3W
- Constant Current Region: HLG--: 128V-257V(Type A)/167V-257V(Type B); HLG--: 64-129V(Type A)/84-129V(Type B)
- Current Ripple: 8.0% Max
- Current Tolerance: ±5%
- Input Voltage Range: 90
- Frequency Range: 47- 63Hz
- Power Factor: PF≥0.98 PF≥0.96 PF≥0.94
- AC Current: 0.88A 0.45A 0.38A
- Working Temperature: -40°-+80°
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The series constant current LED driver includes the and models. Featuring the constant current mode and high voltage output, four types of products available, A, B, AB and D the A type the output current adjustable through the built-in potentiometer, B type with 3 in 1 dimming function, the AB type with IO adjustable through a built-in potentiometer and 3 in 1 dimming function, the D type with timer dimming function. Can operate from 90 the max output current up to or with a high efficiency of up to 91.5%, with a fanless design, the working temperature can operate between -40° to +80° case temperature under free air convection. The metal housing provides better heat dissipation, and the IP rating is IP65 or IP67 for indoor and outdoor applications. The installer can use them for various LED lighting projects.
Constant Current Output Mode Design
Metal Housing With Class I Design
Built-in Active PFC Function
IP67/IP65 Design For Indoor Or Outdoor Installations
Function options: Output Adjustable Via Potentiometer; 3 In 1 Dimming, Timer Dimming
Applications
LED Street Lighting, Fishing Lamp, Harbor Lights, Architectural Lighting, Greenhouse Lights, Bay Lighting

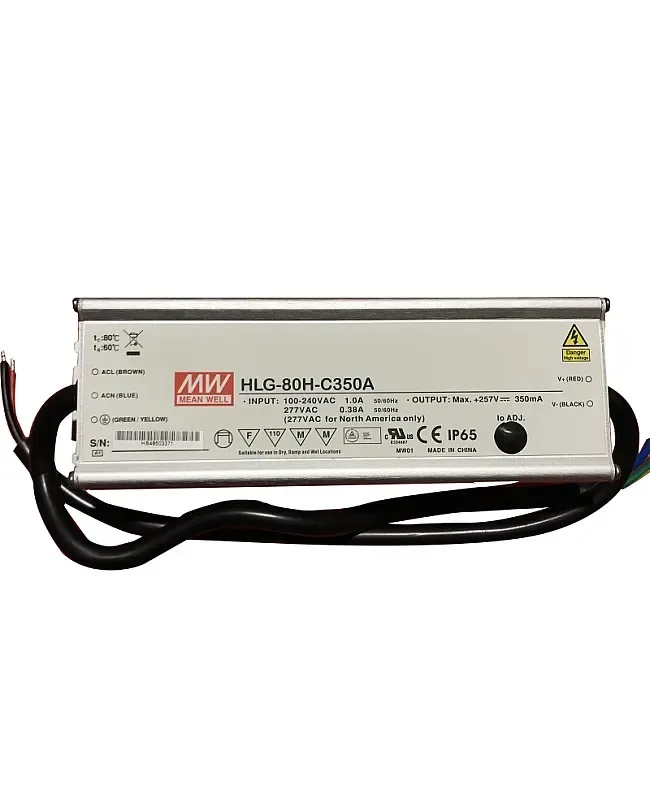

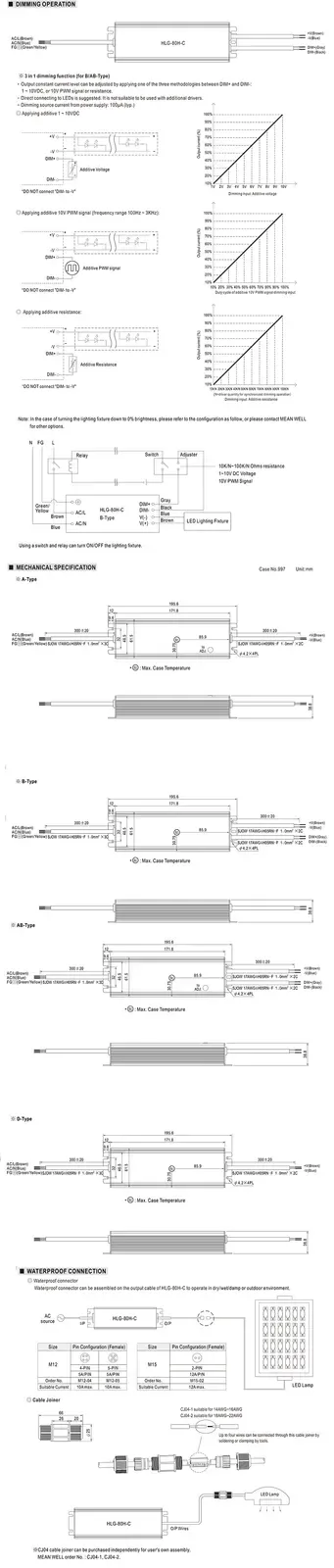

Specifications
Size: 195.6*61.5*38.8mm(L*W*H)
Model: HLG--/HLG
A, IP Rating IP65, IO Adjustable Through Built-in Potentiometer
B, IP Rating IP67, 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)
AB, IP Rating IP65, IO Adjustable Through Built-in Potentiometer& 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)
D, IP Rating IP67, Timer Dimming Function
Rated Power
Rated Power: 89.95W/90.3W
Constant Current Region: HLG--: 128V-257V(Type A)/167V-257V(Type B); HLG--: 64-129V(Type A)/84-129V(Type B)
Current Adjustment Range(For A/AB Type Only---Via Built-in Potentiometer): 210-/42
Current Ripple: 8.0% Max
Current Tolerance: ±5%
Set-Up Time
Input Voltage Range: 90
Frequency Range: 47- 63Hz
Power Factor: PF≥0.98 PF≥0.96 PF≥0.94
Efficiency: 91.5%
AC Current: 0.88A 0.45A 0.38A
Working Temperature: -40°-+80°
Short Circuit Protection
Over-Voltage Protection
Over Temperature Proteciton
Vibration: 10-500Hz, 5G period for each along X,Y,Z axes
Safety Standards CSA.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-12 independent,1,14, EAC TP TC 004, IP65 Or IP67 Approved
Includes
1 * LED Driver
