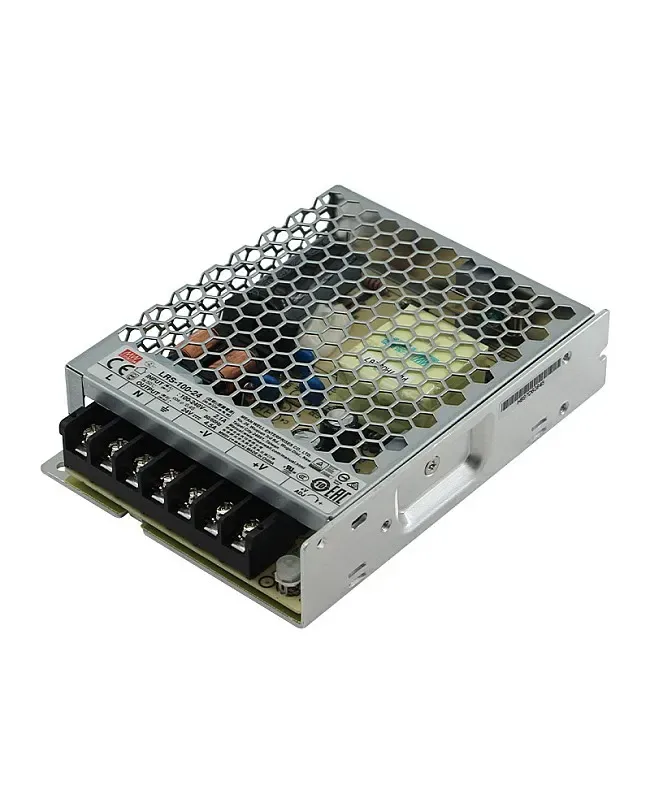

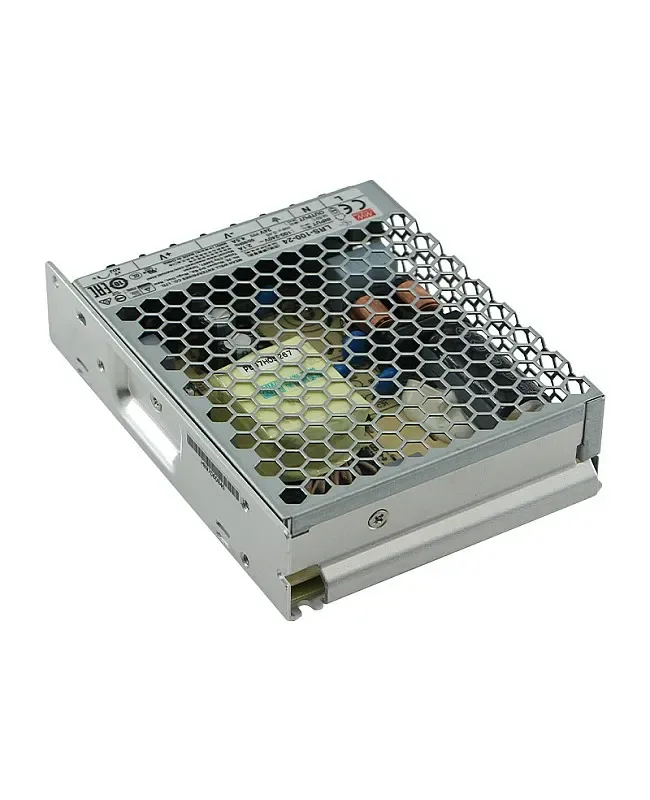

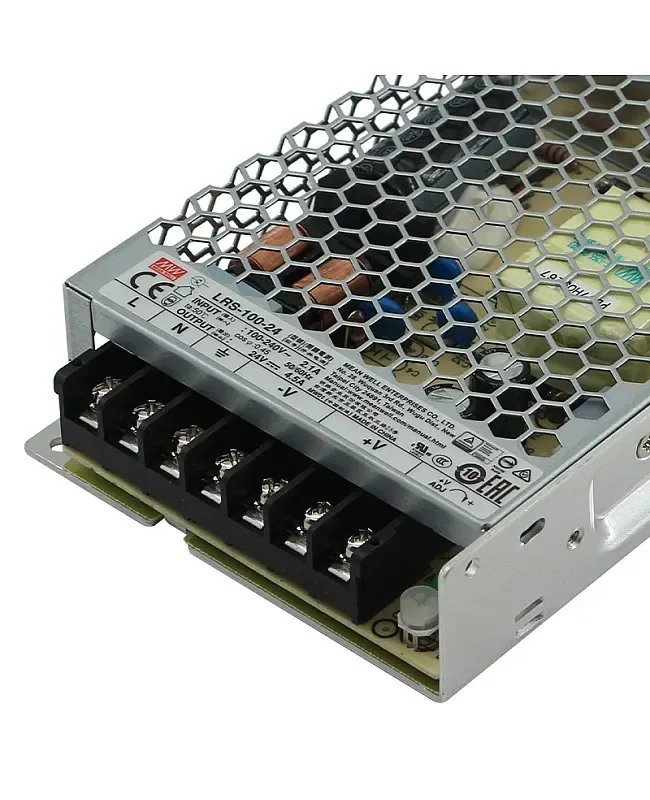

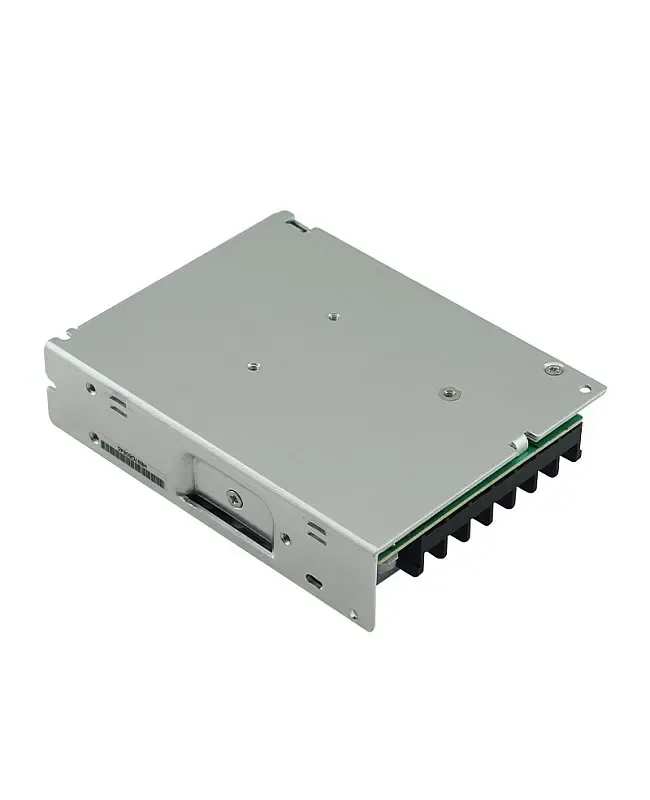

LRS 100 100W Single Output Switching LED Driver
LumaCircuit offers LRS 100 100W Single Output Switching LED Driver as a configurable LED driver or power supply for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Universal AC Input/Full Range Withstand Surge Input for 5 seconds Protections: Short Circuit Overload Over Voltage The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

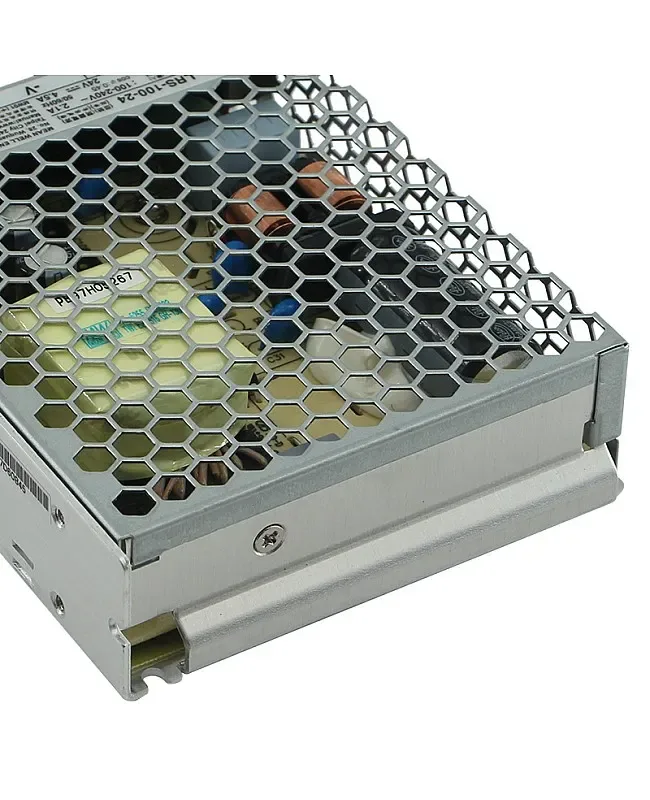

- The Series 100W LED driver is a single-output enclosed power supply with a 30mm low-profile design, adopting a full-range 85 85- input. The installer can choose from various output voltage products, ranging from.3V to DC48V. In addition to the high efficiency up to 91%, the design of the metallic mesh case enhances the heat dissipation that the whole series of LED drivers operate from -30℃ through 70℃ under air convection without a fan.
- Universal AC Input/Full Range
- Withstand Surge Input for 5 seconds
- Protections: Short Circuit Overload Over Voltage
- Cooling By Free Air Convection
- Miniature Size And Low Profile
- Compliance To IEC/EN 60335-1 And IEC/-1, 2-16 For Household Appliances
- Operating Altitude Up To 5000 Meters
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V / 5 V / 12 V / 24 V / 36 V
- LumaCircuit model: LC-PWR-QG9SWF

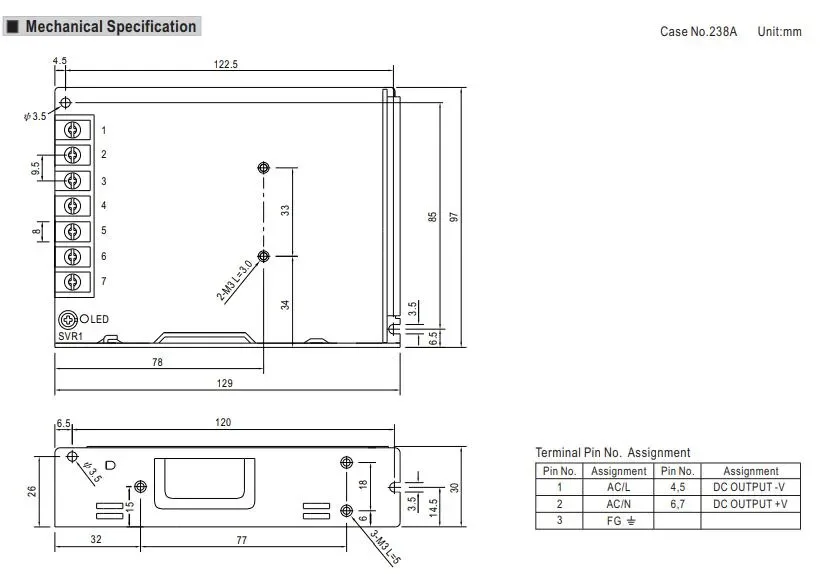

- Size: 129*97*30mm(L*W*H)
- Input Voltage: 85
- Frequency Range: 47- 63Hz
- AC Current: 1.9A 1.2A
- Output Voltage: .3V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 20A(.3V), 18A(DC5V), 8.5A(DC12V), 7A(DC15V), 4.5A(DC24V), 2.8A(DC36V), 2.3A(DC48V)
- Rated Power: 66W(.3V), 90W(DC5V), 102W(DC12V), 105W(DC15V), 108W(DC24V), 100.8W(DC36V), 110.4W(DC48V)
- Working Temperature: -30℃-+70℃
- Protections: Short Circuit Overload Over Voltage
- Dimensions found: 129x97x30mm / 30mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The Series 100W LED driver is a single-output enclosed power supply with a 30mm low-profile design, adopting a full-range 85 85- input. The installer can choose from various output voltage products, ranging from.3V to DC48V. In addition to the high efficiency up to 91%, the design of the metallic mesh case enhances the heat dissipation that the whole series of LED drivers operate from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no-load power consumption of less than 0.3W has complete protection functions and 5G anti-vibration capability, and it complies with international safety regulations such as TUV -1, -1, -1/-2-16, -1, and
Universal AC Input/Full Range
Withstand Surge Input for 5 seconds
Protections: Short Circuit Overload Over Voltage
Cooling By Free Air Convection
Miniature Size And Low Profile
Compliance To IEC/EN 60335-1 And IEC/-1, 2-16 For Household Appliances
Operating Altitude Up To 5000 Meters
Withstand 5G Vibration Test
LED Indicator For Power On
No Load Power Consumption<0.3W
Over Voltage Category III
100% Full Load Burn-In Test
High Operating Temperature Up To 70℃
Quick Links
Specification Document

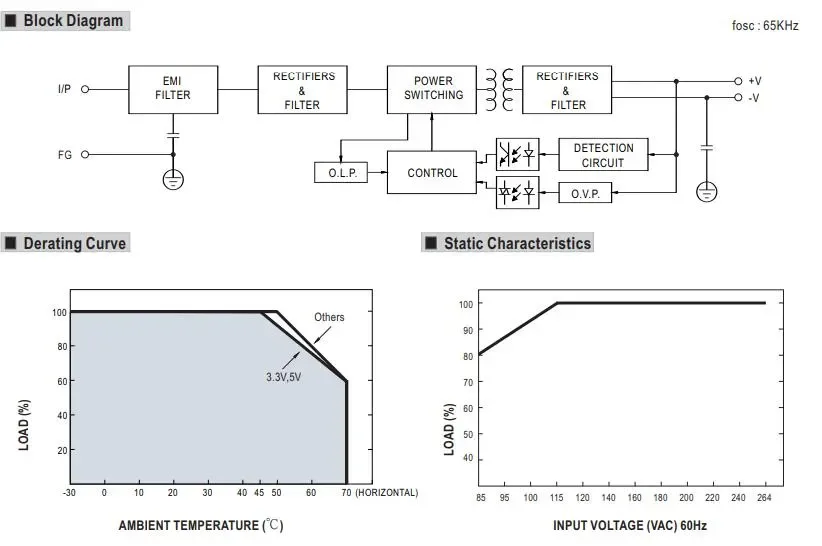

Specifications
Model
Size: 129*97*30mm(L*W*H)
Input Voltage: 85
Frequency Range: 47- 63Hz
AC Current: 1.9A 1.2A
Efficiency: 84.5%(3V), 86%(DC5V), 88%(DC12V), 88.5%(DC15V), 90%(DC24V), 90.5%(DC36V), 91%(DC48V)
Output Voltage.3V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
Rated Current: 20A(3V), 18A(DC5V), 8.5A(DC12V), 7A(DC15V), 4.5A(DC24V), 2.8A(DC36V), 2.3A(DC48V)
Rated Power: 66W(3V), 90W(DC5V), 102W(DC12V), 105W(DC15V), 108W(DC24V), 100.8W(DC36V), 110.4W(DC48V)
Working Temperature: -30℃-+70℃
Vibration: 10-500Hz, 5G each along X, Y, Z axes
Overload Protection
Over-Voltage Protection
Over Temperature Protection
Includes
1 * LED Driver
Product resources
Technical documents
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
