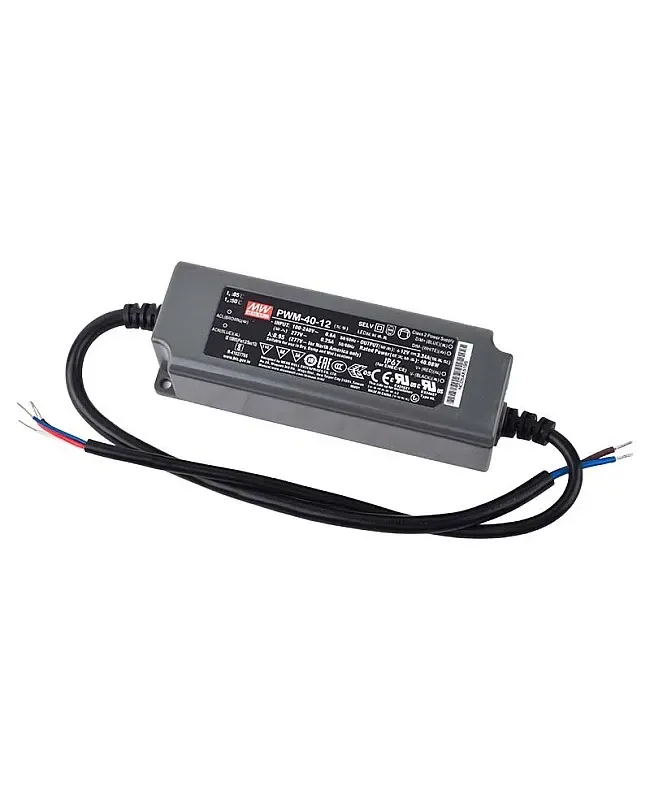

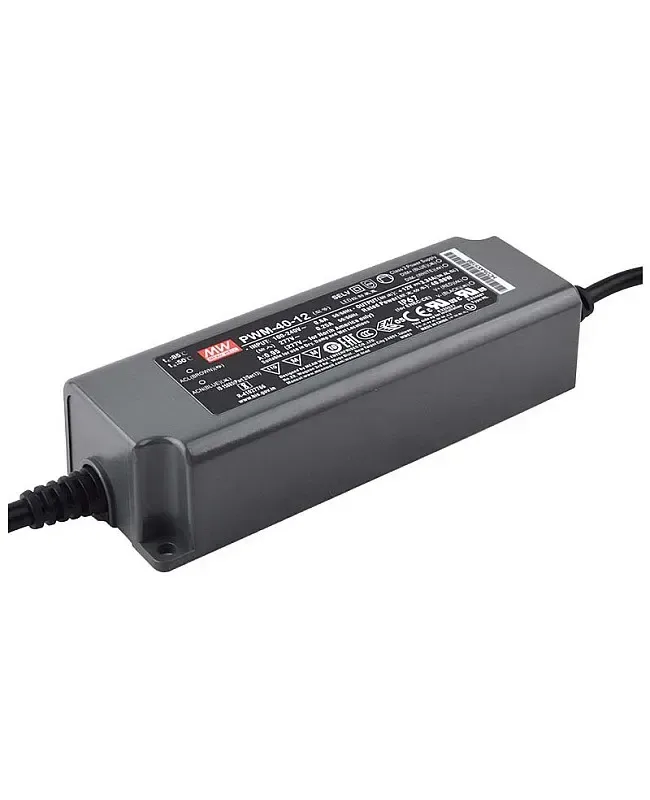

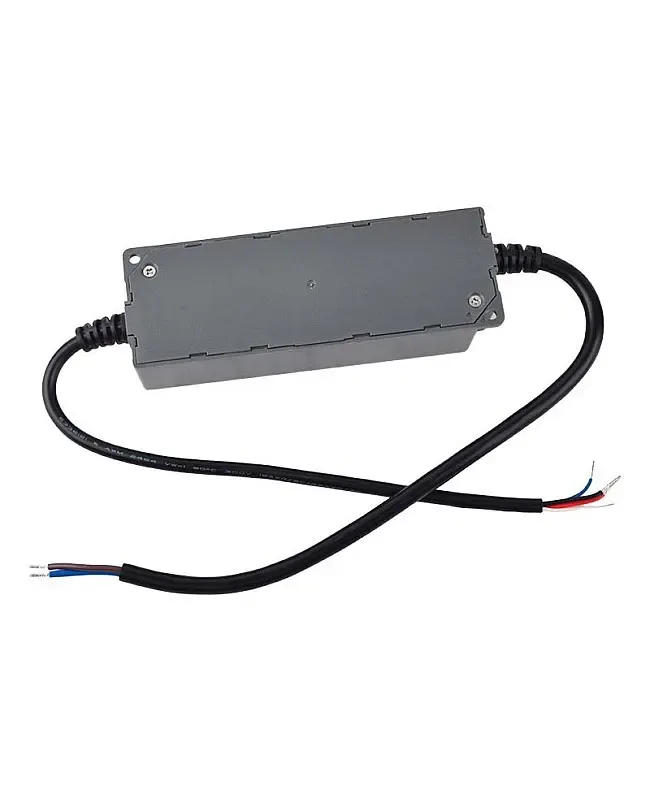

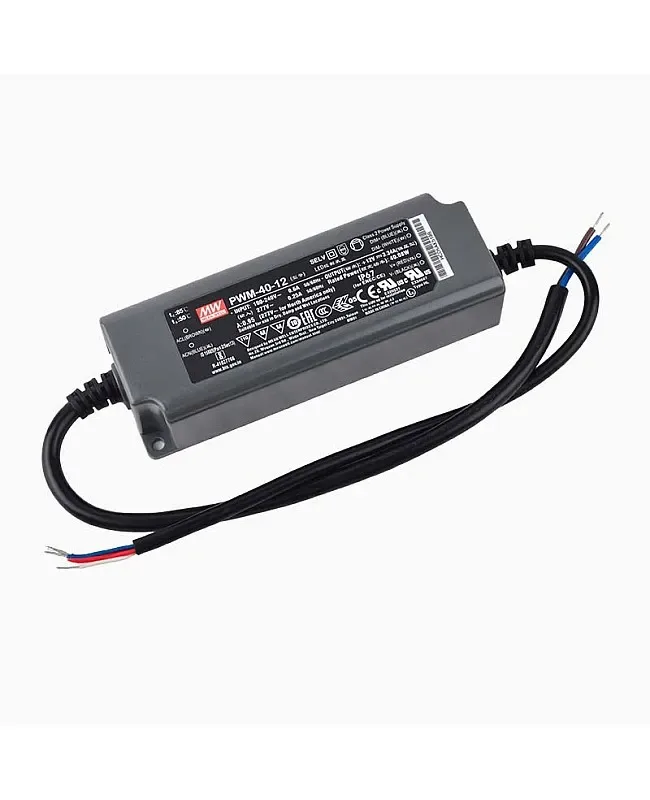

3 In 1 Dimming PWM 40W Waterproof Power Supply
LumaCircuit offers 3 In 1 Dimming PWM 40W Waterproof Power Supply as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Constant Voltage PWM Style Output With Frequency 1.47 KHz Plastic Housing With Class II Design Built-in Active PFC Function The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 3 In 1 dimming PWM 40 series waterproof power supply is a 40W AC/DC LED driver with the PWM style output, able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips and other single color LED lights. The operates from AC90V to AC305V and offers models with different rated voltages ranging from DC12V to DC48V.
- Constant Voltage PWM Style Output With Frequency 1.47 KHz
- Plastic Housing With Class II Design
- Built-in Active PFC Function
- No Load Power Consumption < 0.5W
- Full Encapsulated With IP67 Level

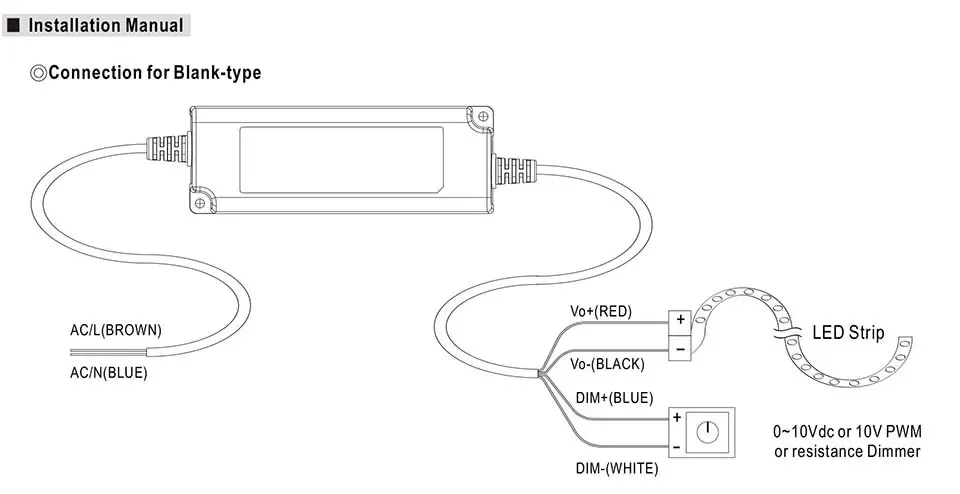

- Function: 3 In 1 Dimming (Dim-To-Off)
- Size: 150*53*35mm(L*W*H)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 12 V / 24 V / 36 V / 48 V
- LumaCircuit model: LC-PWR-2R0U38
- Size: 150*53*35mm(L*W*H)
- Input Voltage Range: AC90V-AC305V
- Frequency Range: 47- 63Hz
- Power Factor: PF>0.97, PF>0.95, PF>0.92
- AC Current: 0.6A 0.3A 0.25A
- Output Voltage: DC12V, DC24V, DC36V, DC48V
- Rated Current: 3.34A(DC12V), 1.67A(DC24V), 1.12A(DC36V), 0.84A(DC48V)
- Rated Power: 40.08W(DC12V), 40.08W(DC24V), 40.32W(DC36V), 40.32W(DC48V)
- Working Temperature: -40℃-+85℃
- Dimensions found: 150x53x35mm / 35mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 3 In 1 dimming PWM 40 series waterproof power supply is a 40W AC/DC LED driver with the PWM style output, able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips and other single color LED lights. The operates from AC90V to AC305V and offers models with different rated voltages ranging from DC12V to DC48V. With the fanless design, the high efficiency up to 90%, the entire series of power supplies can operate for -40℃ to +85℃ case temperature under free air convection. The PWM 40 is rated with an IP67 ingress protection level and is suitable for working in dry, damp, or wet locations. Equipped with a dimming function from 0-100% that varies the duty cycle of the output, providing great flexibility for single-color LED strip applications.
Constant Voltage PWM Style Output With Frequency 1.47 KHz
Plastic Housing With Class II Design
Built-in Active PFC Function
Class 2 Power Unit
No Load Power Consumption < 0.5W
Full Encapsulated With IP67 Level
Function: 3 In 1 Dimming (Dim-To-Off)
Quick Links
Specification Document
Specifications
Model

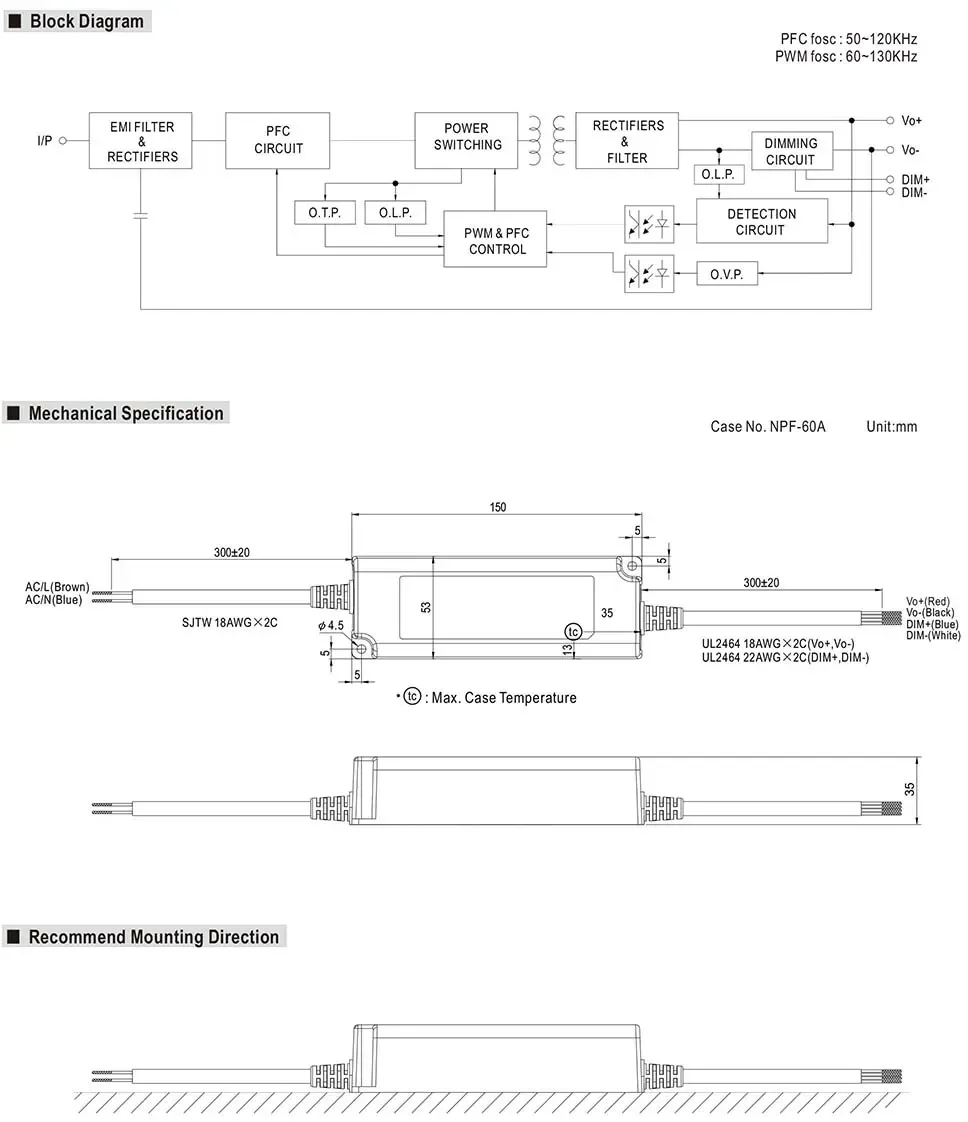

Size: 150*53*35mm(L*W*H)
Input Voltage Range: AC90V-AC305V
Frequency Range: 47- 63Hz
Power Factor: PF>0.97, PF>0.95, PF>0.92
Efficiency: 86%(DC12V), 89%(DC24V), 90%(DC36V), 90%(DC48V)
AC Current: 0.6A 0.3A 0.25A
Output Voltage: DC12V, DC24V, DC36V, DC48V
Rated Current: 3.34A(DC12V), 1.67A(DC24V), 1.12A(DC36V), 0.84A(DC48V)
Rated Power: 40.08W(DC12V), 40.08W(DC24V), 40.32W(DC36V), 40.32W(DC48V)
Dimming Range: 0-100%
Working Temperature: -40℃-+85℃
Vibration: 10-500Hz, 5G The Period for each along the X, Y, Z axes
Overload Protection
Short Circuit Protection
Over-Voltage Protection
Over Temperature Protection
Includes
1 * Waterproof Power Supply
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
