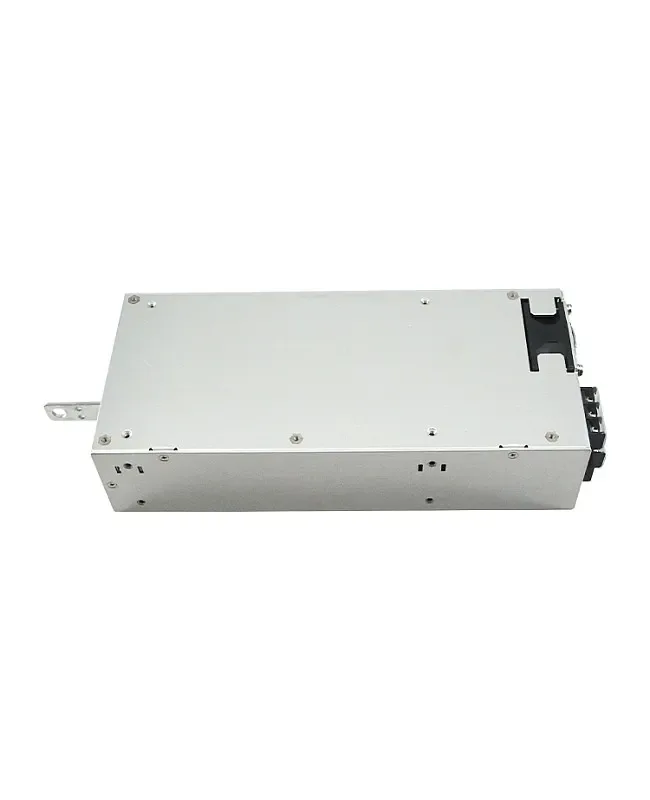

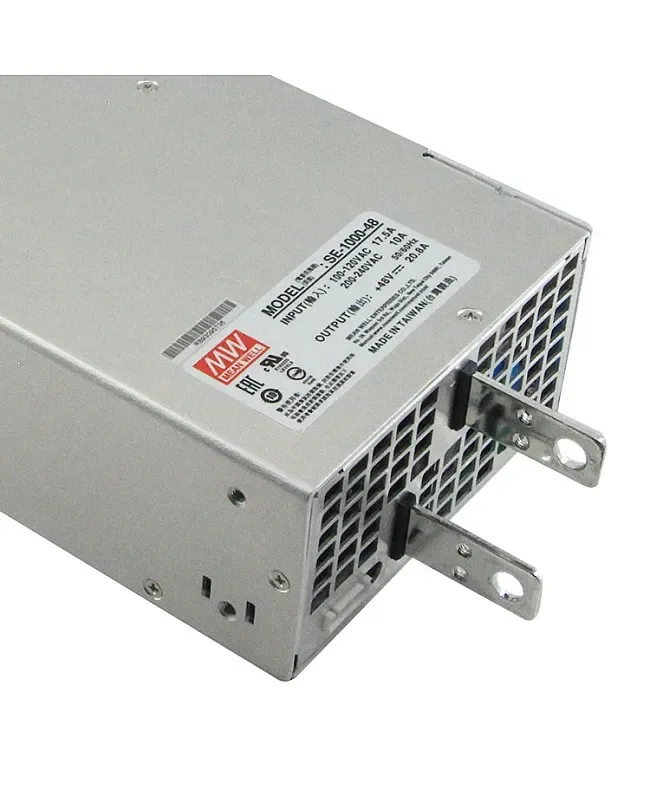

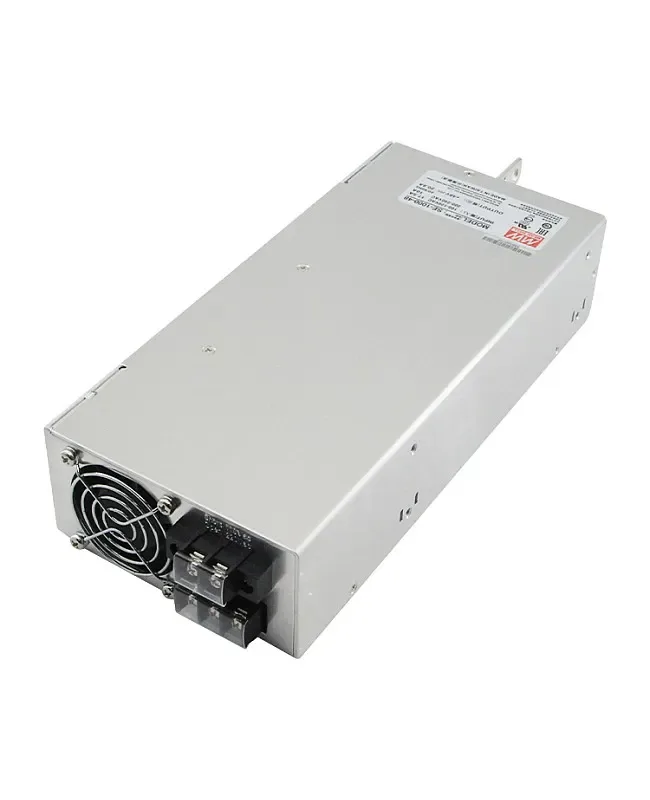

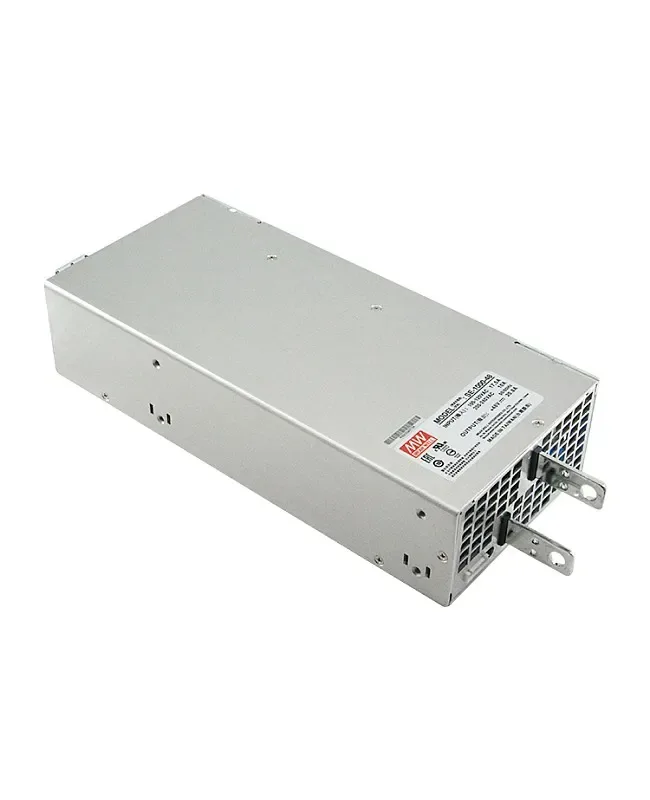

SE 1000 12V Power Adaptor
LumaCircuit offers SE 1000 12V Power Adaptor as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. AC Input Range Selected By Switch Protections: Short Circuit Overload Over Voltage Over Temperature Forced Air Cooling By Built-in Ball Bearing Fan The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- AC Input Active Surge Current Limiting
- AC Input Range Selected By Switch
- Protections: Short Circuit Overload Over Voltage Over Temperature

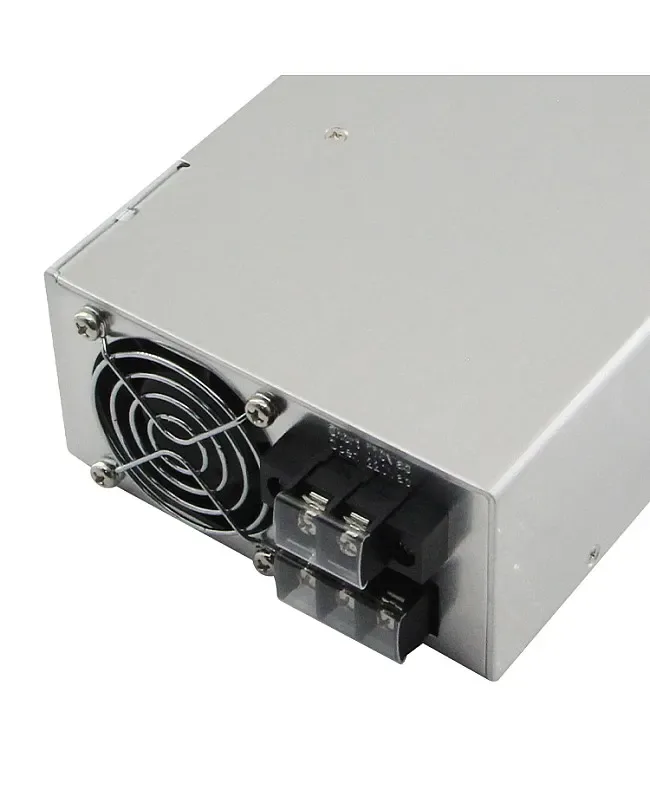

- Forced Air Cooling By Built-in Ball Bearing Fan
- High Power Density 7.3W/in³

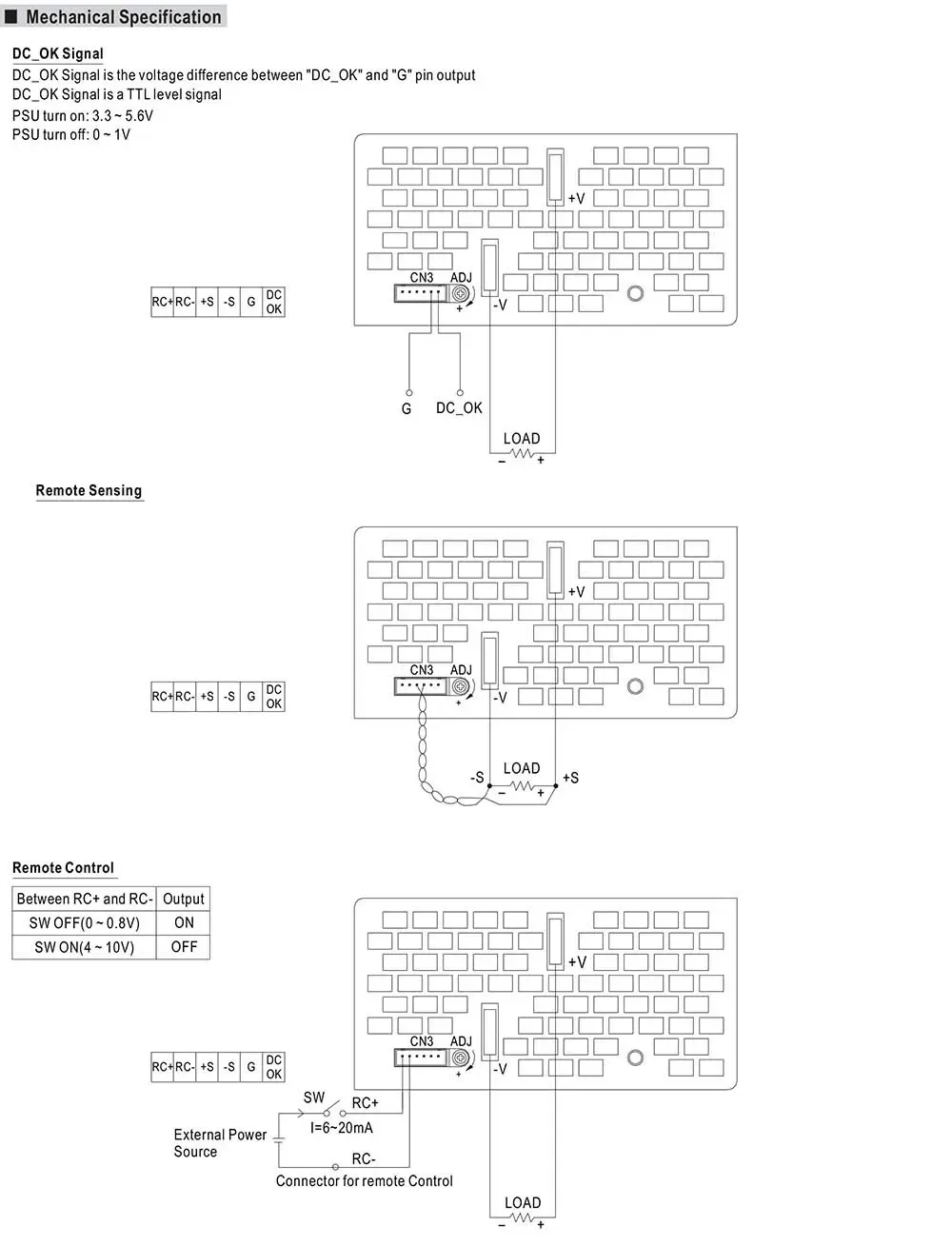

- With DC_OK Signal Output
- Built-in Remote ON-OFF Control
- Built-in Remote Sense Function
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V / 9 V / 24 V / 48 V
- LumaCircuit model: LC-PWR-3GTBAE

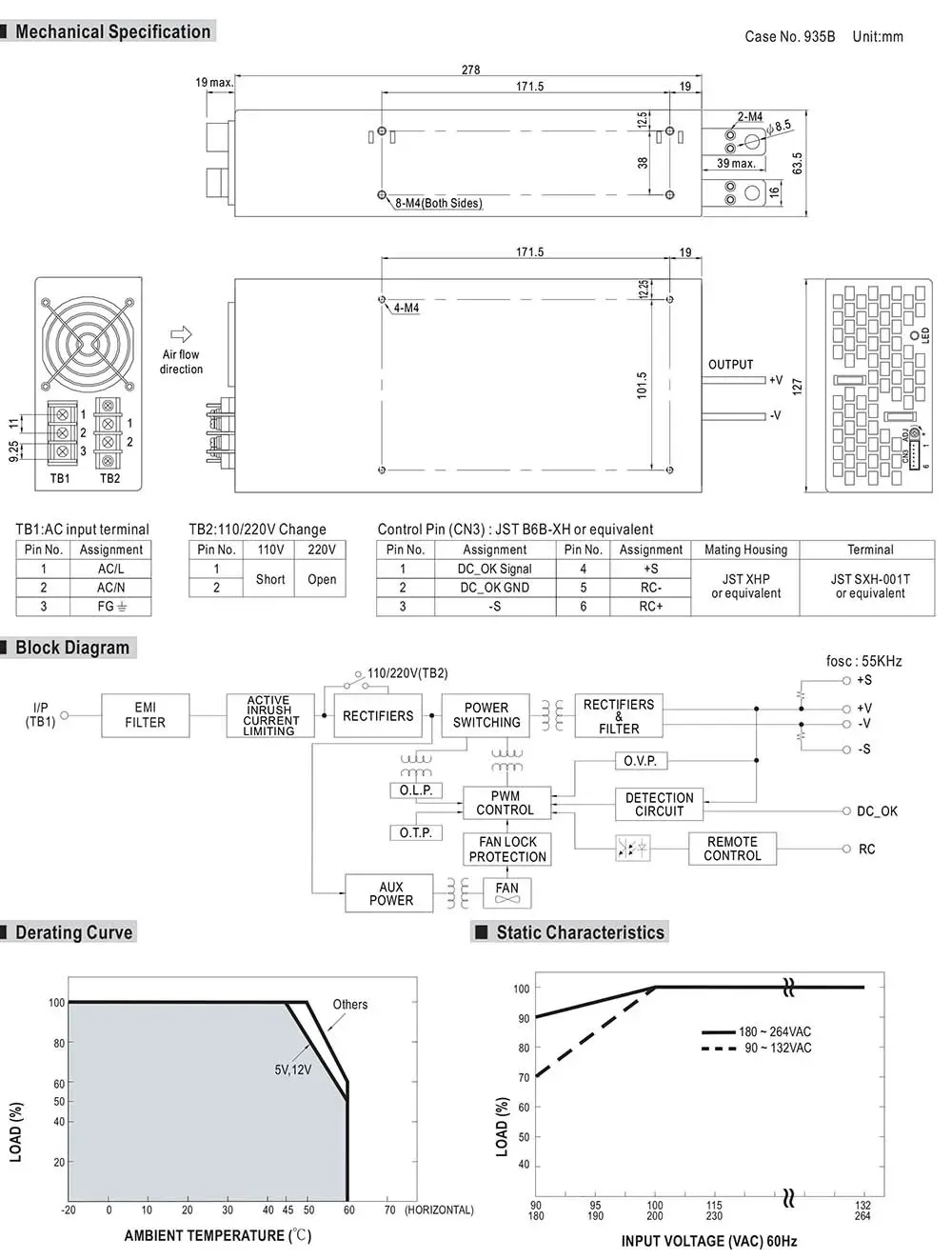

- Size: 278*127*63.5mm(L*W*H)
- Input Voltage Range: 90-/180- By
- Frequency Range: 47- 63Hz
- AC Current: 17.5A 10A
- Output Voltage Range: DC5V, DC9V, DC12V, DC15V, DC24V, DC48V
- Rated Current: 150A(DC5V), 100A(DC9V), 83.3A(DC12V), 66.7A(DC15V), 41.7A(DC24V), 20.8A(DC48V)
- Rated Power: 750W(DC5V), 900W(DC9V), 999.6W(DC12V), 1000.5W(DC15V), 1000.8W(DC24V), 998.4W(DC48V)
- Working Temperature: -20℃-+60℃
- Protections: Short Circuit Overload Over Voltage Over Temperature
- Dimensions found: 278x127x63.5mm / 63.5mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
AC Input Active Surge Current Limiting
AC Input Range Selected By Switch
Protections: Short Circuit Overload Over Voltage Over Temperature
Forced Air Cooling By Built-in Ball Bearing Fan
High Power Density 7.3W/in³
With DC_OK Signal Output
Built-in Remote ON-OFF Control
Built-in Remote Sense Function
Quick Links
Specifications
Model
Size: 278*127*63.5mm(L*W*H)
Input Voltage Range: 90-/180- By
Frequency Range: 47- 63Hz
Efficiency: 81%(DC5V), 84%(DC9V), 85%(DC12V), 86%(DC15V), 88%(DC24V), 89%(DC48V)
AC Current: 17.5A 10A
Output Voltage Range: DC5V, DC9V, DC12V, DC15V, DC24V, DC48V
Rated Current: 150A(DC5V), 100A(DC9V), 83.3A(DC12V), 66.7A(DC15V), 41.7A(DC24V), 20.8A(DC48V)
Rated Power: 750W(DC5V), 900W(DC9V), 999.6W(DC12V), 1000.5W(DC15V), 1000.8W(DC24V), 998.4W(DC48V)
Working Temperature: -20℃-+60℃
Vibration: 10-500Hz, 2G each along X, Y, Z axes
Safety Standards: -1, BSMI -1, EAC TP TC 004 Approved
Overload Protection
Over-Voltage Protection
Over Temperature Protection
Includes
1 * SE-100 Power Adaptor
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
