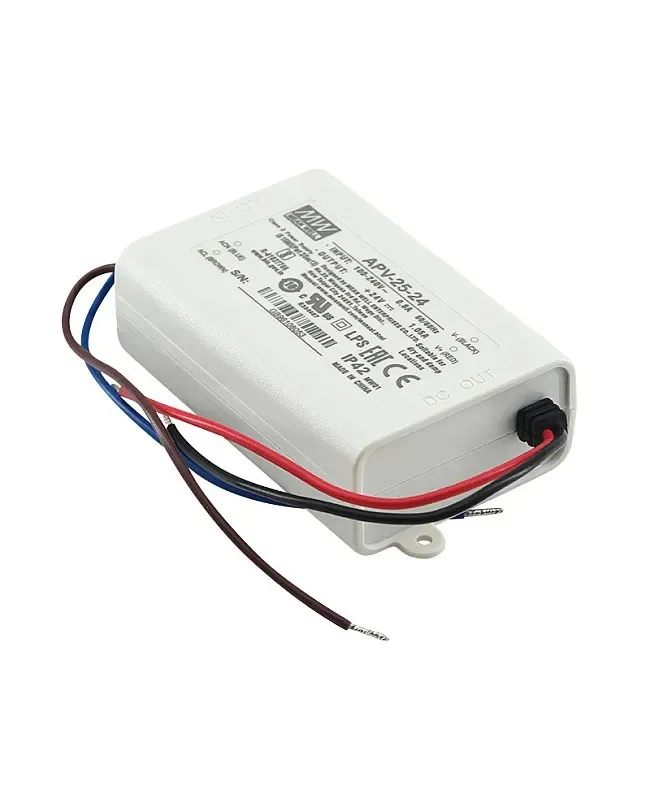

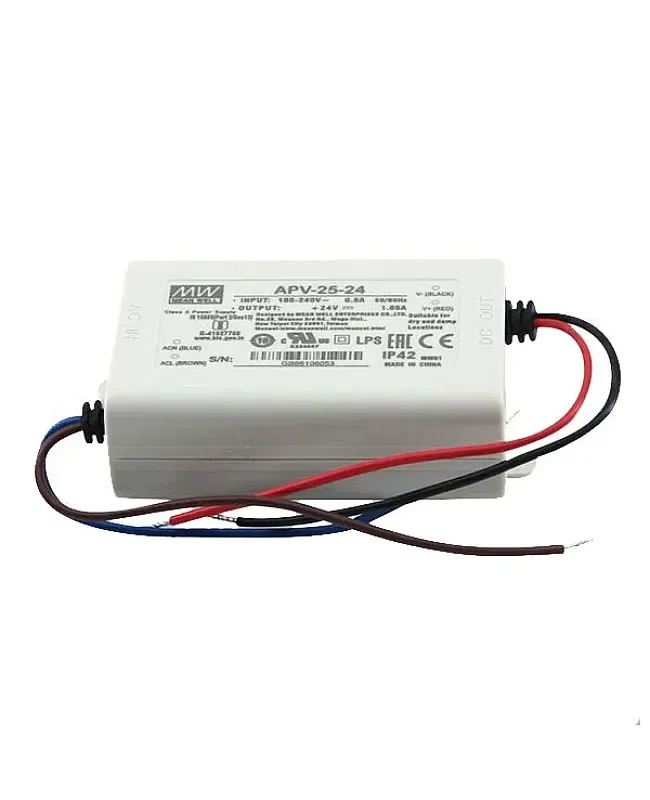

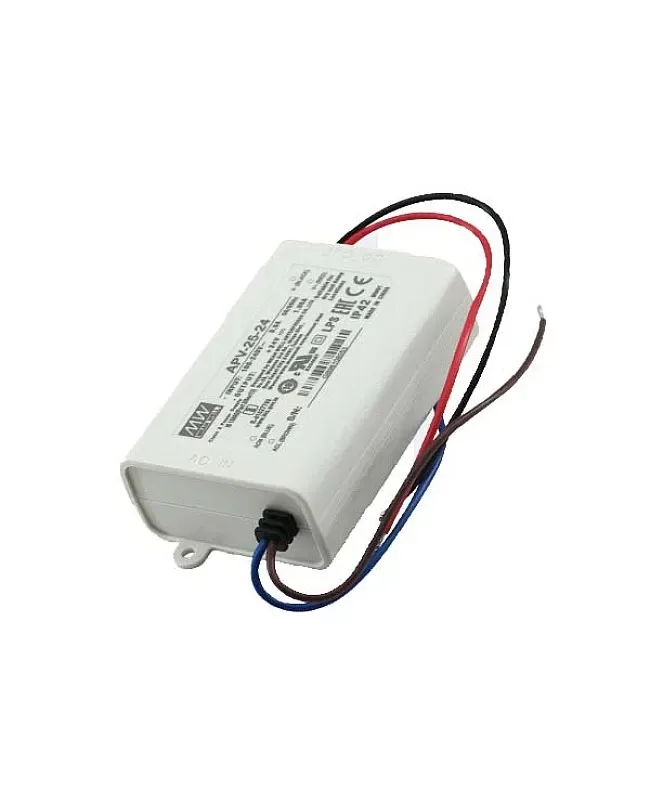

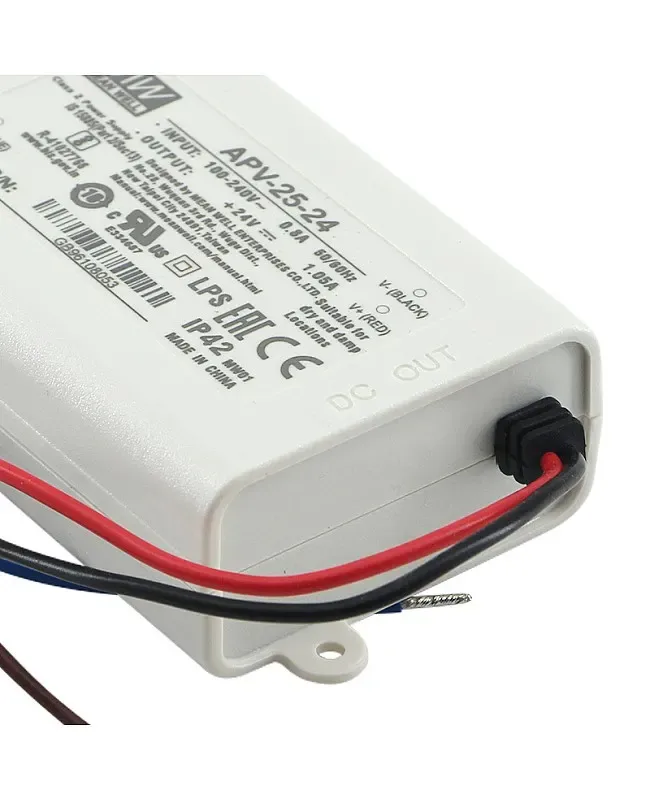

APV 25 25W AC DC Power Supply

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The power supply, with a universal AC input range from 90V to 264V, is a single-output type LED power supply with a fully isolated plastic case design. It is small and compact, suitable for LED fixtures, decoration, or advertisement devices. The installer can choose the various output voltage products from DC5V to DC36V. The working efficiency rate is up to 84%, and cooling is by free air convection for better heat dissipation.
• Constant Voltage Mode Power Supply
• Universal AC Input Full Range
• Withstand Surge Input For 5 Seconds
• Protections: Short Circuit Overload Over Voltage
• Fully Isolated Plastic Case
• Cooling By Free Air Convection
• 100% Full Load Burn-In Test

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V / 36 V / 12 V / 24 V
• Size: 84*57*29.5mm(L*W*H)
• Input Voltage Range: AC90V
• Frequency Range: 47- 63Hz
• AC Current: 0.4A 0.8A
• Output Voltage Range: DC5V, DC12V, DC15V, DC24V, DC36V
• Rated Current: 3.5A(DC5V), 2.1A(DC12V), 1.68A(DC15V), 1.05A(DC24V), 0.7A(DC36V)
• Rated Power: 17.5W(DC5V), 25.2W(DC12V), 25.2W(DC15V), 25.2W(DC24V), 25.2W(DC36V)
• Working Temperature: -30℃-+70℃
• LumaCircuit model: LC-PWR-E3UHFM
• Protections: Short Circuit Overload Over Voltage
• Dimensions found: 84x57x29.5mm / 29.5mm

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The power supply, with a universal AC input range from 90V to 264V, is a single-output type LED power supply with a fully isolated plastic case design. It is small and compact, suitable for LED fixtures, decoration, or advertisement devices. The installer can choose the various output voltage products from DC5V to DC36V. The working efficiency rate is up to 84%, and cooling is by free air convection for better heat dissipation.

Constant Voltage Mode Power Supply

Universal AC Input Full Range

Withstand Surge Input For 5 Seconds

Protections: Short Circuit Overload Over Voltage

Fully Isolated Plastic Case

Cooling By Free Air Convection

Small And Compact Size

IP42 Design

Class 2 Power Unit

100% Full Load Burn-In Test

Low Cost, High Reliability

Suitable For LED fixtures, LED decorations Or advertisement devices

Quick Links

Specification Document

Specifications

Mode

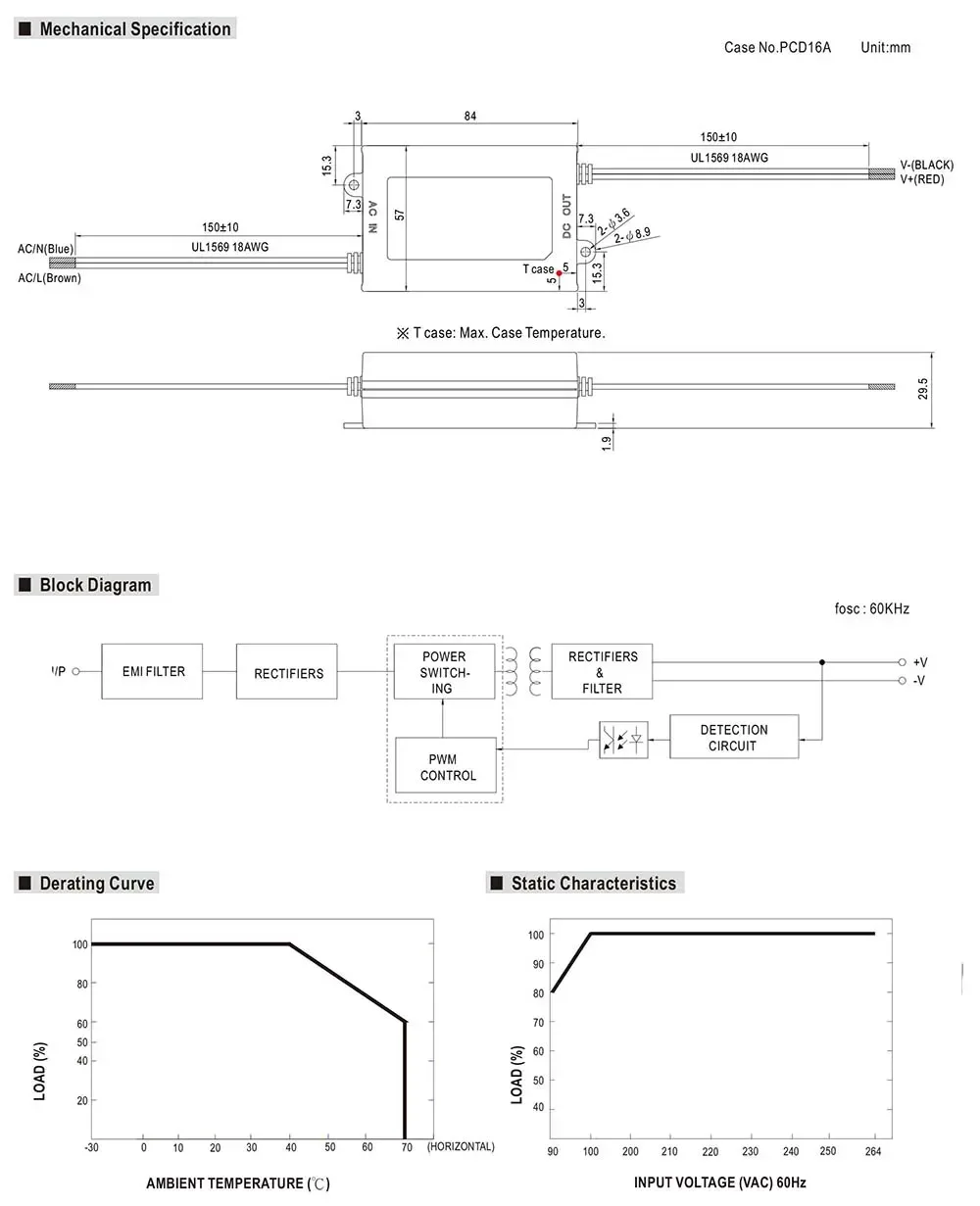

Size: 84*57*29.5mm(L*W*H)

Input Voltage Range: AC90V

Frequency Range: 47- 63Hz

AC Current: 0.4A 0.8A

Efficiency: 75.5%(DC5V), 82%(DC12V), 83V(DC15V), 83%(DC24V), 84%(DC36V)

Output Voltage Range: DC5V, DC12V, DC15V, DC24V, DC36V

Rated Current: 3.5A(DC5V), 2.1A(DC12V), 1.68A(DC15V), 1.05A(DC24V), 0.7A(DC36V)

Rated Power: 17.5W(DC5V), 25.2W(DC12V), 25.2W(DC15V), 25.2W(DC24V), 25.2W(DC36V)

Working Temperature: -30℃-+70℃

Vibration: 10-500Hz, 2G period for each along X, Y, Z axes

Safety Standards CSA- No.250.0-13, BIS (Except For 15V, 36V), EAC TP TC 004, IP42 Approved; Design Refer To EN 62368-1

Overloading Protection

Over-Voltage Protection

Includes

1 * AC DC Power Supply
