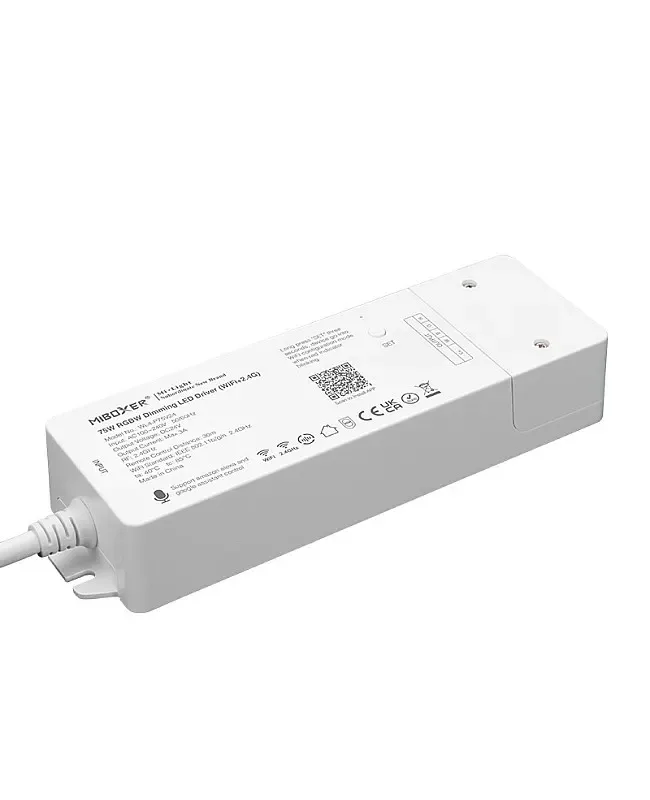

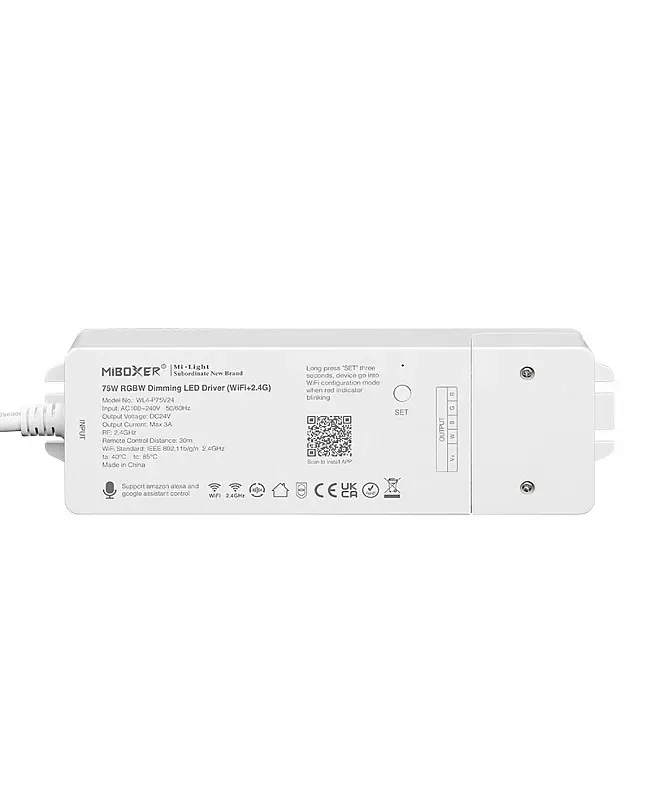

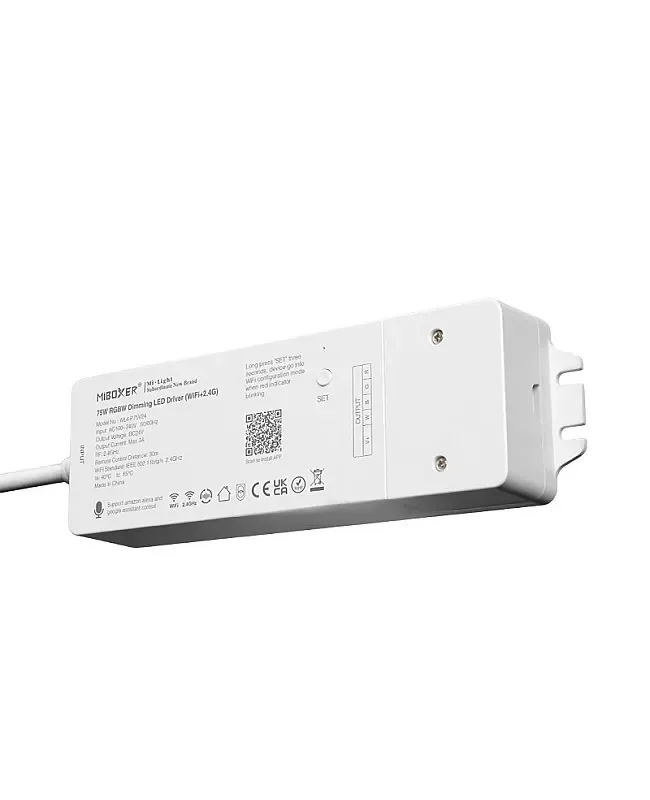

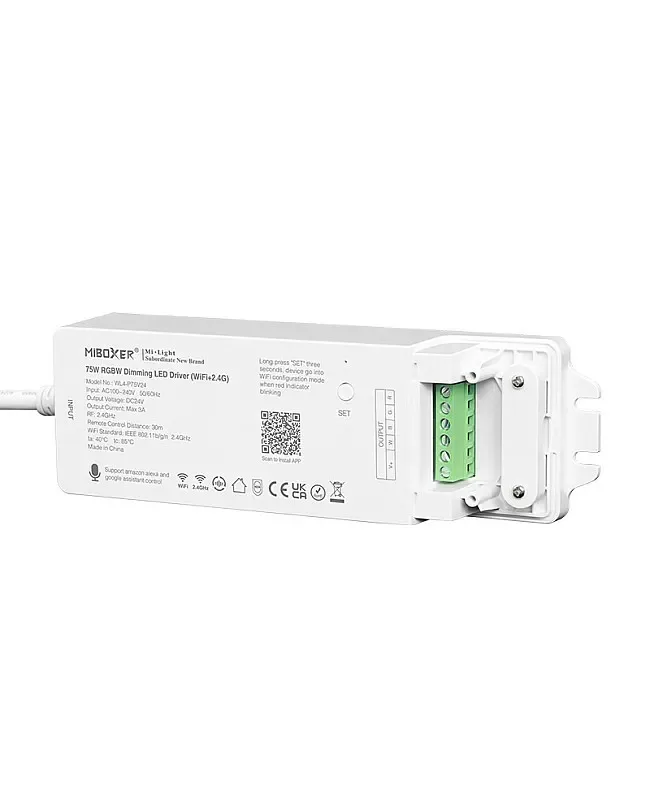

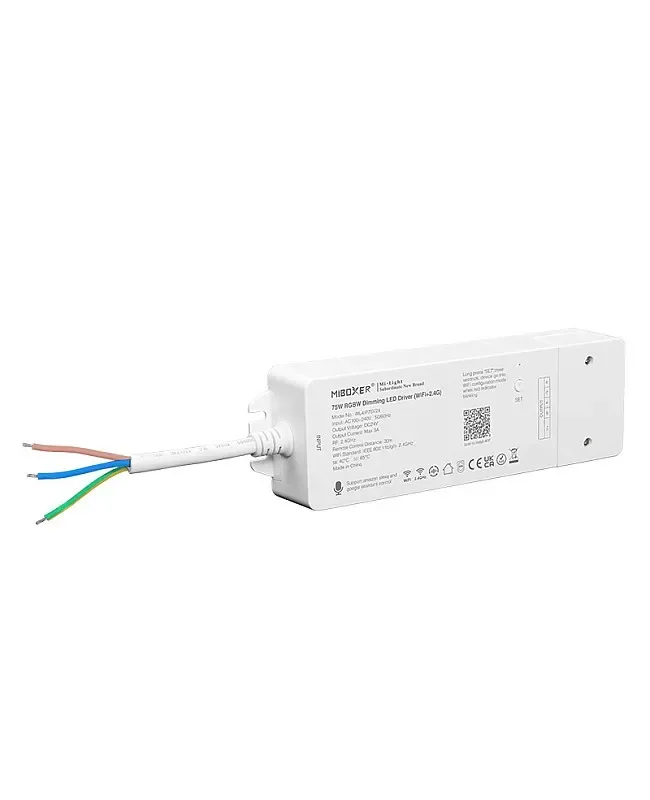

4G WiFi RGBW Dimmable 24V LED Transformer

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller RGBW dimmable 24V LED transformer is a 2.4G WiFi-enabled device that allows you to control the brightness and color of your LEDs remotely. It adopts 2.4G WiFi and Bluetooth modules to enhance the pairing network experience and significantly improve its success rate. The smartphone can control it through the APP, 2.4G RF remote controls, and third-party voice commands.
• 4G WiFi wireless controller RGBW Dimmable LED Transformer
• Size: 190*53*32mm(L*W*H)
• Working Voltage: -240V, 50/60Hz
• WiFi Standard: IEEE 802.11 b/g/n 2.
• Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
• Remote Control Distance: ≤30m
• WiFi + Bluetooth Dual Module Solution

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24 V / 240 V
• Light engine: RGBW
• LumaCircuit model: LC-PWR-YAE4TF
• Size: 190*53*32mm(L*W*H)
• Working Voltage: -240V, 50/60Hz
• Output Voltage: DC24V
• Output Current: Max 3A
• Power: 75W
• Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
• Remote Control Distance: ≤30m
• 2.4G RF Remote Controllable: T3,
• Dimensions found: 190x53x32mm / 32mm / 30m

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The wireless controller RGBW dimmable 24V LED transformer is a 2.4G WiFi-enabled device that allows you to control the brightness and color of your LEDs remotely. It adopts 2.4G WiFi and Bluetooth modules to enhance the pairing network experience and significantly improve its success rate. The smartphone can control it through the APP, 2.4G RF remote controls, and third-party voice commands. The installer can set the static color from 16 million colors or dynamic mode for the RGBW LED lights, stepless dimming brightness, group control, device sharing, music mode, sleep/wakeup plan, and timing function for multiple scenes. The RGBW dimming LED transformer will receive and transmit the signals to the other LED drivers within 30 meters. Different drivers can work synchronously, and the control distance can be limitless. The 24V transformers are non-waterproof and are only recommended for indoor applications, restaurants, homes, offices, etc.

Quick Links

4G WiFi wireless controller RGBW Dimmable LED Transformer

Specifications

Model

Size: 190*53*32mm(L*W*H)

Working Voltage: -240V, 50/60Hz

Output Voltage: DC24V

Output Current: Max 3A

Power: 75W

WiFi Standard: IEEE 802.11 b/g/n 2.

Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)

RF: 2.

Remote Control Distance: ≤30m

WiFi + Bluetooth Dual Module Solution

16 Million Colors Available

Stepless Dim Brightness

Smartphone APP Remote Control

APP Name: mobile app

Support Third-Party Voice Control(Amazon Alexa And Google Assistant)

4G RF Remote Controllable T3,

Signal Transmitting

Modes Synchronization

Includes

1 * wireless controller RGBW Dimmable LED Transformer
