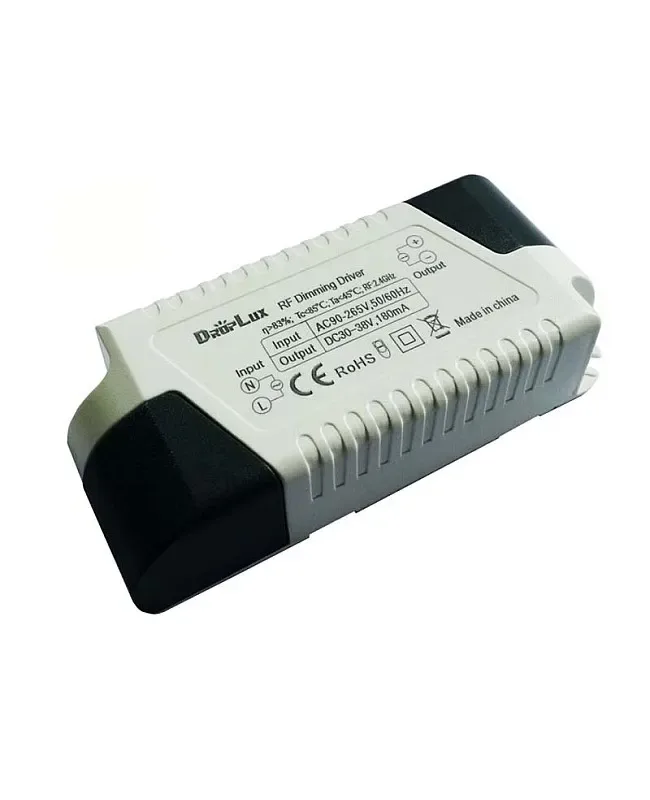

4G AC90V 265V Sync Control Wireless Dimmable LED Driver
LumaCircuit offers 4G AC90V 265V Sync Control Wireless Dimmable LED Driver as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Working Temperature: -20°-45°C Output Current: (7W)/(6W)/(5W) RF Frequency: 2.(Support Multiple Drivers Wireless Sync Work) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The dimmable LED driver with an isolated power supply design adopts PWM technology, is high efficiency/PF/flicker-free, and is protected from miswiring, overloading, over-voltage, and short circuit. High-quality smooth dimming design, 1024 grades, the installer can adjust the brightness from 0% to 100%, supports 2.4G RF wireless control remote design, can work with a variety of 2.4G remote controls. Compatible with the free lighting control system and phone WiFi smart control.
- Working Temperature: -20°-45°C
- Output Current: (7W)/(6W)/(5W)
- RF Frequency: 2.(Support Multiple Drivers Wireless Sync Work)
- Control Method: Wireless Control By Remote(Sold Separately)
- Port: Two Wire Input(L/N)
- String Number: 10-12 LEDs
- PWM Signal Output Frequency: 7.8 KHz
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Working Temperature: -20°-45°C
- Size: 88*38*22mm(L*W*H)
- LumaCircuit model: LC-PWR-6PMMEA
- Input Voltage: -265V
- Output Type: Single
- Output Voltage: 30V-38V
- Output Current: (7W)/(6W)/(5W)
- Output Frequency: 3 KHz
- RF Frequency: 2.(Support Multiple Drivers Wireless Sync Work)
- Control Method: Wireless Control By Remote(Sold Separately)
- Power Factor: 0.5
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

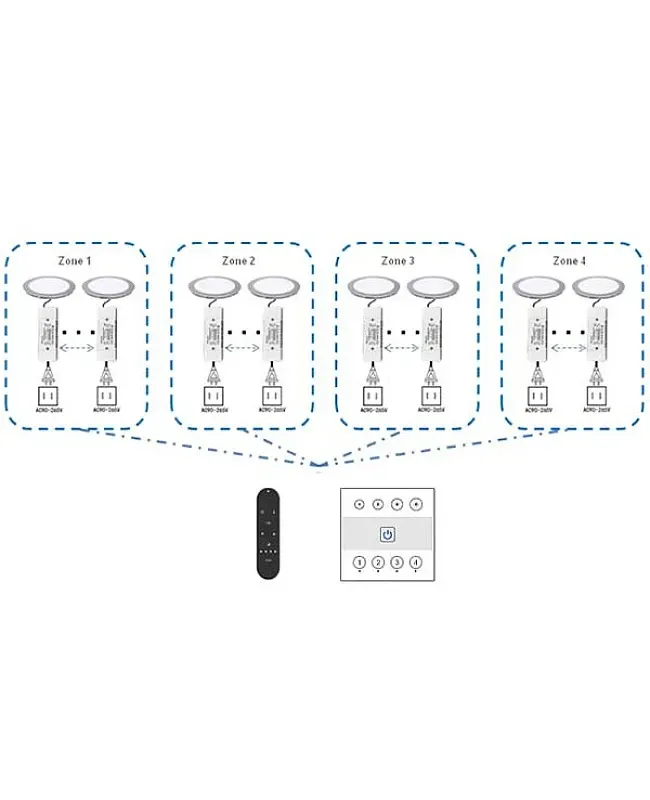

The dimmable LED driver with an isolated power supply design adopts PWM technology, is high efficiency/PF/flicker-free, and is protected from miswiring, overloading, over-voltage, and short circuit. High-quality smooth dimming design, 1024 grades, the installer can adjust the brightness from 0% to 100%, supports 2.4G RF wireless control remote design, can work with a variety of 2.4G remote controls. Compatible with the free lighting control system and phone WiFi smart control. The innovative air self-inspection sync control function not only makes the product more advantageous than other similar products in wireless sync function, but also makes one remote control out of the limitation of remote control distance, achieving control of numerous LED drivers through wireless connection sync control function. The installer can use them to work with LED panels, ceiling lamps, LED down lights, and other constant current LED lights in the home, shop, hotel, office, etc.
Specifications
Working Temperature: -20°-45°C
Size: 88*38*22mm(L*W*H)
Model
Input Voltage: -265V
Output Type: Single
Output Voltage: 30V-38V
Output Current: (7W)/(6W)/(5W)
Output Frequency: 3 KHz
Dimming Range: 0-100%
Dimming Grade: 1024
RF Frequency: 2.(Support Multiple Drivers Wireless Sync Work)
Control Method: Wireless Control By Remote(Sold Separately)
Waterproof Level: IP40
Efficiency: 77%
Power Factor: 0.5

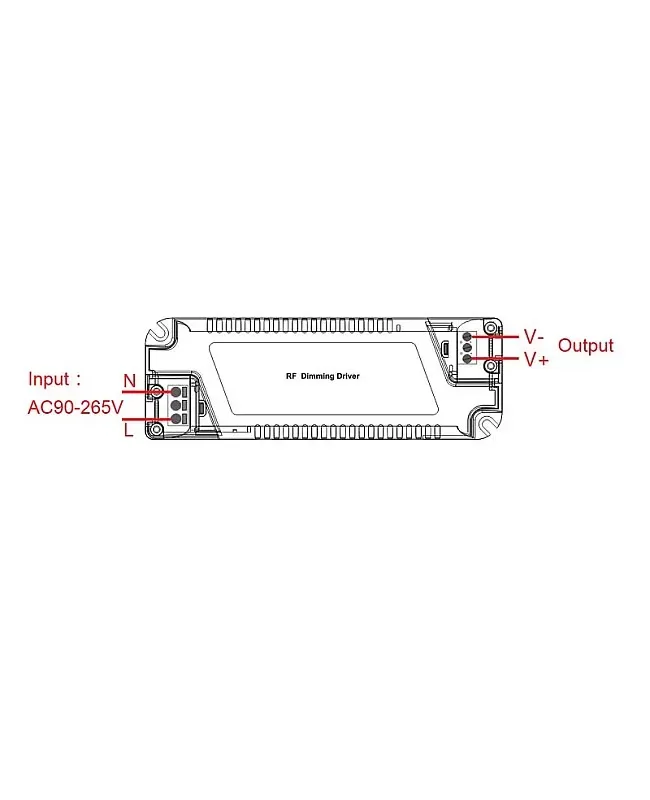

Port: Two Wire Input(L/N)
String Number: 10-12 LEDs
PWM Signal Output Frequency: 7.8 KHz
Memory Function
Over-Voltage Protection
Short Circuit Protection
Compatible With Freelighting Control System, Coollight System, Realized Phone WIFI Smart Control
Applicable LED Lamps, LED Panels, LED Ceiling Lamps, LED Down Lights, And Other Constant Current Lights
Includes
1* Dimmable LED Driver
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
