Product details
350W LED Power Supply 12V
LumaCircuit offers 350W LED Power Supply 12V as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Size: 215*115*50mm(L*W*H) Input Voltage: AC90V-AC132V/AC180V-AC264V(Switchable) Output Voltage: DC5V/DC12V/DC24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Item Type: LED Power Supply
- Size: 215*115*50mm(L*W*H)
- Input Voltage: AC90V-AC132V/AC180V-AC264V(Switchable)
- Output Voltage: DC5V/DC12V/DC24V
- Max Output Current: 50A(DC5V)/29A(DC12V)/14.6A(DC24V)
- Power: 250W(DC5V)/348W(DC12V)/350.4W(DC24V)
- IP Rating: IP20 Non-Waterproof
- Input Frequency Range: 47- 63Hz
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V / 24 V
- LumaCircuit model: LC-PWR-NOR8XP
- Size: 215*115*50mm(L*W*H)
- Input Voltage: AC90V-AC132V/AC180V-AC264V(Switchable)
- Output Voltage: DC5V/DC12V/DC24V
- Max Output Current: 50A(DC5V)/29A(DC12V)/14.6A(DC24V)
- Power: 250W(DC5V)/348W(DC12V)/350.4W(DC24V)
- IP Rating: IP20 Non-Waterproof
- Input Frequency Range: 47- 63Hz
- Input Connection Type: Screw Terminals
- Output Channels: 1
- Power plug: N/A
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Item Type: LED Power Supply

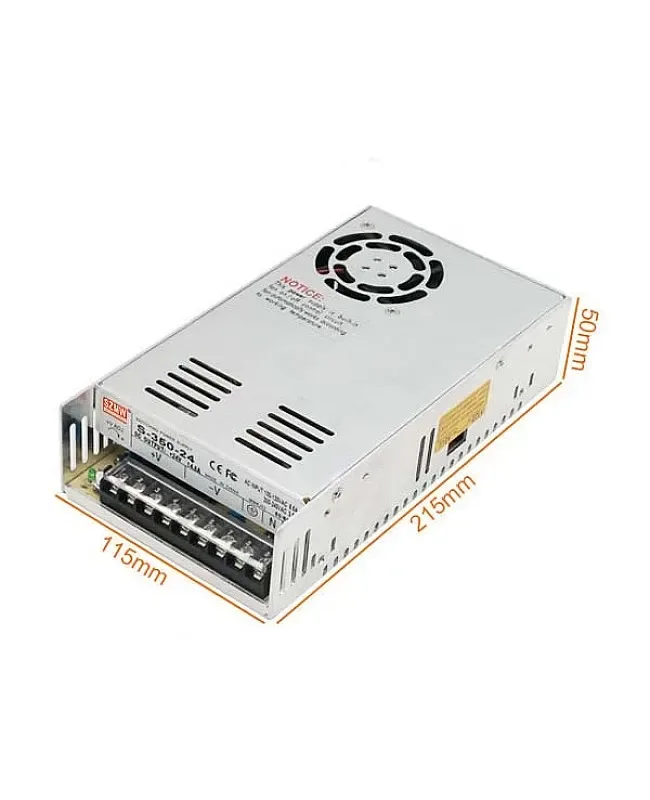

Size: 215*115*50mm(L*W*H)
Input Voltage: AC90V-AC132V/AC180V-AC264V(Switchable)
Output Voltage: DC5V/DC12V/DC24V
Max Output Current: 50A(DC5V)/29A(DC12V)/14.6A(DC24V)
Power: 250W(DC5V)/348W(DC12V)/350.4W(DC24V)
IP Rating: IP20 Non-Waterproof
Input Frequency Range: 47- 63Hz
Input Connection Type: Screw Terminals
Dimmable: NO
Output Channels: 1
Power plug: N/A
Working Temperature: -10℃-60℃
Intuitive LED Indicator Light
Overloading Protection
Over-Voltage Protection
Short Circuit Protection
Weight: 1.
1 * 12V LED Power Supply

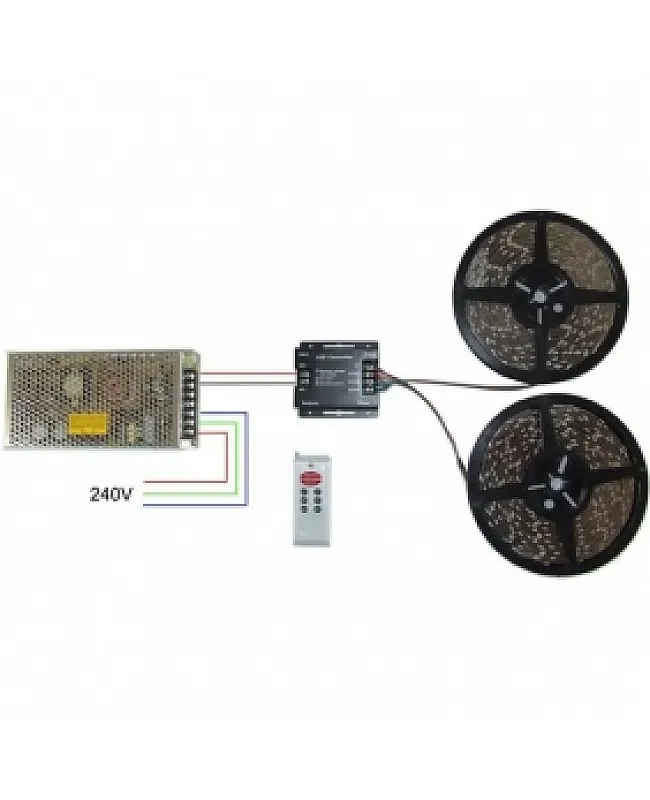

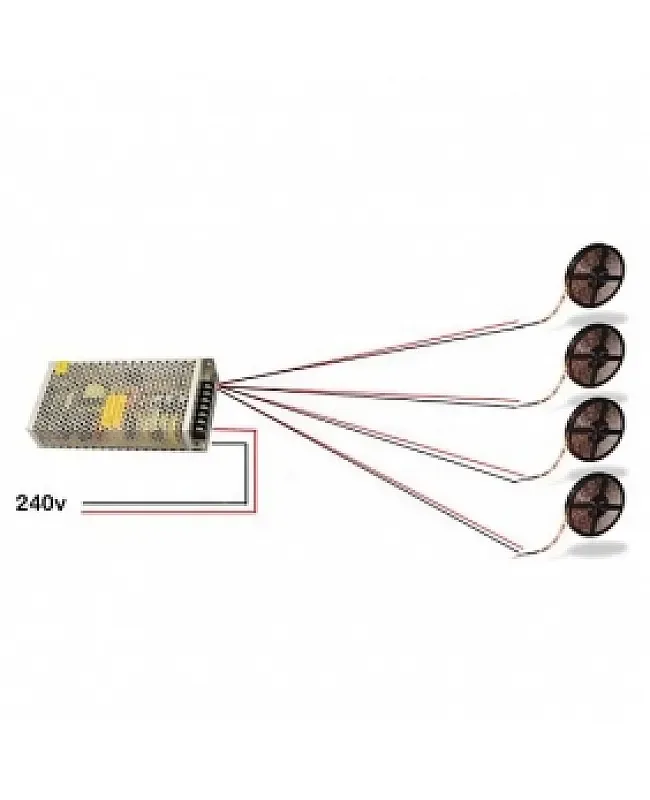

Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
