60W LED Driver With DUPONT Connector
LumaCircuit offers 60W LED Driver With DUPONT Connector as a configurable LED driver or power supply for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Material: Flame Retardant Insulating Rubber Shell Input Voltage: 85-265V(50/60Hz) Standby Power Consumption: < The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The LED driver With 6PCS DUPONT connectors, with the ultra-thin design and made of environment-friendly flame retardant insulating rubber material, comes with the power cable with switch, the installer can connect to the AC110V or AC220V power system directly, it works between AC100V to AC240V, the output voltage is DC12V, with 6PCS Dupont connectors or 2510 connectors available
- Material: Flame Retardant Insulating Rubber Shell
- Input Voltage: 85-265V(50/60Hz)
- Standby Power Consumption: <
- Not waterproof, For Indoor Use Only
- 1 * LED Cable With Switch
- The 60W LED Driver with Dupont Connector, working in AC85V to AC265V, can connect to AC110V or AC220V Power System, with 6PCS Dupont connectors or 2510 connectors, can load 6PCS LED Light at the same time, the max output current not over 5A.
- A serviceable connector component for a complete lighting BOM.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 110 V / 220 V / 12 V
- Material: Flame Retardant Insulating Rubber Shell
- Size: 146*67*21mm
- Input Voltage: 85-265V(50/60Hz)
- Standby Power Consumption: <
- Output Voltage: DC12V
- Max Output Current: 5A
- Max Load Power: 60W
- Power Factor: >0.5
- LumaCircuit model: LC-PWR-R0ULJE
- Dimensions found: 146x67x21mm / 21mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The LED driver With 6PCS DUPONT connectors, with the ultra-thin design and made of environment-friendly flame retardant insulating rubber material, comes with the power cable with switch, the installer can connect to the AC110V or AC220V power system directly, it works between AC100V to AC240V, the output voltage is DC12V, with 6PCS Dupont connectors or 2510 connectors available, can load 6PCS LED light at the same time and the max output current not over 5A the installer can connect to the LED under-cabinet strips, LED panel lights, etc.
Specifications
Material: Flame Retardant Insulating Rubber Shell
Size: 146*67*21mm
Input Voltage: 85-265V(50/60Hz)
Standby Power Consumption: <
Output Voltage: DC12V
Max Output Current: 5A
Max Load Power: 60W
Power Factor: >0.5
Not waterproof, For Indoor Use Only

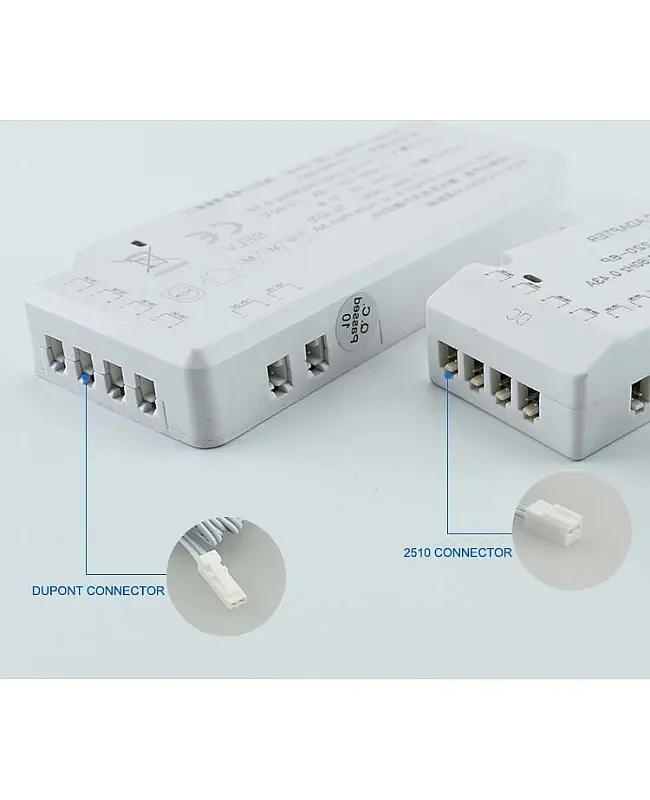

6PCS DUPONT Connectors Or 6PCS 2510 Connectors Available
Includes

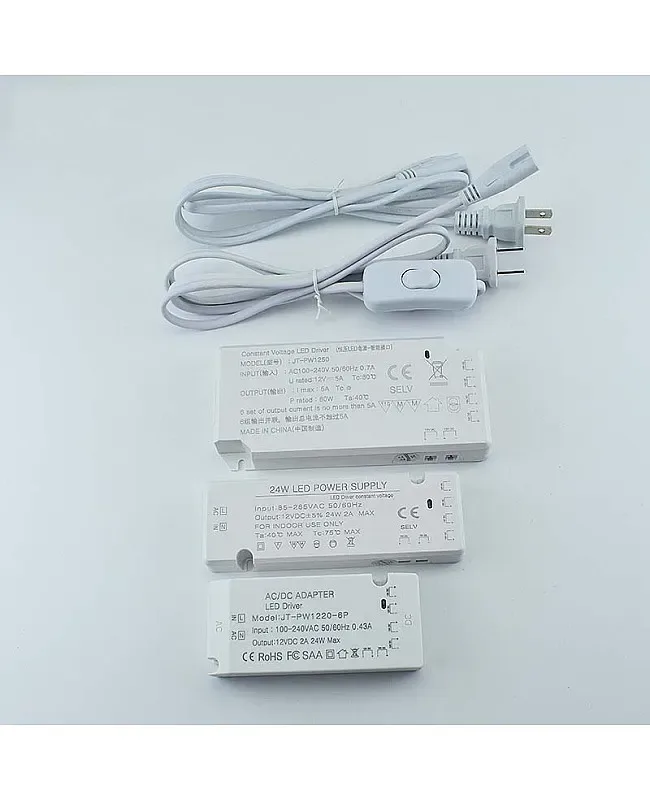

1 * LED Driver
1 * LED Cable With Switch
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
