Product details

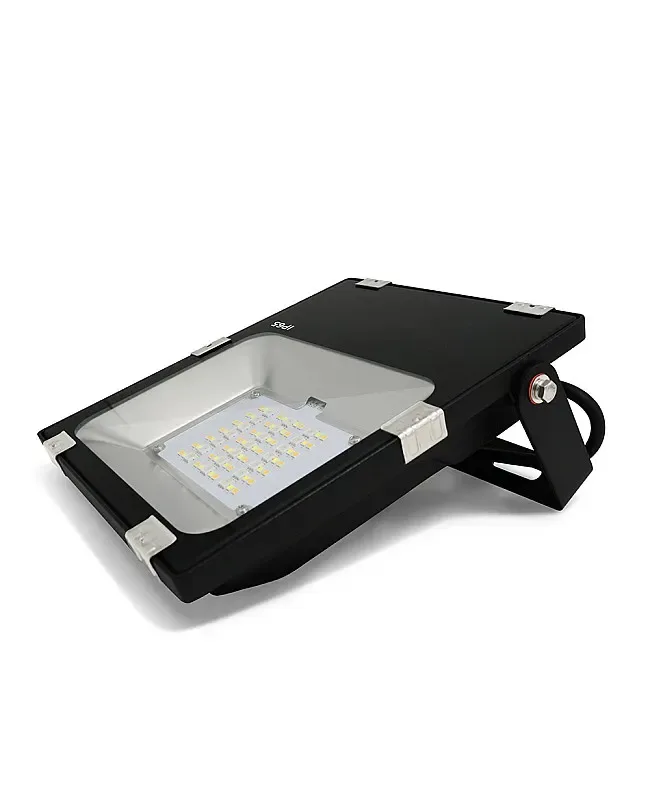

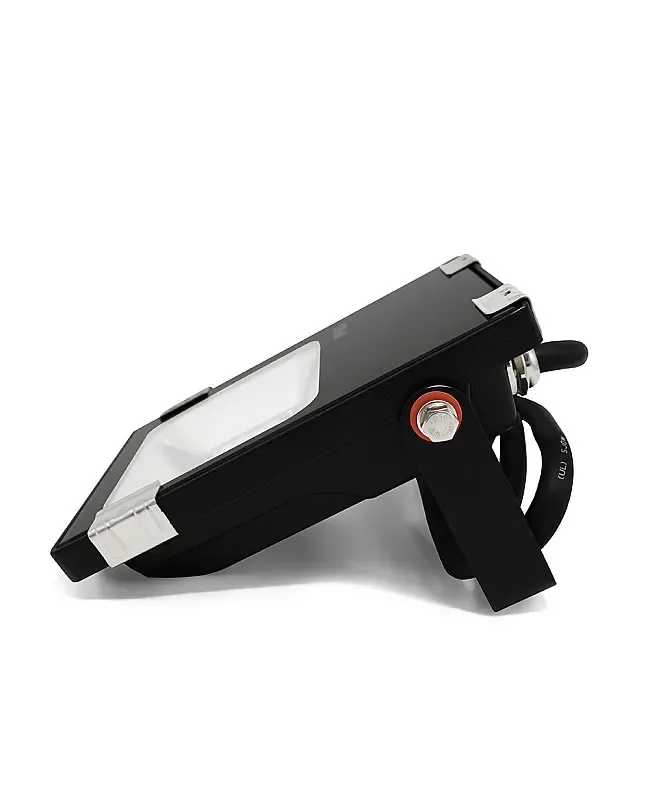

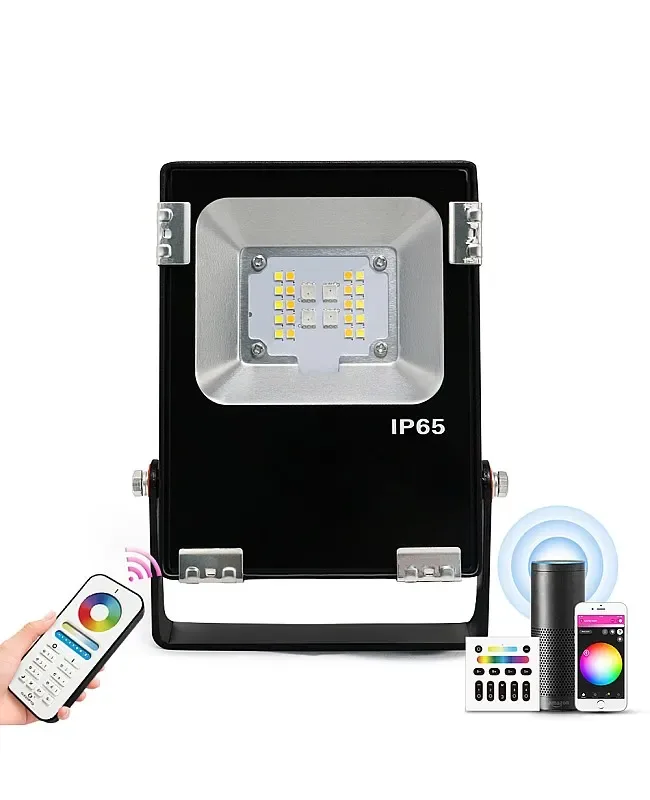

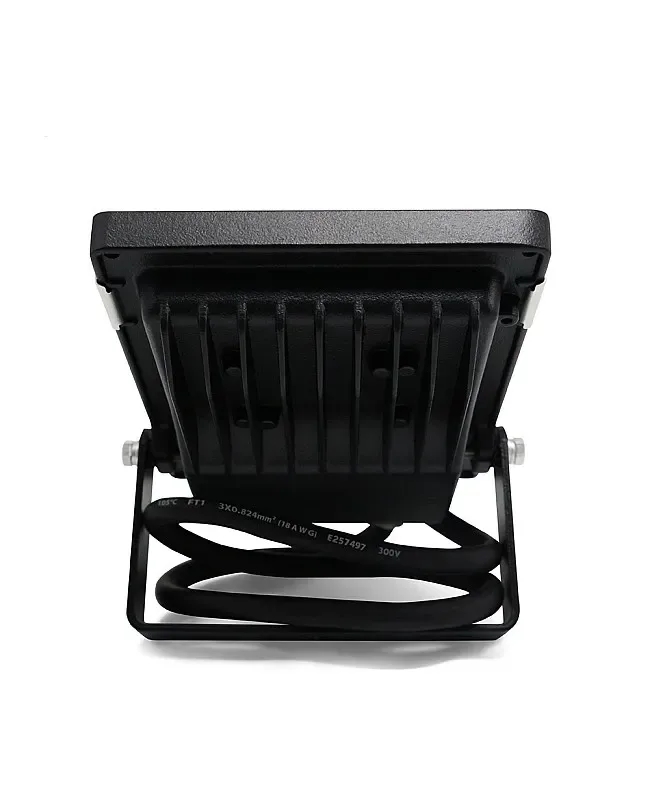

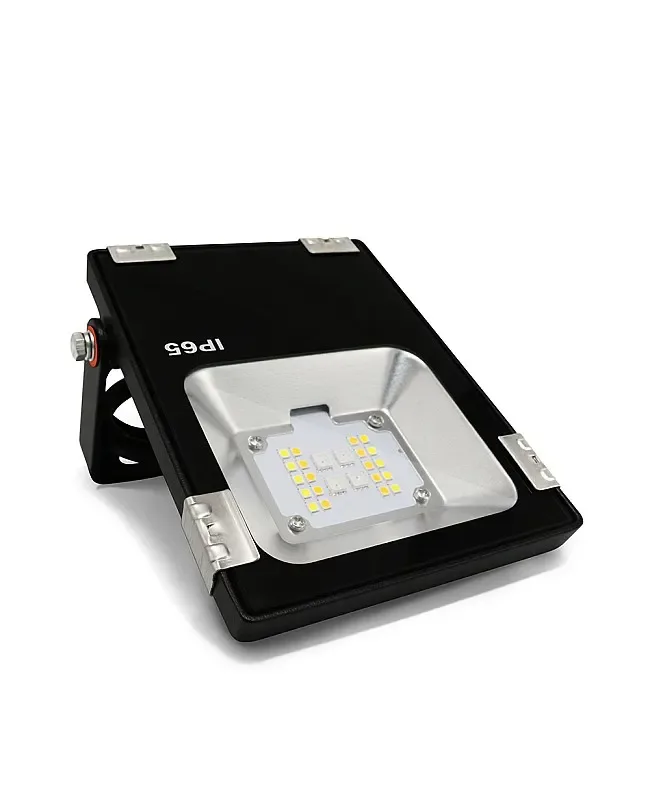

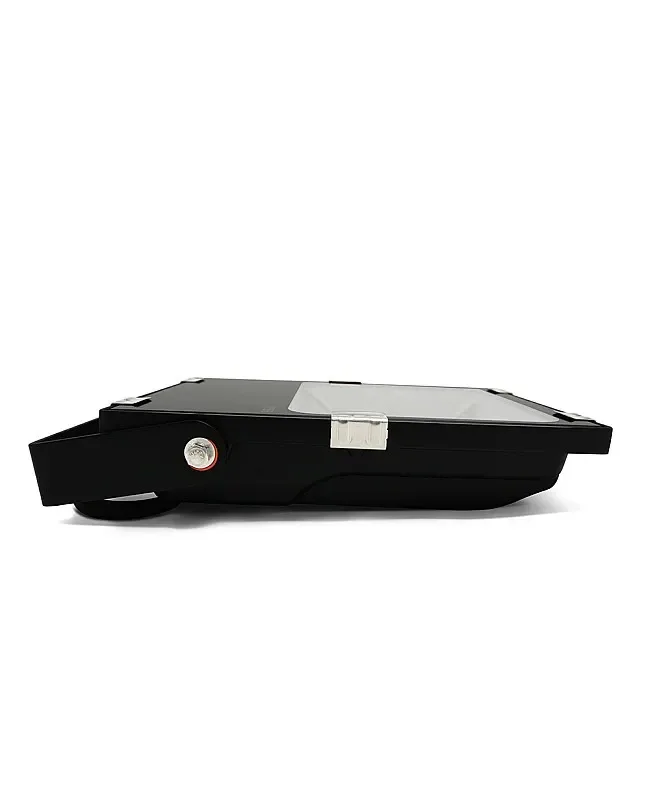

Zigbee RGB CCT 10W LED Floodlights APP Control
LumaCircuit offers Zigbee RGB CCT 10W LED Floodlights APP Control as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Model: (10W), GL-FL-(30W), GL-FL-(60W) Material: Aluminum + Toughened Glass Size: 166*107*32mm(10W), 226.5*167*40mm(30W), 309.5*267*182.2mm(60W) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Zigbee 10W LED FLoodlights, which are compatible with Zigbee 3.0 Gateways and can be controlled by smartphone APP and voice commands based on Zigbee 3.0 protocol, support control by Zigbee Hub after adding the Lights to the APP, works with Amazon Echo Plus, the installer can adjust ON/OFF, brightness and color temp, change light colors through voice commands, there are 16 million colors available
- Model: (10W), GL-FL-(30W), GL-FL-(60W)
- Material: Aluminum + Toughened Glass
- Size: 166*107*32mm(10W), 226.5*167*40mm(30W), 309.5*267*182.2mm(60W)
- Color: RGB+CCT(WW+CW+RGB)
- Luminous Flux: 650-850lm(10W), 2100-2700lm(30W), 4500-5000lm(60W)
- Color Temperature Adjustable: 2200-6500K
- Brightness Adjustable From 1% to 100%
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-PWR-UHOODA
- Material: Aluminum + Toughened Glass
- Size: 166*107*32mm(10W), 226.5*167*40mm(30W), 309.5*267*182.2mm(60W)
- Input Voltage: -240V
- Power: 10W, 30W, 60W
- Color: RGB+CCT(WW+CW+RGB)
- Color Temperature Adjustable: 2200-6500K
- CRI: >
- IP Rate: IP65 Waterproof
- Driver: Customized(10W), (30W/60W)
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The Zigbee 10W LED FLoodlights, which are compatible with Zigbee 3.0 Gateways and can be controlled by smartphone APP and voice commands based on Zigbee 3.0 protocol, support control by Zigbee Hub after adding the Lights to the APP, works with Amazon Echo Plus, the installer can adjust ON/OFF, brightness and color temp, change light colors through voice commands, there are 16 million colors available, color temperature adjustable from 2200K to 6500K and brightness-adjustable from 1% to 100% the installer can also control the lights directly with a 2.4G RF Remote Control and divide different rooms into groups. The RGBWW Flood Lights utilize high-quality SMD LEDs as their light source, and the pure aluminum reflector is made from pure aluminum, ensuring anti-oxidation and a fade-resistant color, thereby enhancing the reflection. The surface features a 4mm tempered glass panel that safely protects the lighting source, with a transparency rate of up to 93%. The 30W Outdoor Flood Lamps have a wide-angle adjustment design, with multiple adjustment points that allow the view angle to be adjusted up to 270°. With professional waterproof technology, the IP rating is up to IP65, ensuring protection against rain and humidity. The installer can install them for outdoor landscape applications.
Specifications
Type: Zigbee Floodlight
Model: (10W), GL-FL-(30W), GL-FL-(60W)
Material: Aluminum + Toughened Glass
Size: 166*107*32mm(10W), 226.5*167*40mm(30W), 309.5*267*182.2mm(60W)
Input Voltage: -240V
Power: 10W, 30W, 60W
Color: RGB+CCT(WW+CW+RGB)
Luminous Flux: 650-850lm(10W), 2100-2700lm(30W), 4500-5000lm(60W)
16 Million Colors Available
Color Temperature Adjustable: 2200-6500K
Brightness Adjustable From 1% to 100%
Compatible With Zigbee 3.0 Gateways For Zigbee Light Link
Smartphone APP Control
Voice Control
4G Remote Control
Works With Amazon Alexa
CRI: >
IP Rate: IP65 Waterproof
Driver: Customized(10W), (30W/60W)
Remote Range: 15 Meters(Mesh Enabled)
Working Temperature: -20℃-60℃
Includes
1 * Zigbee LED Smart Flood Light
1 * User Manual
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
