5 In 1 100 Watt 24 Volt LED Driver
LumaCircuit offers 5 In 1 100 Watt 24 Volt LED Driver as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Size: 290*51.5*29.5mm(L*W*H) Input Voltage: -240V, 50/60Hz Output Current: Max 4.5A The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller LED driver, which with 5 in 1 function design for the singlecolor, CCT, RGB, RGBW, and RGBWW LED strips, the output voltage is DC24V, and max output power is 100W, can be controlled by 2. RF remote controls, smartphone APP and third-party voice commands after adding 2.4G gateway, the installer can adjust the brightness, color temperature and saturation. There are 16 million colors available, and the installer can set various colors for different scenes.
- Size: 290*51.5*29.5mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Output Current: Max 4.5A
- 5-In-1 Function For Single Color/CCT/RGB/RGBW/RGBWW LED Strips
- Support Smartphone APP And Third-Party Voice Control(WL-BOX 2.4G Gateway Needed)
- Compatible With wireless controller 2.4G Remote Controls T4, T3, T2, T1,
- wireless controller User Manual
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 240 V
- Light engine: RGB+CCT
- Size: 290*51.5*29.5mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Output Voltage: DC24V
- Output Current: Max 4.5A
- Output Power: Max 100W
- Compatible With wireless controller 2.4G Remote Controls: T4, T3, T2, T1,
- IP Rating: IP20 Non-Waterproof
- Remote Control Distance: ≤30m
- LumaCircuit model: LC-PWR-NWIEMS
- Dimensions found: 290x51.5x29.5mm / 29.5mm / 30m
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

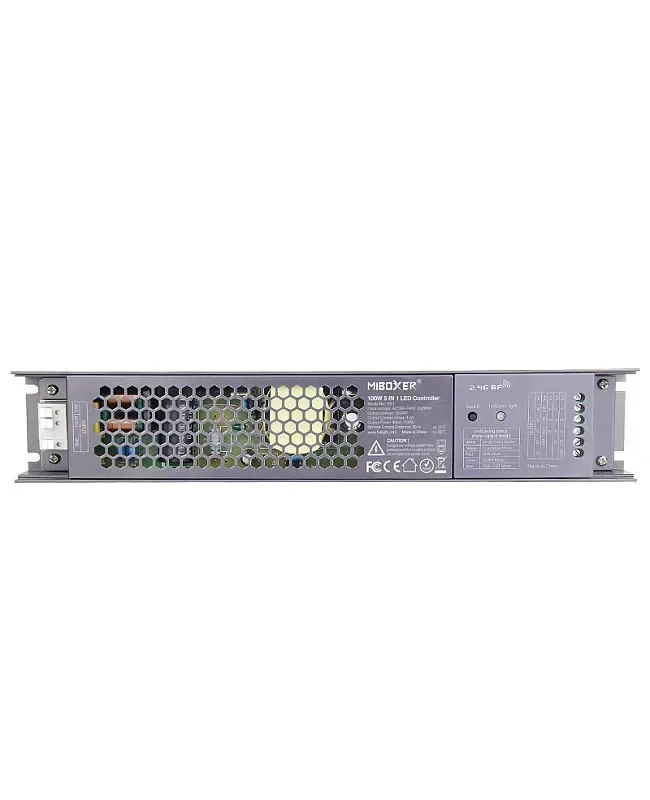

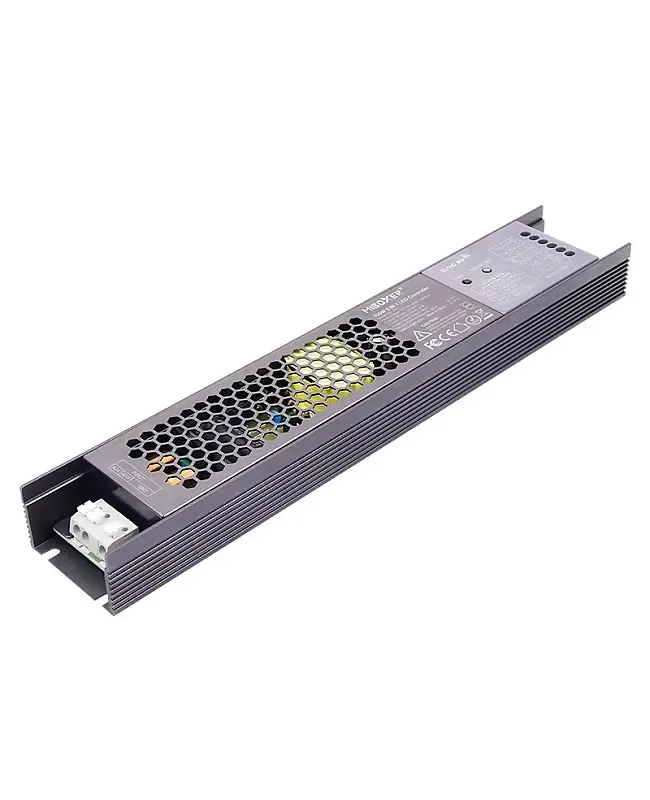

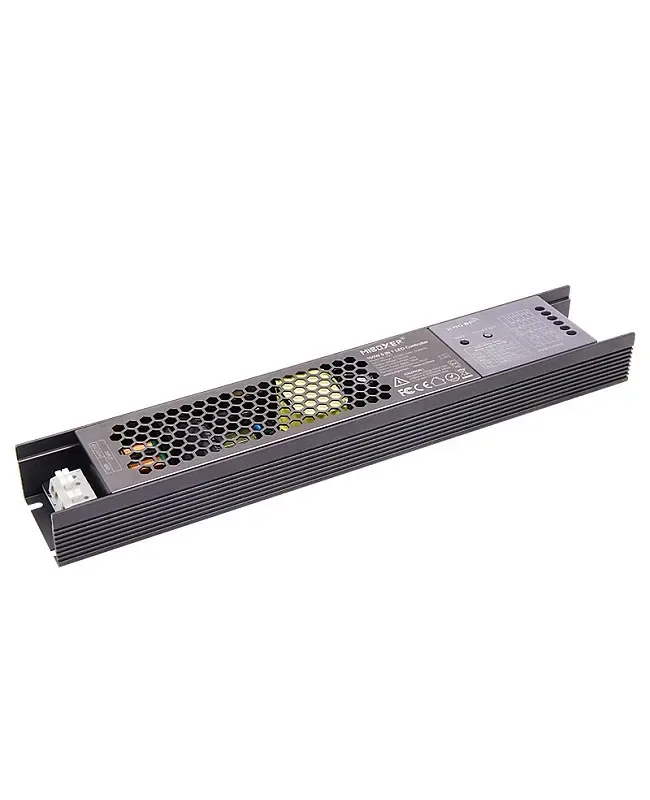

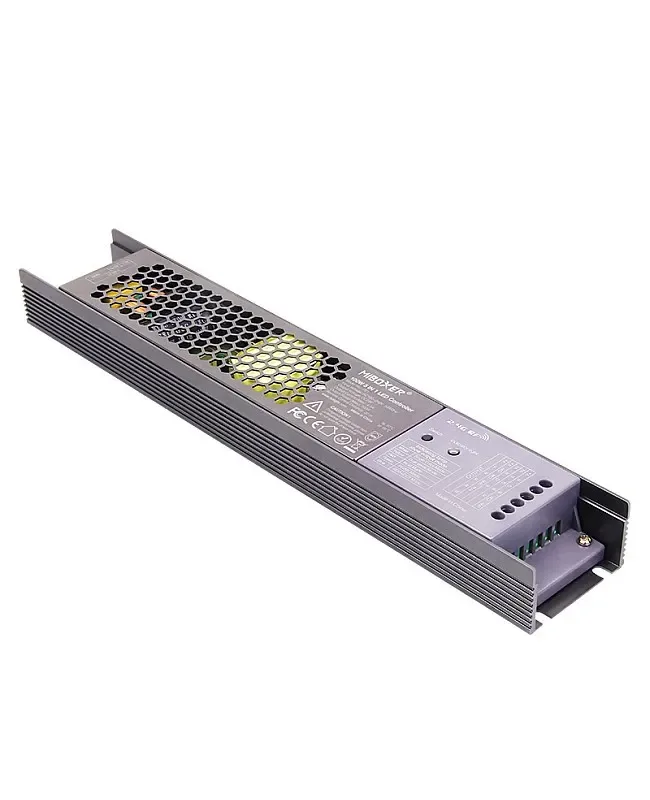

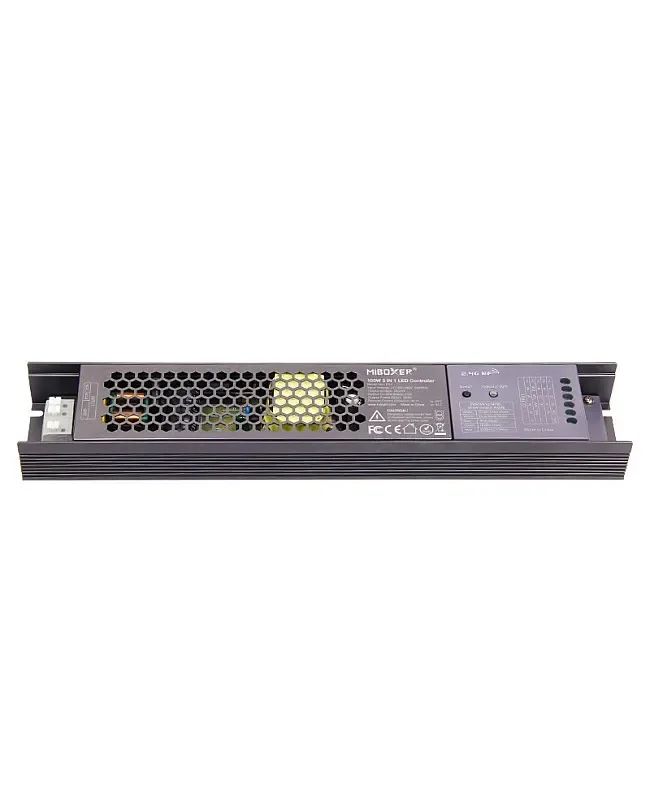

The wireless controller LED driver, which with 5 in 1 function design for the singlecolor, CCT, RGB, RGBW, and RGBWW LED strips, the output voltage is DC24V, and max output power is 100W, can be controlled by 2. RF remote controls, smartphone APP and third-party voice commands after adding 2.4G gateway, the installer can adjust the brightness, color temperature and saturation. There are 16 million colors available, and the installer can set various colors for different scenes. The wireless controller driver will receive the signals from the remote and transmit them to other LED drivers within 30 meters. All of the drivers will work synchronously. The LED driver has an aluminum shell and a shell with honeycomb holes for better heat dissipation. There are 6 channels and 5 circuits of LED connector terminals, making it easy to connect to the LED strip lights.
Quick Links
wireless controller User Manual
Specifications
Size: 290*51.5*29.5mm(L*W*H)
Input Voltage: -240V, 50/60Hz
Output Voltage: DC24V
Output Current: Max 4.5A
Output Power: Max 100W
5-In-1 Function For Single Color/CCT/RGB/RGBW/RGBWW LED Strips
Support Smartphone APP And Third-Party Voice Control(WL-BOX 2.4G Gateway Needed)
Compatible With wireless controller 2.4G Remote Controls T4, T3, T2, T1,
16 Million Colors Available
Saturation Adjustable
Brightness And Color Temperature Adjustable
Auto-Transmitting Function
Auto-Synchronization Function
IP Rating: IP20 Non-Waterproof
Remote Control Distance: ≤30m
Includes
1 * wireless controller 24V LED Driver
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
