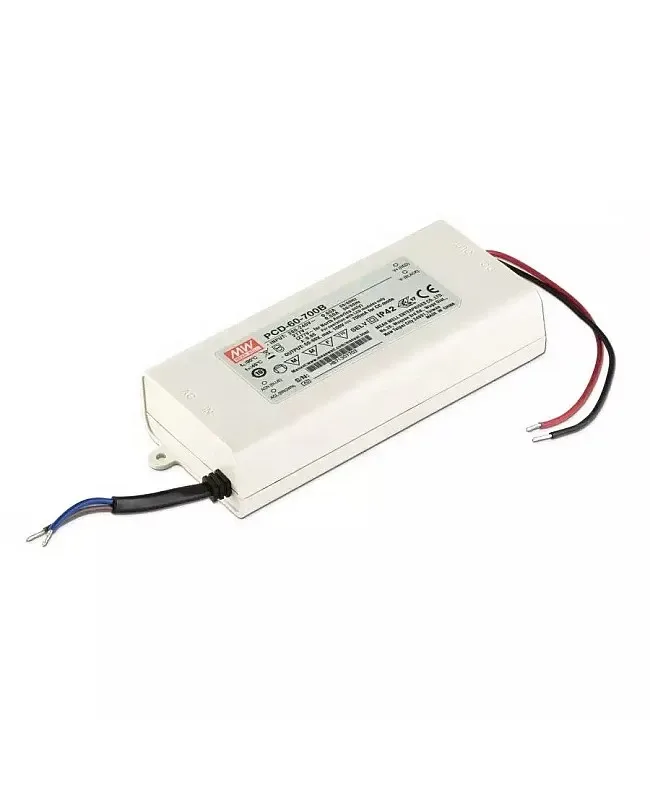

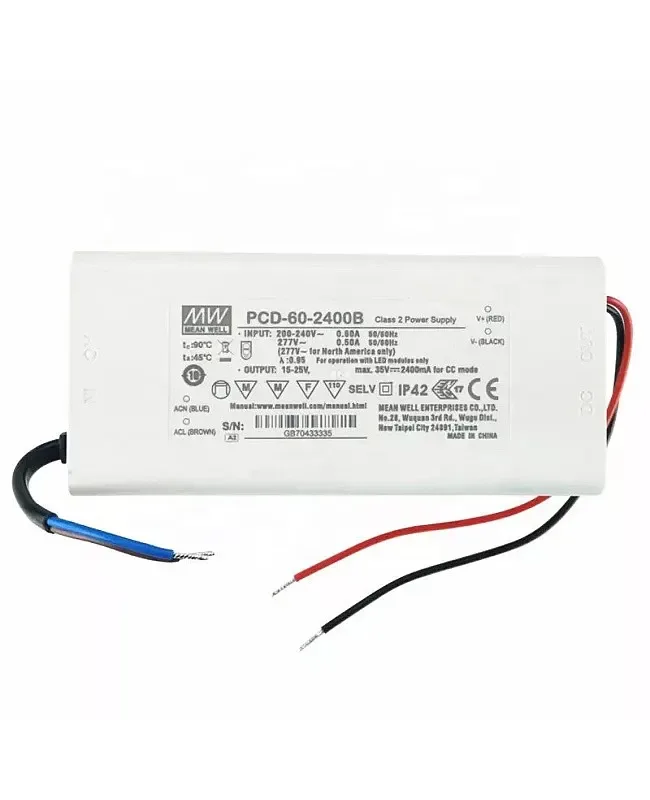

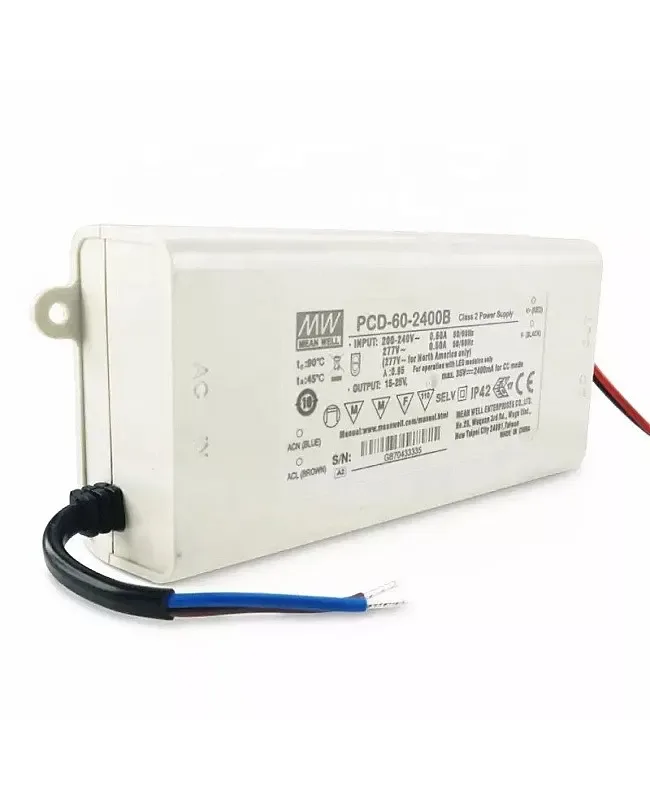

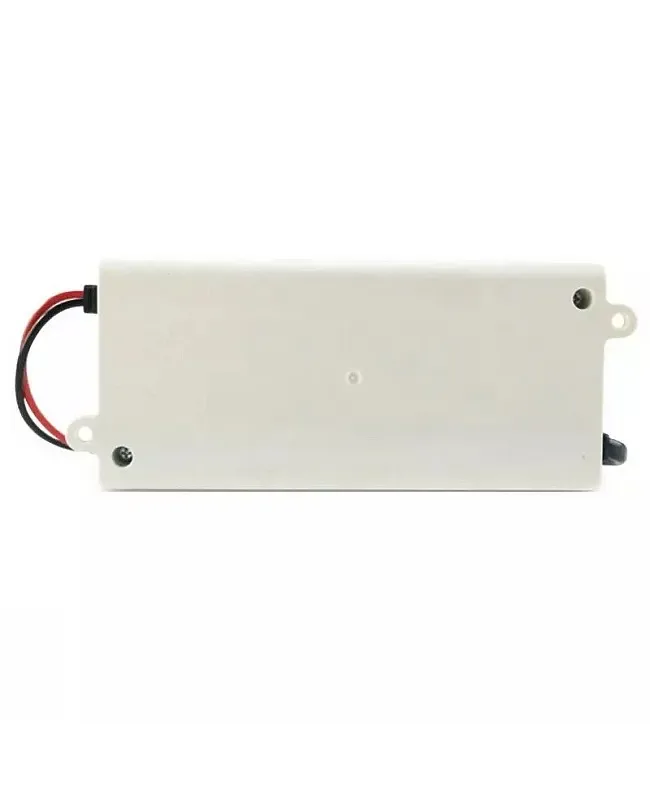

PCD 60 60W Dimmable Driver Triac Constant Current
LumaCircuit offers PCD 60 60W Dimmable Driver Triac Constant Current as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Work With Leading-Edge And Trailing-Edge Triac Dimmers Built-in Active PFC Function Cooling By Free Air Convection The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 60W dimmable driver triac, with a constant current output design and suitable for continuous current LED lights, has an output current from to The dimmable light driver is fully isolated in a plastic case, cooling by free air convection, low cost and high reliability, with an IP42, waterproof, and dustproof design. Offers AC phase-cut dimming and works with leading-edge and trailing-edge Triac Dimmers to adjust the brightness for various scenes.
- Work With Leading-Edge And Trailing-Edge Triac Dimmers
- Built-in Active PFC Function
- Cooling By Free Air Convection
- Fully Isolated Plastic Case
- Class II Power Unit, no FG
- Low Cost And High-Reliability
- Suitable For Constant Current LED Lights
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- LumaCircuit model: LC-PWR-SPVNCL
- Size: 128*60*31.5mm(L*W*H)
- Rated Current: ( ), ( ), ( ), ( ), ( ), ( ), ( )
- Working Voltage Range: 70-108V( ), 50-86V( ), 34-57V( ), 25-43V( ), 20-34V( ), 18-30V( ), 15-25V( )
- Current Accuracy: ±5%
- Rated Power: 54W( ), 60.2W( ), 59.85W( ), 60.2W( ), 59.5W( ), 60W( ), 60W( )
- No Load Output Voltage(Max): 118V( ), 100V( ), 63V( ), 50V( ), 50V( ), 35V( ), 35V( )
- Frequency Range: 47- 63Hz
- Power Factor: PF>0.9 PF>0.9/ At Full Load
- AC Current: 0.6A 0.5A
- Inrush Current: Cold Start 13A At
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 60W dimmable driver triac, with a constant current output design and suitable for continuous current LED lights, has an output current from to The dimmable light driver is fully isolated in a plastic case, cooling by free air convection, low cost and high reliability, with an IP42, waterproof, and dustproof design. Offers AC phase-cut dimming and works with leading-edge and trailing-edge Triac Dimmers to adjust the brightness for various scenes.
AC Phase-cut Dimming
Work With Leading-Edge And Trailing-Edge Triac Dimmers
Built-in Active PFC Function
Constant Current Design
Cooling By Free Air Convection
Fully Isolated Plastic Case
IP42 Design
Class II Power Unit, no FG
Low Cost And High-Reliability
Suitable For Constant Current LED Lights
Specifications
Model
Brand
Size: 128*60*31.5mm(L*W*H)
Models
Type: B: With AC Input 180
Rated Current:,,,,,,
Working Voltage Range: 70-108V, 50-86V, 34-57V, 25-43V, 20-34V, 18-30V, 15-25V
Current Accuracy: ±5%
Rated Power: 54W, 60.2W, 59.85W, 60.2W, 59.5W, 60W, 60W
Ripple & Noise (Max.) note.1: 10.-p, 5.-p, 3.-p, 3.-p, 3.-p, 2.-p, 2.-p
No Load Output Voltage(Max): 118V, 100V, 63V, 50V, 50V, 35V, 35V
Setup Time: At Full Load
Frequency Range: 47- 63Hz
Power Factor: PF>0.9 PF>0.9/ At Full Load
Total Harmonic Distortion: THD<20% When Output Loading ≥60%(loading≥65%) At Input And Output Loading≥75% At Input
Efficiency: 87%, 86%, 86%, 87%, 87%, 87%, 86%
AC Current: 0.6A 0.5A
Inrush Current: Cold Start 13A At
Max NO. Of PSUs On 16A Circuit Breaker: 32 Units At
Leakage Current: <0.
Working Temperature: -30℃-+50℃
Working Humidity: 20-95% RH Non-condensing
Storage Temp., HUMIDITY: -40-+80℃, 10-95% RH
Temp. Coefficient: ±0.03%/℃(0-50℃)
Vibration: 10-500Hz, 2G./1 cycle, period for 72 min. Each along X, Y, and Z axes
Safety Standards: ENEC BS EN/-1, BS EN/-2-13 Independent, BS EN EAC TP TC 004, IP42 Approved
Short Circuit Protection
Over Temperature Protection
Includes
1 * Triac Dimmable Driver
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
