Product details

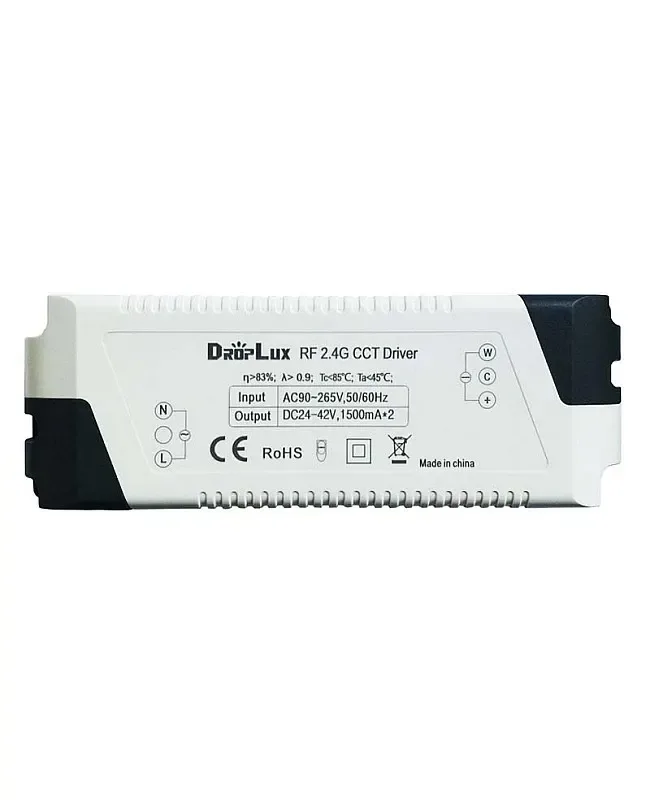

40 60W RF 2.4G CCT LED Dimming Driver
LumaCircuit offers 40 60W RF 2.4G CCT LED Dimming Driver as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Size: 157*54*36mm(L*W*H) Input Voltage: AC90V-AC264V Frequency Range: 47- 63Hz The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 2.4G RF CCT LED dimming drivers are a perfect choice for constant current tunable white LED lights, and can be widely used for intelligent household, commercial indoor lighting, and many more. Various output current products are available, and the installer can choose the or Designed for the constant current CW+WW LED lights, panel lights, ceiling lights, downlights, etc. With an isolated driver design, working in AC90V to AC264V can connect to the public power system directly without an extra adapter.
- Size: 157*54*36mm(L*W*H)
- Input Voltage: AC90V-AC264V
- Frequency Range: 47- 63Hz
- Input Rated Current: 0.31A(Full Load)
- Efficiency: 87%(Full Load)
- Power Factor: 0.95(Full Load)
- Input Port: Two Lines Input(L/N)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-PWR-G8NFVY
- Size: 157*54*36mm(L*W*H)
- Input Voltage: AC90V-AC264V
- Frequency Range: 47- 63Hz
- Input Rated Current: 0.31A(Full Load)
- Surge Current: <50A
- Standby Power: ≤1.1W
- Power Factor: 0.95(Full Load)
- Input Port: Two Lines Input(L/N)
- No Load Voltage: 53V
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

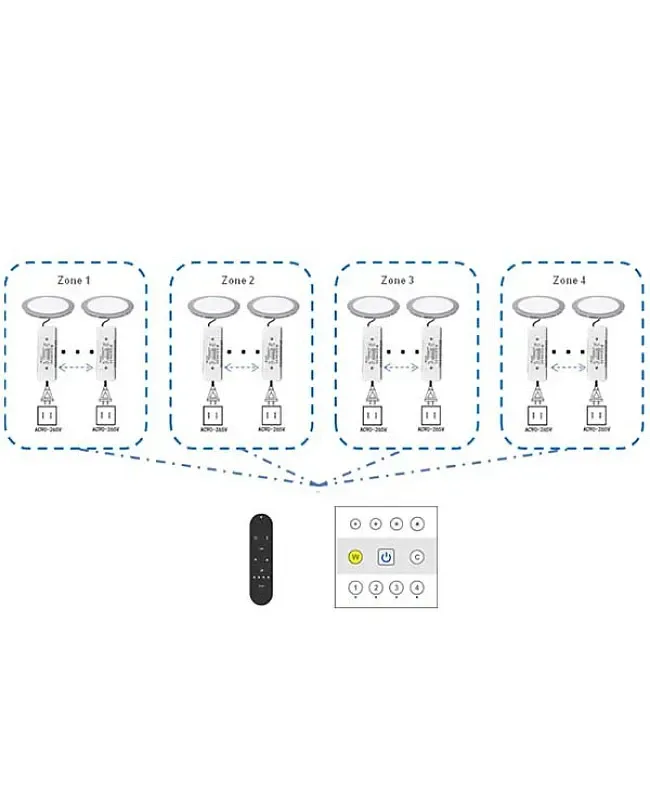

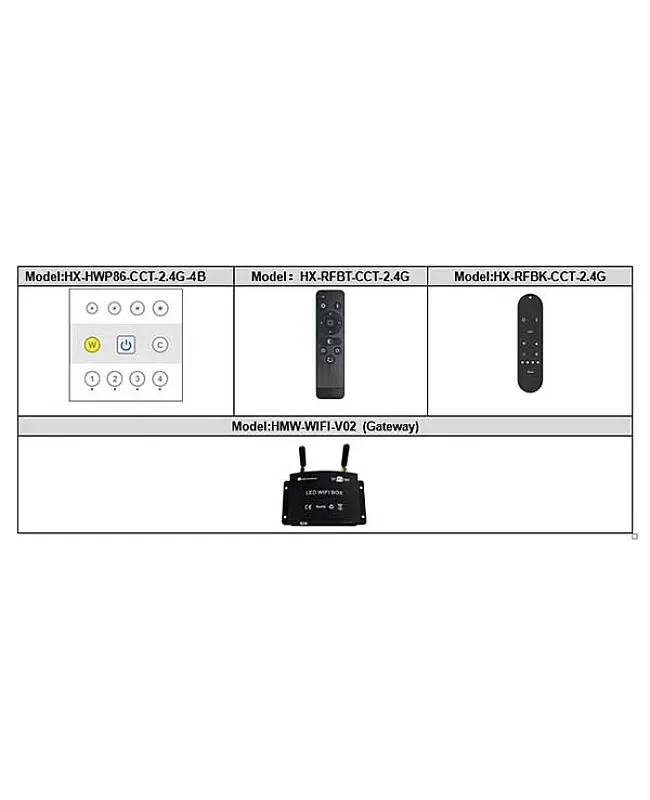

The 2.4G RF CCT LED dimming drivers are a perfect choice for constant current tunable white LED lights, and can be widely used for intelligent household, commercial indoor lighting, and many more. Various output current products are available, and the installer can choose the or Designed for the constant current CW+WW LED lights, panel lights, ceiling lights, downlights, etc. With an isolated driver design, working in AC90V to AC264V can connect to the public power system directly without an extra adapter. Adopts the advanced PWM digital dimming technology, 1024 levels dimming grade, and 3-100% dimming range, allowing the dimming to be done smoothly without any flash. Compatibility with Hoion 2.4G RF single-zone or multi-zone CCT LED remote controls will enable you to adjust the brightness and color temperature freely. The dimmable driver is also compatible with the Freelighting App control system, achieving WiFi intelligent control from your mobile phone and tablets. The air self-inspection sync control technology, which makes the remote out of the limitation of remote control distance, theoretically achieves controlling numerous drivers' wireless connection sync control functions.

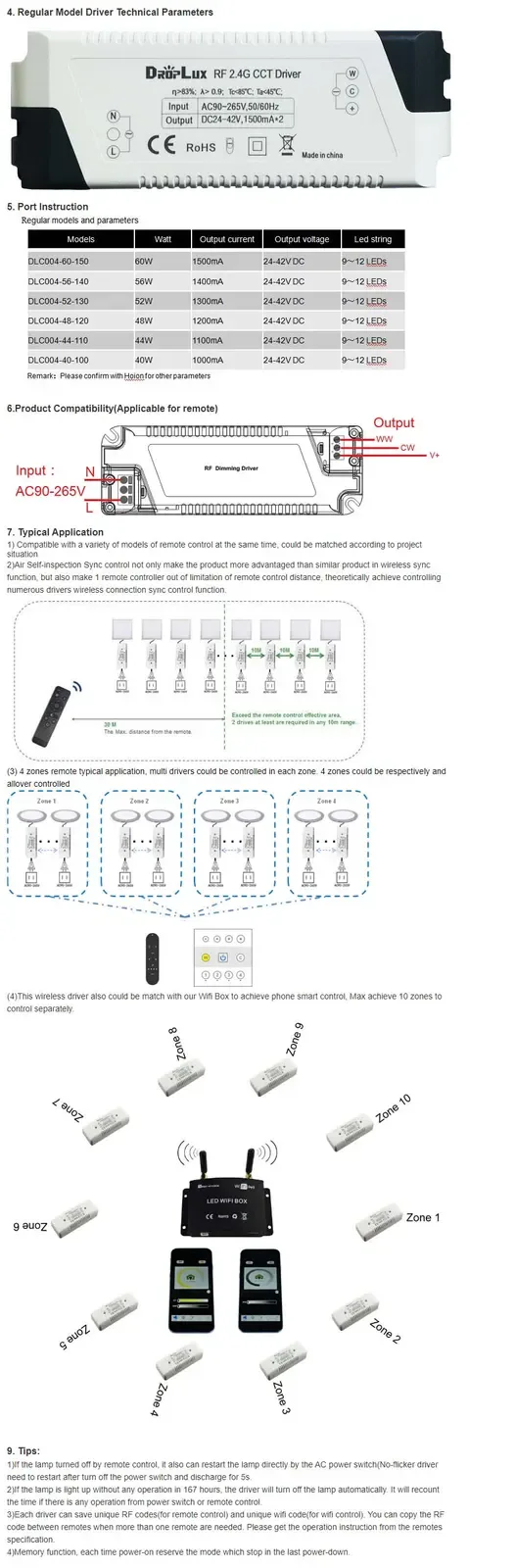

Specifications
Model
Size: 157*54*36mm(L*W*H)
Input Voltage: AC90V-AC264V
Frequency Range: 47- 63Hz
Input Rated Current: 0.31A(Full Load)
Surge Current: <50A
Standby Power: ≤1.1W
Efficiency: 87%(Full Load)
Power Factor: 0.95(Full Load)
Input Port: Two Lines Input(L/N)
No Load Voltage: 53V
Working Voltage Range: DC24V-DC42V
Max Loading Power: 60W
Current Accuracy: ±5%
PWM Frequency: 11.7 KHz
Dimming Level: 1024
Dimming Range: 3-100%
Video Effect: Non-Flicker
LED Strings: 9-12
Output Rated Current: (40W), (44W), (48W), (52W), (56W), (60W)

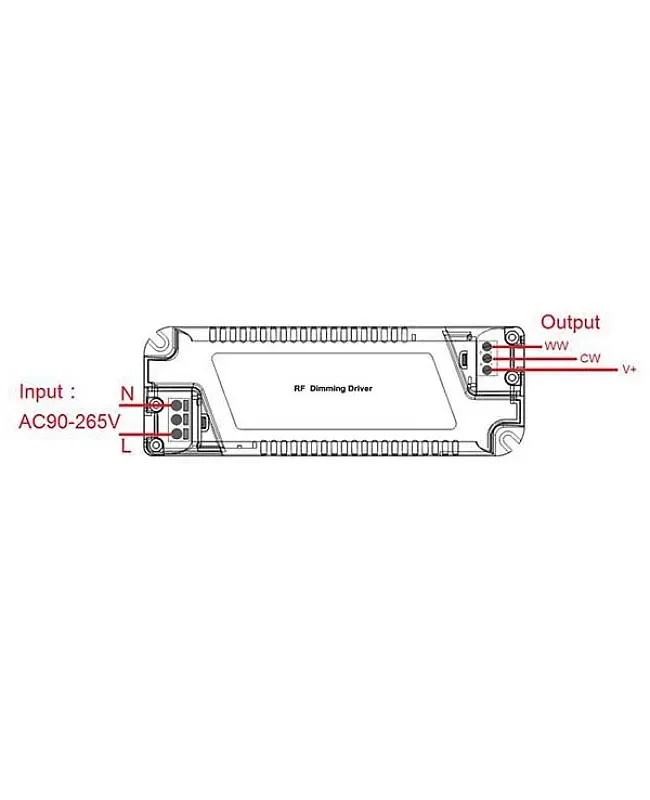

Output Port: WW CW V+
Working Temperature: -20-45℃
Dustproof/Waterproof Level: IP40
Frequency RF Remote Control: 2.4G
Remote Control Distance: 30m
Over-Voltage Protection: YES
Short-Circuit Protection: YES
Memory Function: YES
Remote Control Sold Separately
Weight: 300g
Includes
1 * CCT LED Dimming Driver(Remote Not Included And Sold Separately)
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
