Product details

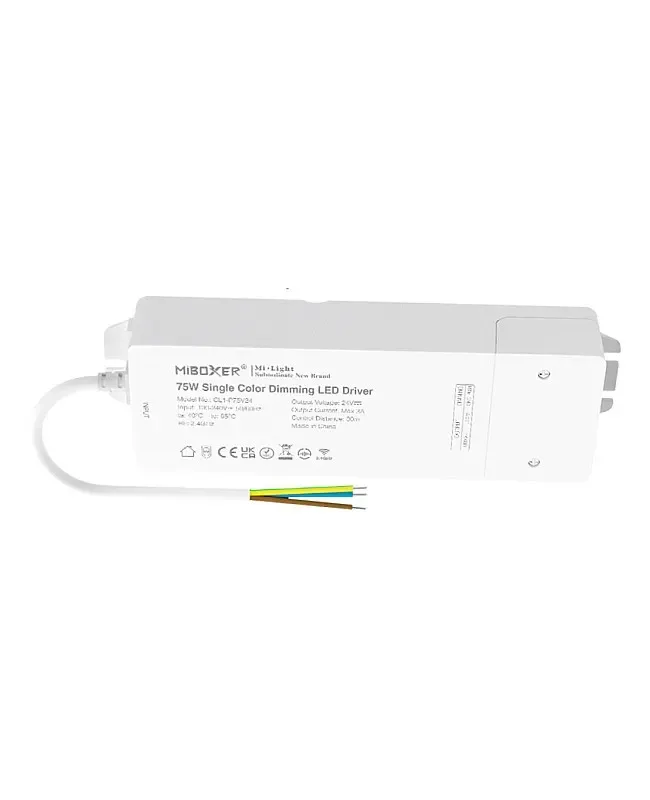

4G CL Series Dimmable LED Driver 24V
LumaCircuit offers 4G CL Series Dimmable LED Driver 24V as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. wireless controller---Dimmable-LED-Driver-User-Manual Size: 190*53*32mm(L*W*H) Models: -(For Single Color), -(For Dual White), -(For RGB), -(For RGBW), -(For RGB+CCT) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller CL series dimmable LED driver has a constant voltage output design. The output voltage is DC24V, with no extra power adapter, which is convenient to use and suitable for various scenes. The LED drivers can be controlled by 2.4G RF remotes, smartphone APP, and third-party voice commands. The installer can adjust the brightness from 1% to 100% easily. For the dual white and RGB+CCT version, the installer can adjust the color temperature from 2700K to 6500 K.
- wireless controller---Dimmable-LED-Driver-User-Manual
- Size: 190*53*32mm(L*W*H)
- Models: -(For Single Color), -(For Dual White), -(For RGB), -(For RGBW), -(For RGB+CCT)
- Input Voltage: -240V, 50/60Hz
- Remote Control Distance: ≤ 30 meters
- 16 Million Colors Available And Saturation Adjustable
- Color Temperature Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 240 V
- Light engine: RGB+CCT
- Size: 190*53*32mm(L*W*H)
- Models: -(For Single Color), -(For Dual White), -(For RGB), -(For RGBW), -(For RGB+CCT)
- Input Voltage: -240V, 50/60Hz
- Output Voltage: DC24V
- Output Current: Max 3A
- Remote Control Distance: ≤ 30 meters
- IP Rating: IP20 Non-Waterproof
- -(For Single Color): T2, T1, B, W, G
- -(For RGB+CCT): T4, T3, wireless controller
- LumaCircuit model: LC-PWR-WSXOG9
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller CL series dimmable LED driver has a constant voltage output design. The output voltage is DC24V, with no extra power adapter, which is convenient to use and suitable for various scenes. The LED drivers can be controlled by 2.4G RF remotes, smartphone APP, and third-party voice commands. The installer can adjust the brightness from 1% to 100% easily. For the dual white and RGB+CCT version, the installer can adjust the color temperature from 2700K to 6500 K. There are 16 million colors available for the RGB, RGBW, and RGBWW versions, and the saturation of static color is adjustable. The LED driver will receive the signals from the remote control and transmit them to other 24V dimming LED drivers within 30 meters, all of which will work synchronously the PWM frequency of the 24V LED drivers can be switched from high frequency to low frequency(500Hz).
Quick Links
wireless controller---Dimmable-LED-Driver-User-Manual
Specifications
Size: 190*53*32mm(L*W*H)
Models: -(For Single Color), -(For Dual White), -(For RGB), -(For RGBW), -(For RGB+CCT)
Input Voltage: -240V, 50/60Hz
Output Voltage: DC24V
Output Current: Max 3A
RF: 2.
Remote Control Distance: ≤ 30 meters
16 Million Colors Available And Saturation Adjustable
Color Temperature Adjustable
Stepless Dimming Brightness
4G RF Remote Controllable
Support Smartphone APP Control And Third-Party Voice Control 2.4G Gateway Needed)
PWM High Frequency Low Frequency（500Hz) Can Be Switched
Signal Transmitting And Modes Synchronization
IP Rating: IP20 Non-Waterproof

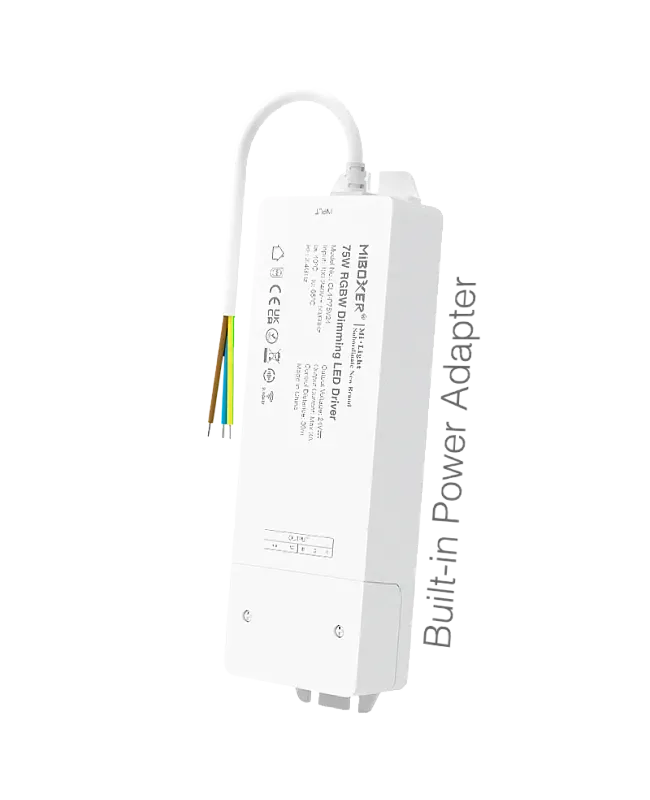

No Need for Extra Power Adapter
Remote Control Sold Separately
Remote Controls Recommended
(For Single Color) T2, T1, B, W, G
(For Dual White) T2, B, W, G
(For RGB) T4, T3, B, W, G
(For RGBW) T4, T3, B, W, G
(For RGB+CCT) T4, T3, wireless controller
Includes
1 * 2.4G wireless controller 24V Dimmable LED Driver
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
