Product details

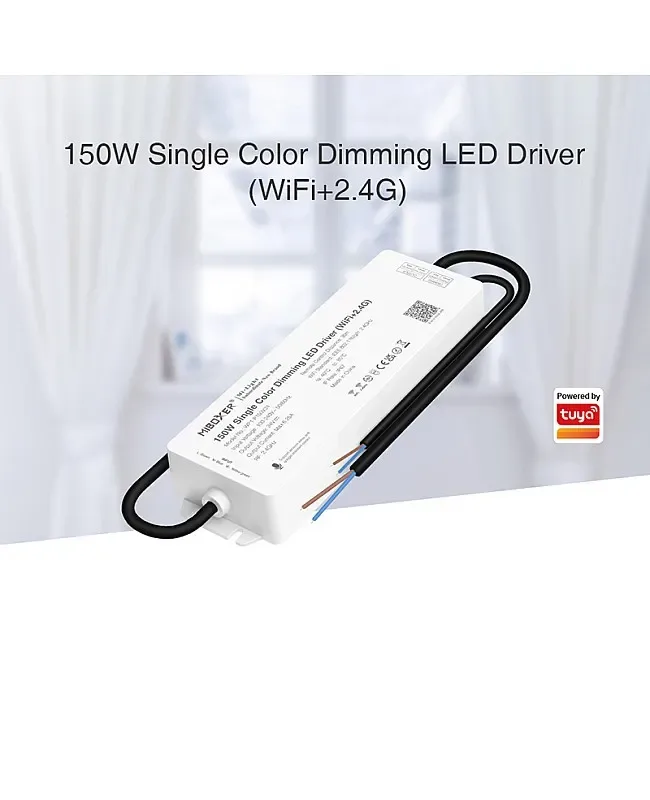

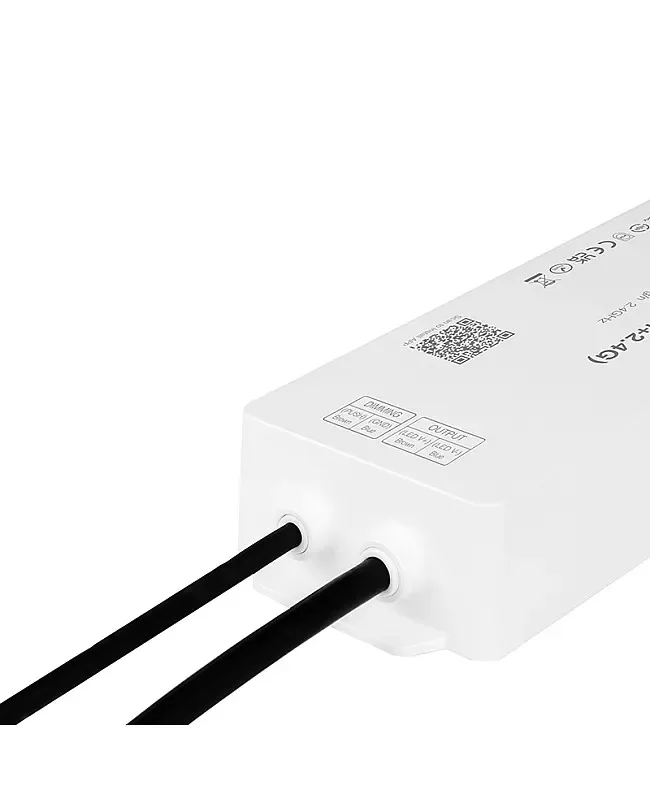

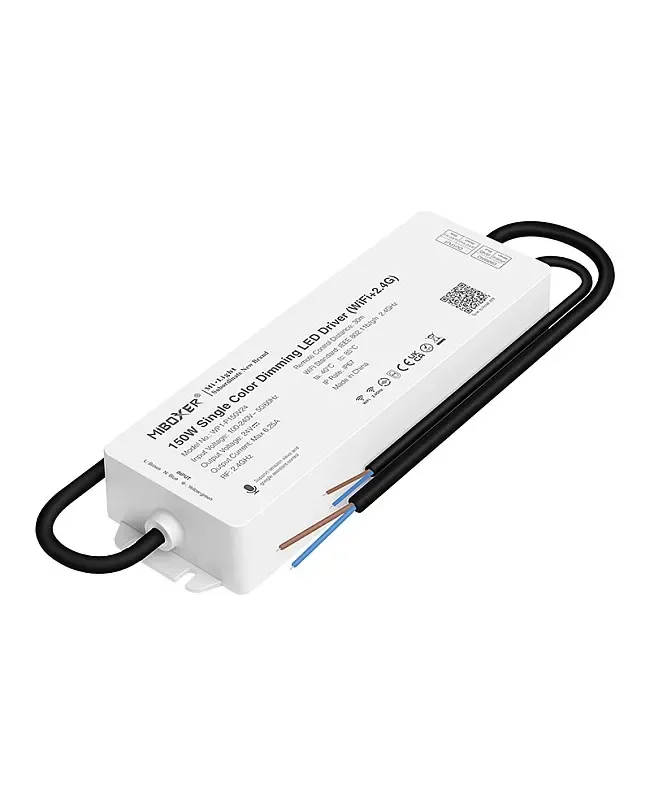

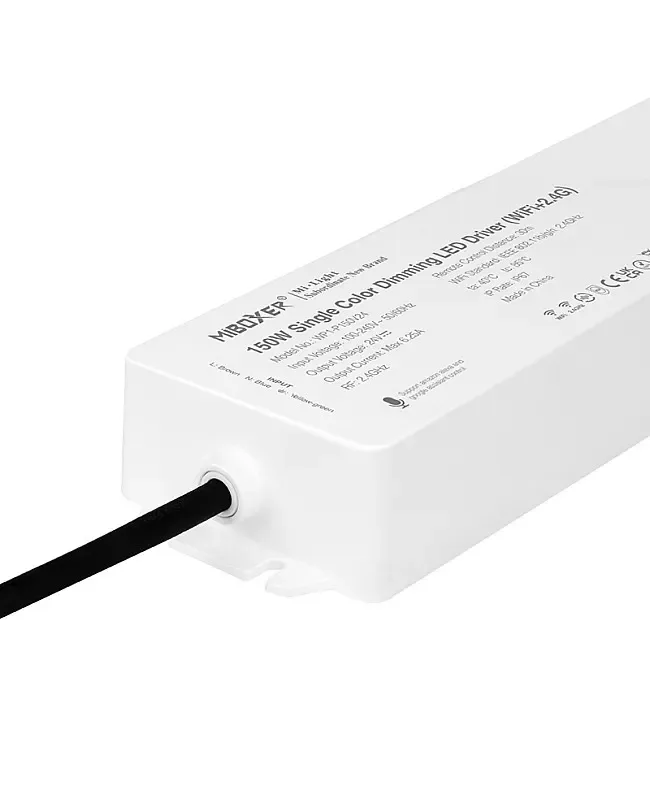

IP67 Waterproof 150W Single Color Dimming LED Driver Power Supply
LumaCircuit offers IP67 Waterproof 150W Single Color Dimming LED Driver Power Supply as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Input Voltage: -240V; 50/60Hz Output Current: Max 6.25A WiFi Standard: IEEE 802./g/n 2. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 150W single-color dimming wireless controller LED driver is an excellent choice for outdoor LED strip applications. With a single-channel output design, it is easy to connect to single-color LED strips and adjust the brightness for various scenes. The waterproof level is IP67, which allows for installing them in rainy or wet locations for outdoor lighting projects.
- Input Voltage: -240V; 50/60Hz
- Output Current: Max 6.25A
- WiFi Standard: IEEE 802./g/n 2.
- Remote Control Distance: ≤30m
- Brightness Adjustable From 1% To 100%
- Auto Signal Transmitting
- Third-Party Voice Control
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V / 24 V
- LumaCircuit model: LC-PWR-WM5JAS

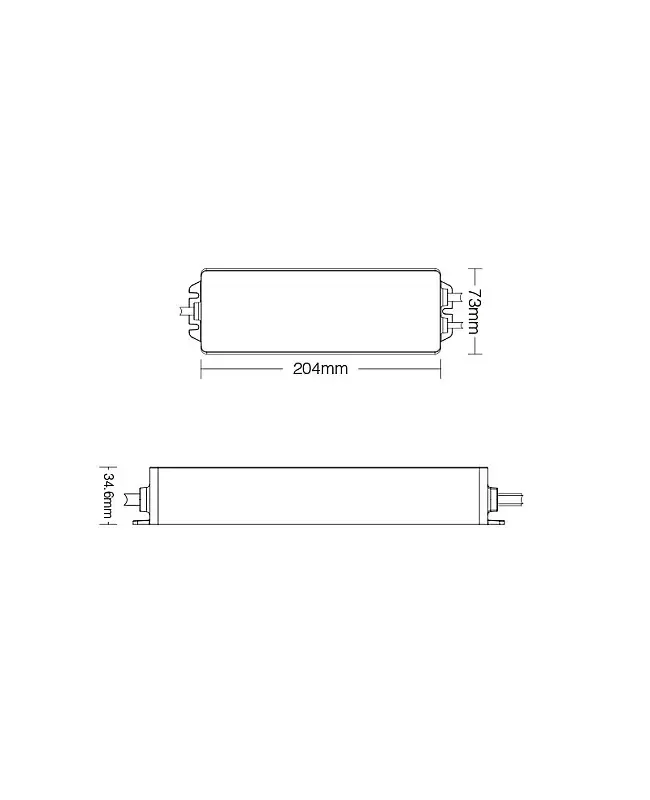

- Size: 204*73*34.6mm
- Input Voltage: -240V; 50/60Hz
- Output Voltage: DC24V
- Output Current: Max 6.25A
- Remote Control Distance: ≤30m
- Compatible With Remotes: B, T1, T2, B, B, B, W, G
- IP Rate: IP67
- Dimensions found: 204x73x34.6mm / 34.6mm / 30m
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

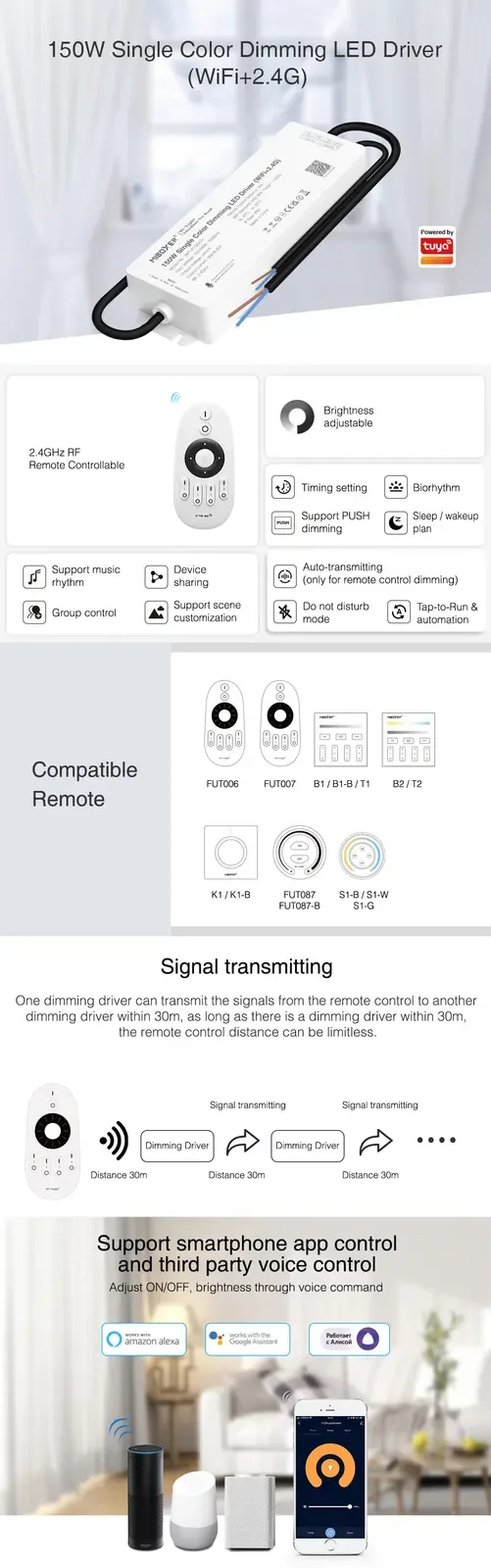

The 150W single-color dimming wireless controller LED driver is an excellent choice for outdoor LED strip applications. With a single-channel output design, it is easy to connect to single-color LED strips and adjust the brightness for various scenes. The waterproof level is IP67, which allows for installing them in rainy or wet locations for outdoor lighting projects. It has a wide input voltage design, is easy to connect to the public power system directly, has one output channel design, and has a max output current of 6.25A and a max loading power of 150W. The dimming LED driver integrates WiFi and 2.4G communication modules and can be controlled by 2.4G RF remotes, a smartphone APP, and third-party voice commands. The installer can use it to control the brightness from 1% to 100% for various scenes. One dimming driver can transmit the signals from the remote control to another Driver within 30m. The remote control distance can be limitless if a dimming driver is within 30m. The wireless controller dimming power supply can work with Amazon Alexa and Google Assistant, and the installer can use voice commands to turn ON/OFF and adjust brightness.
Specifications
Model
Size: 204*73*34.6mm
Input Voltage: -240V; 50/60Hz
Output Voltage: DC24V
Output Current: Max 6.25A
WiFi Standard: IEEE 802./g/n 2.
RF: 2.
Remote Control Distance: ≤30m
Brightness Adjustable From 1% To 100%
Auto Signal Transmitting
RF Remote Controllable
Smartphone APP Control
Third-Party Voice Control
Group Control
Support Music Rhythm
Device Sharing
Support Scene Customization
Works With Amazon Alexa/Google Assistant
Compatible With Remotes B, T1, T2, B, B, B, W, G
Timing Setting
Do Not Disturb Mode
Tap-To-Run&Automation
Support PUSH Dimming
Sleep/Wakeup Plan
IP Rate: IP67
Includes
1 * Dimming LED Driver Power Supply
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
