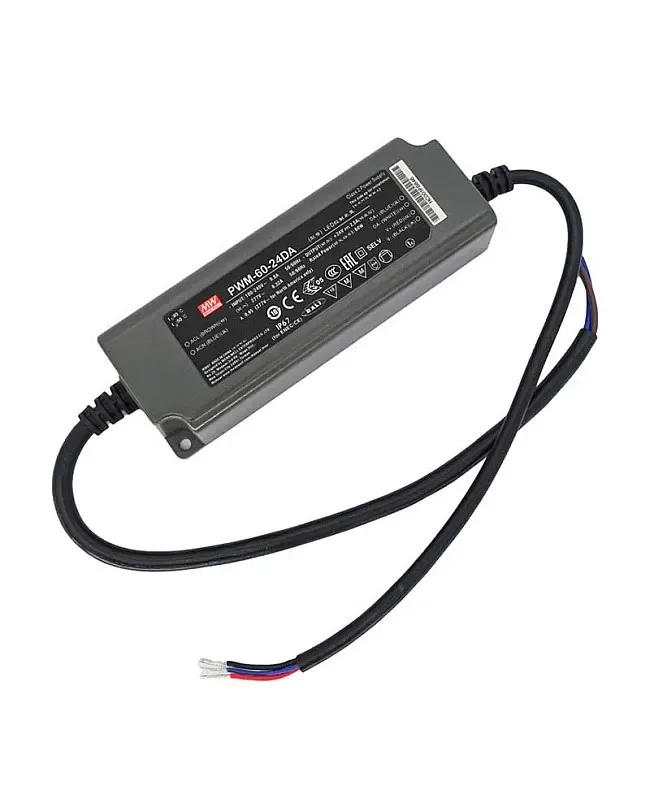

Waterproof Dimmable Switching Power Supply PWM 60
LumaCircuit offers Waterproof Dimmable Switching Power Supply PWM 60 as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Constant Voltage PWM Style Output Emergency Lighting Application Is Available According To -2-13 Built-in Active PFC Function And Class II/2 Design The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Series waterproof dimmable switching power supply has a constant voltage PWM style output design, which the installer can use to maintain the brightness homogeneity when driving all kinds of single color LED lights. The input voltage ranges from AC90V to AC305V and offers models with different output voltages from DC12V to DC48V.
- Constant Voltage PWM Style Output
- Emergency Lighting Application Is Available According To -2-13
- Built-in Active PFC Function And Class II/2 Design
- No Load Power Consumption: <0.5W
- Fully Encapsulated With IP67 Level
- Function: 3 In 1 Dimming(Dim-To-Off); DALI/DALI-2
- Minimum Dimming Level 0.2% For DALI Type
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 12 V / 24 V / 36 V / 48 V
- LumaCircuit model: LC-PWR-FA3L3L

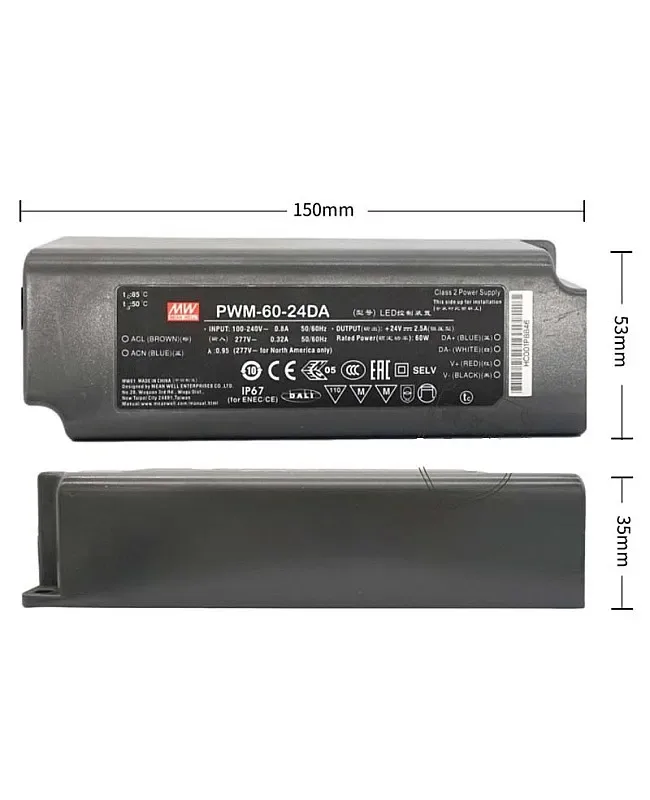

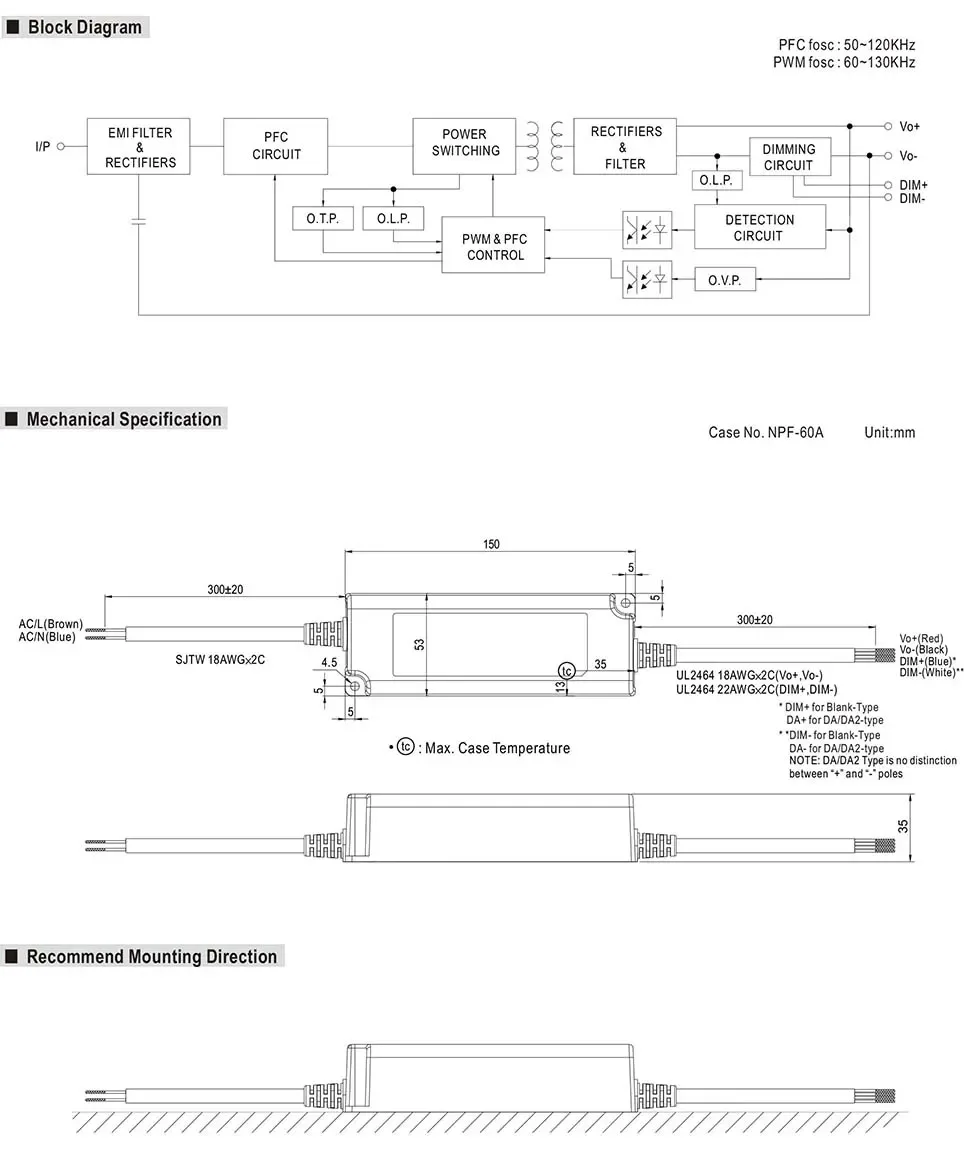

- Size: 150*53*35mm(L*W*H)
- Input Voltage Range: AC90V-AC305V
- Frequency Range: 47- 63Hz
- Power Factor: PF>0.97, PF>0.95, PF>0.92
- AC Current: 0.8A 0.4A 0.32A
- Output Voltage: DC12V, DC24V, DC36V, DC48V
- Rated Current: 5A(DC12V), 2.5A(DC24V), 1.67A(DC36V), 1.25A(DC48V)
- Rated Power: 60W(DC12V), 60W(DC24V), 60.12W(DC36V), 60W(DC48V)
- PWM Frequency: 1. For Blank/DA-Type, 2. For Type
- Working Temperature: -40℃-+80℃

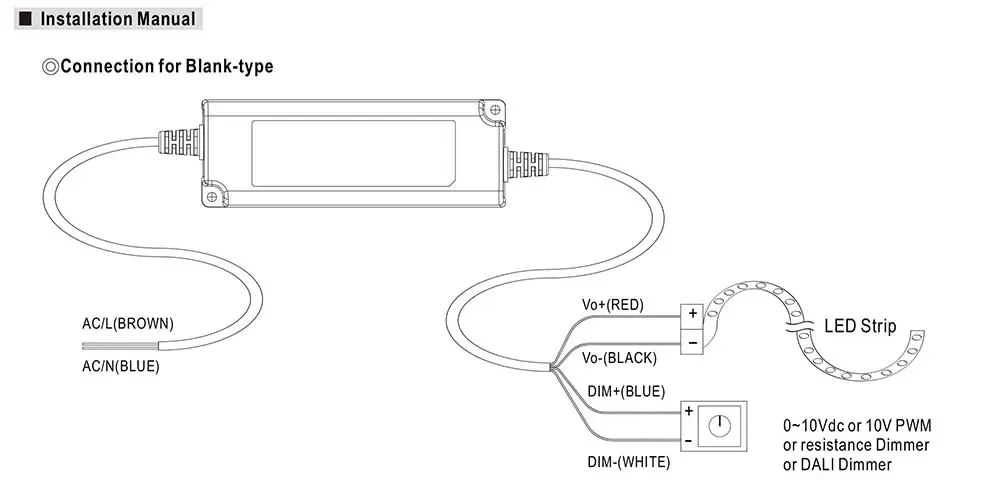

Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

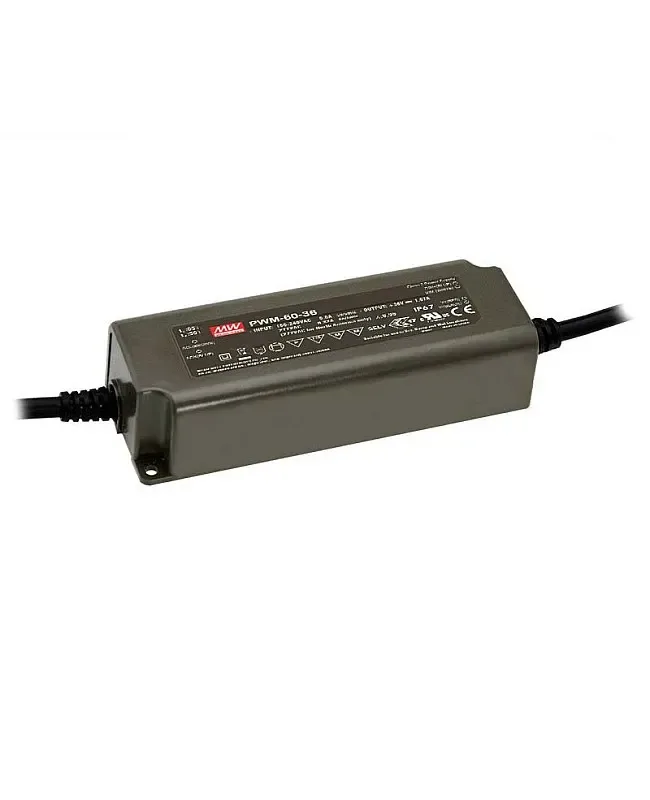

Product overview
The Series waterproof dimmable switching power supply has a constant voltage PWM style output design, which the installer can use to maintain the brightness homogeneity when driving all kinds of single color LED lights. The input voltage ranges from AC90V to AC305V and offers models with different output voltages from DC12V to DC48V. The high efficiency up to 90%, with the fanless design, the entire switching power supplies can operate for -40℃ to +85℃ case temperature under free air convection, the PWM 60 MW power supplies are rated with IP67 ingress protection level and suitable to work for dry, damp, or wet locations. It has a dimming function that varies the output's duty cycle, providing great flexibility for LED light applications.
Constant Voltage PWM Style Output
Emergency Lighting Application Is Available According To -2-13
Built-in Active PFC Function And Class II/2 Design
No Load Power Consumption: <0.5W
Fully Encapsulated With IP67 Level
Function: 3 In 1 Dimming(Dim-To-Off); DALI/DALI-2
Minimum Dimming Level 0.2% For DALI Type
