Product details

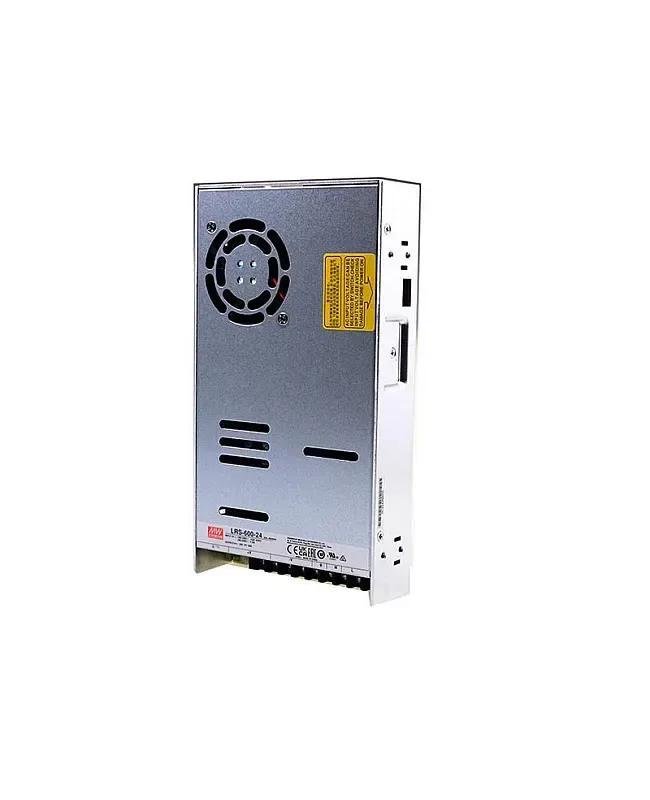

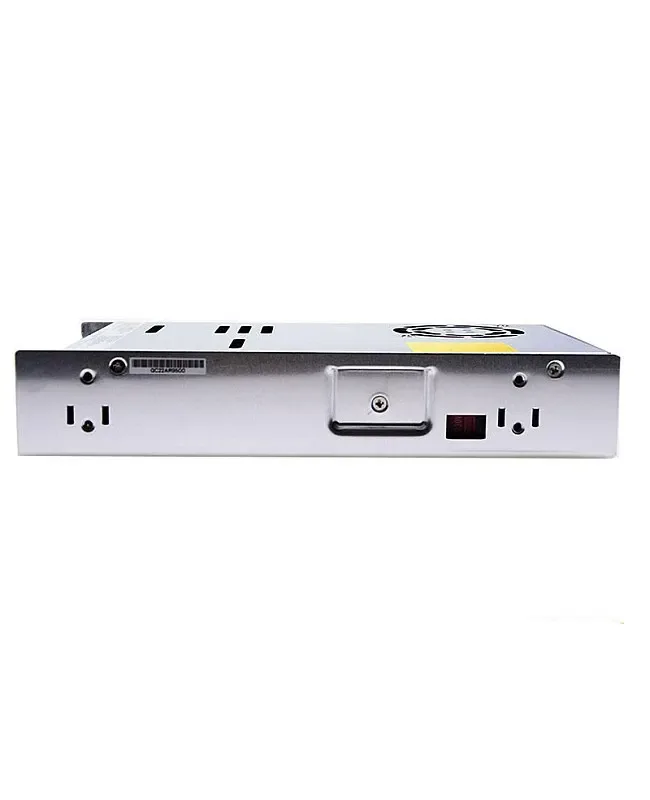

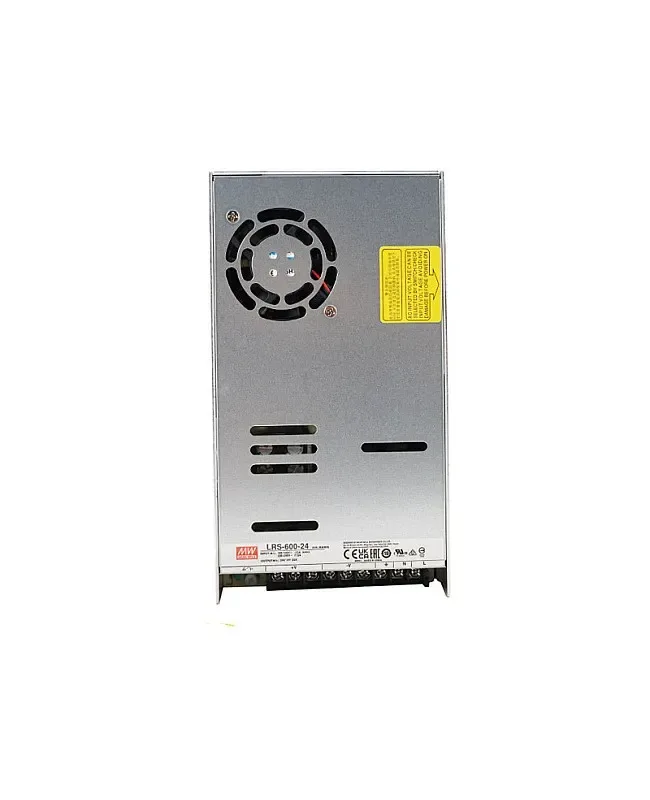

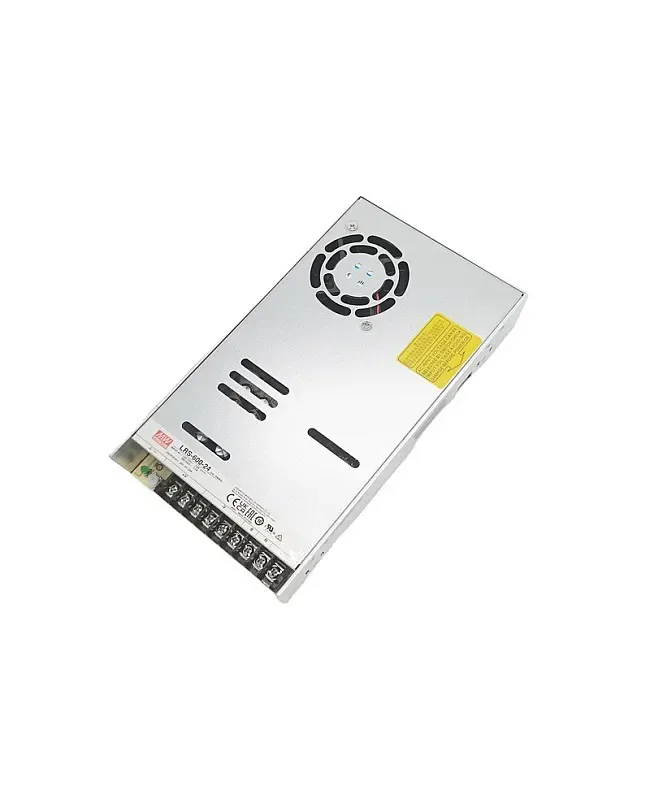

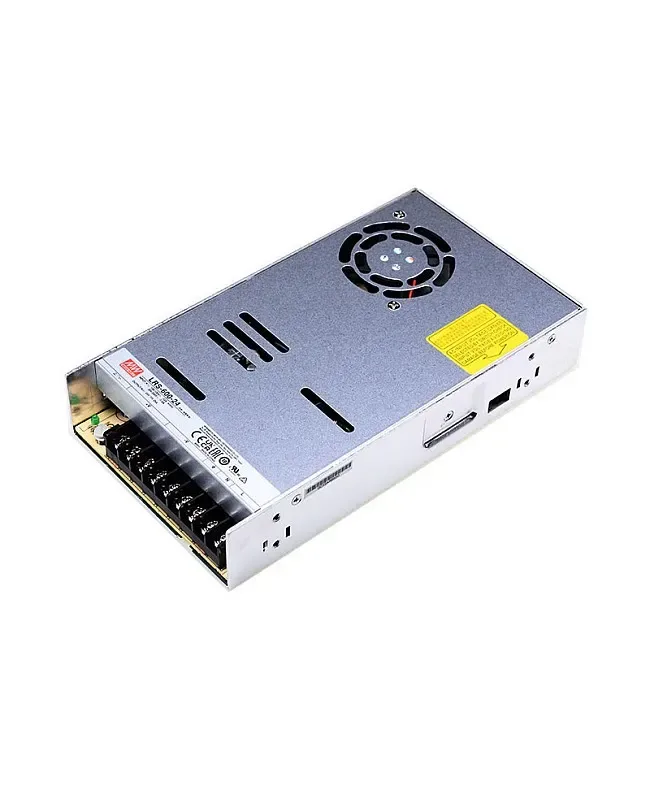

LRS 600 24 Volt Power Supply
LumaCircuit offers LRS 600 24 Volt Power Supply as a configurable LED driver or power supply for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. AC Input Range Selectable By Switch Withstand Surge Input for 5 seconds Built-in Cooling Fn ON-OFF Control The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- this is a 600W single-output enclosed power supply with a 41mm low-profile design. There are 5V, 12V, 15V, 24V, 36V, and 48V products available, and the input voltage can be adjusted by pressing the switch on the side. In addition to the high efficiency of up to 92%, with the built-in long-life fan, the 600W power supply can work under -20℃ to 65℃ with a full load. The LRS 600 has complete protection functions and 5G anti-vibration capability. It complies with complete international safety regulations.
- AC Input Range Selectable By Switch
- Withstand Surge Input for 5 seconds
- Built-in Cooling Fn ON-OFF Control
- Withstand 5G Vibration Test
- High Operating Temperature Up To 65℃
- Operating Altitude Up To 5000 Meters
- Short-circuit Protection
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: COB
- LumaCircuit model: LC-PWR-25ENQQ
- Size: 225*124*41mm(L*W*H)
- Output Voltage: DC12V DC24V
- Rated Current: 50A(12V) / 25A(24V)
- Current Range: 0-50A(12V) / 0-25A(24V)
- Rated Power: 600W(12V) / 600W(24V)
- Voltage ADJ. Range: 11.4-13.2V(12V) / 22.8-26.4V(24V)
- Voltage Range: 90- / 180- By Switch
- Frequency Range: 47- 63Hz
- AC Current: 12A 7.5A
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
this is a 600W single-output enclosed power supply with a 41mm low-profile design. There are 5V, 12V, 15V, 24V, 36V, and 48V products available, and the input voltage can be adjusted by pressing the switch on the side. In addition to the high efficiency of up to 92%, with the built-in long-life fan, the 600W power supply can work under -20℃ to 65℃ with a full load. The LRS 600 has complete protection functions and 5G anti-vibration capability. It complies with complete international safety regulations. The 24V power supplies can be used for various industrial applications and work with the configured product SMD or COB LED stripe lights.
AC Input Range Selectable By Switch
Withstand Surge Input for 5 seconds
Forced Air Cooling
Built-in Cooling Fn ON-OFF Control
Low Profile
Withstand 5G Vibration Test
High Operating Temperature Up To 65℃
Operating Altitude Up To 5000 Meters
Short-circuit Protection
Overload Protection
Over-voltage Protection
Over-temperature Protection
MTBF > Hrs
Specifications
Type: 600W Single Output Switching Power Supply
Model: -12 / -24
Size: 225*124*41mm(L*W*H)
Output Voltage: DC12V DC24V
Rated Current: 50A(12V) / 25A(24V)
Current Range: 0-50A(12V) / 0-25A(24V)
Rated Power: 600W(12V) / 600W(24V)
Voltage ADJ. Range: 11.4-13.2V(12V) / 22.8-26.4V(24V)
Setup Rise Time At Full Load
Hold Up Time At Full Load
Voltage Range: 90- / 180- By Switch
Frequency Range: 47- 63Hz
Efficiency: 90%(12V) / 91%(24V)
AC Current: 12A 7.5A
Working Temp: -20-+65℃
Working Humidity: 20-90% RH Non-condensing
Storage Temp, Humidity: -40-+85℃, 10-95% RH
Vibration; 10-500Hz, 5G each along X, Y, and Z axes
Includes
1 * 24-Volt Power Supply
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
