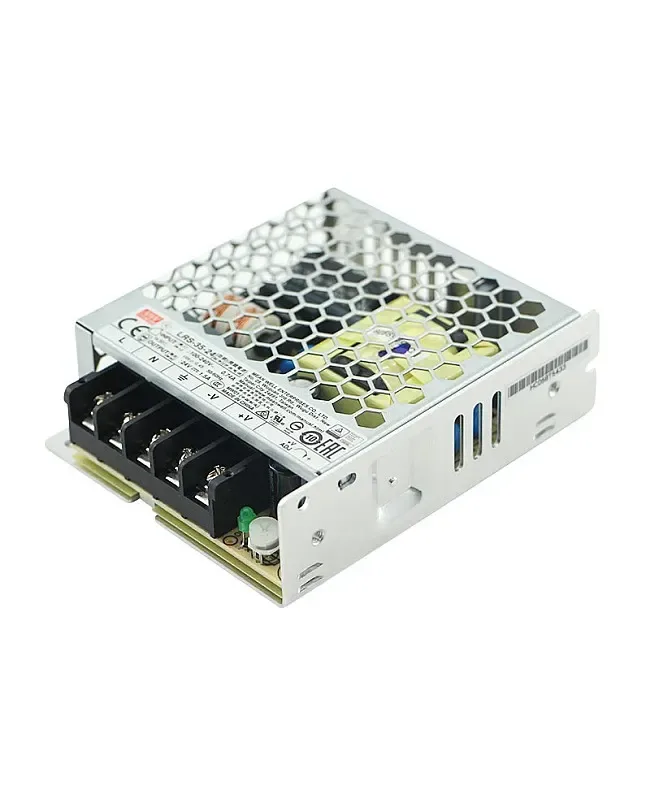

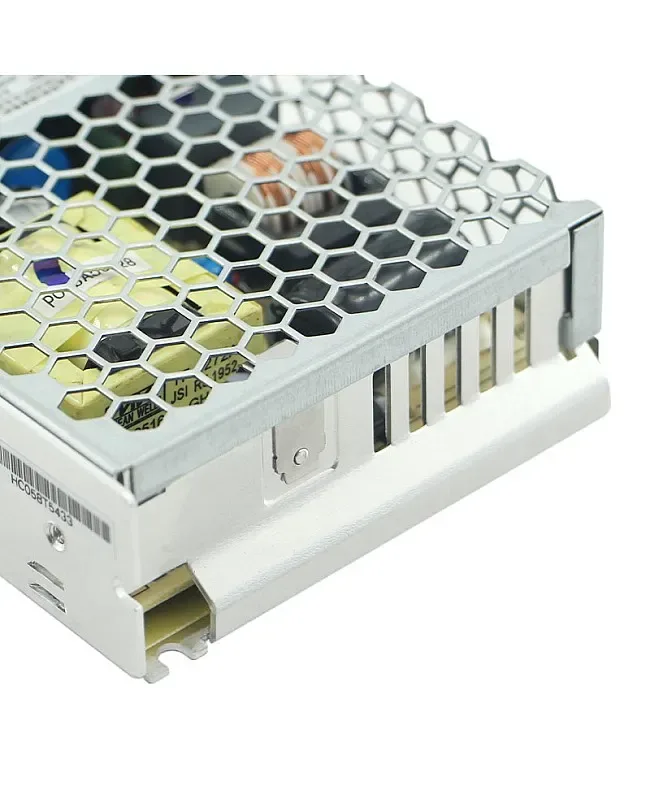

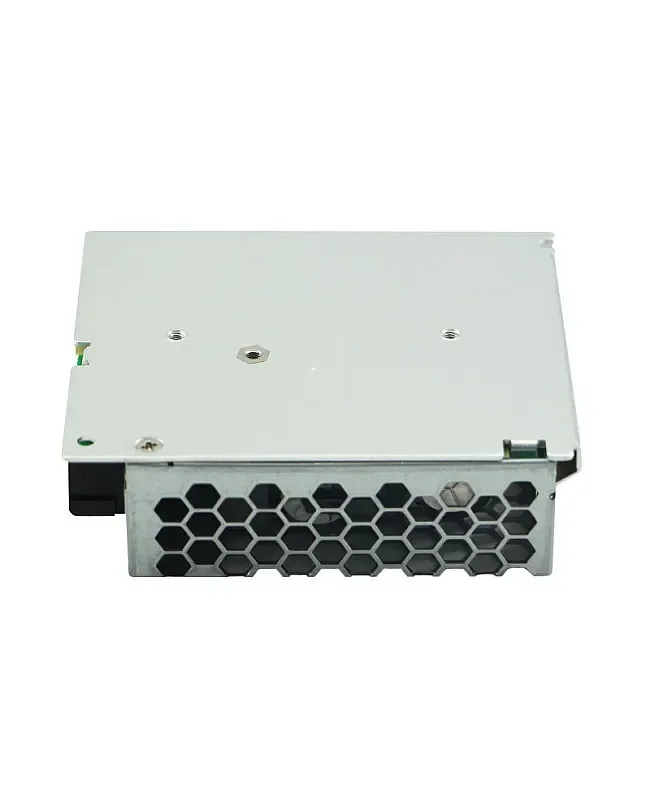

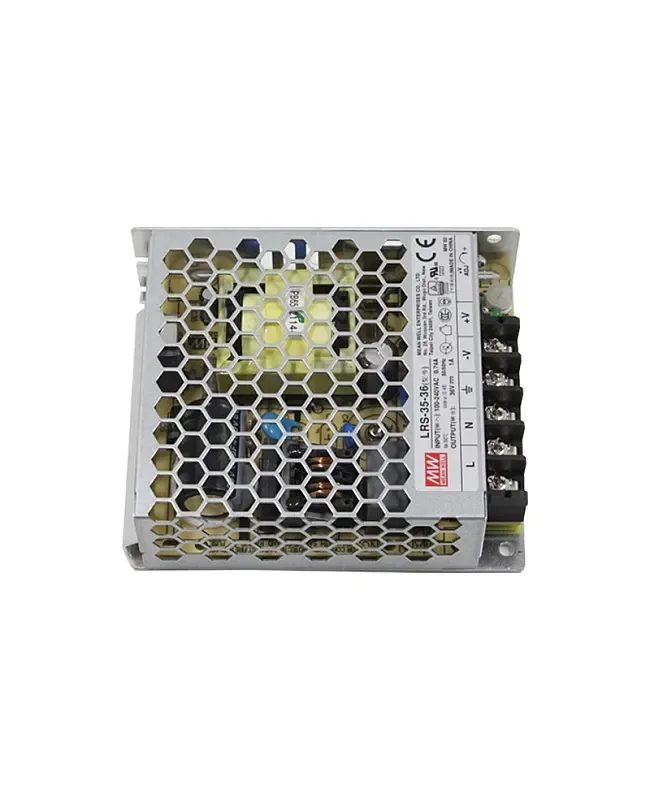

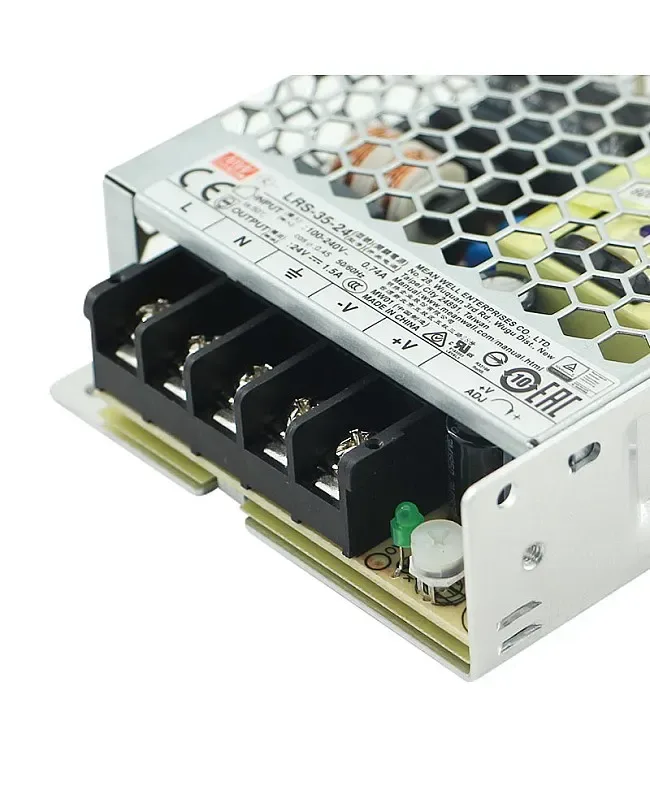

LRS 35 Switching Mode Power Supply
LumaCircuit offers LRS 35 Switching Mode Power Supply as a configurable LED driver or power supply for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Universal AC Input Full Range Withstand Surge Input For 5 Seconds No Load Power Consumption<0.2W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 35W single output switching mode power supply, with the 30mm of low profile design, adopting the full input range from AC85V to AC264V, the installer can choose the various output products from DC5V to DC48V, the highest efficiency rate can reach to 89%, the metallic mesh case enhances the heat dissipation and allows the working temperature keeps between -30℃ through 70℃ under air convection without a fan.
- Universal AC Input Full Range
- Withstand Surge Input For 5 Seconds
- No Load Power Consumption<0.2W
- Miniature Size And Low Profile
- High Operating Temperature Up To 70℃
- Protections: Short Circuit Overload Over Voltage
- Cooling By Free Air Convection
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 48 V / 12 V / 24 V / 36 V
- LumaCircuit model: LC-PWR-PF7X3A
- Size: 99*82*30mm(L*W*H)
- Input Voltage Range: 85
- Frequency Range: 47- 63Hz
- AC Current: 0.7A 0.42A
- Output Voltage Range: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 7A(DC5V), 3A(DC12V), 2.4A(DC15V), 1.5A(DC24V), 1A(DC36V), 0.8A(DC48V)
- Rated Power: 35W(DC5V), 36W(DC12V), 36W(DC15V), 36W(DC24V), 36W(DC36V), 38.4W(DC48V)
- Working Temp: -30℃-+70℃
- Protections: Short Circuit Overload Over Voltage
- Dimensions found: 99x82x30mm / 30mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 35W single output switching mode power supply, with the 30mm of low profile design, adopting the full input range from AC85V to AC264V, the installer can choose the various output products from DC5V to DC48V, the highest efficiency rate can reach to 89%, the metallic mesh case enhances the heat dissipation and allows the working temperature keeps between -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no-load power consumption of less than 0.2W, the LRS 35 has complete protection functions and 5G anti-vibration capability. The installer can use them for the LED lights indoors.
Universal AC Input Full Range
Withstand Surge Input For 5 Seconds
No Load Power Consumption<0.2W
Miniature Size And Low Profile
High Operating Temperature Up To 70℃
Protections: Short Circuit Overload Over Voltage
Cooling By Free Air Convection
Compliance To IEC/EN 60335-1 And IEC/-1, -2-16 For Household Appliances
Operating Altitude Up To 5000 Meters
Withstand 5G Vibration Test
Intuitive LED Indicator Light For Power On
Over Voltage Category III
100% Full Load Burn-In Test
Quick Links

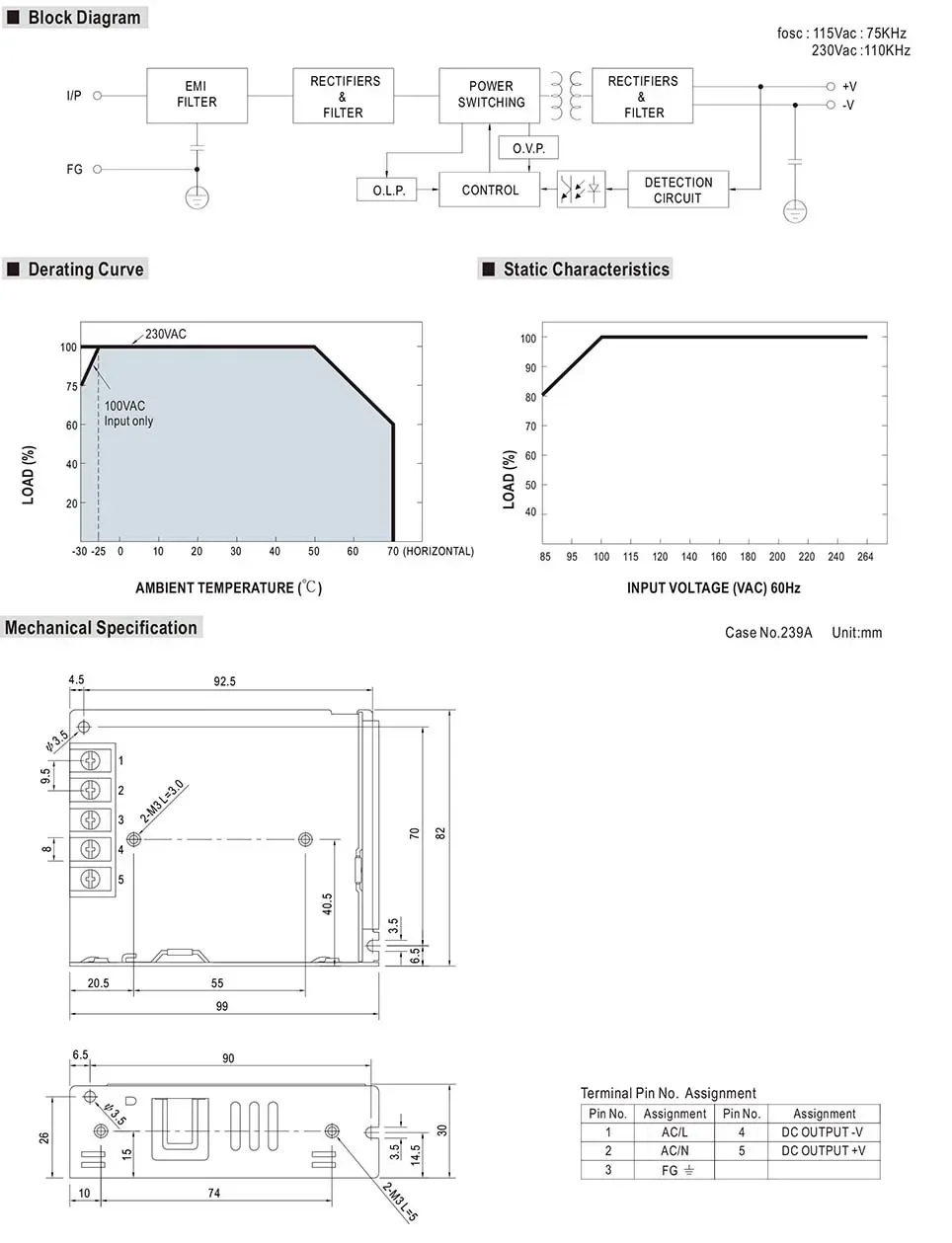

Specifications
Model
Size: 99*82*30mm(L*W*H)
Input Voltage Range: 85
Frequency Range: 47- 63Hz
Efficiency: 82%(DC5V), 86%(DC12V), 86%(DC15V), 88%(DC24V), 88%(DC36V), 89%(DC48V)
AC Current: 0.7A 0.42A
Output Voltage Range: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
Rated Current: 7A(DC5V), 3A(DC12V), 2.4A(DC15V), 1.5A(DC24V), 1A(DC36V), 0.8A(DC48V)
Rated Power: 35W(DC5V), 36W(DC12V), 36W(DC15V), 36W(DC24V), 36W(DC36V), 38.4W(DC48V)
Working Temp: -30℃-+70℃
Vibration: 10-500Hz, 5G each along X, Y, Z axes
Safety Standards: -1, TUV -1, -1, -1/-2/16,1, BSMI -1, EAC TP TC 004, etc
Overload Protection
Over-Voltage Protection
Over Temp Protection
Includes
1 * Switching Power Supply
Product resources
Technical documents
Typical applications
- Recessed and surface channels
- Cabinet and furniture integration
- Linear fixture BOMs
