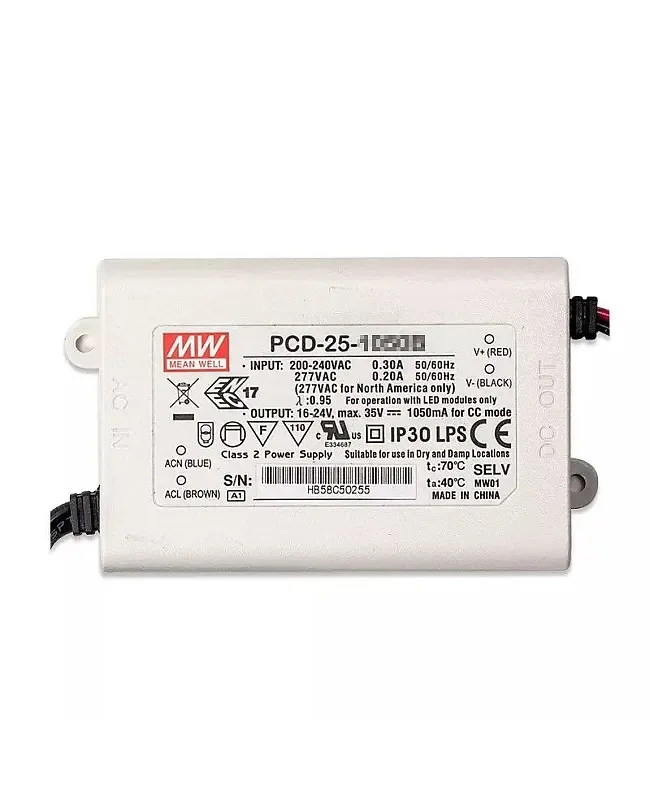

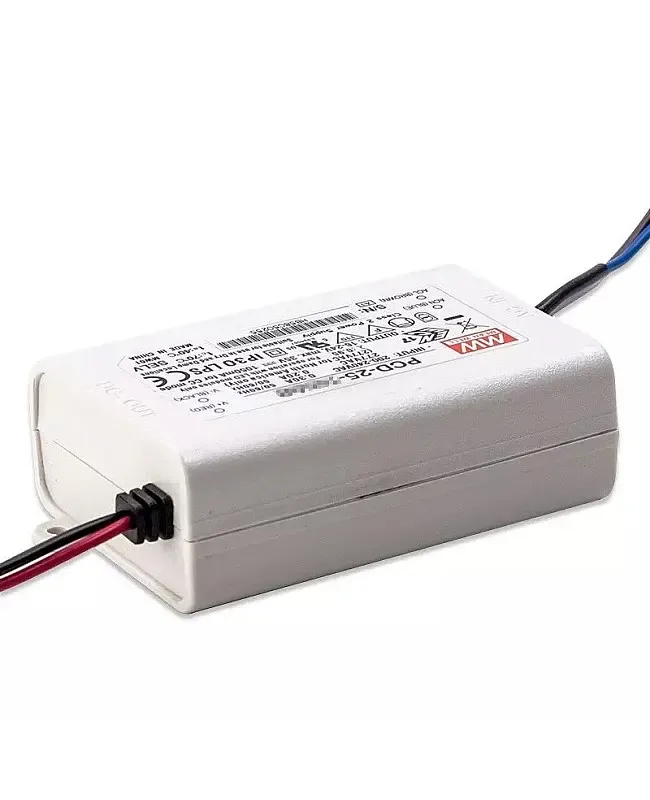

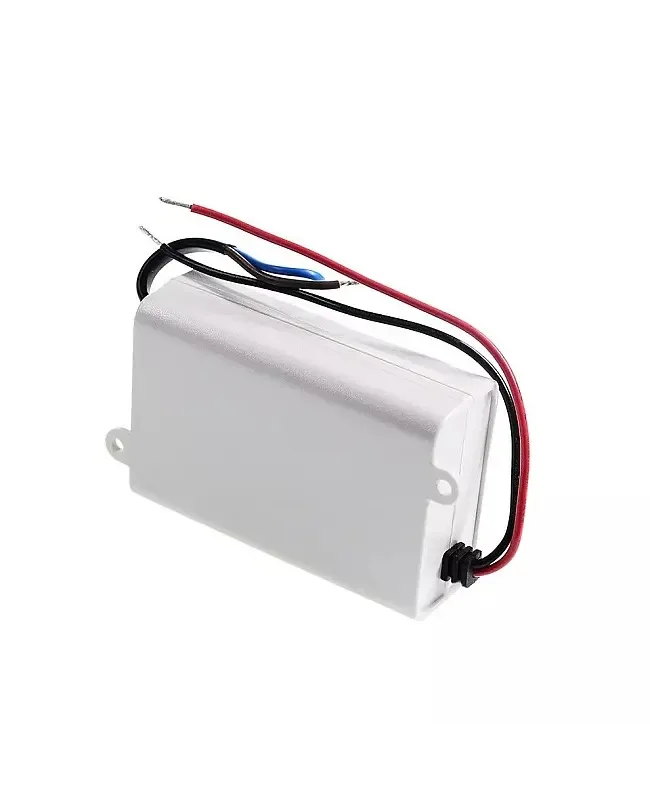

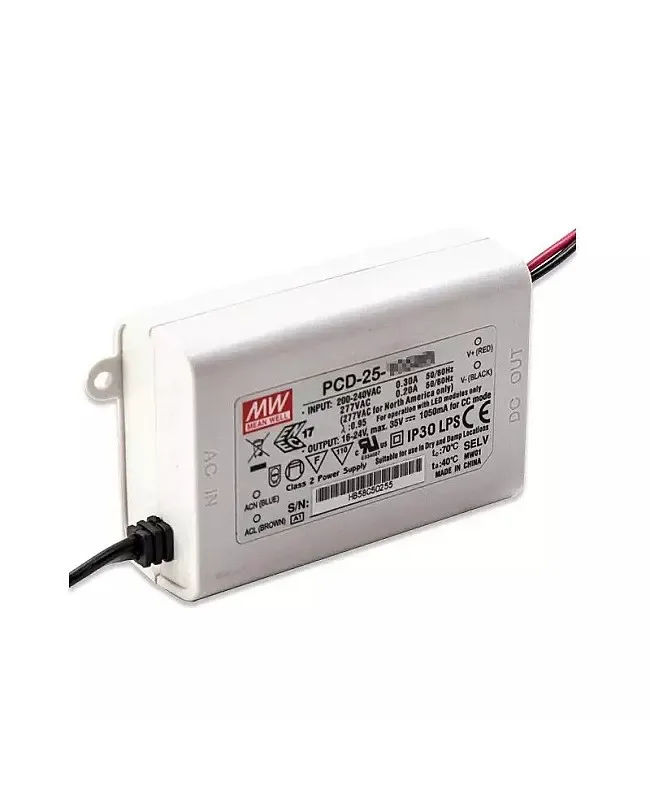

PCD 25 Triac Dimmable LED Driver
LumaCircuit offers PCD 25 Triac Dimmable LED Driver as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Work With Leading Edge And Trailing Edge TRIAC Dimmers Built-in Active PFC Function Cooling By Free Air Convection The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The series triac dimmable LED drivers are fully isolated in a plastic case and have an IP42 design, cooling by free air convection, waterproof and dustproof, low cost, and high reliability. The triac light drivers have a constant current output design, and the installer can take and A series and B series are available with 90- input and 180- input.
- Work With Leading Edge And Trailing Edge TRIAC Dimmers
- Built-in Active PFC Function
- Cooling By Free Air Convection
- Fully Isolated Plastic Case
- Class II Power Unit, no FG
- Low Cost And High Reliability
- Suitable For LED Related Fixture Or Appliance
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24-36 V / 24 V / 5 V
- LumaCircuit model: LC-PWR-OHBHRE
- Size: 84*57*29.5mm(L*W*H)
- Models: -350, -700, -1050, -1400
- Rated Current: (-350), (-700), (-1050), (-1400)
- Working Voltage Range: 40-58V(-350), 24-36V(-700), 16-24V(-1050), 12-18V(-1400)
- Current Accuracy: ±5%
- Rated Power: 20.3W(-350), 25.2W(-700), 25.2W(-1050), 25.2W(-1400)
- No Load Output Voltage(Max): 60V(-350), 50V(-700), 35V(-1050), 25V(-1400)
- Frequency Range: 47- 63Hz
- Power Factor: PF>0.9 PF>0.9 PF>0.9/ At Full Load
- AC Current: 0.6A 0.3A 0.2A
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The series triac dimmable LED drivers are fully isolated in a plastic case and have an IP42 design, cooling by free air convection, waterproof and dustproof, low cost, and high reliability. The triac light drivers have a constant current output design, and the installer can take and A series and B series are available with 90- input and 180- input. The dimming drivers offer AC phase-cut dimming, can work with leading-edge and trailing-edge triac dimmers, and are suitable for LED decoration and advertisement devices.
AC Phase-Cut Dimming
Work With Leading Edge And Trailing Edge TRIAC Dimmers
Or Models Available
Built-in Active PFC Function
Constant Current Design
Cooling By Free Air Convection
Fully Isolated Plastic Case
IP42 Design
Class II Power Unit, no FG
Low Cost And High Reliability
Suitable For LED Related Fixture Or Appliance
100% Full Load Burn-In Test
Specifications
Model
Brand
Size: 84*57*29.5mm(L*W*H)
Models: -350, -700, -1050, -1400
Type: A: With AC Input 90 B: With AC Input 180
Rated Current: (-350), (-700), (-1050), (-1400)
Working Voltage Range: 40-58V(-350), 24-36V(-700), 16-24V(-1050), 12-18V(-1400)
Current Accuracy: ±5%
Rated Power: 20.3W(-350), 25.2W(-700), 25.2W(-1050), 25.2W(-1400)
Ripple & Noise (Max.) note.1: 4.-p(-350), 2.-p(-700), 2.-p(-1050), p(-1400)
No Load Output Voltage(Max): 60V(-350), 50V(-700), 35V(-1050), 25V(-1400)
Setup Time At Full Load
Frequency Range: 47- 63Hz
Power Factor: PF>0.9 PF>0.9 PF>0.9/ At Full Load
Total Harmonic Distortion: THD<20% When Output Loading ≥70% And Output Loading ≥80% At Input
Efficiency: 82%(-350), 81%(-700), 80.5%(-1050), 81%(-1400)
AC Current: 0.6A 0.3A 0.2A
Inrush Current: Cold Start 10A At
Max NO. Of PSUs On 16A Circuit Breaker: A Series: 37 Units At B Series: 80 Units At
Leakage Current: <0.
Working Temperature: -30℃-+60℃
Working Humidity: 20-95% RH Non-condensing
Storage Temp., HUMIDITY: -40-+80℃, 10-95% RH
Temp. Coefficient: ±0.03%/℃(0-50℃)
Vibration: 10-500Hz, 2G./1 cycle, period for 72 min each along X, Y, and Z axes
Safety Standards CSA.2 No.250.0-08; ENEC BS EN/EN -1, BS EN/EN 61347-2-13, BS EN/(For B Type Only), BIS (For only), EAC TP TC 004, IP42 Approved; Design Refer To -1, BS EN/-1, BS EN/-2-13
Short Circuit Protection
Over Temperature Protection
Includes
1 * Triac Dimmable Driver
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
