Product details

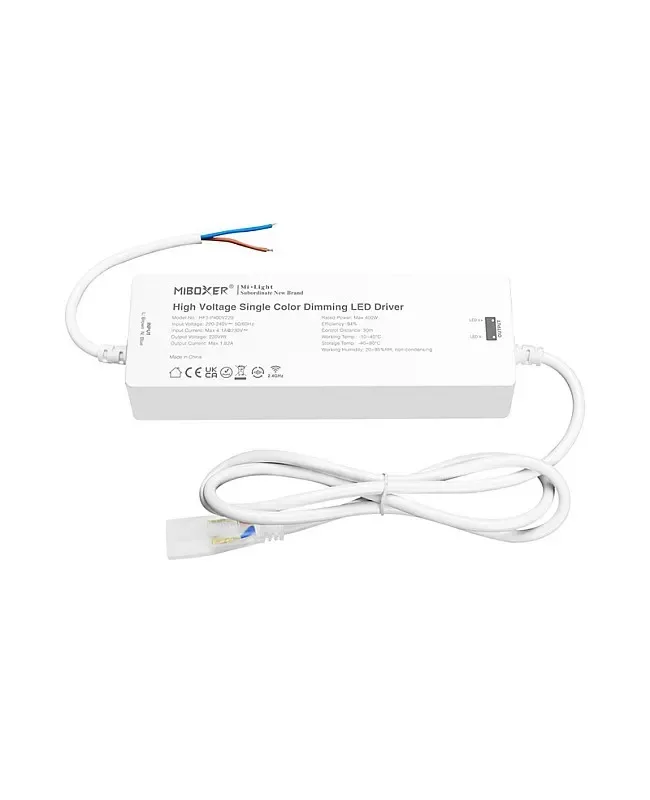

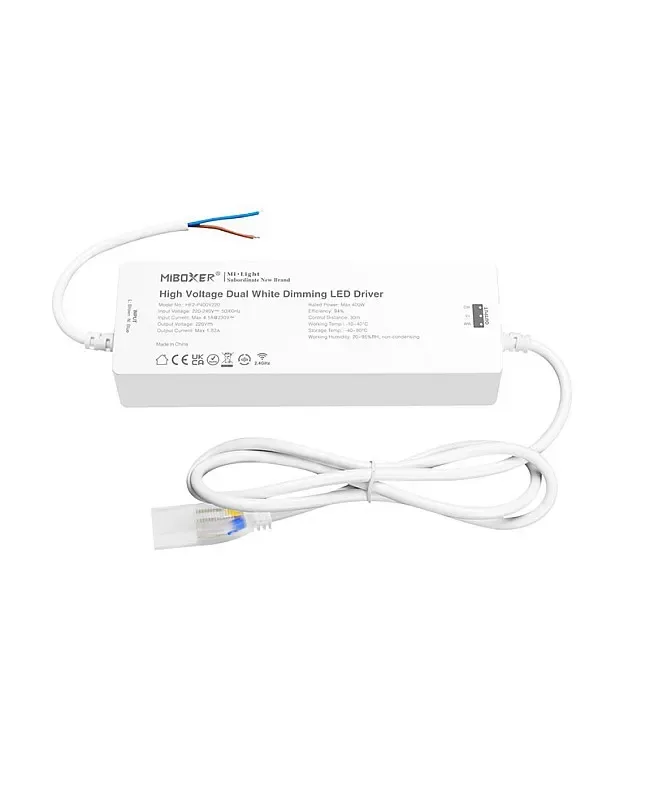

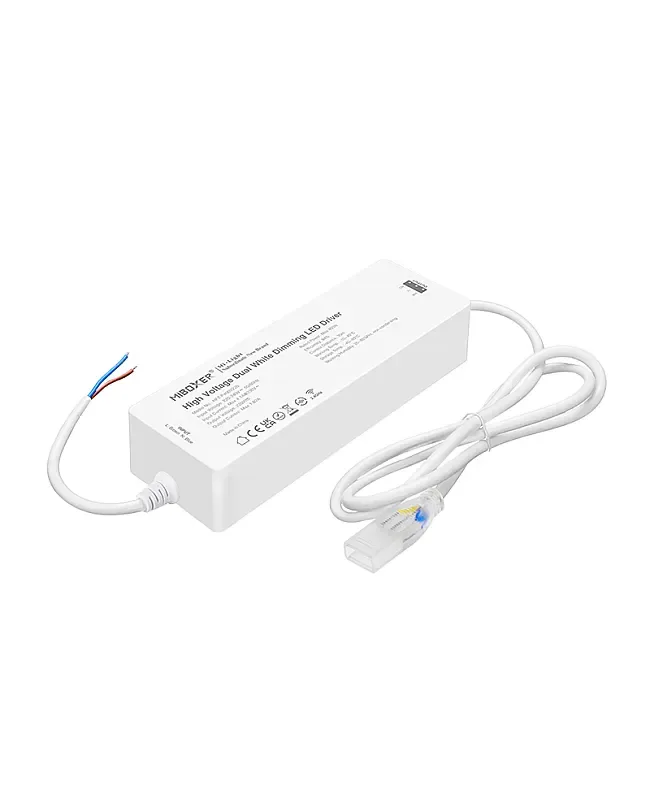

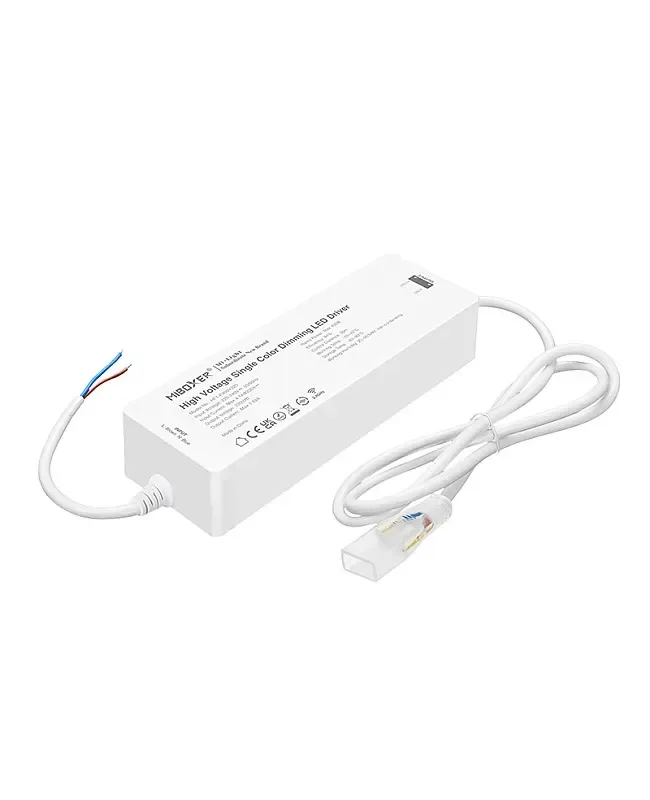

400W High Voltage Dimmable LED Light Transformer
LumaCircuit offers 400W High Voltage Dimmable LED Light Transformer as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Models: (For Single Color) / -(For Dual White) Size: 174*59*34.5mm(L*W*H) Input Voltage: -240V; 50/60Hz The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller HF series high-voltage dimmable LED light transformers have an output voltage of DC220V, which can be used for high-voltage dimmable LED lights. Made with 2.4G wireless transfer technology with low power consumption and anti-interference, it supports PWM dimming without any flashing. It has a built-in power driver, which makes it easy to power the device and protects the LED chip.
- Models: (For Single Color) / -(For Dual White)
- Size: 174*59*34.5mm(L*W*H)
- Input Voltage: -240V; 50/60Hz
- Color Temperature Adjustable
- Compatible With wireless controller Remote Controls T1(For Single Color) T2(For Dual White)
- Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
- Can Work With Amazon Alexa And Google Assistant
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 220-240 V / 220 V
- Light engine: CCT
- Models: (For Single Color) / -(For Dual White)
- Size: 174*59*34.5mm(L*W*H)
- Input Voltage: -240V; 50/60Hz
- Output Voltage: DC220V
- Total Output: Max 1.82A
- Rated Power: 400W Max
- Compatible With wireless controller Remote Controls: T1(For Single Color) T2(For Dual White)
- Control Distance: ≤30m
- Working Temperature: -10℃-+40℃
- Storage Temperature: -40℃-+80℃
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller HF series high-voltage dimmable LED light transformers have an output voltage of DC220V, which can be used for high-voltage dimmable LED lights. Made with 2.4G wireless transfer technology with low power consumption and anti-interference, it supports PWM dimming without any flashing. It has a built-in power driver, which makes it easy to power the device and protects the LED chip. The installer can use them for single-color or dual-white LED Lamps, which integrate a 2.4G communication protocol and can be controlled by 2.4G RF remote controls to adjust the color temperature and brightness for various scenes. The dimming LED transformer will receive signals from the remote control and transmit them to other LED fixtures within 30 meters. As long as there is lighting within 30 meters, the control distance can be limitless. The wireless controller AC dimming Transformer supports smartphone apps and third-party voice control after matching a 2.4 GHz gateway. It can work with Amazon Alexa and Google Assistant. The installer can use your phone or voice commands to control the LED lights remotely.
Specifications
Models: (For Single Color) / -(For Dual White)
Size: 174*59*34.5mm(L*W*H)
Input Voltage: -240V; 50/60Hz
Output Voltage: DC220V
Total Output: Max 1.82A
Rated Power: 400W Max
Color Temperature Adjustable
Brightness Adjustable
Efficiency: 94%
RF: 2.
Compatible With wireless controller Remote Controls T1(For Single Color) T2(For Dual White)
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant
Control Distance: ≤30m
Auto Signal Transmitting
Working Temperature: -10℃-+40℃
Storage Temperature: -40℃-+80℃
Working Humidity: 20-95% RH, Non-condensing
Overload Protection: Limited Power
Includes
1 * AC220V Dimmable LED Strip Light Transformer
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
