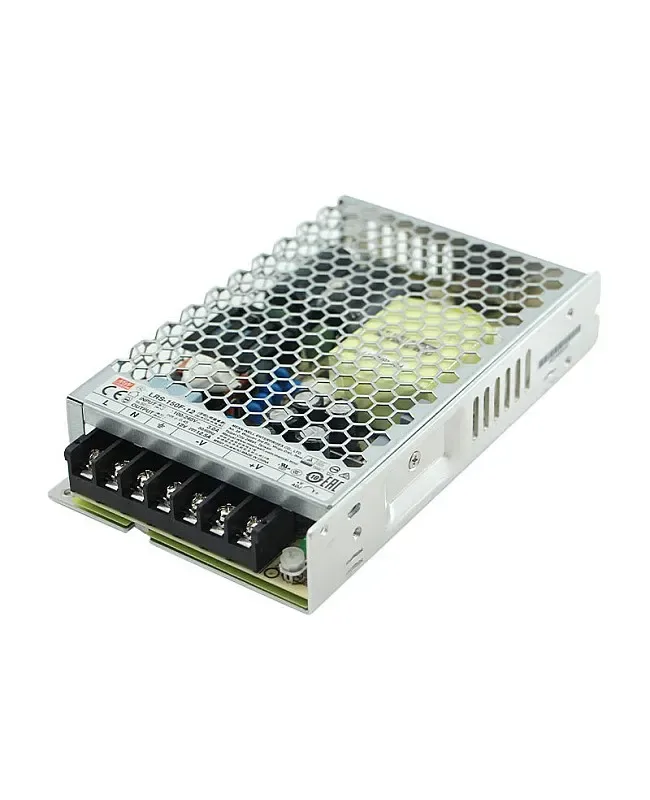

LRS Power Supply
LumaCircuit offers LRS Power Supply as a configurable LED driver or power supply for project builds. Typical applications include Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Withstand Surge Input For 5 Seconds No Load Power Consumption<0.5W Miniature Size And Low Profile The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Universal AC Input/Full Range
- Withstand Surge Input For 5 Seconds
- No Load Power Consumption<0.5W
- Miniature Size And Low Profile
- High Operating Temperature Up To 70℃
- Protections: Short Circuit Overload Over Voltage Over Temperature
- Cooling By Free Air Convection
- Compliance with IEC/EN 60335-1 And IEC/EN 61558- 1, 2-16 For Household Appliances
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

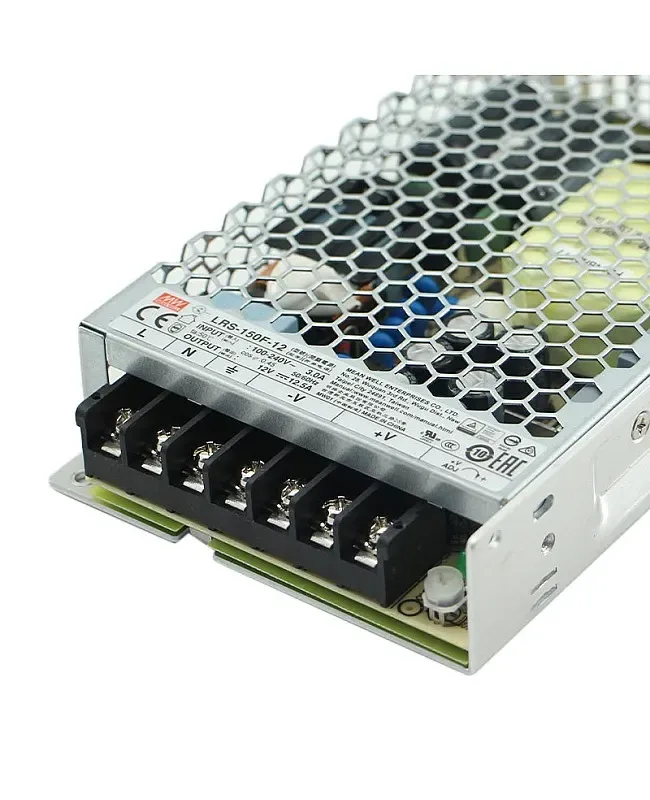

- Input: 5 V / 48 V / 12 V / 24 V / 36 V
- LumaCircuit model: LC-PWR-IE7EXD

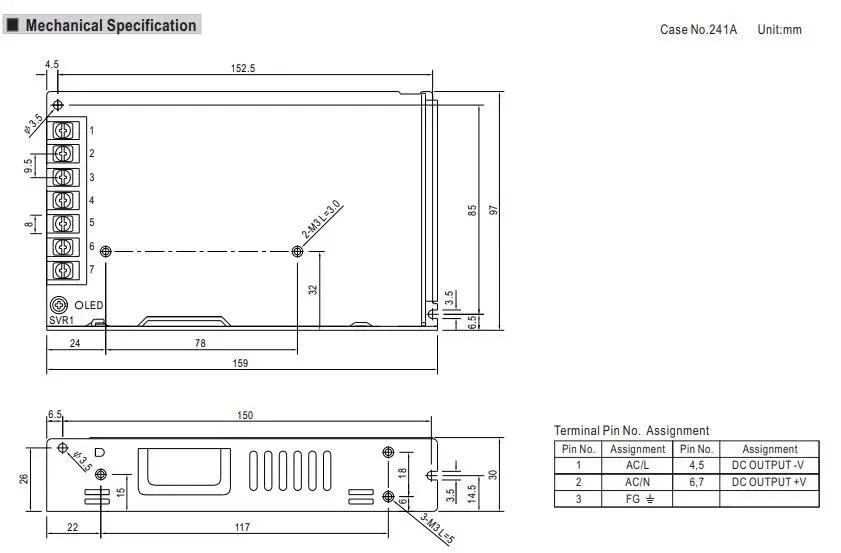

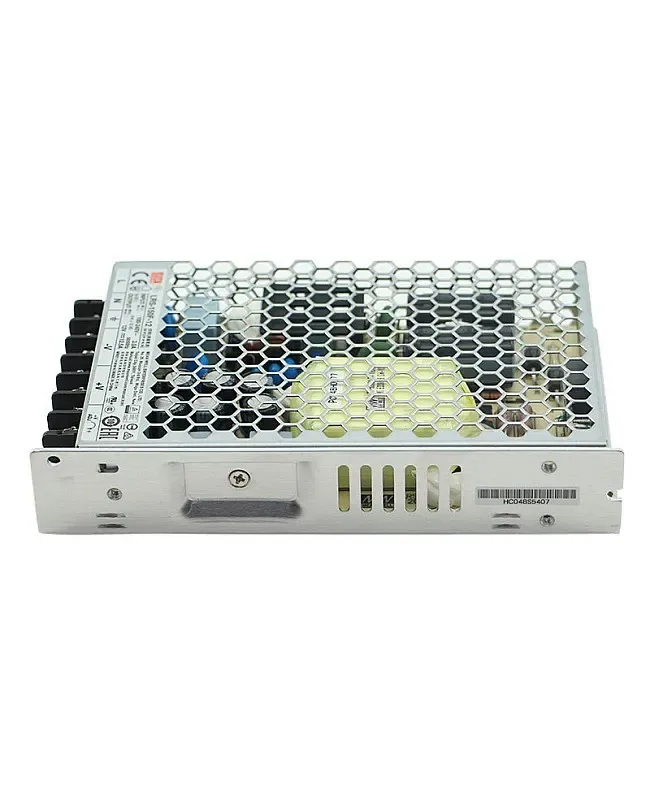

- Size: 159*97*30mm(L*W*H)
- Frequency Range: 47- 63Hz
- Output Voltage Range: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 22A(DC5V), 12.5A(DC12V), 10A(DC15V), 6.5A(DC24V), 4.3A(DC36V), 3.3A(DC48V)
- Rated Power: 110W(DC5V), 150W(DC12V), 150W(DC15V), 156W(DC24V), 154.8W(DC36V), 158.4W(DC48V)
- AC Current: 3A 1.7A

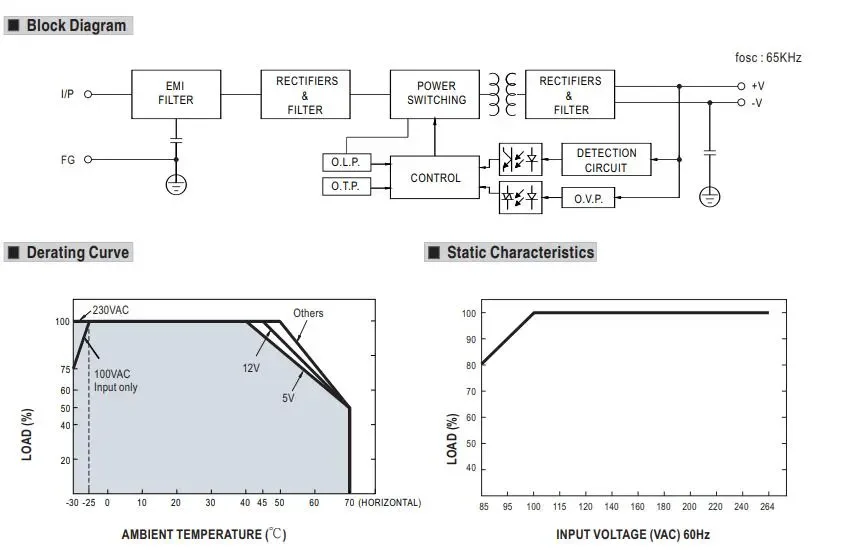

- Working Temperature: -30℃-+70℃
- Protections: Short Circuit Overload Over Voltage Over Temperature
- Dimensions found: 159x97x30mm / 30mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Universal AC Input/Full Range
Withstand Surge Input For 5 Seconds
No Load Power Consumption<0.5W
Miniature Size And Low Profile
High Operating Temperature Up To 70℃
Protections: Short Circuit Overload Over Voltage Over Temperature
Cooling By Free Air Convection
Compliance with IEC/EN 60335-1 And IEC/EN 61558- 1, 2-16 For Household Appliances
Operating Altitude Up To 5000 Meters
Withstand 5G Vibration Test
LED Indicator For Power On
Over Voltage Category III
100% Full Load Burn-In Test
