5 Volt DC Switch LED Driver With Metal Shell
LumaCircuit offers 5 Volt DC Switch LED Driver With Metal Shell as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Input Voltage: AC100V-AC120V:60Hz/AC200V-AC220V:50Hz By Switch Output Current: 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 20A, 30A, 40A, 50A, 60A, 70A Output Power: 10W, 15W, 20W, 25W, 30W, 40W, 50W, 60W, 100W, 150W, 200W, 250W, 300W, 350W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 5-volt DC switch LED drivers have a metal shell, and the shell has honeycomb holes for better heat dissipation. The input voltage range is from AC100V to AC220V, and they come with an ADJ switch. The installer can adjust the input voltage range, the output constant voltage is DC5V, choose the various output currents from 2A to 70A, and the maximum output power is up to 350W.
- Input Voltage: AC100V-AC120V:60Hz/AC200V-AC220V:50Hz By Switch
- Output Current: 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 20A, 30A, 40A, 50A, 60A, 70A
- Output Power: 10W, 15W, 20W, 25W, 30W, 40W, 50W, 60W, 100W, 150W, 200W, 250W, 300W, 350W
- Working Temperature: -15℃-+55℃
- Over Load Protection: ≥105%
- IP Rating: Non-Waterproof
- Power Supply Type: Indoor
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 120 V / 220 V
- Input Voltage: AC100V-AC120V:60Hz/AC200V-AC220V:50Hz By Switch
- Output Voltage: DC5V
- Output Current: 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 20A, 30A, 40A, 50A, 60A, 70A
- Output Power: 10W, 15W, 20W, 25W, 30W, 40W, 50W, 60W, 100W, 150W, 200W, 250W, 300W, 350W
- Power Efficiency: 85%
- Working Temperature: -15℃-+55℃
- Over Load Protection: ≥105%
- IP Rating: Non-Waterproof
- Power Supply Type: Indoor
- Input Connection Type: Screw Terminals
- LumaCircuit model: LC-PWR-324YR5
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

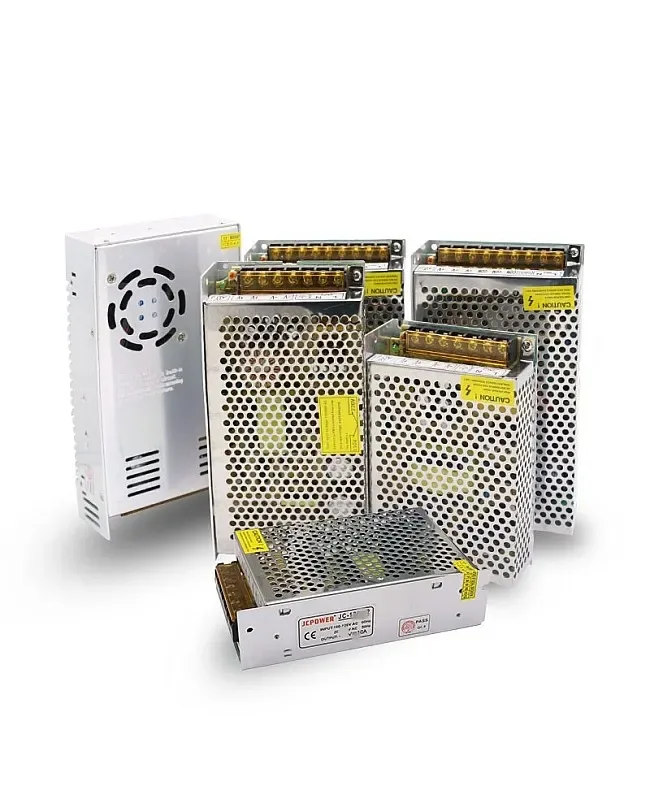

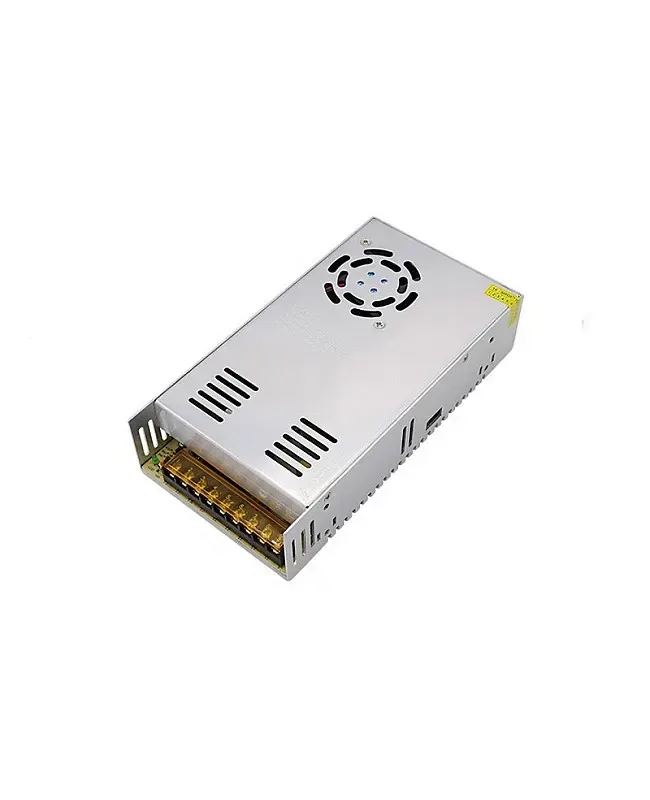

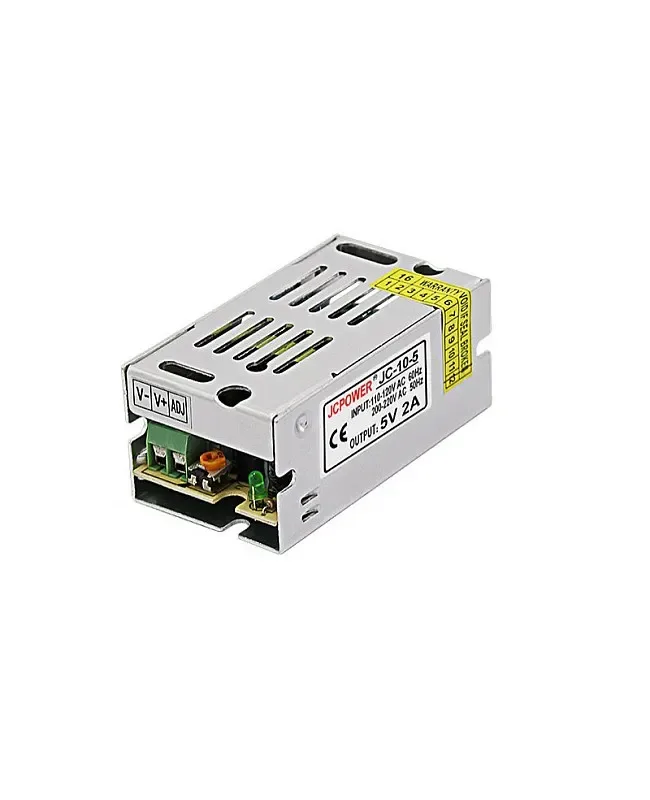

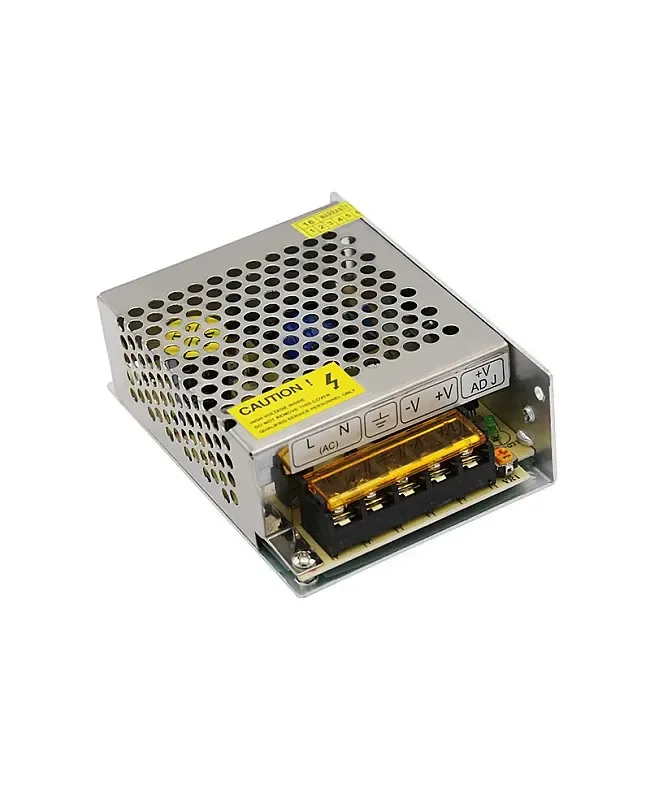

The 5-volt DC switch LED drivers have a metal shell, and the shell has honeycomb holes for better heat dissipation. The input voltage range is from AC100V to AC220V, and they come with an ADJ switch. The installer can adjust the input voltage range, the output constant voltage is DC5V, choose the various output currents from 2A to 70A, and the maximum output power is up to 350W. The 5V LED drivers are non-waterproof, only recommended for indoor applications, with multiple protections to ensure safety and reliability. They can work with pixel LED strips, module Lights, spot Lamps, and Other LED lights with a DC 5-volt input voltage.
Specifications
Input Voltage: AC100V-AC120V:60Hz/AC200V-AC220V:50Hz By Switch
Output Voltage: DC5V

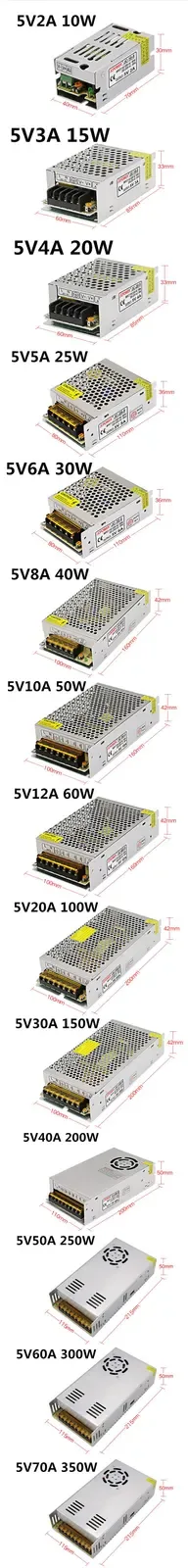

Output Current: 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 20A, 30A, 40A, 50A, 60A, 70A
Output Power: 10W, 15W, 20W, 25W, 30W, 40W, 50W, 60W, 100W, 150W, 200W, 250W, 300W, 350W
Power Efficiency: 85%
Working Temperature: -15℃-+55℃
Over Load Protection: ≥105%
Ripple: ≤150mm
IP Rating: Non-Waterproof
Dimmable: NO
Power Supply Type: Indoor

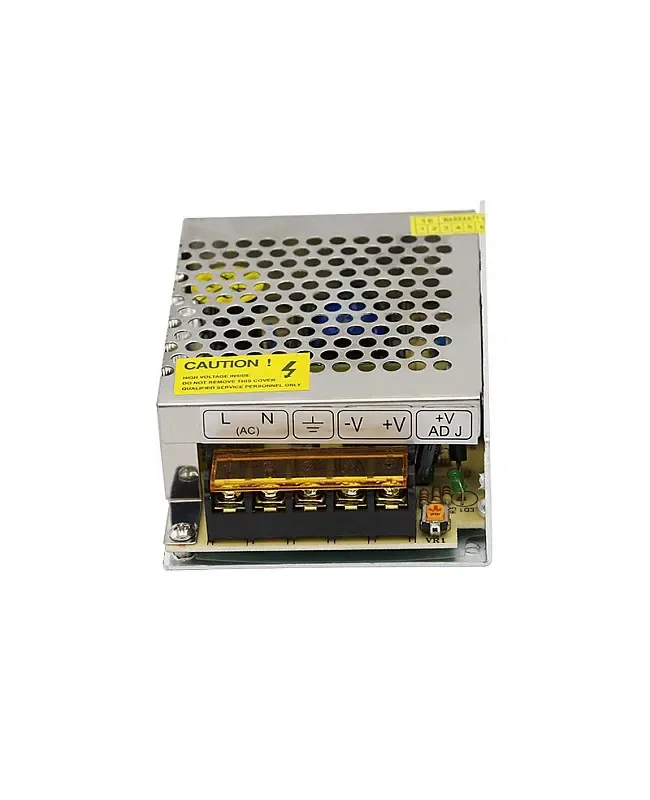

Input Connection Type: Screw Terminals
Compact Design, Simple Installation
Design Of Multi-Channel Heat Dissipation
Safety Wiring Box Cover
Over-Voltage Protection
Short Circuit Protection

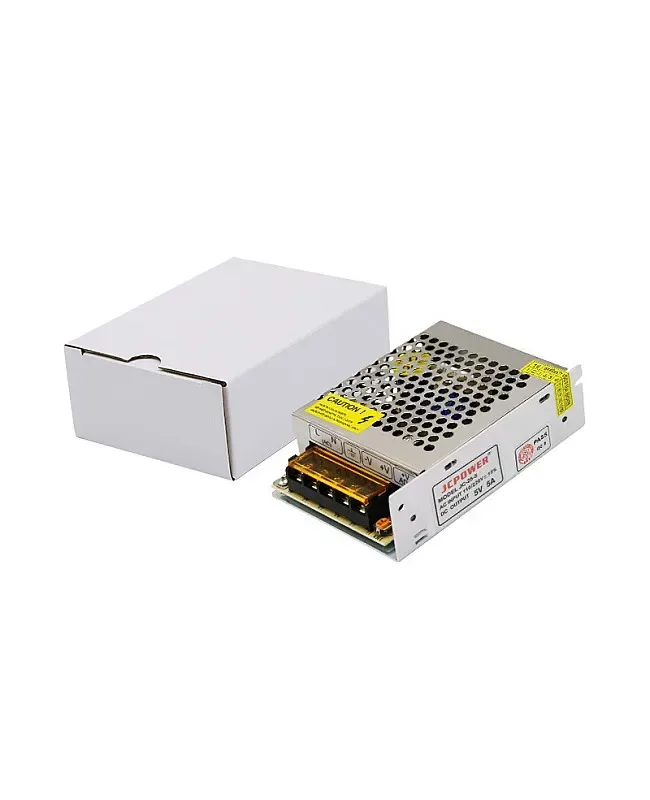

Includes
1 * DC5V LED Driver
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
