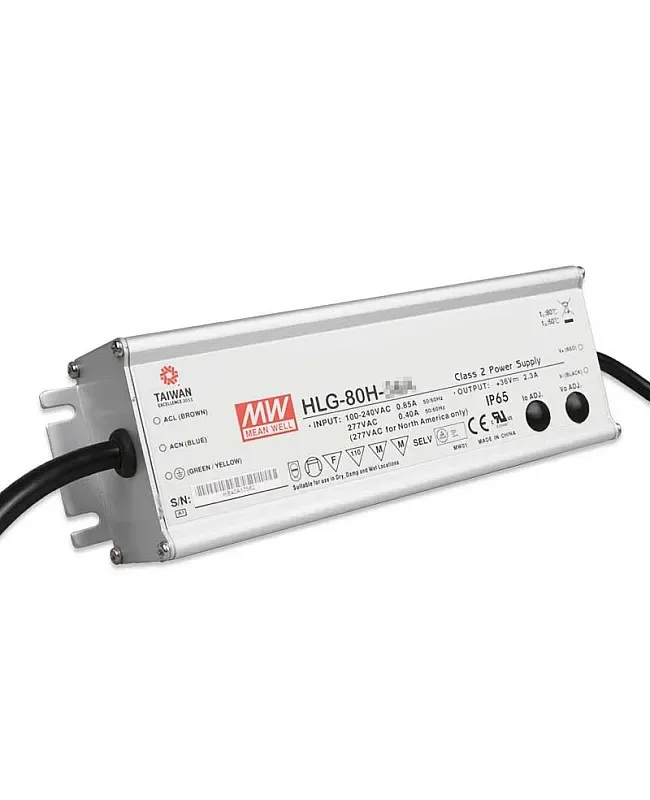

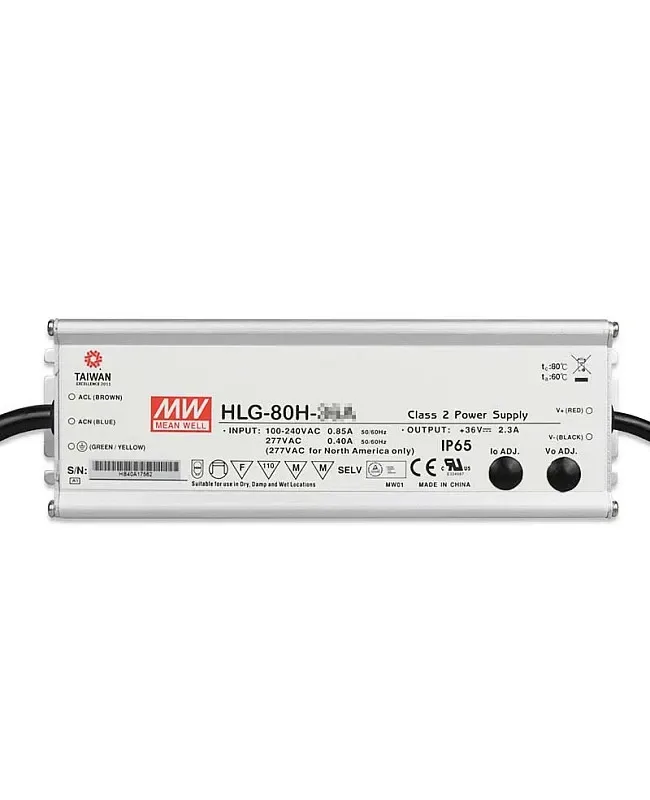

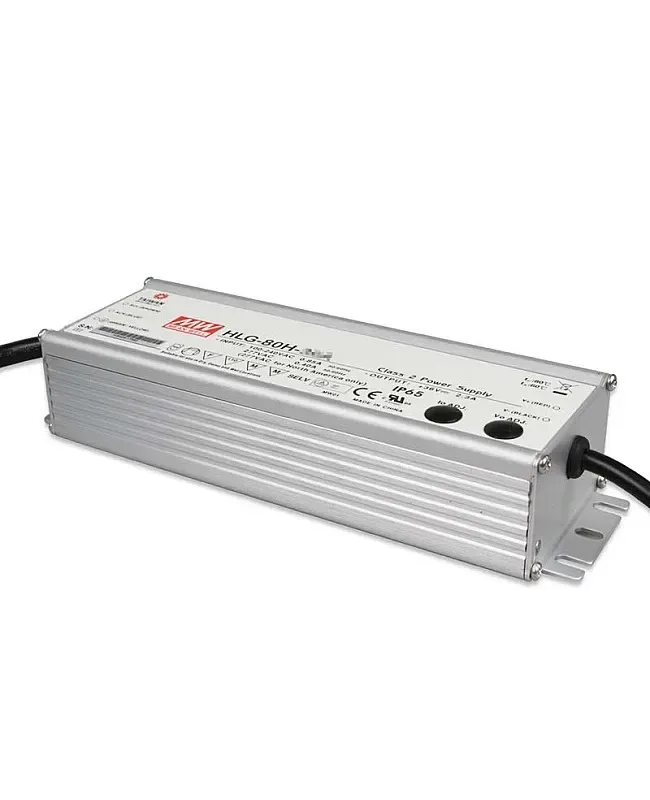

Power Supply 24V HLG

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The series power supplies have four waterproof power supplies available. The installer can choose the Io and Vo fixed products, Io and Vo adjustable products, 3 1 dimming and timer dimming products.
• Constant Voltage + Constant Current Mode Output

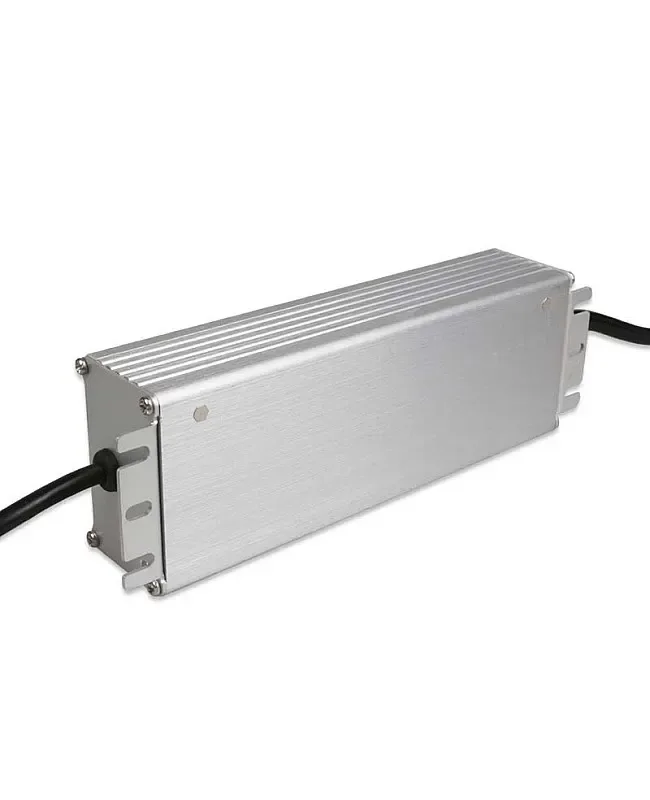

• Metal Housing With Class I Design
• Built-in Active PFC Function
• IP67 IP65 Rating For Indoor Or Outdoor Installations
• Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
• Applications: Street Lighting, High-Bay Lights, Parking Space Light, Fishing Lamps, Greenhouse Lights

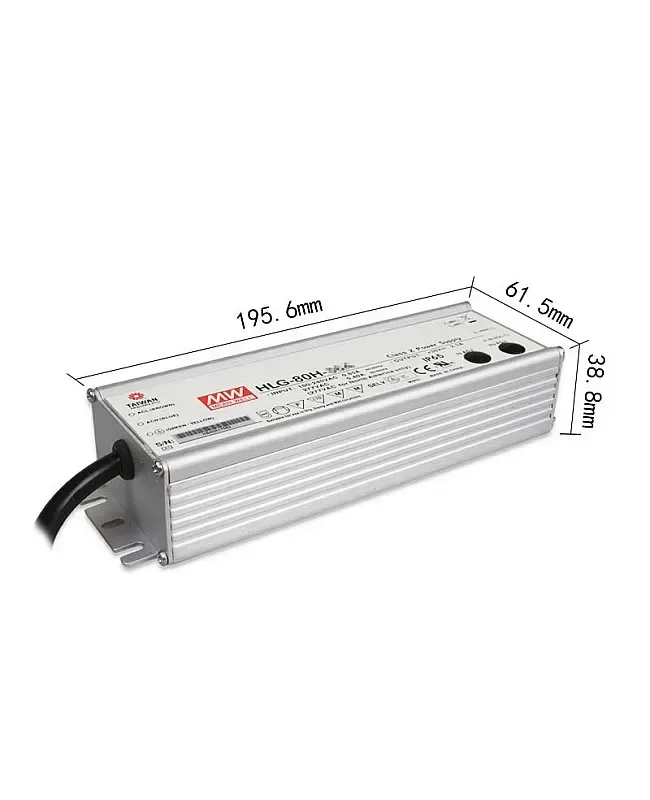

• Size: 195*61.5*38.8mm(L*W*H)

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24 V / 5 V / 12 V / 36 V / 48 V
• LumaCircuit model: LC-PWR-Z0UJIL
• Size: 195*61.5*38.8mm(L*W*H)
• Input Voltage Range: 90
• Frequency Range: 47- 63Hz
• Power Factor: PF≥0.96 PF≥0.96 PF≥0.94
• AC Current: 0.85A 0.425A 0.4A
• Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
• Rated Current: 5A(DC12V), 5A(DC15V), 4A(DC20V), 3.4A(DC24V), 2.7A(DC30V), 2.3A(DC36V), 1.95A(DC42V), 1.7A(DC48V), 1.5A(DC54V)
• Rated Power: 60W(DC12V), 75W(DC15V), 80W(DC20V), 81.6W(DC24V), 81W(DC30V), 82.8W(DC36V), 81.9W(DC42V), 81.6W(DC48V), 81W(DC54V)
• Working Temperature: -40℃-+80℃
• Applications: Street Lighting, High-Bay Lights, Parking Space Light, Fishing Lamps, Greenhouse Lights

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The series power supplies have four waterproof power supplies available. The installer can choose the Io and Vo fixed products, Io and Vo adjustable products, 3 1 dimming and timer dimming products. The Types of A and AB's voltage and current adjustable through the built-in potentiometer, the universal input voltage range from AC90V to AC305V, the installer can connect to the public power system directly without an adapter, the power supplies are waterproof, the installer can use them in dry, damp or wet locations, the installer can use them for the street lights, high-bay lightings, etc.

Constant Voltage + Constant Current Mode Output

Metal Housing With Class I Design

Built-in Active PFC Function

Class 2 Power Unit

IP67 IP65 Rating For Indoor Or Outdoor Installations

Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming

Applications: Street Lighting, High-Bay Lights, Parking Space Light, Fishing Lamps, Greenhouse Lights

Quick Links

Specifications

Model

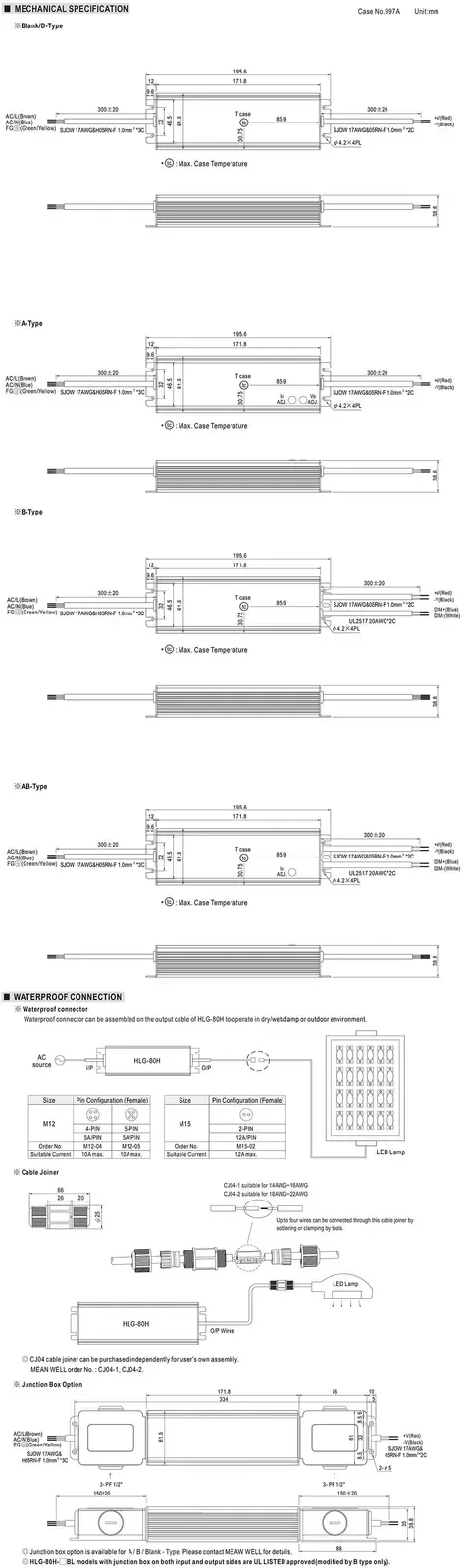

Size: 195*61.5*38.8mm(L*W*H)

Blank: IP67 Waterproof Level, Voltage, And Current Fixed

A: IP65 Waterproof Level, Voltage, And Current Adjustable Through Built-in Potentiometer

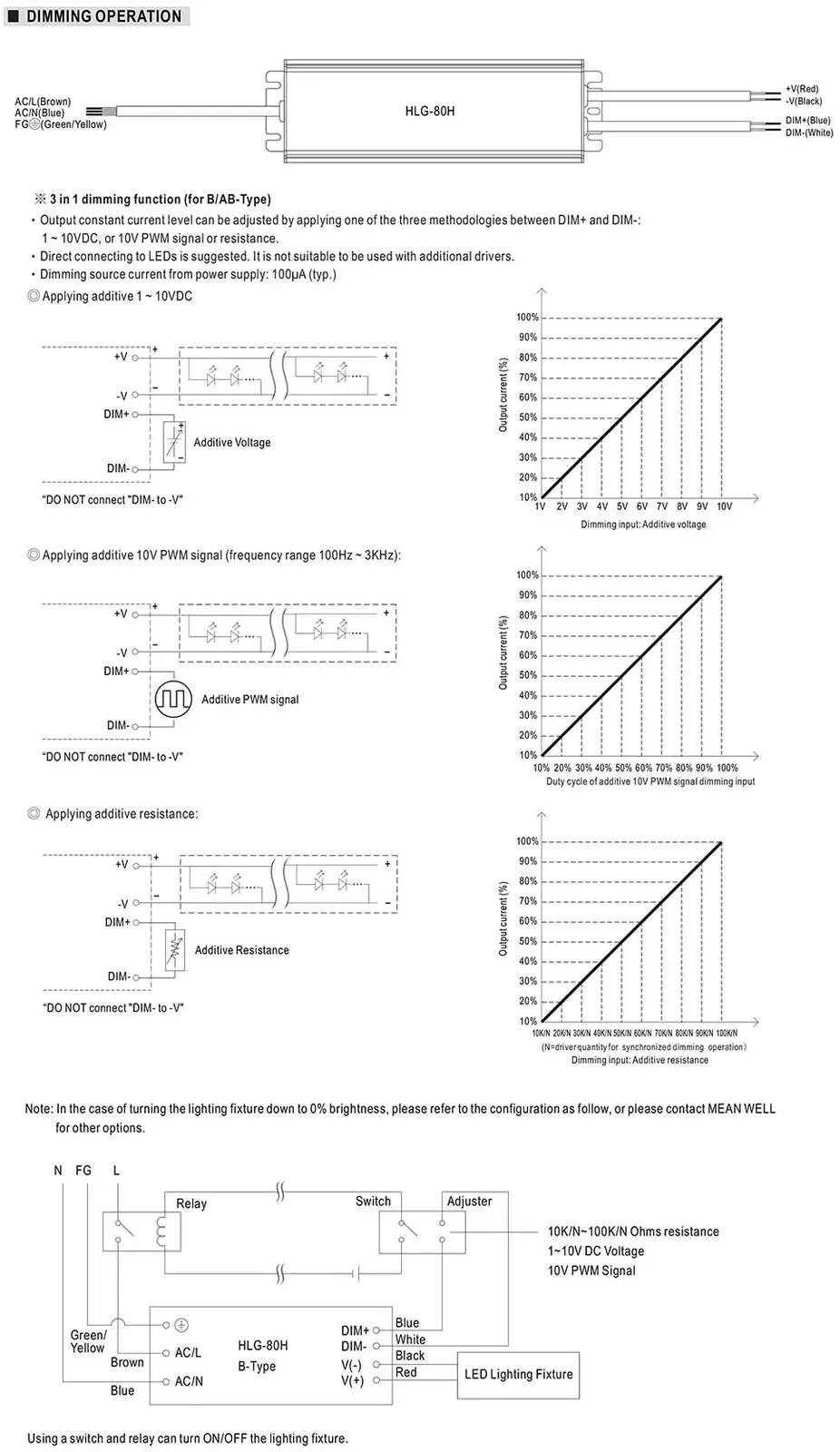

B: IP67 Waterproof Level, 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)

AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)

D: IP67 Waterproof Level, Timer Dimming Function

Input Voltage Range: 90

Frequency Range: 47- 63Hz

Power Factor: PF≥0.96 PF≥0.96 PF≥0.94

Efficiency: 88%(DC12V), 89%(DC15V), 90%(DC20V), 90.5%(DC24V), 91%(DC30V), 91%(DC36V), 91%(DC42V), 91%(DC48V), 91%(DC54V)

AC Current: 0.85A 0.425A 0.4A

Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V

Rated Current: 5A(DC12V), 5A(DC15V), 4A(DC20V), 3.4A(DC24V), 2.7A(DC30V), 2.3A(DC36V), 1.95A(DC42V), 1.7A(DC48V), 1.5A(DC54V)

Rated Power: 60W(DC12V), 75W(DC15V), 80W(DC20V), 81.6W(DC24V), 81W(DC30V), 82.8W(DC36V), 81.9W(DC42V), 81.6W(DC48V), 81W(DC54V)

Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 3-5A(DC12V), 3-4A(DC15V), 2.4-4A(DC20V), 2.04-3.4A(DC24V), 1.62-2.7A(DC30V), 1.38-2.3A(DC36V), 1.17-1.95A(DC42V), 1.02-1.7A(DC48V), 0.9-1.5A(DC54V)

Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 10.8-13.5V(DC12V), 13.5-17V(DC15V), 17-22V(DC20V), 22-27V(DC24V), 27-33V(DC30V), 33-40V(DC36V), 38-46V(DC42V), 43-53V(DC48V), 49-58V(DC54V)

Working Temperature: -40℃-+80℃

Vibration: 10-500Hz, 5G period for each along X, Y, Z axes

Safety Standards: (Type "HL"), CSA.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 Independent,1,14, EAC TP TC 004, -2-13(Except For AB-Type), IP67 Or IP65 Approved

Short Circuit Protection

Over-Voltage Protection

Over Temperature Protection

Includes

1 * Series Power Supply
