Waterproof 12V Power Supply HLG
LumaCircuit offers Waterproof 12V Power Supply HLG as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Metal Housing With Class I Design Built-in Active PFC Function IP67 IP65 Rating For Indoor Or Outdoor Installations The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Constant Voltage + Constant Current Mode Output
- Metal Housing With Class I Design
- Built-in Active PFC Function
- IP67 IP65 Rating For Indoor Or Outdoor Installations
- Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
- Applications: LED Street Lights, High Bay Lights, Parking Space Lights, Fish Lights, Greenhouse Lights, etc

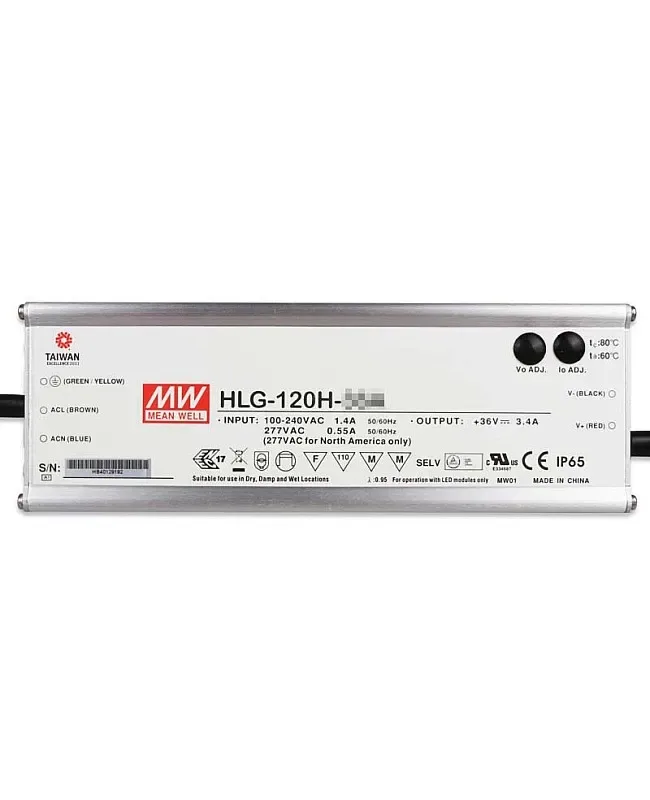

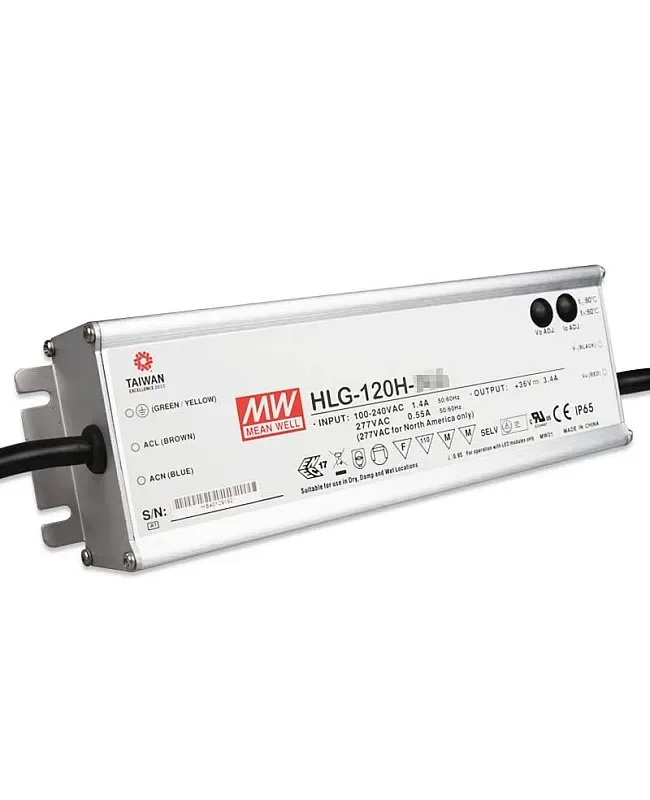

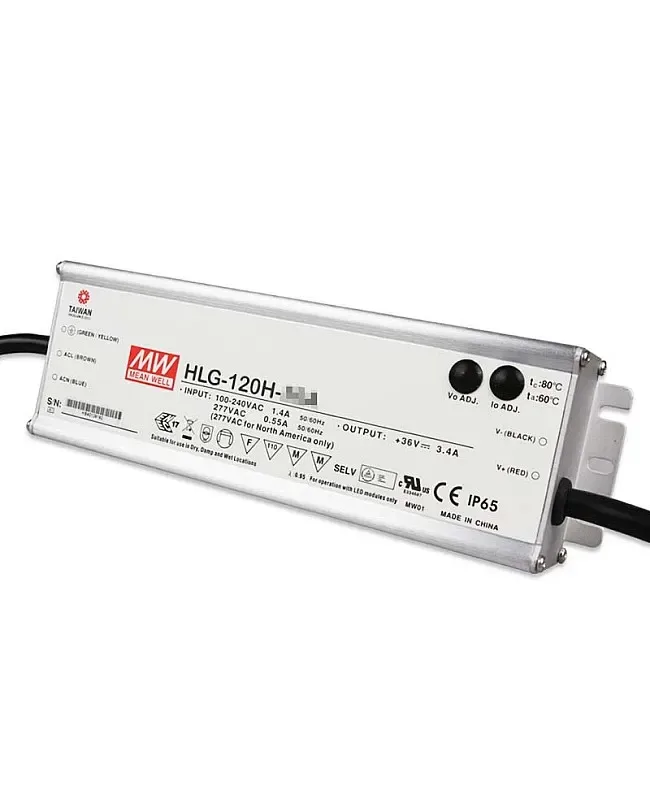

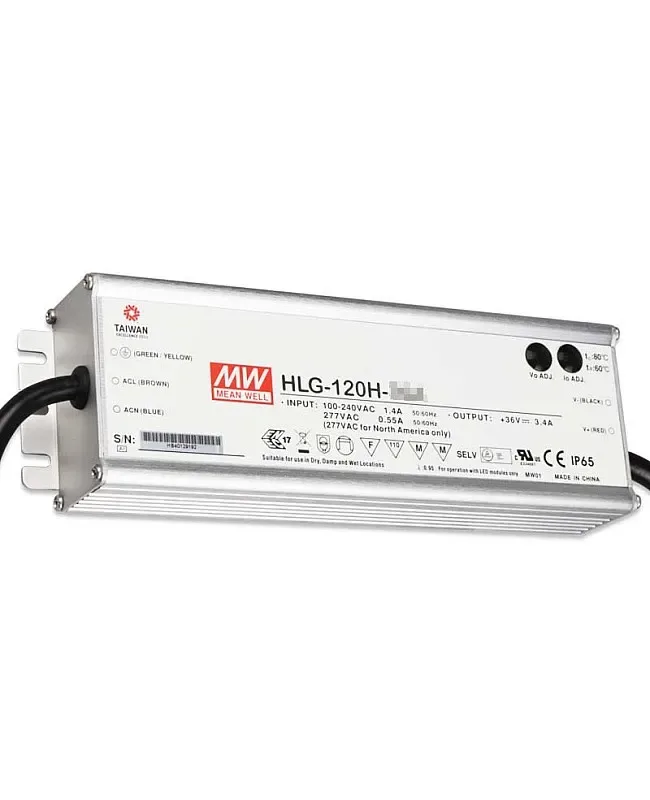

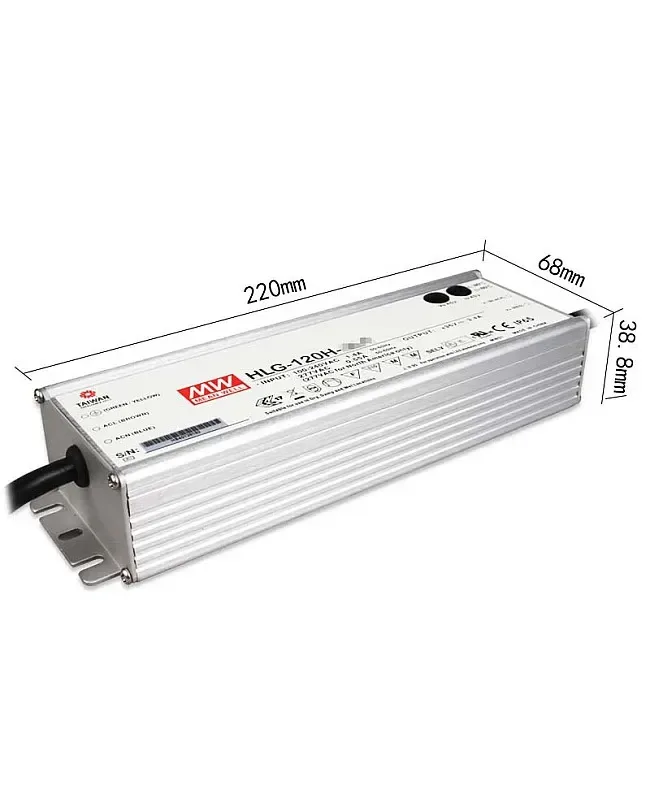

- Size: 220*68*38.8mm(L*W*H)
- Blank: IP67 Waterproof Level, Voltage, And Current Fixed
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V / 24 V / 36 V / 48 V
- LumaCircuit model: LC-PWR-LLM6NB
- Size: 220*68*38.8mm(L*W*H)
- Input Voltage Range: 90
- Frequency Range: 47- 63Hz
- Power Factor: PF≥0.98 PF≥0.95 PF≥0.93
- AC Current: 1.4A 0.6A 0.55A
- Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
- Rated Current: 10A(DC12V), 8A(DC15V), 6A(DC20V), 5A(DC24V), 4A(DC30V), 3.4A(DC36V), 2.9A(DC42V), 2.5A(DC48V), 2.3A(DC54V)
- Rated Power: 120W(DC12V), 120W(DC15V), 120W(DC20V), 120W(DC24V), 120W(DC30V), 122.4W(DC36V), 121.8W(DC42V), 120W(DC48V), 124.2W(DC54V)
- Working Temperature: -40℃-+80℃
- Applications: LED Street Lights, High Bay Lights, Parking Space Lights, Fish Lights, Greenhouse Lights, etc
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Constant Voltage + Constant Current Mode Output
Metal Housing With Class I Design
Built-in Active PFC Function
IP67 IP65 Rating For Indoor Or Outdoor Installations
Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
Applications: LED Street Lights, High Bay Lights, Parking Space Lights, Fish Lights, Greenhouse Lights, etc
Quick Links
Specifications

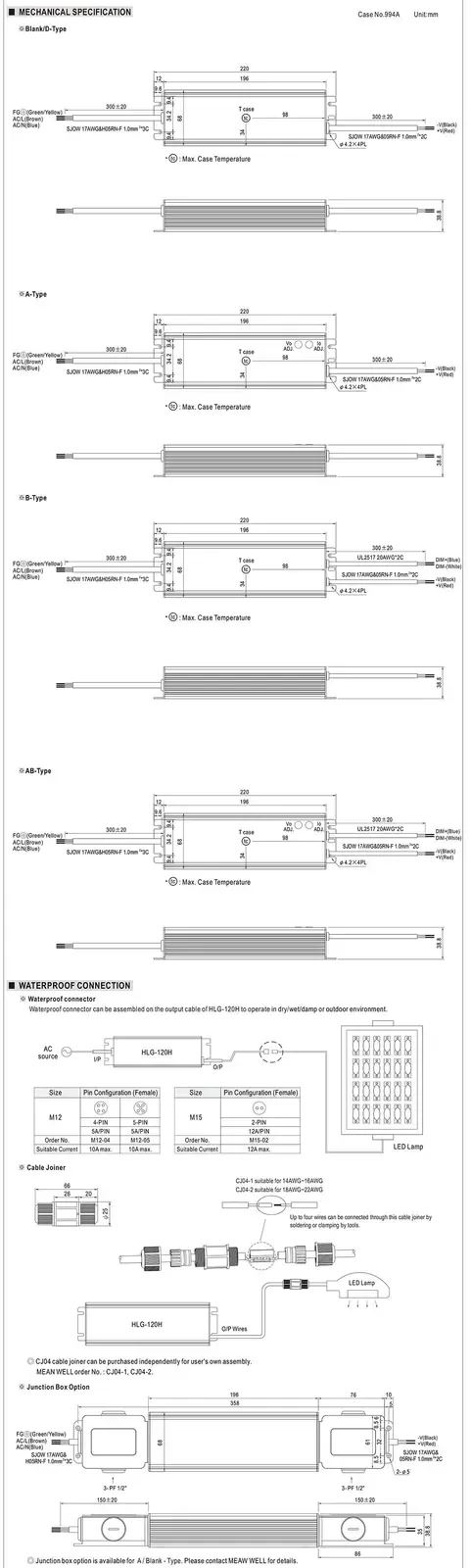

Model
Size: 220*68*38.8mm(L*W*H)
Blank: IP67 Waterproof Level, Voltage, And Current Fixed
A: IP65 Waterproof Level, Voltage, And Current Adjustable Through Built-in Potentiometer

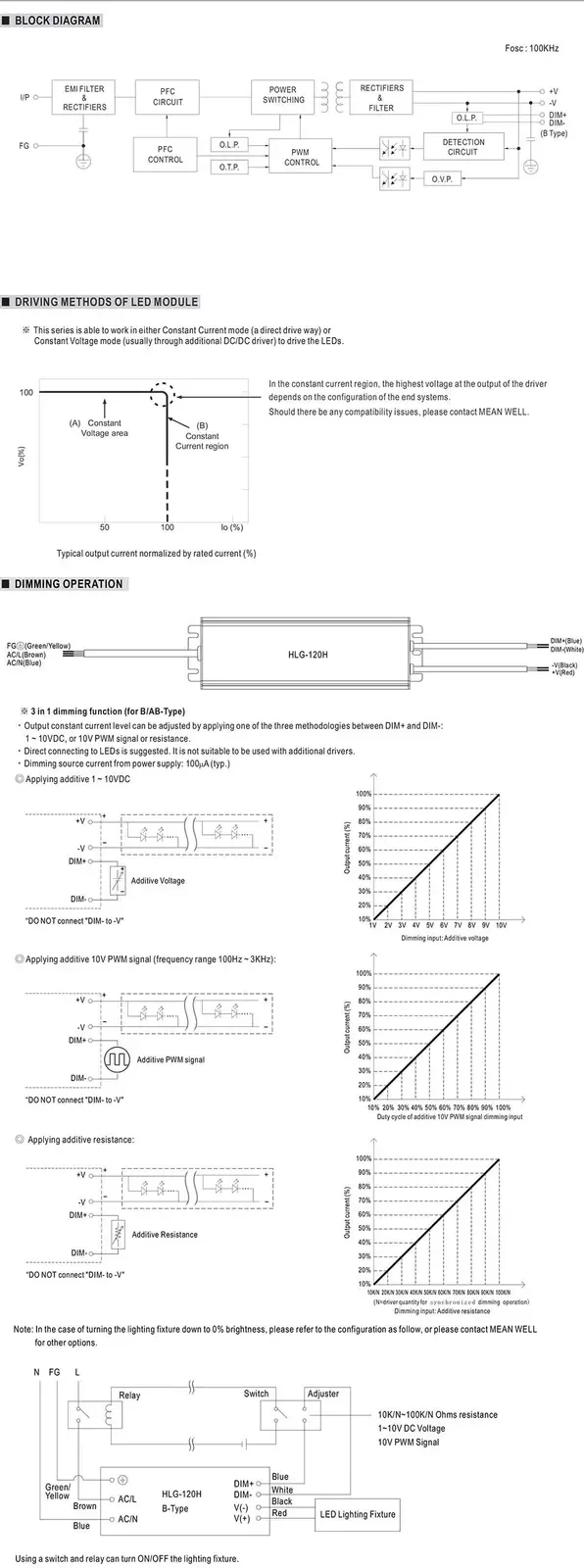

B: IP67 Waterproof Level, 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)
AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)
D: IP67 Waterproof Level, Timer Dimming Function
Input Voltage Range: 90
Frequency Range: 47- 63Hz
Power Factor: PF≥0.98 PF≥0.95 PF≥0.93
Efficiency: 92%(DC12V), 92%(DC15V), 93%(DC20V), 93%(DC24V), 93%(DC30V), 93%(DC36V), 93%(DC42V), 93.5%(DC48V), 93.5%(DC54V)
AC Current: 1.4A 0.6A 0.55A
Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
Rated Current: 10A(DC12V), 8A(DC15V), 6A(DC20V), 5A(DC24V), 4A(DC30V), 3.4A(DC36V), 2.9A(DC42V), 2.5A(DC48V), 2.3A(DC54V)
Rated Power: 120W(DC12V), 120W(DC15V), 120W(DC20V), 120W(DC24V), 120W(DC30V), 122.4W(DC36V), 121.8W(DC42V), 120W(DC48V), 124.2W(DC54V)
Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 5-10A(DC12V), 4-8A(DC15V), 3-6A(DC20V), 2.5-5A(DC24V), 2-4A(DC30V), 1.7-3.4A(DC36V), 1.4-2.9A(DC42V), 1.2-2.5A(DC48V), 1.1-2.3A(DC54V)
Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 10.8-13.5V(DC12V), 13.5-17V(DC15V), 17-22V(DC20V), 22-27V(DC24V), 27-33V(DC30V), 33-40V(DC36V), 38-46V(DC42V), 43-53V(DC48V), 49-58V(DC54V)
Working Temperature: -40℃-+80℃
Vibration: 10-500Hz, 5G period for each along X, Y, Z axes
Safety Standards: (Type "HL"), CSA.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 Independent,1,14, EAC TP TC 004, -2-13(Except For AB-Type), IP67 Or IP65 Approved
Short Circuit Protection
Over-Voltage Protection
Over Temperature Protection
Includes
1 * Waterproof Power Supply
