Product details

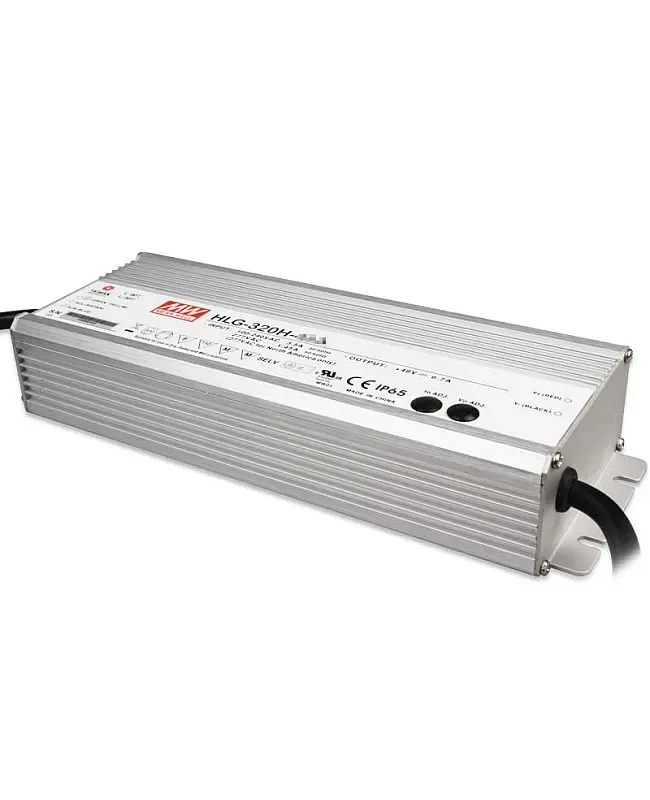

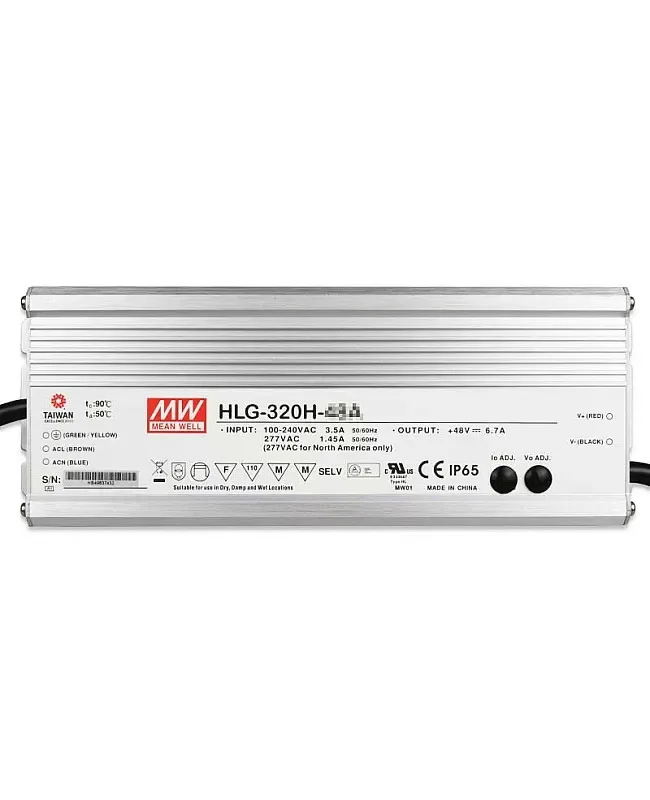

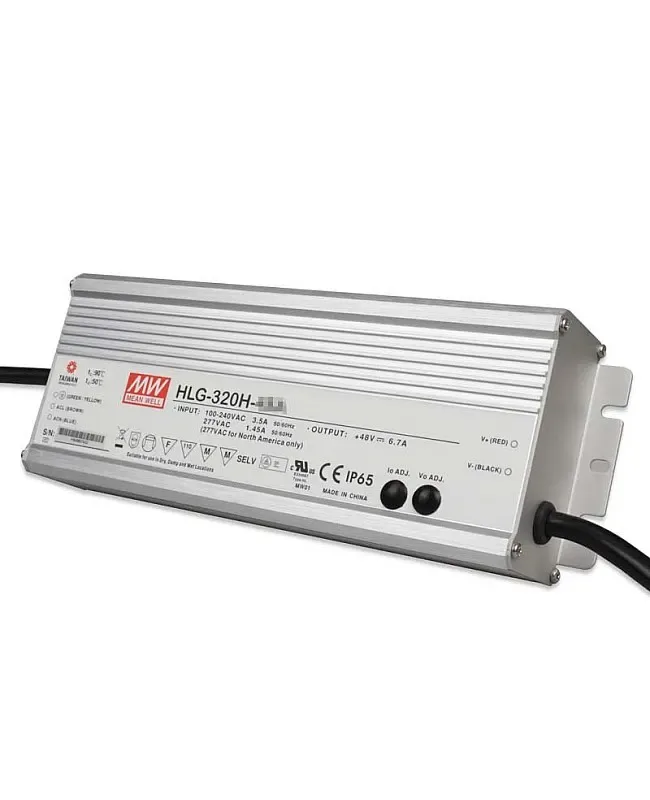

HLG Power Supply LED
LumaCircuit offers HLG Power Supply LED as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Output Voltage And Output Current Adjustable Through The Built-in Potentiometer(A, B, C Types） Dimming Function(B, AB, D Types) Metal Housing With Class I Design The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Constant Voltage And Constant Current Mode Output
- Output Voltage And Output Current Adjustable Through The Built-in Potentiometer(A, B, C Types）
- Dimming Function(B, AB, D Types)

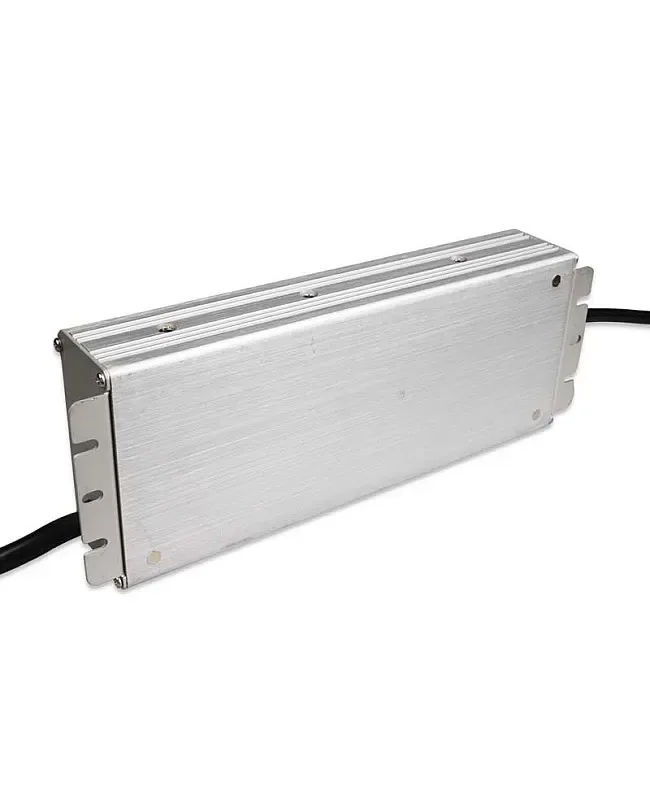

- Metal Housing With Class I Design
- Built-in Active PFC Design
- IP67 IP65 Rating For Indoor Or Outdoor Installations
- Suitable For Outdoor Street Lamps, High-Bay Lights, Parking Space Lighting, Waterproof Fishing Lamps, etc

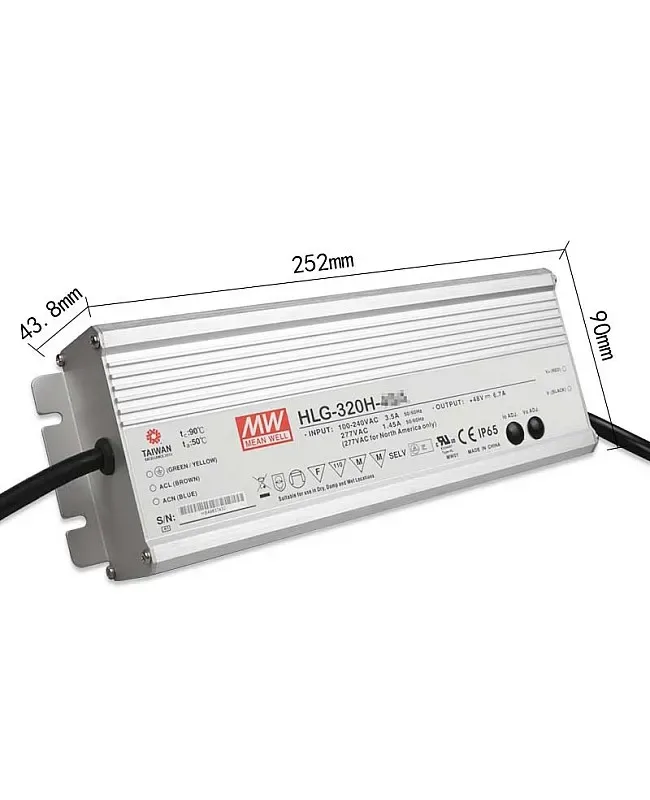

- Size: 252*90*43.8mm(L*W*H)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V / 24 V / 36 V / 48 V
- LumaCircuit model: LC-PWR-DYSQ8I
- Size: 252*90*43.8mm(L*W*H)
- Input Voltage Range: 90
- Frequency Range: 47- 63Hz
- Power Factor: PF≥0.98 PF≥0.95 PF≥
- AC Current: 3.5A 1.65A 1.45A
- Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
- Rated Current: 22A(DC12V), 19A(DC15V), 15A(DC20V), 13.34A(DC24V), 10.7A(DC30V), 8.9A(DC36V), 7.65A(DC42V), 6.7A(DC48V), 5.95A(DC54V)
- Rated Power: 264W(DC12V), 285W(DC15V), 300W(DC20V), 320.16W(DC24V), 321W(DC30V), 320.4W(DC36V), 321.3W(DC42V), 321.6W(DC48V), 321.3W(DC54V)
- Working Temperature: -40℃-+80℃
- Dimensions found: 252x90x43.8mm / 43.8mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Constant Voltage And Constant Current Mode Output
Output Voltage And Output Current Adjustable Through The Built-in Potentiometer(A, B, C Types）
Dimming Function(B, AB, D Types)
Metal Housing With Class I Design
Built-in Active PFC Design
IP67 IP65 Rating For Indoor Or Outdoor Installations
Suitable For Outdoor Street Lamps, High-Bay Lights, Parking Space Lighting, Waterproof Fishing Lamps, etc
Quick Links
Specifications
Model

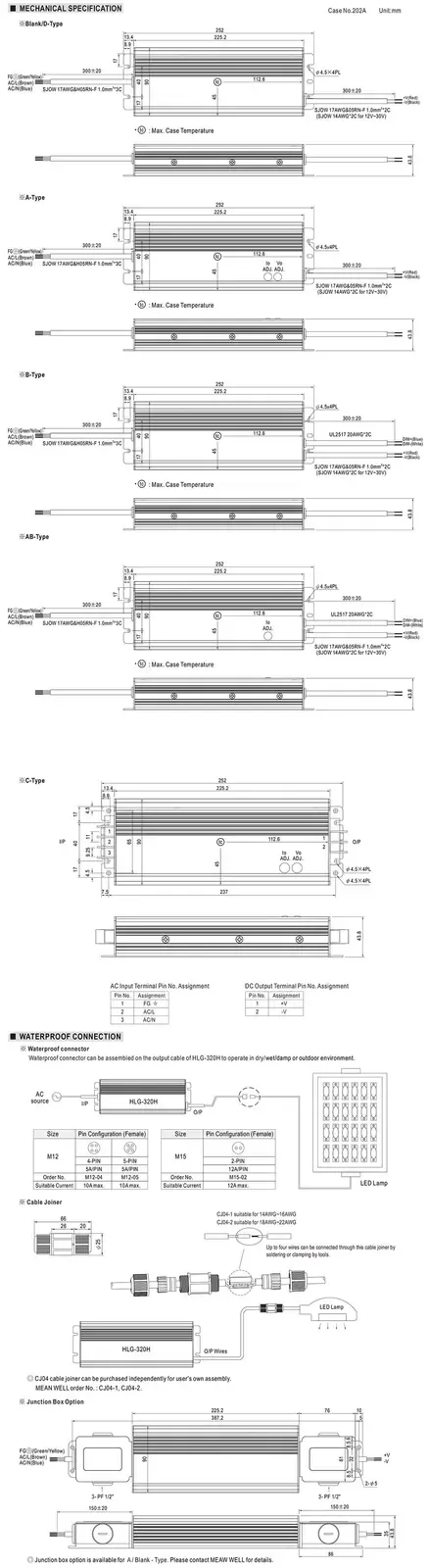

Size: 252*90*43.8mm(L*W*H)
Blank: IP67 Waterproof Level, Voltage, And Current Fixed
A: IP65 Waterproof Level, Voltage, And Current Adjustable Through Built-in Potentiometer

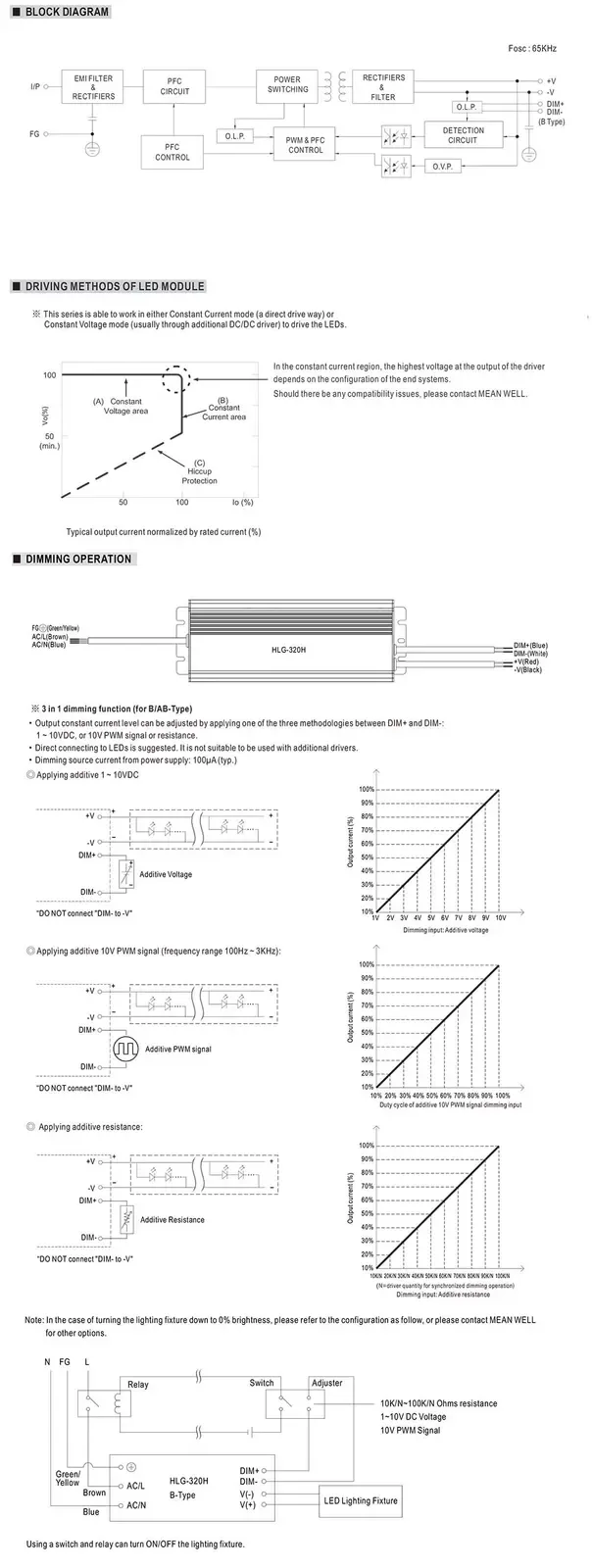

B: IP67 Waterproof Level, 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)
AB: IP65 Waterproof Level, Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)
C: NO IP Assigned, Terminal Block For I/O Connection. The Output Voltage And Constant Current Level Can Be Adjusted Through the Internal Potentiometer
D: IP67 Waterproof Level, Timer Dimming Function
Input Voltage Range: 90
Frequency Range: 47- 63Hz
Power Factor: PF≥0.98 PF≥0.95 PF≥
Efficiency: 91%(DC12V), 92.5%(DC15V), 93.5%(DC20V), 94%(DC24V), 94%(DC30V), 94.5%(DC36V), 95%(DC42V), 95%(DC48V), 95%(DC54V)
AC Current: 3.5A 1.65A 1.45A
Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
Rated Current: 22A(DC12V), 19A(DC15V), 15A(DC20V), 13.34A(DC24V), 10.7A(DC30V), 8.9A(DC36V), 7.65A(DC42V), 6.7A(DC48V), 5.95A(DC54V)
Rated Power: 264W(DC12V), 285W(DC15V), 300W(DC20V), 320.16W(DC24V), 321W(DC30V), 320.4W(DC36V), 321.3W(DC42V), 321.6W(DC48V), 321.3W(DC54V)
Current Adjustable Range(For A/AB/C Type Only Via Built-in Potentiometer): 11-22A(DC12V), 9.5-19A(DC15V), 7.5-15A(DC20V), 6.67-13.34A(DC24V), 5.35-10.7A(DC30V), 4.4.5-8.9A(DC36V), 3.8-7.65A(DC42V), 3.35-56.7A(DC48V), 2.97-5.95A(DC54V)
Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 10.8-13.5V(DC12V), 13.5-17V(DC15V), 17-22V(DC20V), 21-26V(DC24V), 26-32V(DC30V), 32-39V(DC36V), 38-45V(DC42V), 43-52V(DC48V), 49-58V(DC54V)
Working Temperature: -40℃-+80℃
Vibration: 10-500Hz, 5G period for each along X, Y, Z axes
Short Circuit Protection
Over-Voltage Protection
Over Temperature Protection
Includes
1 * Power Supply LED
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
