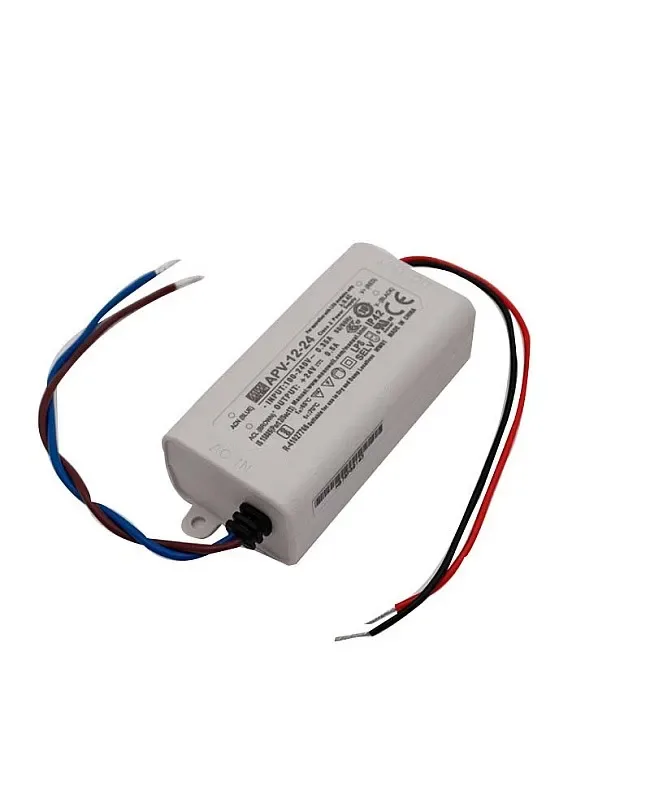

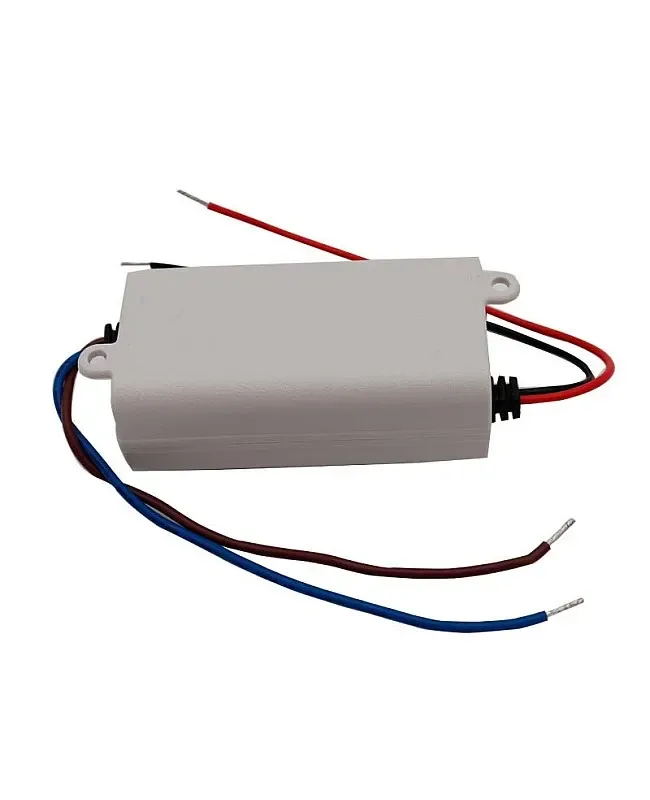

APV 12 Series Constant Voltage LED Drivers
LumaCircuit offers APV 12 Series Constant Voltage LED Drivers as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Universal AC Input Full Range Protections: Short Circuit Overload Over Voltage Fully Isolated Plastic Case The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12W single-output series LED drivers are designed to provide reliable and stable power for a wide range of LED applications. With a constant voltage output design, the installer can choose the various output voltage products from DC5V, DC12V, DC15V, or DC24V. Features a wide input voltage range of AC90V-AC264V, and a max output power of 12W. The driver is a low-cost, easy-to-use solution for powering LEDs.
- Universal AC Input Full Range
- Protections: Short Circuit Overload Over Voltage
- Fully Isolated Plastic Case
- Cooling By Free Air Convection
- Class II Power Unit, no FG
- 100% Full Load Burn-In Test
- Low Cost, High Reliability

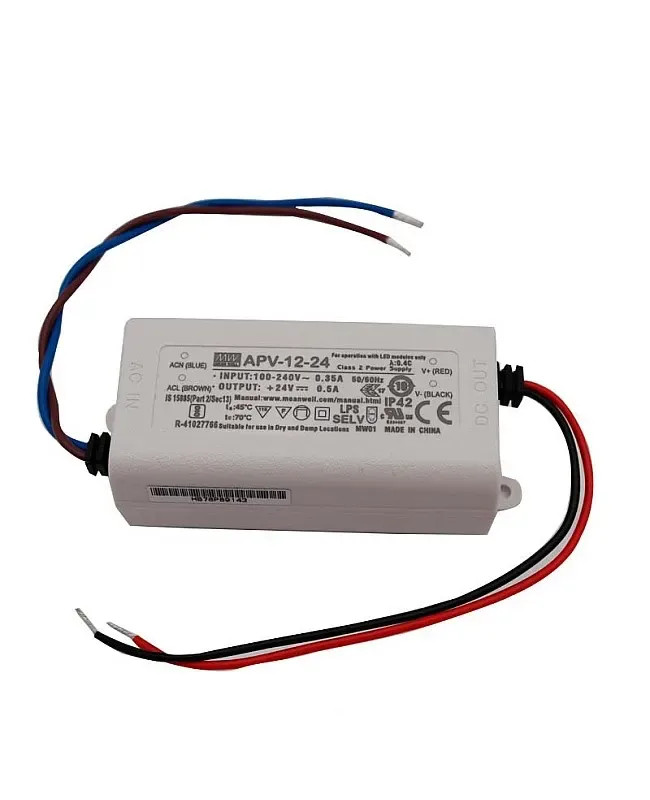

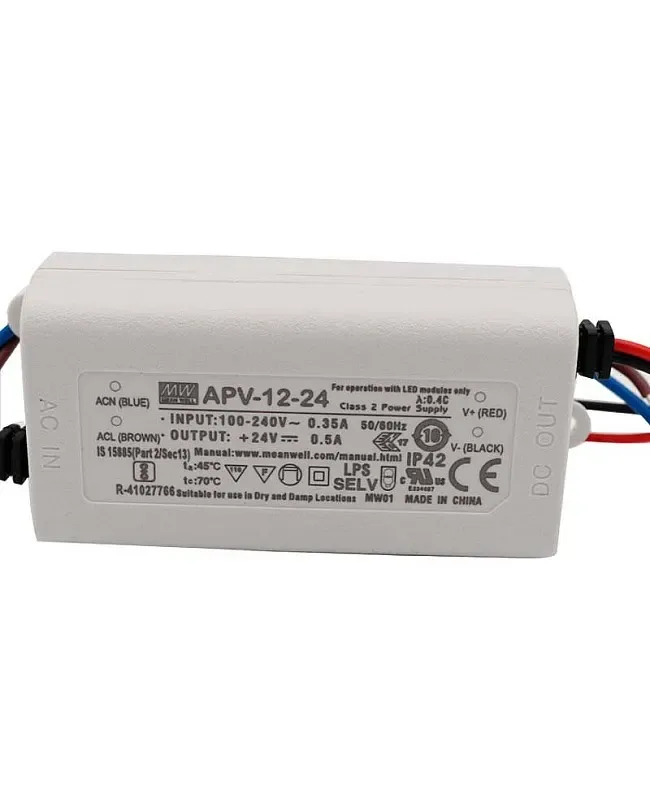

Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 12 V / 24 V
- LumaCircuit model: LC-PWR-36ZEHA
- Size: 77*40*29mm(L*W*H)
- Input Voltage Range: AC90V-AC264V
- Frequency Range: 47- 63Hz
- AC Current: 0.2A 0.35A
- Output Voltage Range: DC5V, DC12V, DC15V, DC24V
- Rated Current: 2A(DC5V), 1A(DC12V), 0.8A(DC15V), 0.5A(DC24V)
- Rated Power: 10W(DC5V), 12W(DC12V), 12W(DC15V), 12W(DC24V)
- Working Temperature: -30℃-+70℃
- Protections: Short Circuit Overload Over Voltage
- Dimensions found: 77x40x29mm / 29mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

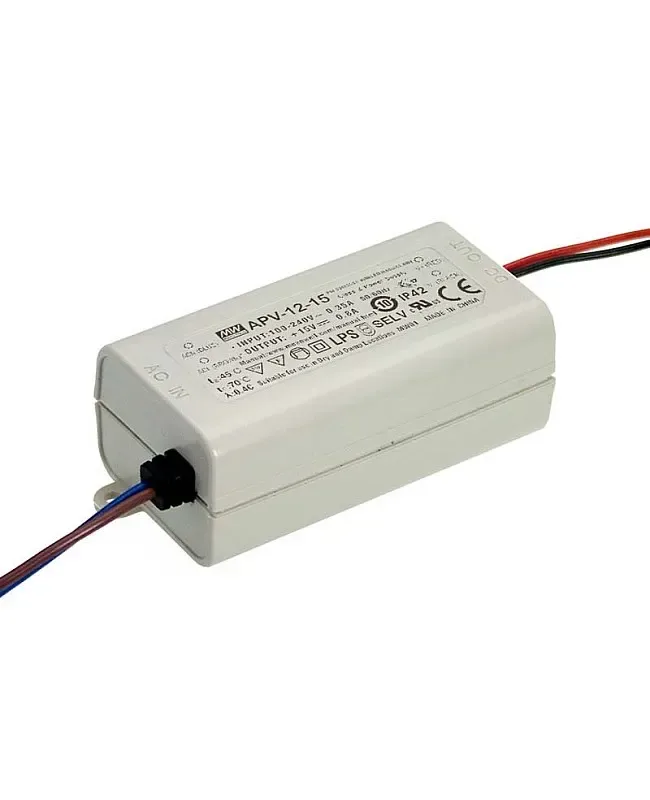

Product overview
The 12W single-output series LED drivers are designed to provide reliable and stable power for a wide range of LED applications. With a constant voltage output design, the installer can choose the various output voltage products from DC5V, DC12V, DC15V, or DC24V. Features a wide input voltage range of AC90V-AC264V, and a max output power of 12W. The driver is a low-cost, easy-to-use solution for powering LEDs. The LED drivers with a fully isolated plastic case design have overload protection, short circuit protection, and open circuit protection to ensure long-term performance. It can be used in dry or damp locations and is suitable for LED lights, fixtures, decorations, or advertisement devices.
Constant Voltage Design
Universal AC Input Full Range
Protections: Short Circuit Overload Over Voltage
Fully Isolated Plastic Case
Cooling By Free Air Convection
Small And Compact Size
Class II Power Unit, no FG
Class 2 Power Unit
IP42 Design
100% Full Load Burn-In Test
Low Cost, High Reliability
Quick Links
Specification Document

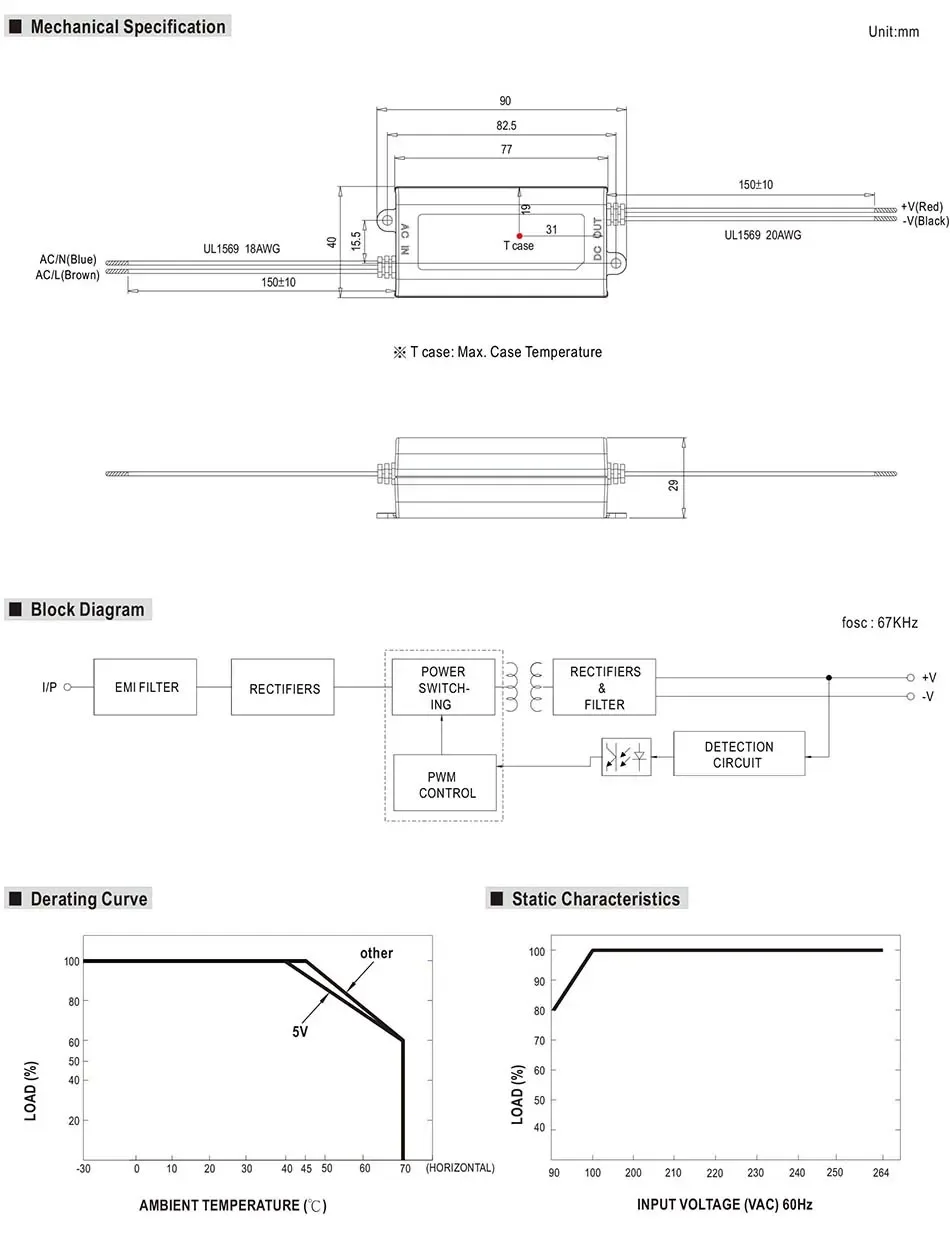

Specifications
Model
Size: 77*40*29mm(L*W*H)
Input Voltage Range: AC90V-AC264V
Frequency Range: 47- 63Hz
Efficiency: 76%(DC5V), 82%(DC12V), 82%(DC15V), 84%(DC24V)
AC Current: 0.2A 0.35A
Output Voltage Range: DC5V, DC12V, DC15V, DC24V
Rated Current: 2A(DC5V), 1A(DC12V), 0.8A(DC15V), 0.5A(DC24V)
Rated Power: 10W(DC5V), 12W(DC12V), 12W(DC15V), 12W(DC24V)
Working Temperature: -30℃-+70℃
Vibration: 10-500Hz, 2G the period for each along X, Y, and Z axes
Safety Standards. CSA.2 No.250.0-08, enec -1, -2-13, Independent, BIS IS 15885(Except For 15V), EAC TP TC 004, IP42 Approved
Overloading Protection
Over-Voltage Protection
Over Temperature Protection
Includes
1 * LED Driver
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
