Product details

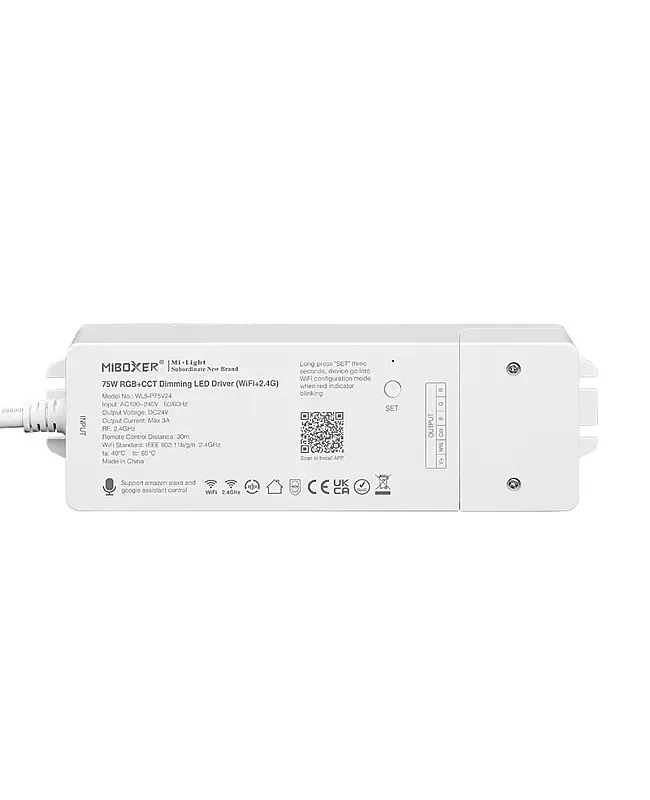

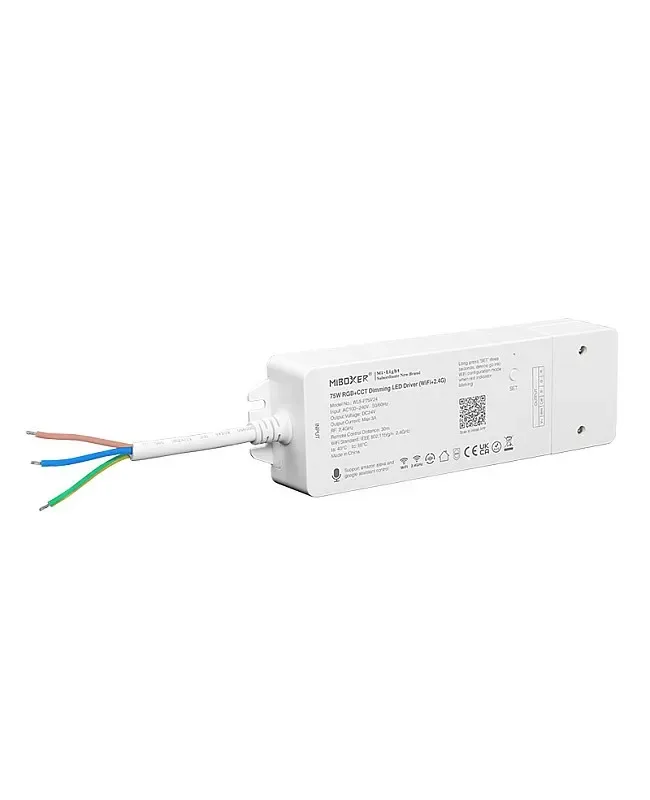

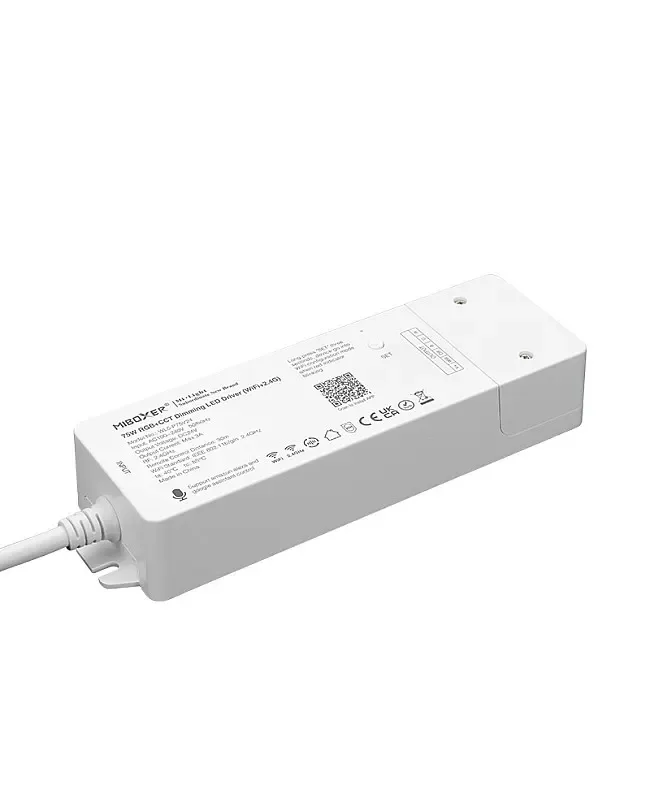

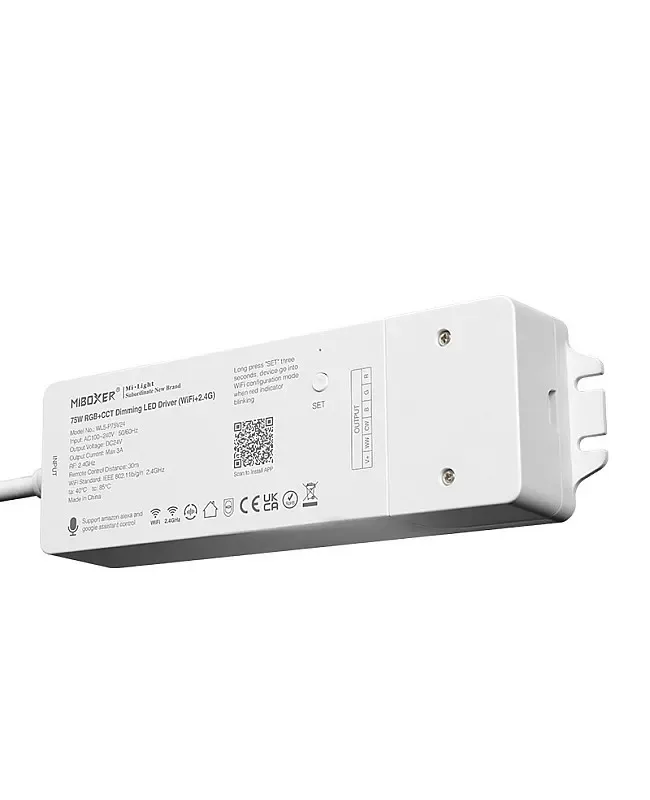

4G WiFi RGBWW 24V Dimmable LED Driver
LumaCircuit offers 4G WiFi RGBWW 24V Dimmable LED Driver as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. wireless controller Dimmable LED Driver Manual Material: Fireproof PC Shell Size: 190*53*32mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

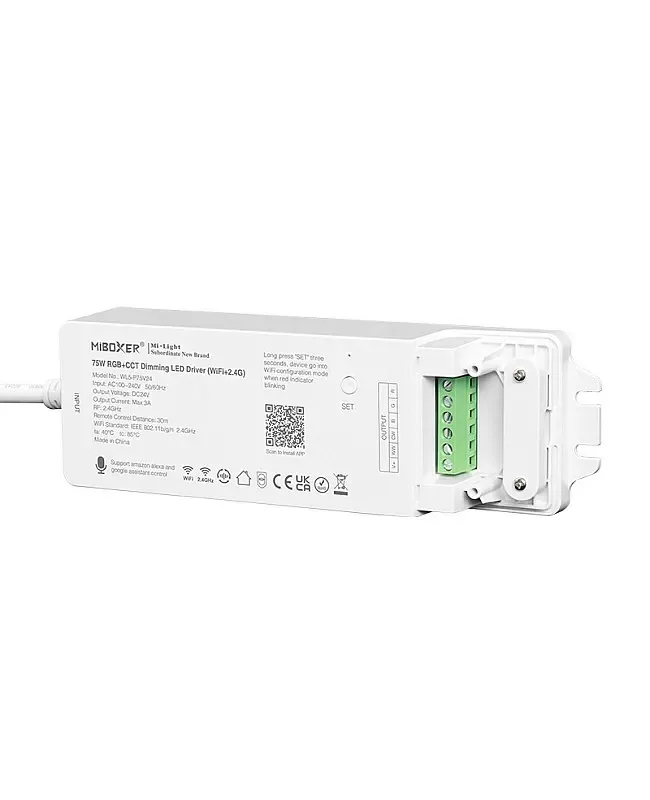

- The wireless controller - 24V dimmable LED driver is a 2.4 GHz WiFi-enabled device that allows users to control and dim LED lights wirelessly. The installer can use a remote control, a smartphone APP, and third-party voice commands to change the lighting color and adjust brightness and color temperature for various scenes. It is designed for the RGBWW LED lights. The LED drivers are made of fireproof PC material and have a screw port interface.
- wireless controller Dimmable LED Driver Manual
- Material: Fireproof PC Shell
- Size: 190*53*32mm(L*W*H)
- Working Voltage: -240V, 50/60Hz
- WiFi Standard: IEEE 802./g/n 2.
- Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
- Remote Control Distance: ≤30m
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 240 V
- Light engine: RGB+CCT
- Material: Fireproof PC Shell
- Size: 190*53*32mm(L*W*H)
- LumaCircuit model: LC-PWR-NLD176
- Working Voltage: -240V, 50/60Hz
- Output Voltage: DC24V
- Output Current: Max 3A
- Power: 75W Max
- Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
- Remote Control Distance: ≤30m
- IP Rating: Non-waterproof
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

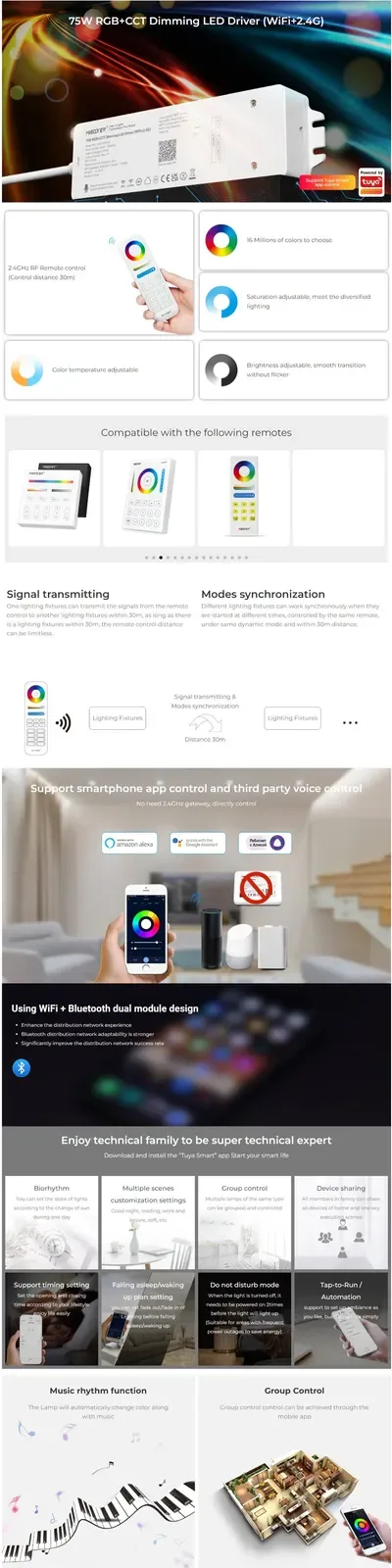

The wireless controller - 24V dimmable LED driver is a 2.4 GHz WiFi-enabled device that allows users to control and dim LED lights wirelessly. The installer can use a remote control, a smartphone APP, and third-party voice commands to change the lighting color and adjust brightness and color temperature for various scenes. It is designed for the RGBWW LED lights. The LED drivers are made of fireproof PC material and have a screw port interface. They are easy to connect to the LED light and do not need an extra power adapter. The wireless controller WL driver with 2.4G WiFi and Bluetooth dual module solution enhances the pairing network experience. Bluetooth distribution network adaptability is stronger, significantly improving the pairing network success rate. The installer can use the 2.4G RF remote controls to control the LED light remotely or the Smartphone APP. The 24V LED driver supports third-party voice control and can work with Amazon Alexa and Google Assistant. The installer can set the color for the LED light, and there are 16 million colors available; adjust the brightness and color temperature. Multiple LED lights of the same type can be grouped and controlled, and all family members can share all home devices and one key execution scene.
Quick Links
wireless controller Dimmable LED Driver Manual
Specifications
Material: Fireproof PC Shell
Size: 190*53*32mm(L*W*H)
Working Voltage: -240V, 50/60Hz
Output Voltage: DC24V
Output Current: Max 3A
Power: 75W Max
WiFi Standard: IEEE 802./g/n 2.
Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
RF: 2.
Remote Control Distance: ≤30m
16 Million Colors Available
Dim Brightness/2700 K- 6500 K Color Temperature Adjustable
WiFi+Bluetooth Dual Module Solution
Smartphone APP Remote Control
Support Third-Party Voice Control(Amazon Alexa, Google Assistant)
4G RF Remote Controllable
Support Group Control
APP Name: mobile app
Compatible With 2.4G RF Remote Controls; T4,
Music Mode
Timing Function
Signal Transmitting And Modes Synchronization
IP Rating: Non-waterproof
Includes
1 * wireless controller 24V Dimmable LED Driver
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
